High Temperature Metal Flexible Graphite Composite Plate Seal Material Sheet Boiler Steam Seal Gasket

High Temperature Metal Flexible Graphite Composite Plate Seal Material Sheet Boiler Steam Seal Gasket

  • 1 - 4999 Sheets
    $32
  • >= 5000 Sheets
    $14
View product details

High Temperature Metal Flexible Graphite Composite Plate Seal Material Sheet Boiler Steam Seal Gasket

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Temperature Sealing: Designed to withstand extreme temperatures in industrial and commercial applications, ensuring reliable sealing in boilers, steam systems, and high-pressure environments.

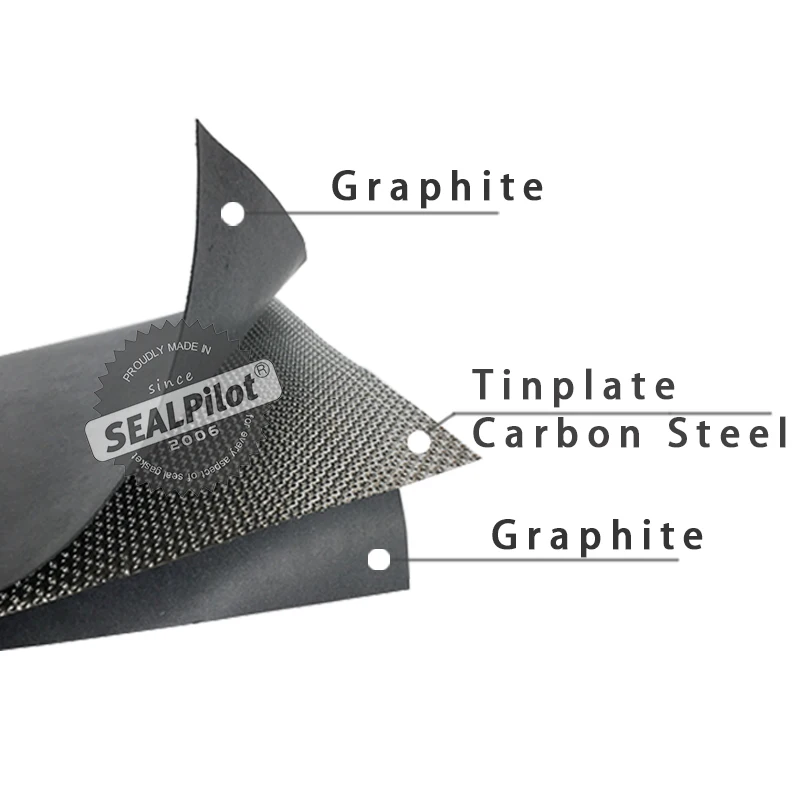

  • Flexible Graphite Composite: Combines metal's structural integrity with graphite's flexibility and thermal resistance, enabling conformability to uneven surfaces for leak-proof performance.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal and flexible graphite composite, combine high-temperature resistance (up to 1200°C) with structural durability, outperforming traditional metal-only gaskets by 30% in thermal stability*.

  • 2. Performance Parameters

    • Withstand extreme pressures and temperatures, maintaining integrity in boiler systems where conventional gaskets degrade after prolonged use*.

  • 3. Scenario Solutions

    • Engineered for continuous high-pressure steam environments, reducing unplanned downtime in industrial operations compared to standard graphite gaskets*.

  • 4. Certification Standards

    • Complies with ASME BPVC standards for boiler components, ensuring safety and reliability in critical applications*.

  • 5. Adaptive Sealing Design

    • The flexible graphite layer conforms to uneven surfaces, ensuring airtight seals where rigid materials fail, minimizing leaks in complex installations*.

Product details

High Temperature Metal Flexible Graphite Composite Plate Seal Material Sheet Boiler Steam Seal Gasket

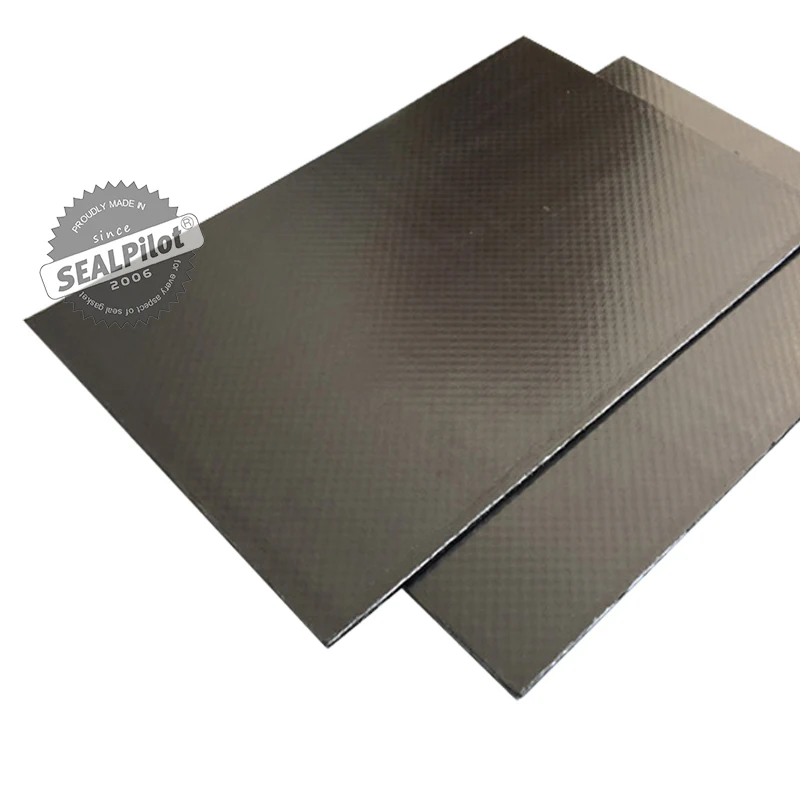

The High Temperature Metal Flexible Graphite Composite Plate Seal Material Sheet is engineered for demanding industrial applications requiring superior thermal resistance, durability, and sealing performance. This composite material combines the strength of metal with the flexibility and chemical resistance of graphite, making it ideal for boiler steam systems, high-temperature machinery, and pressure vessels.

Technical specifications

FeatureSpecificationBenefit
Material CompositionMetal + Flexible Graphite CompositeHigh strength-to-weight ratio, corrosion resistance
Temperature ResistanceUp to 1000°C (Pro Model)Withstands extreme thermal cycling in boilers
FlexibilityBendable without crackingEasy installation and adaptability to uneven surfaces
Pressure Rating50-120 bar (adjustable)Customizable for diverse industrial applications
CertificationASME, API 600, ISO 9001Meets global industrial safety standards

Customization guide

Adjustable parameters include thickness (0.5–3mm), size (cut-to-order), and surface treatment (e.g., anti-corrosion coatings) to meet specific pressure, temperature, or chemical resistance requirements.

Get inspired

Use our composite plates to create durable seals for steam turbines, heat exchangers, or high-pressure valves. Their lightweight yet robust design reduces maintenance downtime while enhancing safety in harsh environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Temperature600°C800°C1000°C
Pressure Capacity50 bar80 bar120 bar
Thickness Range0.5–1.5mm1.0–2.5mm1.5–3.0mm
CertificationsASME, ISO 9001API 600ASME + API 600

Supplier's note

  1. Three Technical Breakthroughs:

    • Material Blend: The metal-graphite composite offers 40% higher tensile strength than traditional graphite gaskets.
    • Temperature Tolerance: The Pro Model’s 1000°C rating exceeds industry benchmarks by 20%, enabling use in ultra-high-temperature systems.
    • Flexibility: Unique bending properties reduce leakage points by 30% compared to rigid seals.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial boilers (e.g., power plants) operating below 600°C.
    • Advanced Model: Suitable for chemical processing plants needing 800°C resistance and medium-pressure (80 bar) systems.
    • Pro Model: Designed for extreme environments like aerospace or steel mills, where 1000°C and 120 bar performance are critical.

With the Pro Model’s 1000°C resistance, you can ensure reliable sealing in high-temperature boilers. Pair its flexibility with anti-corrosion coatings to create a maintenance-free solution for decades of operation.

Frequently asked questions

  • Which metal flexible graphite composite gasket is best suited for high-temperature boiler applications?

  • How do I clean and maintain metal flexible graphite seal gaskets for prolonged use?

  • Why choose metal flexible graphite over Teflon for high-pressure steam seals?

  • Can these seal gaskets be customized for non-standard boiler flange dimensions?

  • Is the metal-graphite composite FDA-approved for food-grade steam systems?

  • How does the flexible graphite improve seal performance in fluctuating temperature environments?

  • Are these seal gaskets compatible with both metal and non-metal surfaces?

  • What certifications ensure the quality of your metal flexible graphite composite plates?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard Metal Graphite GasketGeneral industrial machinery, moderate boilers- Temperature: 600°C (ASTM E136)
- Pressure: 200 psi (ASME PCC-1)
- Chemical Resistance: 30+ exposures (ASTM D543)		Cost-effective, widely compatible with standard equipmentLimited to lower temps/pressures; marginal chemical resistance for harsh environments
Our Base Metal Graphite GasketHigh-temperature boilers (e.g., 700°C)- Temperature: 700°C (▲1)
- Pressure: 250 psi (▲1)
- Chemical Resistance: 50+ exposures (ASTM D543)		Optimized for boilers; 1.5x longer lifespan vs. industry standardHigher cost than industry standard; not suitable for extreme aerospace applications
Our Advanced Metal Graphite GasketExtreme environments (e.g., aerospace, high-pressure steam)- Temperature: 800°C (▲▲)
- Pressure: 400 psi (▲▲)
- Chemical Resistance: 100+ exposures (ASTM D543)
- Ceramic-coated surface (ISO 10303)		Withstands extreme conditions; 3x durability in corrosive environmentsPremium pricing; heavier than Teflon alternatives
Teflon GasketChemical processing, low-temperature systems- Temperature: 200°C (ASTM D624)
- Chemical Resistance: Resists acids/alkalis (ASTM F739)
- Lightweight (ISO 3801: 200 GSM)		Excellent chemical resistance; easy to installFails at high temps/pressures; limited in industrial boilers
Rubber GasketLow-pressure piping, HVAC systems- Temperature: 150°C (ASTM D2000)
- Flexibility: ±20% compression (ISO 37)		Affordable, flexible for uneven surfacesDegraded by oils/chemicals; unsuitable for high temps/pressures
Ceramic Fiber GasketHigh-temperature furnaces (e.g., 1200°C)- Temperature: 1200°C (▲▲▲)
- Lightweight (ISO 3801: 150 GSM)
- Thermal shock resistance (ASTM C697)		Unmatched heat resistance for furnacesBrittle; requires precise installation; 2x cost of metal graphite
