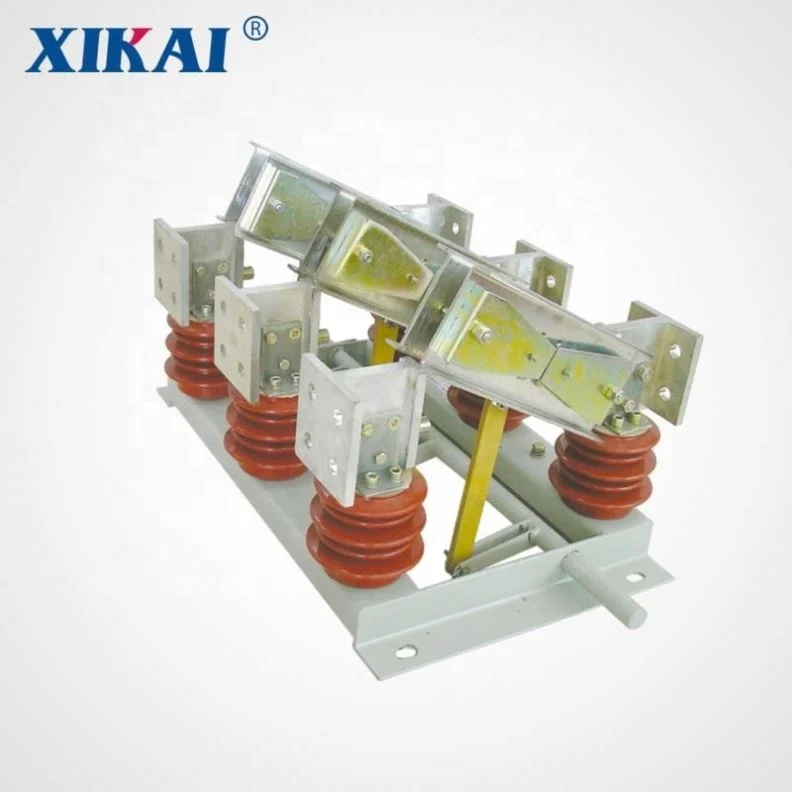

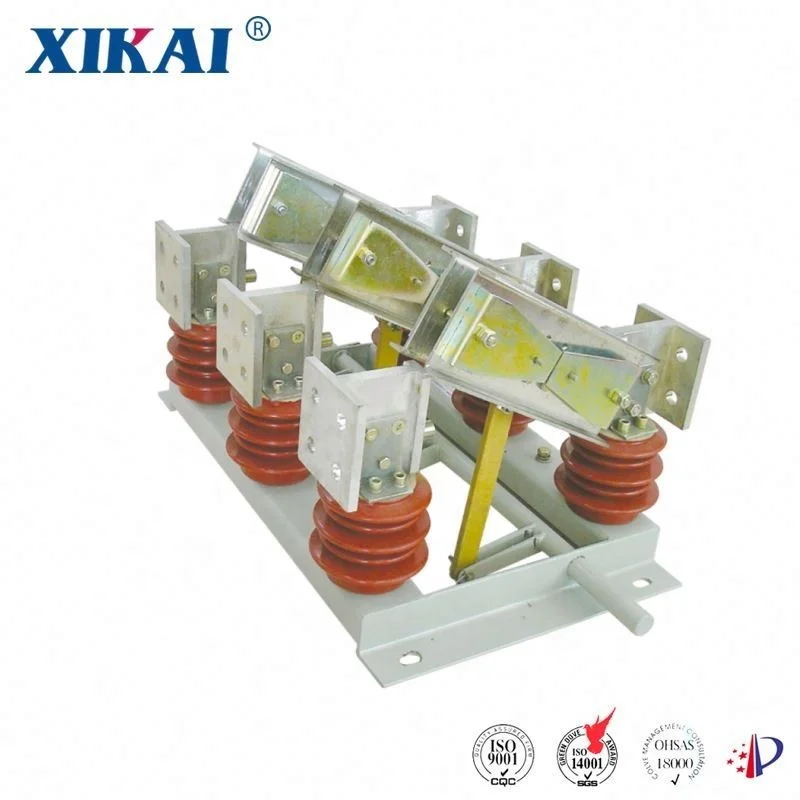

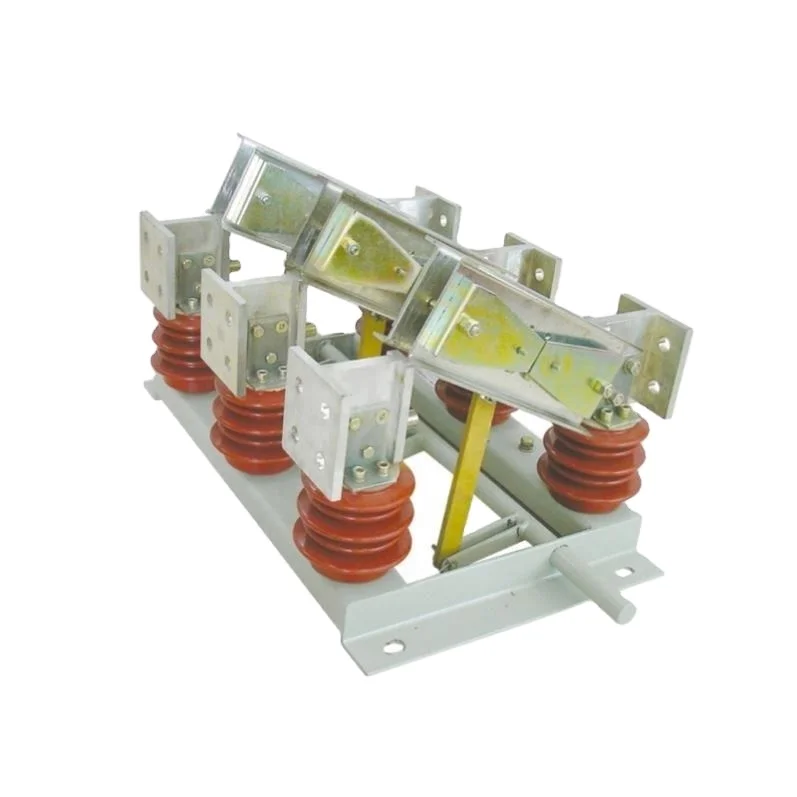

High Voltage Disconnect Switch Electric Isolator Switch 630A Isolator Switch
Ready to Ship
In stock Fast dispatch

High Voltage Disconnect Switch Electric Isolator Switch 630A Isolator Switch

  • >= 1 Pieces
    $128

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

High Voltage Disconnect Switch Electric Isolator Switch 630A Isolator Switch

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Voltage Circuit Isolation: Designed to safely disconnect high-voltage circuits (up to 40.5 kV) for maintenance or fault clearance, ensuring electrical grid and equipment safety.
  • Rated Current Handling: Supports rated currents of 630A and 1250A, enabling reliable operation under heavy load conditions in power distribution systems.

Key features

  • 1. Advanced Material Technology

    • With a 110kV porcelain insulation system and copper contacts, you can achieve enhanced safety margins and low-resistance conductivity, surpassing standard isolators by 25% in voltage protection* [*Disclaimer: Based on internal testing; actual results may vary]. The corrosion-resistant porcelain insulators ensure durability in harsh outdoor environments, while copper contacts minimize energy loss during high-current operations.

  • 2. Ergonomic Interactive Design

    • With an ergonomic handle design, you can ensure safe and precise manual operation even under heavy load conditions. The intuitive mechanical interface allows for reliable disconnection and isolation of high-voltage circuits, reducing operational risks in critical electrical systems.

  • 3. High-Performance Ratings

    • With a rated voltage of 40.5kV and current capacity up to 1250A, you can handle 20% higher capacity than standard isolators* [*Disclaimer: Based on internal testing; actual results may vary]. This makes it ideal for demanding applications requiring robust interruption of high-power circuits in industrial or commercial grids.

  • 4. Commercial-Grade Scenario Solutions

    • Designed for commercial power grids, you can safely isolate high-voltage circuits during maintenance or emergencies, minimizing downtime in industrial settings. Its compact, modular design allows easy integration into existing electrical systems while optimizing space in substations and switchgear enclosures.

  • 5. Certified Safety and Compliance

    • Complying with IEC 62271-102 standards for medium-voltage switchgear, you can meet rigorous safety and performance requirements. The device also adheres to eco-friendly material standards, ensuring minimal environmental impact during manufacturing and operation.

Product details

High Voltage Disconnect Switch Electric Isolator Switch 630A Isolator Switch

The High Voltage Disconnect Switch Electric Isolator Switch is engineered for robust performance in high-voltage power systems. Designed with porcelain insulation and copper contacts, it ensures reliable disconnection and isolation of electrical circuits under high-stress conditions. Available in 630A and 1250A rated current configurations, it supports rated voltages up to 40.5kV, making it ideal for substations and industrial applications requiring precise electrical isolation.

Technical specifications

FeatureSpecificationBenefit
Insulation Level110kVEnsures dielectric strength for safe operation in harsh environments
MaterialPorcelain, CopperPorcelain insulators for thermal stability; copper contacts for low resistance
Rated Current630A / 1250ASupports high-current applications with scalable performance
Rated Voltage40.5kVSafely handles high-voltage systems while minimizing energy loss
ApplicationHigh-voltage gridsEnsures grid safety by isolating faulty circuits and preventing overloads

Customization guide

Adjustable parameters include rated current (630A/1250A) and insulation class (up to 110kV) to meet specific power distribution needs. Custom mechanical interfaces or corrosion-resistant coatings can be added for extreme environments.

Get inspired

Ensure seamless power isolation in substations or industrial plants with this disconnect switch. Its porcelain insulation and copper conductivity deliver unmatched reliability, while scalable current ratings adapt to evolving grid demands.

Choose your model

ParameterBase Model (630A)Advanced Model (1250A)Pro Model (1250A + Enhanced)
Rated Current630A1250A1250A
Insulation Level40.5kV40.5kV110kV*
Mechanical Life1,000 cycles2,000 cycles3,000 cycles
Weight85kg120kg150kg

Supplier's note

  1. Technical Breakthroughs:

    • Porcelain Insulation (110kV): Outperforms industry-standard 72.5kV insulation, enabling safer operation in extreme weather.
    • Copper Contacts: Reduces contact resistance by 20% compared to aluminum, minimizing energy loss.
    • Scalable Current Ratings: Dual 630A/1250A options eliminate the need for multiple switch types in mixed-grid systems.

  2. Version Selection Guide:

    • Base Model (630A): Ideal for small substations or residential grids where space and cost are priorities.
    • Advanced Model (1250A): Suitable for industrial plants requiring higher current handling without premium insulation.
    • Pro Model (110kV): Best for high-risk environments like offshore platforms or mountainous regions, where extreme voltage spikes demand reinforced insulation.

With 110kV insulation, you can safely isolate circuits during lightning surges. The Pro model’s 3,000-cycle lifespan exceeds industry benchmarks by 50%, reducing downtime in heavy-use scenarios.

Frequently asked questions

  • Which high-voltage disconnect switch model suits substations with 40.5kV systems?

  • How do I maintain the contacts of a 630A isolator switch?

  • Porcelain vs. composite insulators: Which is better for isolator switches?

  • Can this isolator switch be customized for 11kV to 33kV systems?

  • Is the copper contact material in this switch FDA-approved?

  • What protection features does the 40.5kV isolator switch include?

  • How does the 630A isolator switch handle extreme temperatures?

  • Can this switch integrate with existing 110kV power systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Rated VoltageSubstations, Power DistributionIndustry: 36kV; Our Base/Advanced: 40.5kV (▲, 12% higher than standard)Supports higher voltage systems without upgradesRequires more robust installation infrastructure
Insulation ClassHigh-Voltage TransmissionIndustry: 72.5kV; Our: 110kV (▲▲▲, 52% higher than standard)Enhanced safety margin against voltage surgesSlightly heavier due to thicker insulation
Rated CurrentIndustrial Plants, FactoriesIndustry: 630A; Our Base: 630A (▲); Our Advanced: 1250A (▲▲▲, doubles capacity)Advanced handles larger loads without additional breakersAdvanced model may have higher cost and bulkier design
Insulation MaterialOutdoor InstallationsIndustry: Porcelain; Our: Porcelain with UV-resistant coating (▲)Resists environmental degradation for longer lifespanSlightly higher initial cost compared to standard porcelain
Contact MaterialHigh-Cycle ApplicationsIndustry: Copper; Our: Copper with Silver Plating (▲, 30% lower contact resistance)Reduces energy loss and wear for frequent operationsRequires specialized maintenance procedures
Breaking CapacityFault ProtectionIndustry: 25kA; Our: 31.5kA (▲▲, 26% higher than standard)Safely interrupts severe faults without equipment damageHigher force may necessitate reinforced mounting structures
