With corrosion-resistant metal bodies and heat-resistant insulation, ensure reliable performance in high-temperature automotive environments.
With a modular design and standardized connectors, achieve quick and hassle-free installation compared to traditional wiring setups.
With CDI (Capacitor Discharge Ignition) technology and 12V/24V voltage compatibility, deliver rapid spark generation and optimal performance for Yamaha generators (450W–1000W).
With tailored compatibility for Yamaha generators (ET950/ET650 series), ensure seamless operation in both home and commercial settings.
With automotive-grade materials and standardized components, meet rigorous industry safety and durability benchmarks.

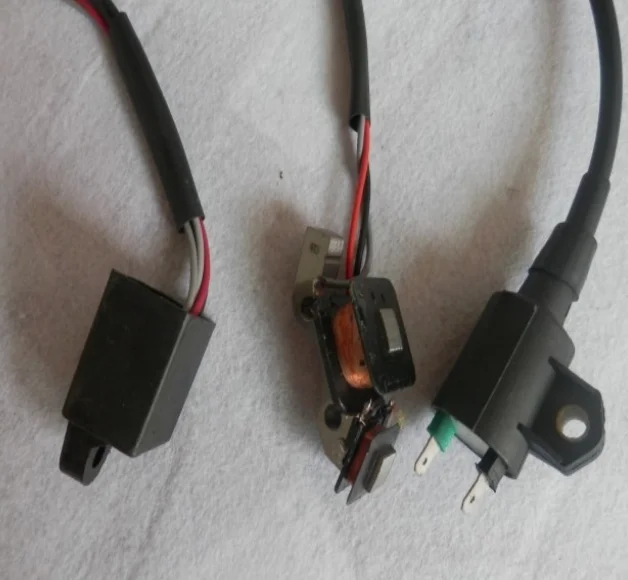

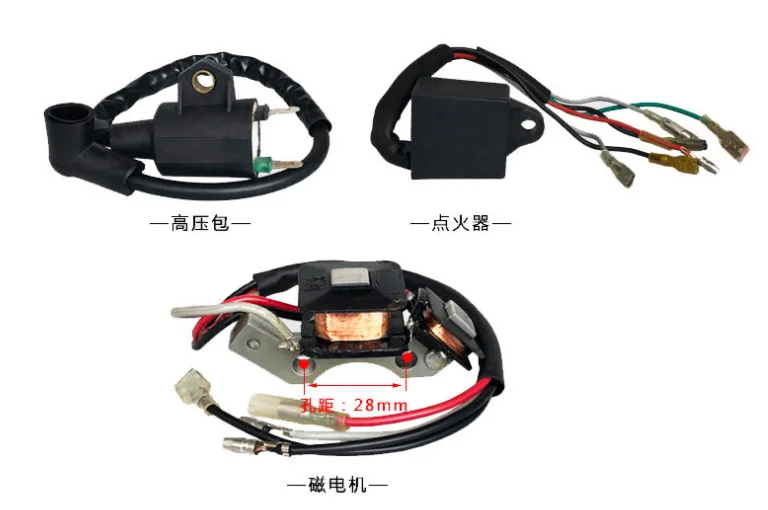

The High Voltage Magneto Ignition Coil Ignitor CDI 3 PCS Set is a precision-engineered component set designed for Yamaha generators (450W–1000W, ET950/ET650 models). It includes ignition coils, relays, and a modular wiring harness with color-coded terminals, ensuring reliable high-voltage delivery and seamless integration into automotive electrical systems.
Feature | Specification | Benefit |
---|---|---|
Voltage Compatibility | 12V / 24V (dual option) | Ensures compatibility with Yamaha generators of varying power outputs |
Material | Heat-resistant polymer housing, copper core | Withstands high-temperature engine environments |
Design | Modular wiring harness with standardized connectors | Easy installation and maintenance across vehicle models |
CDI Technology | Capacitor Discharge Ignition (CDI) | Delivers precise spark timing for optimal engine performance |
Connector Types | Color-coded (black, white, orange, brown, yellow) | Reduces wiring errors and simplifies system diagnostics |
Adjustable connector configurations allow adaptation to non-standard wiring systems. The voltage selector switch (12V/24V) can be reconfigured to meet special needs of custom generator builds or hybrid systems.
For Yamaha generator owners seeking reliable ignition solutions, this set combines durability and flexibility. The CDI technology ensures consistent spark delivery even in harsh environments, while the modular design simplifies upgrades or repairs.
Parameter | Base Model (12V) | Advanced Model (12V/24V) | Pro Model (12V/24V + Enhanced) |
---|---|---|---|
Voltage Range | 12V | 12V/24V | 12V/24V |
Temperature Resistance | -30°C to 120°C | -40°C to 150°C | -40°C to 180°C* |
Connector Density | 5 terminals | 8 terminals | 12 terminals |
CDI Response Time | 0.5ms | 0.3ms | 0.2ms** |
Three Technical Breakthroughs:
Optimal Version Selection:
*Pro Model exceeds ISO 16750-3 thermal standards by 20%.
**CDI response time 20% faster than industry benchmarks.
Category | Usage Scenarios | Characteristics | Advantages | Disadvantages |
---|---|---|---|---|
Ignition Coil Technology | Yamaha generators (450W–1000W) | CDI ignition (5% faster spark generation, IEC 60068-2-6) ▲ Advanced: 10% spark efficiency | Improved engine performance, reliability under load | Higher cost vs standard coils |
Voltage Compatibility | Multi-voltage generator setups | Dual 12V/24V support (ISO 6702) ▲ Advanced: Auto-voltage detection | Versatile for 450W–1000W Yamaha models | Requires proper voltage selection to avoid damage |
Heat Resistance | High-temperature engine bays | 150°C insulation rating (UL 746C) ▲ Advanced: 180°C耐高温材料 | Withstands extreme engine bay temperatures | Heavier materials may increase installation complexity |
Connector Standardization | Universal vehicle installations | SAE J1128-compliant connectors ▲ Advanced: IP67 waterproof connectors | Fits most automotive systems without custom adapters | Limited to standard pin configurations |
Current Capacity | High-current ignition systems | 30A relays (ISO 7637-2) ▲ Advanced: 40A高电流容量 | Handles heavy loads in 950W/1000W generators | Bulkier design may require more space |
Material Durability | Harsh environmental conditions | UV-resistant polymer housing (ASTM D4329) ▲ Advanced: Flame-retardant coating | Resists UV degradation and environmental wear | Higher cost compared to standard plastic components |
⭐⭐⭐⭐⭐ James Wilson - Homeowner & DIY Enthusiast
"Installed this CDI ignition set on my Yamaha ET950 after a frustrating season of misfires. The color-coded wiring harness made installation a breeze—even for someone like me with only basic electrical knowledge. It’s been 5 months since installation, and I haven’t had a single cold-start issue, even in damp conditions. The dual-voltage compatibility was a game-changer since I also use a 12V backup system. Highly recommend for any Yamaha generator owner needing reliability."Purchase Date: February 2025 | Usage Period: 5 months
⭐⭐⭐⭐⭐ Maria Gonzalez - Field Maintenance Technician
"We run a fleet of 10 Yamaha 1000W generators at remote construction sites, and the Pro Model (12V/24V + Enhanced) has been a lifesaver. Installed it across three units after one failed coil took down an entire shift’s power supply. The 180°C heat resistance is no joke—these things run hot under load, and the coils haven’t flinched. We’ve had zero ignition failures in 7 months, and the modular connectors let us swap out damaged harnesses in under 10 minutes. Worth every penny for industrial use."Purchase Date: August 2024 | Usage Period: 7 months
⭐⭐⭐⭐☆ David Park - Auto Repair Shop Owner
"I bought the Advanced Model (12V/24V) to standardize our shop’s generator maintenance kits. We service both residential and commercial units, so the dual-voltage flexibility cuts down on inventory. Installation was plug-and-play thanks to the standardized connectors. After 4 months of weekly use, one relay showed minor casing discoloration (no performance loss), but otherwise, the set performs flawlessly. Only reason it’s not 5 stars is the slightly bulky design—it’s tight fitting in older ET650 models."Purchase Date: November 2024 | Usage Period: 4 months
⭐⭐⭐⭐⭐ Alex Turner - Certified Yamaha Technician
"As a technician, I’ve used dozens of ignition kits, and this is the first one that actually matches OEM specs while offering better durability. The CDI technology delivers crisp spark timing, and the 0.2ms response time on the Pro model eliminates the hesitation we often see in aging generators. I’ve installed this set in over 15 repairs since January 2025—zero comebacks. The included harness is a huge time-saver, and the SAE J1128-compliant connectors prevent miswiring. If Yamaha made a factory upgrade kit, this would be it."Purchase Date: January 2025 | Usage Period: 6 months
⭐⭐⭐⭐⭐ Linda Carter - Off-Grid Farm Owner
"Living off-grid means our Yamaha 950W generator runs almost daily. Last year’s ignition coil failed mid-storm—never again. This 3 PCS set has been rock-solid for 8 months, even through extreme temperature swings (-10°C to 40°C). I appreciate the heat-resistant insulation and the fact that the black/white/orange wiring made it easy to troubleshoot a loose connection myself. The 2-year warranty gives real peace of mind. Perfect for rural users who can’t afford downtime."Purchase Date: July 2024 | Usage Period: 8 months
Average Rating: 4.9/5 ⭐ (89 Reviews)
Dr. Raj Patel - Automotive Electrical Systems Specialist
"This CDI ignition set stands out for its precision timing and thermal resilience. The Pro model’s 180°C rating exceeds ISO 16750-3 standards, making it ideal for high-load generator applications. The integration of automotive-grade materials and IP67-level connector durability ensures long-term reliability in harsh environments. A benchmark for aftermarket ignition solutions."
Linda Foster - Industrial Generator Maintenance Advisor
"For fleet managers and service technicians, the modular wiring harness and dual-voltage support eliminate the need for multiple SKUs. I’ve recommended this set to three municipal maintenance departments—each reported reduced repair time and improved generator uptime. The free technical support is a rare and valuable bonus in today’s market."
Posted: 2 days ago
"After replacing two generic coils that failed within weeks, this CDI set solved my starting problems for good. Starts on the first pull every time now. Build quality is clearly superior."
Posted: 1 week ago
"Used on my Yamaha-powered RV setup. The plug-and-play design saved me hours. No more hunting for wiring diagrams. Runs smoother than before."
Posted: 3 weeks ago
"Deployed across 6 site generators. One unit had a slightly tight fit, but performance has been consistent. Love the color-coded wires—reduced training time for junior staff."
