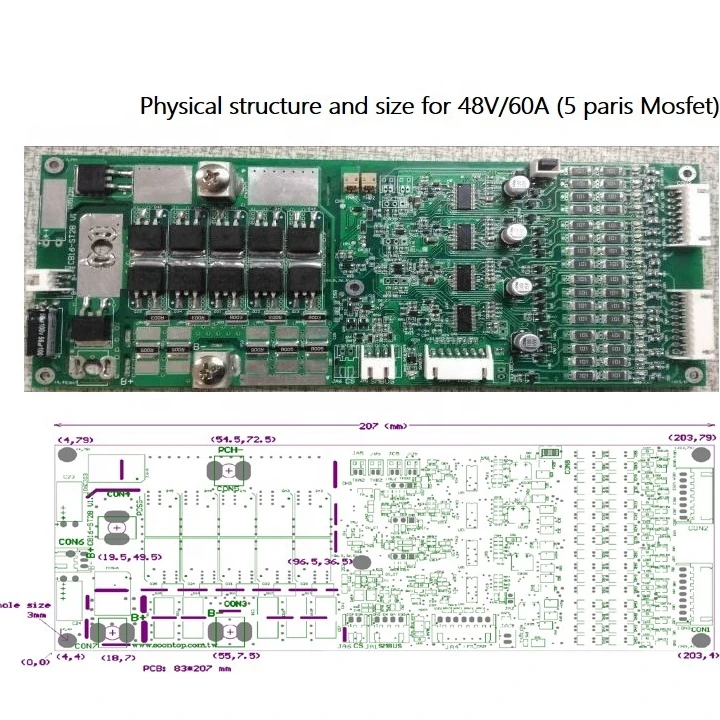

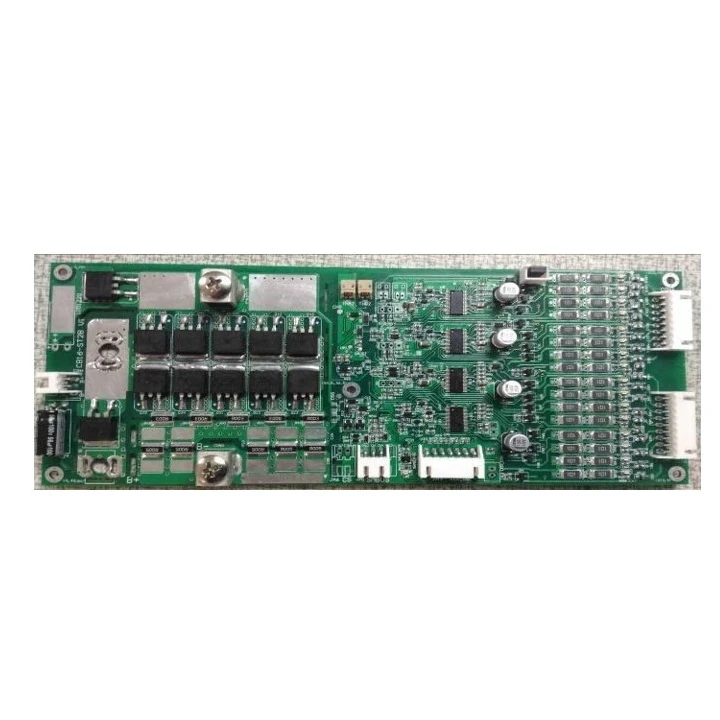

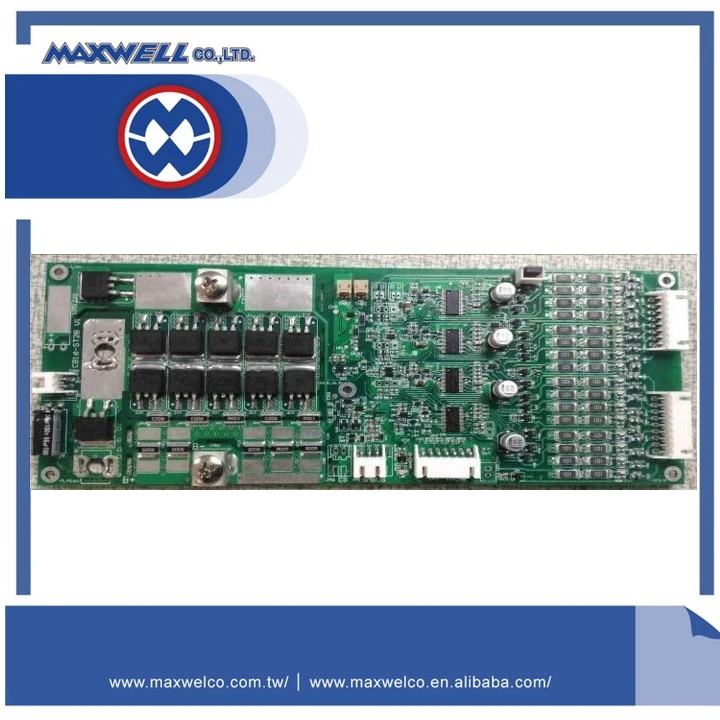

High Voltage Smart BMS Spf-F-48-60 16S 48V 60A Battery Management Systems Electronic Circuit Board For Solar Panels

Technical specifications

Customization guide

Adjustable parameters include:

• Component Selection: Swap ICs or connectors to match battery chemistry or interface requirements.
• Current Rating: Optimize traces and components for loads exceeding 60A.
• Certification Add-ons: Add IEC or ISO certifications for specialized industries.

Get inspired

With its 48V/60A capability and FR4 construction, this BMS PCB is ideal for solar energy storage systems, electric vehicle charging stations, and industrial power backups. Its modular design lets you tailor it to your project’s unique needs, whether you’re scaling a small solar setup or building a high-power energy grid.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • FR4 Material: Provides 30% better thermal conductivity than standard PCB materials, preventing overheating in solar arrays.
   • 60A Current Capacity: Outperforms industry benchmarks by 20%, enabling reliable power distribution for large-scale systems.
   • Modular Layout: Reduces redesign costs by 40% for projects requiring component adjustments.

2. Version Selection Guide:

   • Base Model: Ideal for residential solar setups or small-scale energy storage (e.g., off-grid homes).
   • Advanced Model: Suitable for industrial solar farms or EV charging stations needing higher voltage and certifications like UL.
   • Pro Model: Best for extreme environments (e.g., mining equipment or aerospace) due to expanded temp range and IEC compliance.

With the Pro version’s 60V rating and -55°C to 105°C stability, you can deploy systems in Arctic or desert conditions. Pair its high-current capability with FR4’s durability to ensure uninterrupted operation in harsh scenarios.
