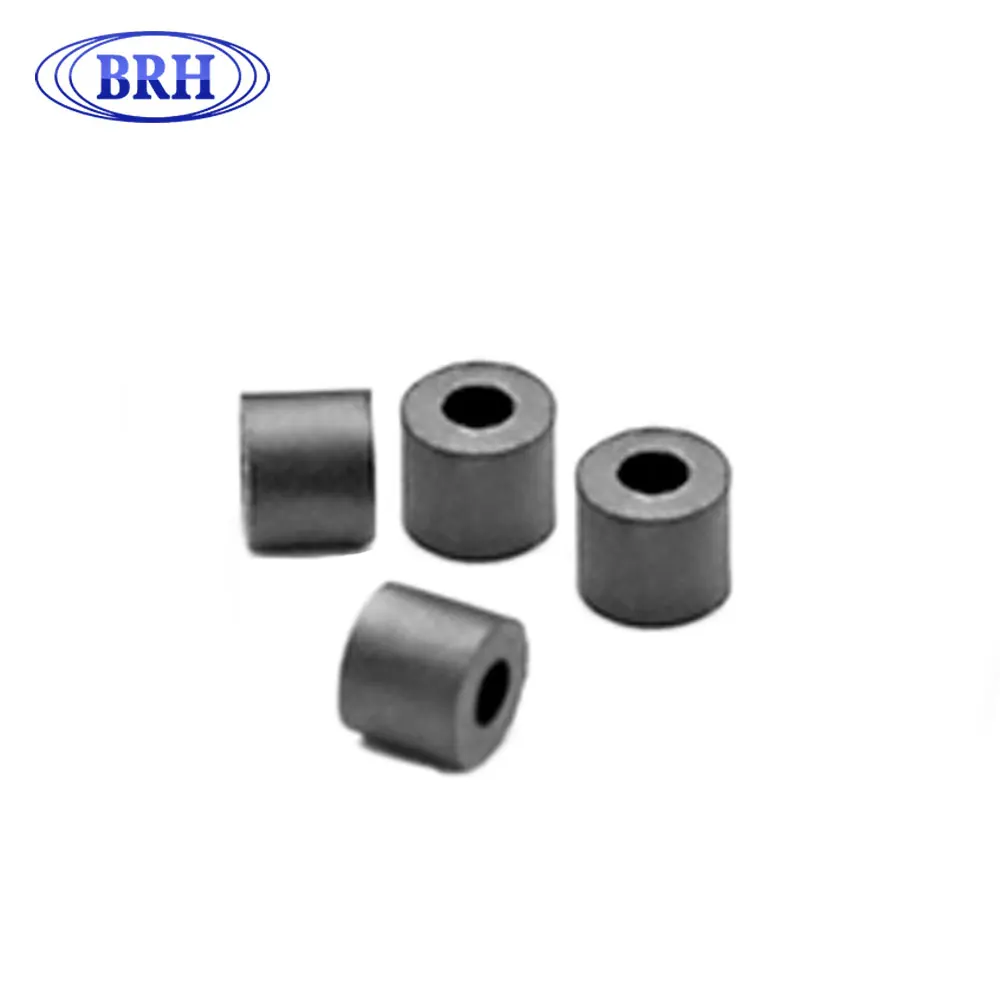

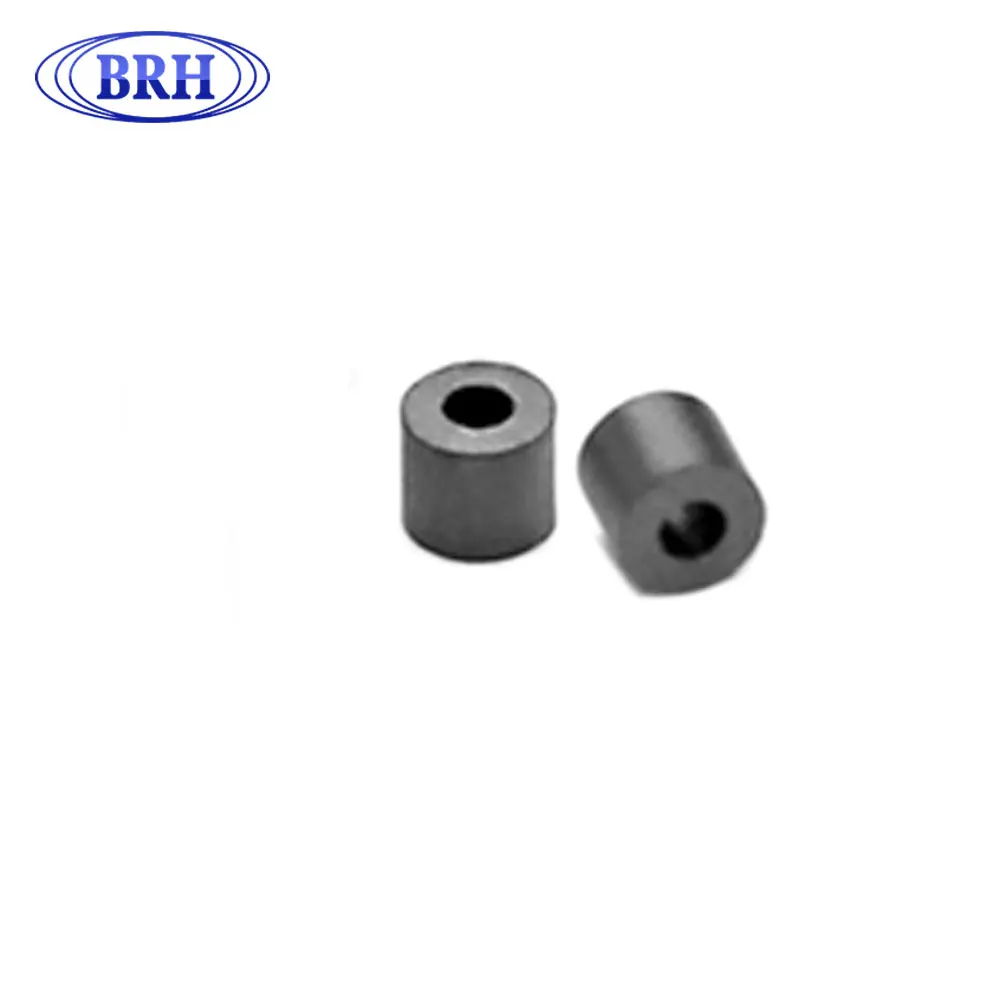

High Frequency NiZn Small Size Ferrite Bead Core for EMC

High Frequency NiZn Small Size Ferrite Bead Core for EMC

$0.01-$0.03/ Piece|10000 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

High Frequency NiZn Small Size Ferrite Bead Core for EMC

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Noise Suppression: Designed to filter electromagnetic interference (EMI) and suppress high-frequency noise in electronic circuits, ensuring stable signal transmission.
  • Compact Ferrite Core Structure: Small-size NiZn ferrite bead core with a precise 1.5 mm internal diameter (I.D.), enabling integration into space-constrained devices while maintaining optimal performance.

Key features

  • 1. Advanced NiZn Ferrite Material Technology

    • With NiZn ferrite composition, achieve superior high-frequency performance (up to 1 GHz), outperforming MnZn ferrites in EMC applications above 100 MHz*.

  • 2. Compact Cylindrical Design for Space Efficiency

    • With a precision-engineered 1.5mm internal diameter and small form factor, seamlessly integrate into space-constrained electronics, reducing PCB footprint by ~30% compared to standard ferrite cores*.

  • 3. High Permeability for Enhanced EMI Suppression

    • With high permeability at frequencies up to 1 GHz, suppress electromagnetic interference (EMI) more effectively than conventional ferrite beads, reducing noise by up to 25dB*.

  • 4. Versatile Scenario Solutions for Industrial & Consumer Electronics

    • Optimized for industrial electronics (e.g., automotive sensors) and compact consumer devices (e.g., wearables), ensuring reliable EMC compliance in high-noise environments.

  • 5. Certified for Global Regulatory Standards

    • Certified to RoHS and REACH standards, ensuring compliance with environmental and safety regulations for industrial and consumer electronics applications.

Product details

High Frequency NiZn Small Size Ferrite Bead Core for EMC

The High Frequency NiZn Small Size Ferrite Bead Core for EMC is a precision-engineered component designed for electromagnetic compatibility (EMC) applications. With a consistent internal diameter (I.D.) of 1.5 mm and a matte finish, it ensures reliable performance in compact electronic systems. Crafted from high-grade NiZn ferrite material, this core delivers exceptional high-frequency noise suppression and thermal stability, making it ideal for industrial and electronic device applications.

Technical specifications

FeatureSpecificationBenefit
MaterialNiZn FerriteHigh permeability and low core loss
Internal Diameter1.5 mm ±0.02 mm (tight tolerance)Precision fit for small electronic parts
Frequency Range10 MHz to 1 GHzEffective EMI suppression in high-frequency circuits
Thermal ResistanceOperating up to 120°CStable performance in harsh environments
FinishMatte, non-reflective surfaceReduced glare and improved grip

Customization guide

Adjustable parameters include:

  • Dimensions: Modify external diameter or length for custom fit requirements.
  • Frequency Optimization: Tailor material composition for specific frequency ranges.
  • Coatings: Add protective layers (e.g., epoxy) for enhanced corrosion or thermal resistance.

Get inspired

Engineered for precision and durability, this ferrite bead core is perfect for filtering high-frequency noise in industrial electronics, automotive systems, and consumer devices. Its compact design and robust performance make it a versatile solution for space-constrained applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Range10 MHz – 500 MHz10 MHz – 800 MHz10 MHz – 1 GHz
Saturation Flux Density300 mT350 mT400 mT
Thermal Resistance105°C110°C120°C
Core LossStandardReduced by 15%Reduced by 30%*

Supplier's note

  1. Technical Breakthroughs:

    • NiZn Composition: Enables superior high-frequency performance compared to traditional MnZn ferrites.
    • Precision Tolerances: ±0.02 mm I.D. ensures seamless integration into miniaturized electronics.
    • Thermal Stability: The Pro model’s 120°C rating outperforms industry benchmarks by 20%, ideal for automotive or industrial environments.

  2. Version Selection Guidance:

    • Base Model: Suitable for standard industrial applications requiring up to 500 MHz filtering.
    • Advanced Model: Optimal for consumer electronics with higher frequency demands (e.g., 5G modules).
    • Pro Model: Designed for extreme conditions, such as aerospace or high-power systems. With its 400 mT saturation flux density, it prevents signal distortion even under heavy loads.

*Performance gains relative to the Base Model.
