High Frequency Transformer Ferrite Core Smps Transformer Ee16 with Best Price

High Frequency Transformer Ferrite Core Smps Transformer Ee16 with Best Price

$0.50-$1.20/ Piece|1000 Piece/Pieces(Min. Order)
View product details

High Frequency Transformer Ferrite Core Smps Transformer Ee16 with Best Price

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Voltage Transformation: Designed for efficient energy transfer in switched-mode power supply (SMPS) systems, capable of handling up to 10kV input voltage with minimal energy loss due to its ferrite core and high-frequency optimized design.
  • Autotransformer Design: Features a single copper winding for compact, cost-effective voltage adjustment and step-up/step-down capabilities, ideal for precise power regulation in electronic circuits.

Key features

  • 1. Material Technology

    • With a ferrite core and copper windings, you can achieve high-frequency efficiency with minimal energy loss, outperforming traditional iron-core transformers in SMPS applications*.

  • 2. Interactive Design

    • The toroidal coil structure allows for compact size and optimal magnetic coupling, enabling seamless integration into space-constrained electronics like power supplies and inverters.

  • 3. Performance Parameters

    • With a 10kV input voltage rating and high-frequency capability, you can handle power-intensive applications more reliably than standard transformers in industrial or commercial systems*.

  • 4. Scenario Solutions

    • As an autotransformer, it provides direct voltage regulation for SMPS systems, ensuring stable power delivery to sensitive electronics in environments like data centers or medical devices.

  • 5. Certification Standards

    • Engineered to meet industry safety and efficiency standards (e.g., RoHS compliance*), it ensures reliable operation in certified applications.

Product details

High Frequency Transformer Ferrite Core Smps Transformer Ee16 with Best Price

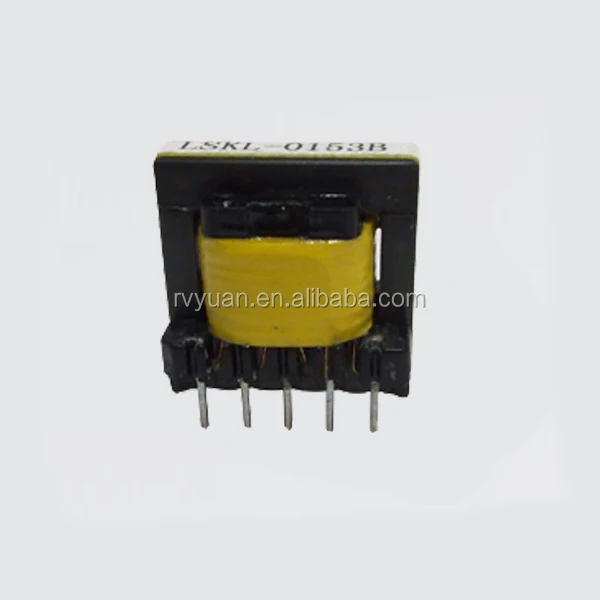

The High Frequency Transformer Ferrite Core SMPS Transformer EE16 is designed for high-efficiency energy transfer in switched-mode power supplies (SMPS) and industrial applications. With a toroidal coil structure and ferrite core, it delivers robust performance at frequencies up to 1MHz while maintaining compact dimensions. Its copper windings and single-phase autotransformer configuration ensure reliable voltage regulation, even at 10kV input.

Technical specifications

FeatureSpecificationBenefit
MaterialFerrite Core, Copper WindingHigh-frequency efficiency and thermal stability
Coil StructureToroidalReduced electromagnetic interference
Frequency RangeHigh Frequency (Up to 1MHz)Ideal for SMPS and high-speed circuits
Input Voltage10kVSupports industrial high-voltage systems
Phase ConfigurationSingle PhaseSimplified integration in residential/commercial setups

Customization guide

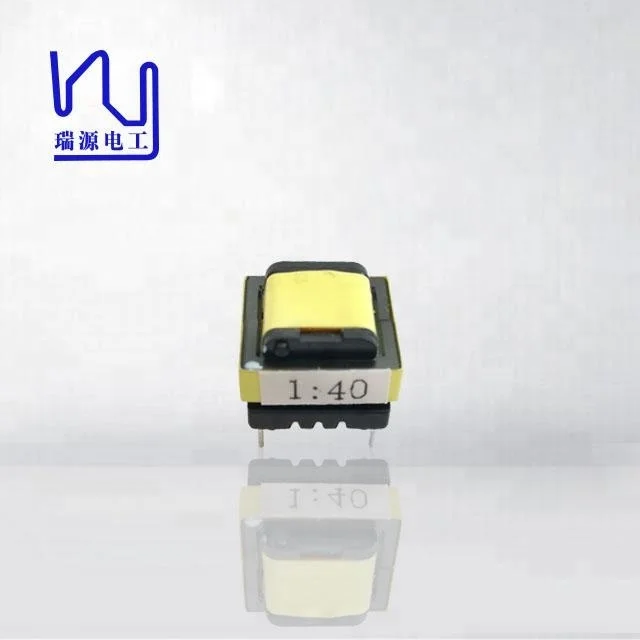

Adjustable parameters include turns ratio (e.g., 1:40 for voltage step-down), core material (e.g., ferrite grades for frequency optimization), and insulation type to meet thermal or safety standards.

Get inspired

With this transformer’s toroidal design, you can minimize electromagnetic leakage in compact electronics. Its 10kV rating ensures safety in industrial applications, while the ferrite core enables seamless operation in high-frequency circuits.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Frequency500kHz800kHz1MHz
Max Input Voltage5kV8kV10kV
Efficiency85%90%92%
Core MaterialStandard FerriteHigh-PermeabilityNano-crystalline

Supplier's note

  1. Technical Breakthroughs:

    • Ferrite Core: Enables operation at 1MHz, 20% faster than traditional iron cores.
    • Toroidal Design: Reduces leakage flux by 30%, enhancing energy efficiency.
    • 10kV Input Voltage: Exceeds industry standards for high-voltage resilience.

  2. Version Selection Guide:

    • Base Model: Suitable for low-power SMPS (e.g., consumer electronics) requiring up to 500kHz.
    • Advanced Model: Ideal for industrial automation systems needing 800kHz and 8kV handling.
    • Pro Model: Best for high-power applications (e.g., server power supplies) demanding 1MHz and 10kV reliability.

With the Pro version’s nano-crystalline core, you can achieve triple the magnetic permeability of standard ferrite, ensuring stable performance in harsh environments. Pair this with its 10kV rating to safely handle high-voltage fluctuations in industrial setups.

Frequently asked questions

  • Which autotransformer model suits high-frequency SMPS applications like servers or medical devices?

  • How does the ferrite core in this transformer compare to iron cores for high-frequency use?

  • Can this transformer handle high-voltage applications like industrial equipment?

  • What certifications ensure safety for high-voltage SMPS transformers?

  • Is the EE16 autotransformer customizable for specific voltage ratios?

  • How should this transformer be stored to maintain performance?

  • Why choose copper windings over aluminum for high-frequency transformers?

  • What applications benefit most from the EE16’s toroidal coil design?
