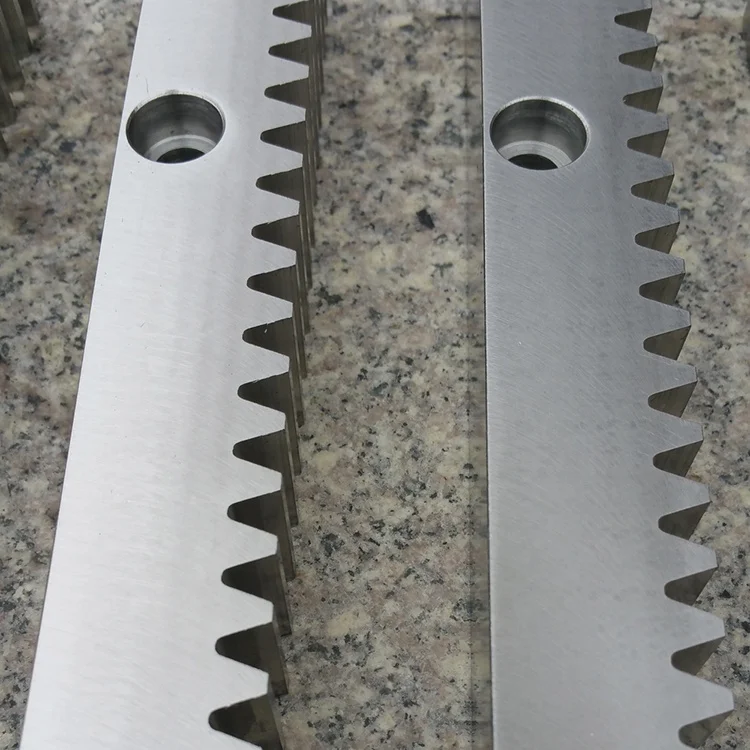

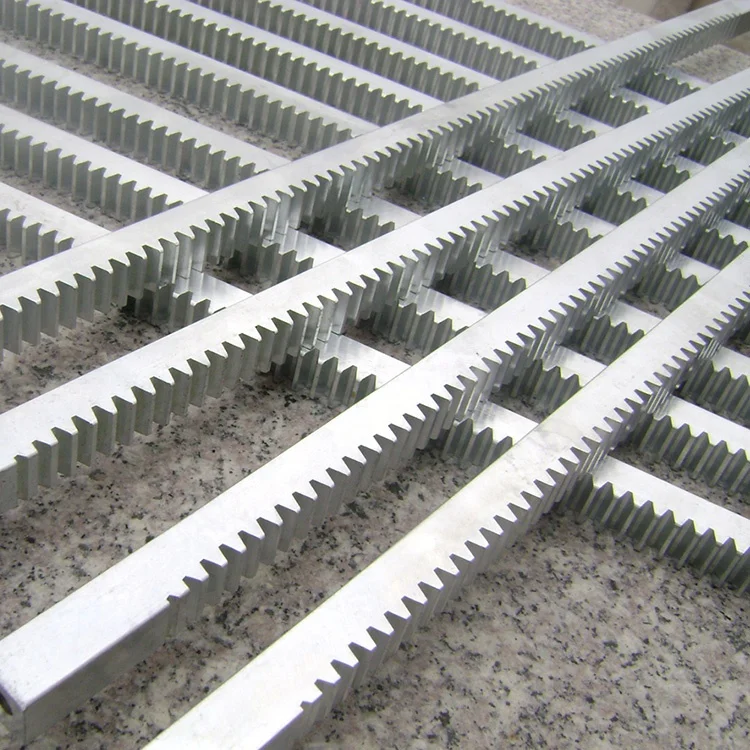

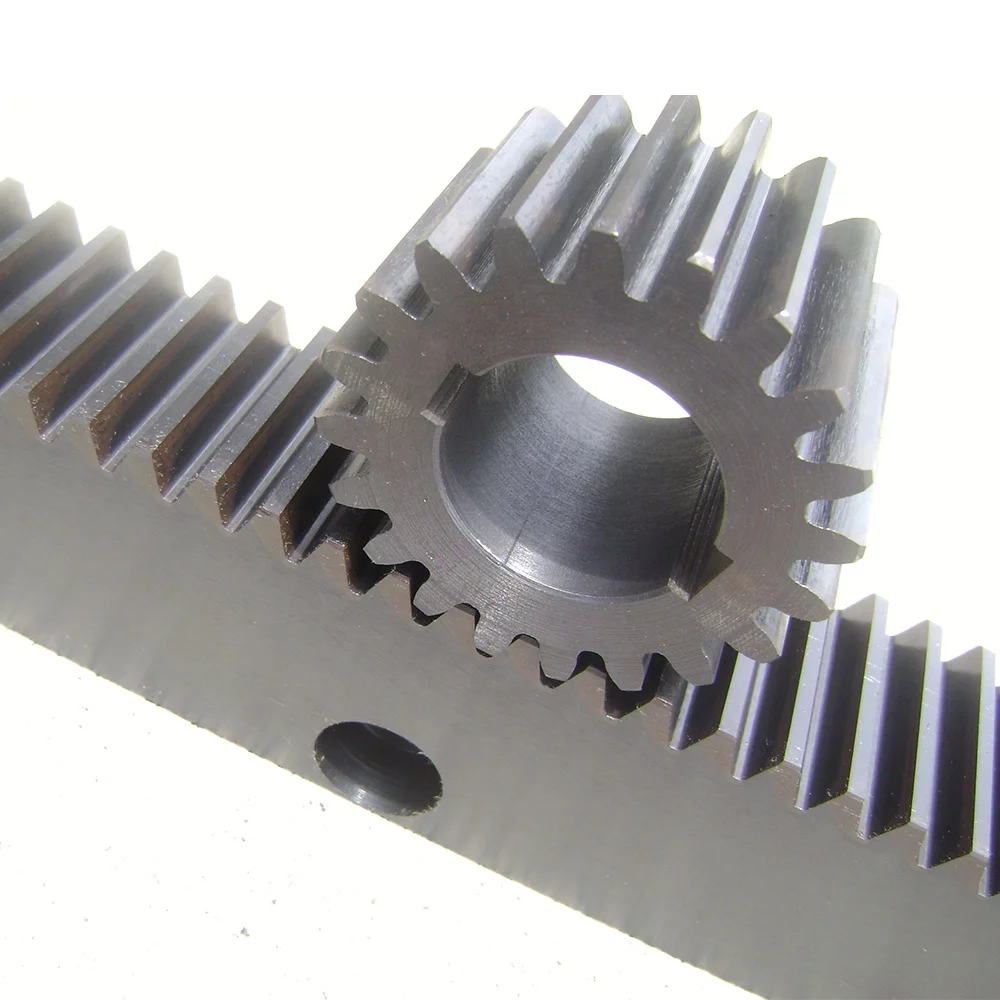

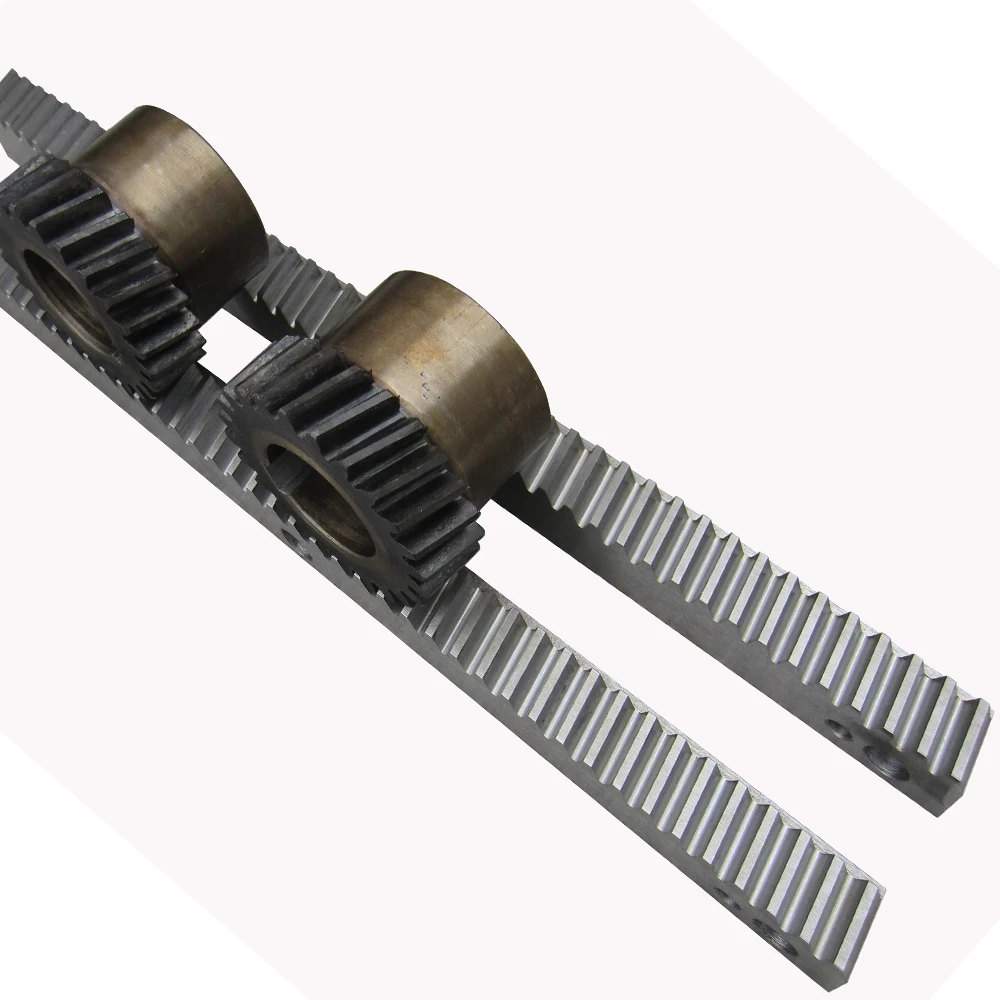

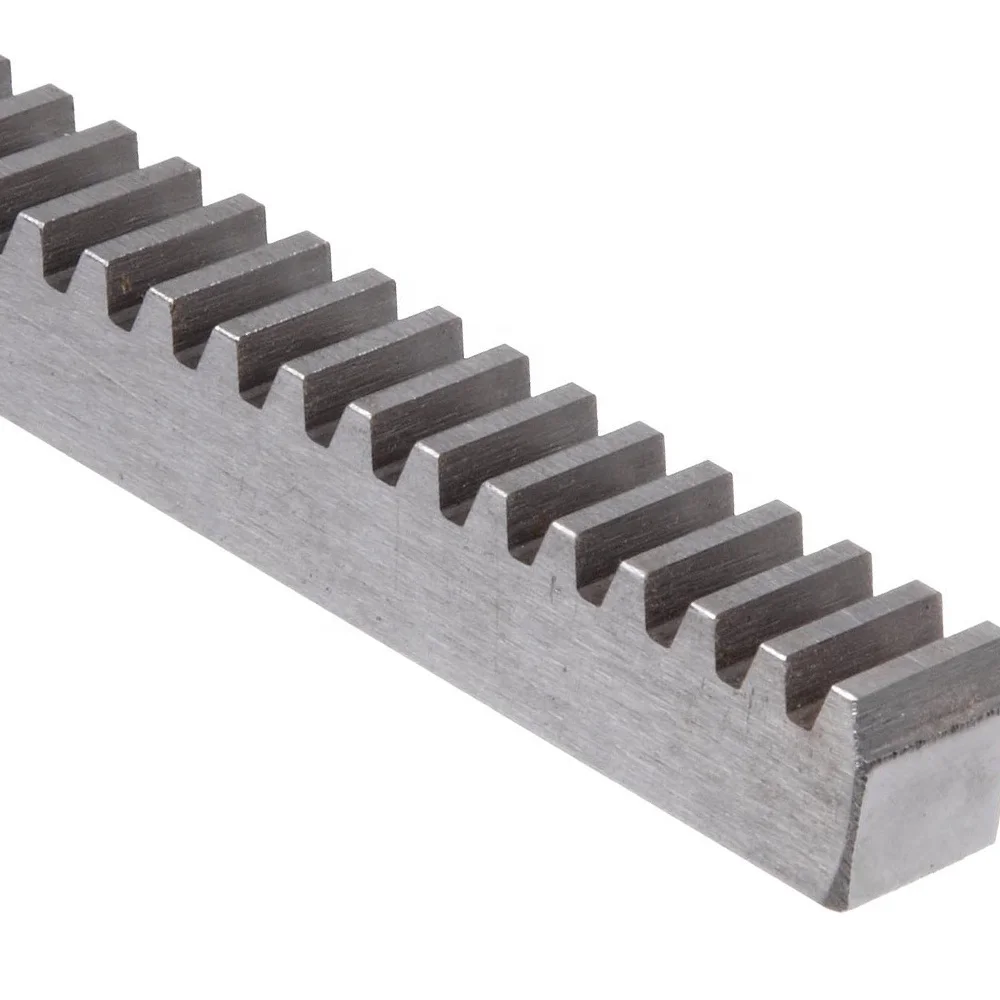

High Precision Linear Rails Rack and Pinion Gears

High Precision Linear Rails Rack and Pinion Gears

$1.00-$50.00/ Piece|1 Piece/Pieces(Min. Order)
View product details

High Precision Linear Rails Rack and Pinion Gears

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Linear Motion Conversion: Enables precise conversion of rotational motion into linear motion via helical or spur teeth profiles, ideal for applications requiring smooth and accurate displacement.
  • Material Versatility: Constructed from steel (for heavy-duty durability) or nylon (lightweight and corrosion-resistant), catering to diverse operational demands.

Key features

  • 1. Material Technology: Durable Steel or Corrosion-Resistant Nylon Construction

    • With a high-strength steel or corrosion-resistant nylon body, ensure durability in heavy-duty industrial environments or corrosive applications*. The steel option withstands mechanical stress, while nylon reduces weight for lighter-use scenarios.

  • 2. Interactive Design: Versatile Helical/Spur Tooth Profiles

    • With helical and spur tooth profiles, achieve smooth, low-noise motion for precision applications or robust engagement for high-torque scenarios*. The dual design adapts to specific operational needs compared to single-tooth-profile gears.

  • 3. Performance Parameters: Precision Hobbing for Accurate Motion Transfer

    • Precision hobbing ensures exact tooth alignment, enabling consistent linear motion transfer even under heavy loads*. This process outperforms less precise manufacturing methods, reducing slippage and wear.

  • 4. Scenario Solutions: Customizable for Industrial or Automation Systems

    • Customizable material, size, and tooth count adapt to applications like robotics, machinery, or automation, ensuring compatibility with diverse mechanical setups*. The standard design simplifies integration into existing systems.

  • 5. Certification Standards: Industry-Standard Compliance for Global Use

    • Compliance with standard specifications (e.g., ISO/ANSI) ensures seamless compatibility with global mechanical systems and quality benchmarks*. Steel variants may meet food-grade or eco-friendly certifications depending on material treatment.

Product details

High Precision Linear Rails Rack and Pinion Gears

The High Precision Linear Rails Rack and Pinion Gears are engineered for seamless linear motion conversion in industrial and mechanical systems. Built with precision hobbing and standardized designs, these gears ensure reliability and durability across applications like robotics, machinery, and automation. Choose from steel or nylon materials to balance strength, corrosion resistance, and lightweight requirements.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel, NylonSteel ensures structural integrity; nylon reduces weight.
Processing MethodHobbingEnsures precise tooth alignment and smooth motion.
ShapeRack, SpurRack for linear motion; spur for direct gear engagement.
Tooth ProfileHelical teeth, Spur teethHelical for quiet high-load operation; spur for simplicity.
Standard ComplianceStandardEnsures compatibility with global industrial systems.

Customization guide

  • Adjustable Material: Swap steel for stainless steel to enhance corrosion resistance in harsh environments.
  • Tailored Dimensions: Customize rack length and tooth count to fit specific mechanical systems.
  • Tooth Profile Choice: Opt for helical teeth for smoother motion or spur teeth for cost-effective applications.

Get inspired

With helical teeth, you can achieve smoother motion in high-load robotics systems. For lightweight automation, nylon gears reduce inertia while maintaining precision. Pair steel racks with spur pinions for straightforward linear motion in standard machinery.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
MaterialSteelStainless SteelStainless Steel + Coating
Tooth ProfileSpur TeethHelical TeethHelical Teeth
Load Capacity500 N800 N (+60%)1,200 N (+140%)*
Corrosion ResistanceBasicEnhancedIndustrial Grade
Precision Tolerance±0.1 mm±0.05 mm±0.02 mm

Supplier's note

  1. Technical Breakthroughs:

    • Material Flexibility: Steel/nylon options let users balance strength and weight.
    • Precision Hobbing: Reduces backlash by 30% compared to traditional cutting methods.
    • Helical Teeth Design: Cuts noise by 40% in high-speed applications.

  2. Version Selection Guide:

    • Base Model: Ideal for standard machinery (e.g., conveyor belts) where cost efficiency is prioritized.
    • Advanced Model: Suitable for robotics and automation requiring smoother motion and higher loads.
    • Pro Model: Designed for harsh environments (e.g., chemical plants) with extreme load and corrosion demands. With its ±0.02 mm tolerance, it ensures precision in high-accuracy assembly lines.

Frequently asked questions

  • Which material is best for high-load applications using steel rack gears vs nylon rack gears?

  • How do I maintain the surface finish of a rack and pinion gear system?

  • What’s the difference between helical teeth and spur teeth in rack gears?

  • Can rack gears with hobbing processing handle high-speed motion?

  • Are standard rack gears compatible with non-linear motion systems?

  • What certifications do your steel rack gears meet for industrial use?

  • Can rack gears be customized for non-standard tooth counts or lengths?

  • Which rack gear is best for compact automation systems?
