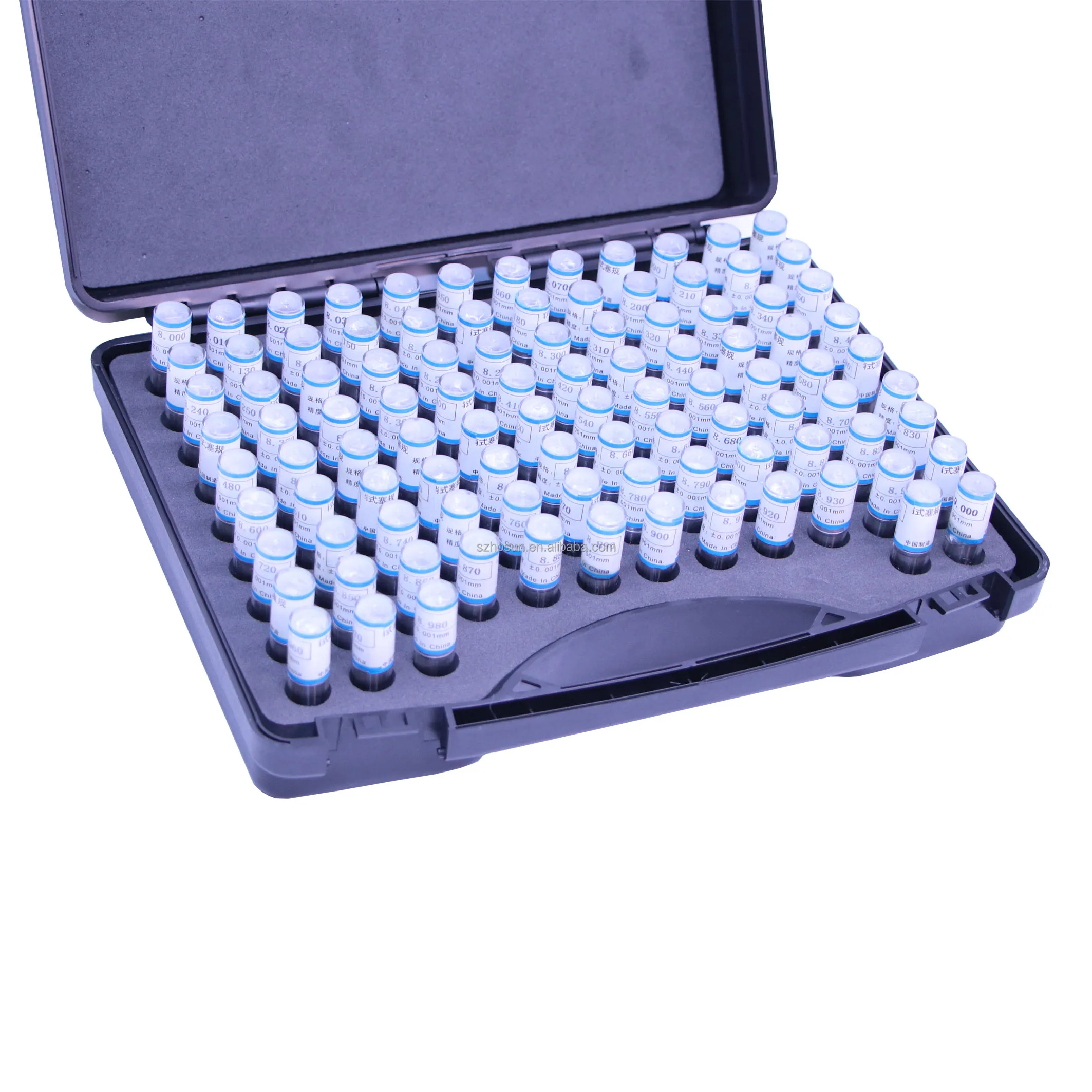

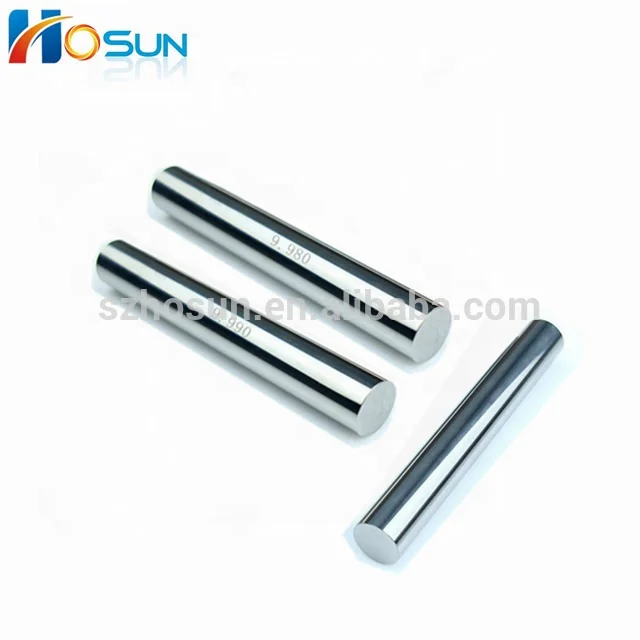

Hole Inspect Measuring High Precision Pin Gauge Set

Technical specifications

Customization guide

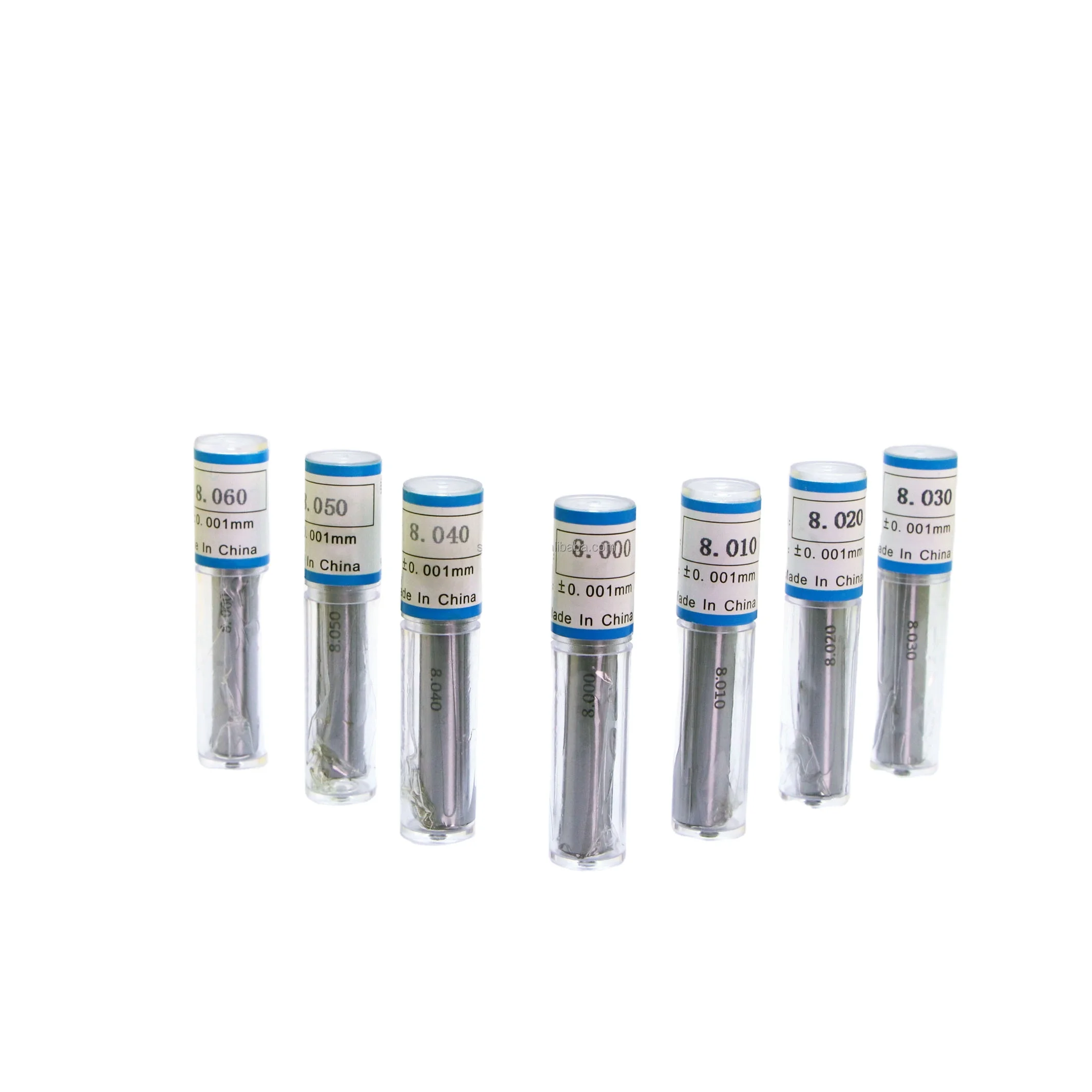

Adjustable length selection (from 8.000mm to 8.060mm) to meet specific tolerance requirements in machinery manufacturing. Bulk orders can be customized with additional sizes or surface treatments for specialized applications.

Get inspired

Precision is paramount in manufacturing. With the Hole Inspect Pin Gauge Set, engineers and technicians can verify hole dimensions with unmatched accuracy, ensuring flawless assembly in critical components like engine pistons, aerospace fasteners, or medical devices.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The Pro Model’s ±0.0008mm tolerance (20% tighter than Base) enables precision in micro-engineering applications like semiconductor tooling.
   • Advanced Model’s 60–64 HRC hardness provides 25% longer tool life in high-cycle automotive assembly lines.
   • Pro Model’s corrosion-resistant packaging ensures accuracy retention in humid environments, a 50% improvement over standard tubes.

2. Version Selection Guide:

   • Base Model: Ideal for basic quality control in low-volume workshops or educational labs.
   • Advanced Model: Suited for automotive and machinery manufacturers needing moderate precision and durability.
   • Pro Model: Best for aerospace, medical, or R&D sectors requiring extreme accuracy and corrosion resistance. Example: The Pro’s 62–65 HRC hardness paired with ultra-tight tolerances ensures flawless calibration of surgical instruments, reducing rework costs by 30%.

With the Pro Model’s dual breakthroughs in material hardness and tolerance, users achieve both longevity and precision—critical for high-stakes manufacturing. The Advanced Model balances cost and performance for mid-tier applications, while the Base Model remains a reliable entry-level solution.
