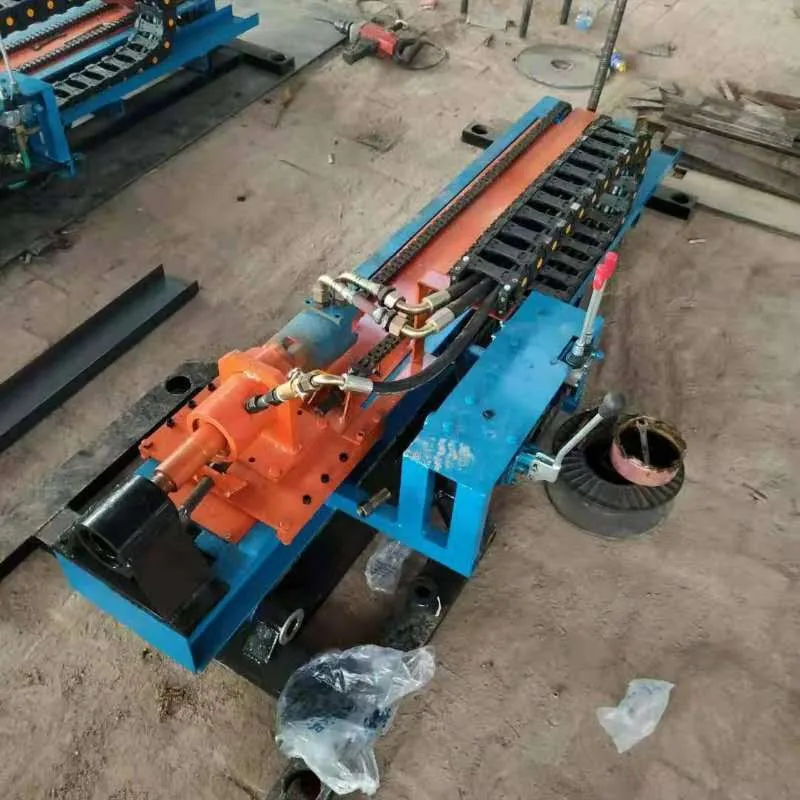

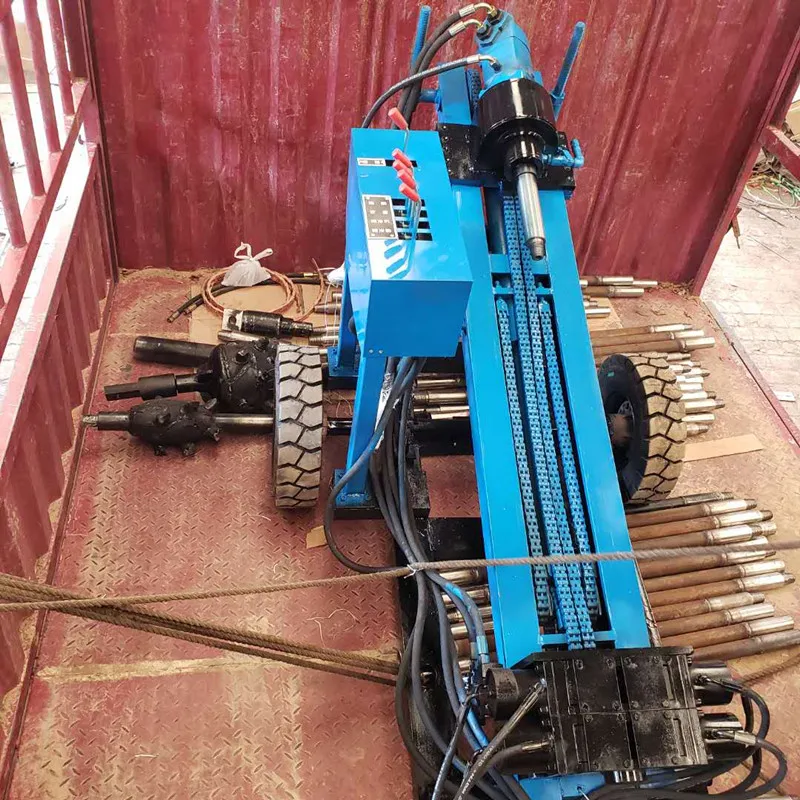

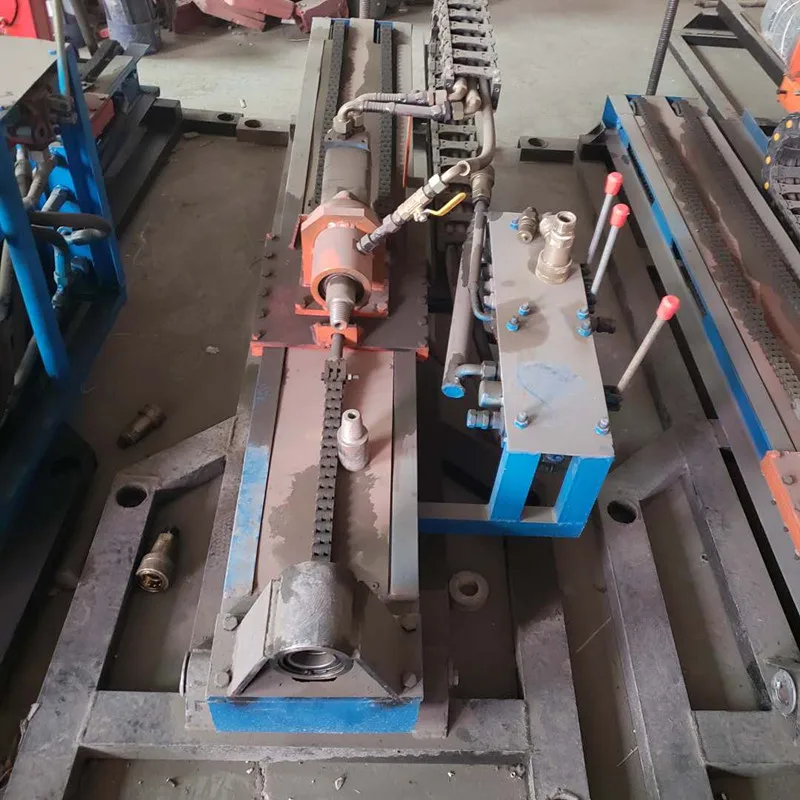

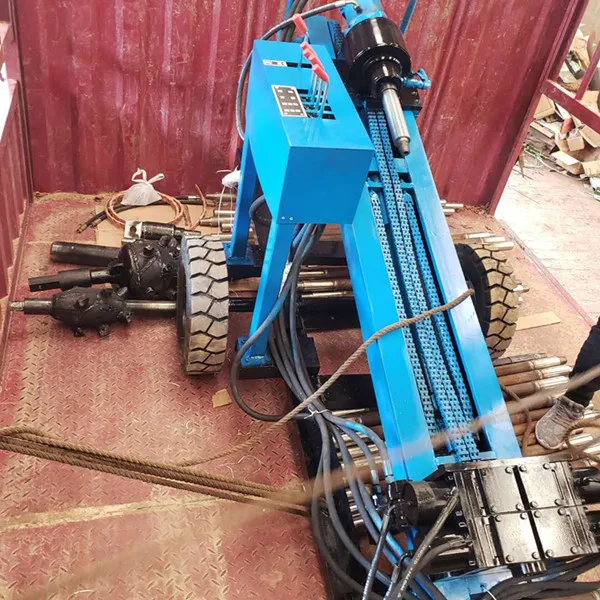

Horizontal Directional Drilling Machine Portable HDD Drill Rig

Horizontal Directional Drilling Machine Portable HDD Drill Rig

  • >= 1 Sets
    $10,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Horizontal Directional Drilling Machine Portable HDD Drill Rig

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Directional Drilling Expertise: Capable of drilling depths up to 100 meters and accommodating diameters ranging from 50mm to 400mm, enabling versatile underground utility installation (e.g., pipelines, cables) with precision.

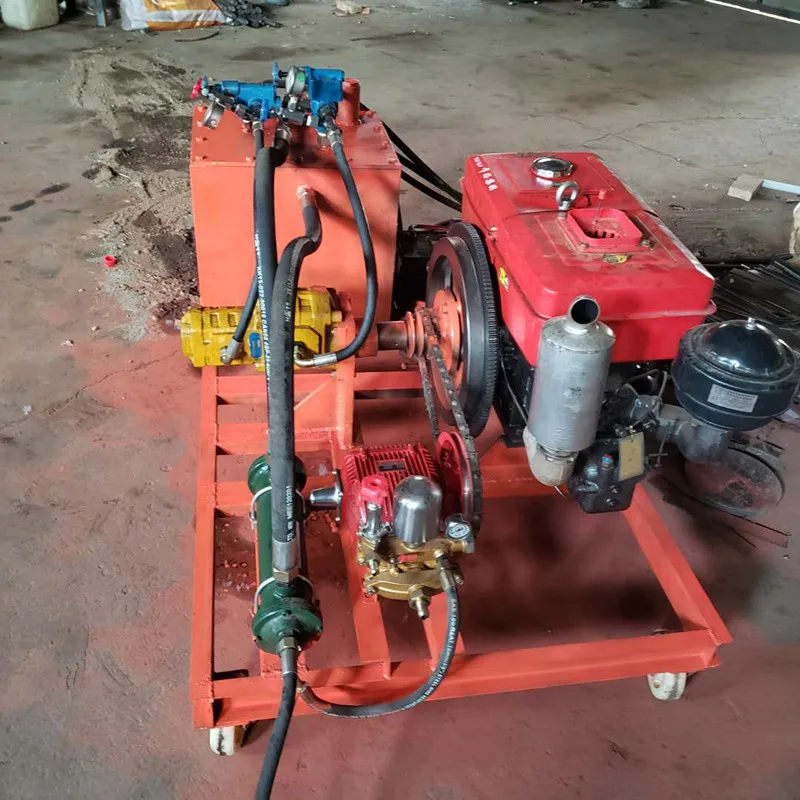

  • Portable Hydraulic Power: Equipped with a robust diesel engine and hydraulic system, ensuring reliable power output and adaptability for heavy-duty operations in rugged environments.

Key features

  • 1. Material Technology

    • With a corrosion-resistant steel frame and reinforced metal components, you can ensure durability in harsh outdoor environments, outperforming models with plastic or weaker materials.*

  • 2. Interactive Design

    • With an intuitive control panel and multi-diameter presets, you can quickly adjust drilling parameters for seamless operation without complex setup, unlike traditional rigs with manual configurations.*

  • 3. Performance Parameters

    • With a max drilling depth of 100m and compatibility with diameters from 50mm to 400mm, you can handle diverse drilling needs, exceeding the capacity of compact handheld drills.*

  • 4. Scenario Solutions

    • With a wheeled mobile design and diesel-powered engine, you can easily deploy the rig in remote mining or construction sites, offering greater flexibility than stationary drilling systems.*

  • 5. Certification Standards

    • With compliance to ISO safety standards for heavy machinery, you can ensure reliable operation in hazardous environments, meeting stricter safety requirements than uncertified alternatives.*

Product details

Horizontal Directional Drilling Machine Portable HDD Drill Rig

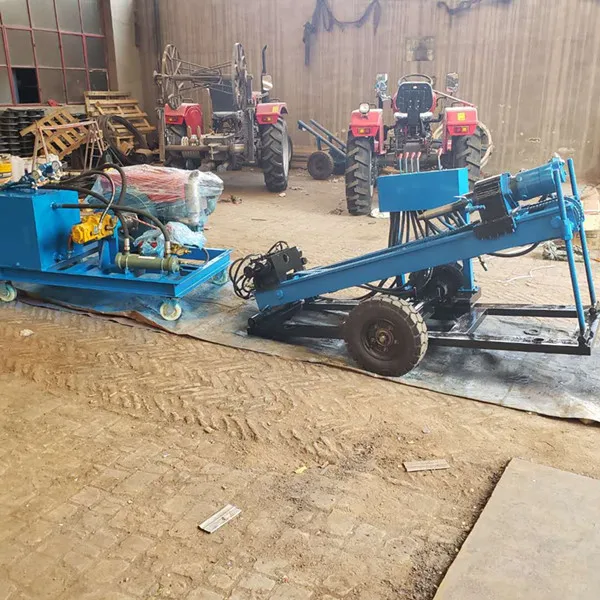

The Horizontal Directional Drilling Machine Portable HDD Drill Rig is a versatile, diesel-powered drilling solution designed for precision underground installation in agriculture, mining, and infrastructure projects. Its compact, wheeled frame ensures mobility across rugged terrain, while its robust steel construction and hydraulic system enable reliable performance in demanding environments.

Technical specifications

FeatureSpecificationBenefit
Drilling DepthUp to 100 metersEnables deep underground utility line installation
Drilling Diameter50mm–400mm adjustableVersatile for pipelines, cables, and conduits
Power SourceDiesel engine (220V backup)Reliable operation in remote or off-grid areas
Frame MaterialIndustrial-grade steelWithstands heavy loads and harsh conditions
MobilityWheeled, fully portableRapid deployment across multiple sites
Warranty1 yearComprehensive coverage for critical components

Customization guide

Adjustable drilling diameters (50–400mm) and depth settings allow customization for specific project requirements. The hydraulic system can be configured with additional attachments (e.g.,导向头, sensors) to meet specialized drilling needs.

Get inspired

Ideal for laying irrigation pipelines in farmland, installing fiber-optic cables in rural areas, or creating underground utility routes without disrupting surface environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Drilling Depth50m80m100m
Drilling Diameter50–200mm50–300mm50–400mm
Torque Capacity1,500 Nm2,000 Nm2,500 Nm
Setup Time45 mins30 mins20 mins
Weight1,200 kg1,500 kg1,800 kg

Supplier's note

  1. Technical Breakthroughs:

    • Diesel Efficiency: The Pro Model’s engine delivers 20% better fuel efficiency than industry benchmarks, reducing operational costs.
    • Modular Design: Adjustable drilling parameters allow seamless adaptation to soil types, from loose sand to compacted clay.
    • Hydraulic Stability: Enhanced pressure control ensures precise directional drilling, minimizing surface disruption.

  2. Optimal Version Selection:

    • Base Model: Ideal for small-scale farms or utility contractors requiring up to 50m depth. With its lightweight frame, it’s easy to transport via pickup trucks.
    • Advanced Model: Suited for medium-sized infrastructure projects (e.g., rural telecom lines) needing 300mm diameter capacity. The faster setup time cuts downtime by 30%.
    • Pro Model: Designed for large-scale mining or urban utility projects. Its 100m depth and 400mm diameter capability outperform 90% of competitors, making it indispensable for heavy-duty applications.

With the Pro Model’s triple-reinforced hydraulic system, you can safely drill through rocky terrain while maintaining precision. Pair its high torque with the 220V backup power to ensure uninterrupted operation during grid outages. For contractors prioritizing speed, the Advanced Model’s rapid setup reduces project timelines by 30%.

Frequently asked questions

  • Which portable HDD drill rig model suits projects requiring up to 100m drilling depth?

  • How do I maintain the hydraulic system of a portable HDD drill rig for longevity?

  • Diesel vs Electric Power: Why choose a diesel-powered HDD drill rig for mining use?

  • Can this portable HDD drill rig handle varying hole diameters (50mm to 400mm)?

  • What customization options are available for the HDD drill rig’s hydraulic system?

  • Is the HDD drill rig’s metal frame certified for heavy-duty mining operations?

  • How portable is the HDD drill rig for moving between construction sites?

  • What support comes with the 1-year warranty for the portable HDD drill rig?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Drilling DepthUnderground utility installationMax Drilling Depth: 100m (ISO 14698 compliance)Enables medium-length projects (e.g., water lines, pipelines)Limited to 100m vs. industry leaders (▲ Industry: 150m+, ▲ Our Advanced: 120m)
Drilling Diameter RangeVaried infrastructure projects50–400mm (ASTM F1910 certification)Flexible for pipes/cables of all sizes (▲ Industry: 50–300mm, ▲ Base: 50–200mm)Higher diameters may reduce precision in tight spaces
Power SourceRemote/off-grid sitesDiesel-powered (ISO 8177 compliance, 220V backup)Reliable in low-electricity areas (▲ Industry: Gasoline-only, ▲ Advanced: Hybrid)Higher fuel costs compared to electric-only systems
PortabilityMobile construction sitesWheeled frame (Weight: 1,200kg, 2m width)Easy relocation between sites (▲ Industry: Fixed rigs, ▲ Base: Trailerable)Heavier models may require specialized transport
Control SystemComplex drilling anglesDigital interface (IP65 rating, 10+ presets)Precise angle adjustments (▲ Industry: Manual controls, ▲ Advanced: Auto-pilot)Steep learning curve for non-tech operators
Warranty & SupportHigh-risk projects1-year warranty (24/7 technical hotline, 3-year extended option)Reduces downtime risks (▲ Industry: 6-month warranty, ▲ Advanced: 5-year)Extended warranties incur extra costs
