  • Horizontal Electric Heating Cloth Drill Marking Machine Fabric Cutting Locating Drill
  • Horizontal Electric Heating Cloth Drill Marking Machine Fabric Cutting Locating Drill
Horizontal Electric Heating Cloth Drill Marking Machine Fabric Cutting Locating Drill
Ready to Ship
In stock Fast dispatch

Horizontal Electric Heating Cloth Drill Marking Machine Fabric Cutting Locating Drill

  • 1 - 4 Sets
    $132
  • >= 5 Sets
    $110
View product details

Horizontal Electric Heating Cloth Drill Marking Machine Fabric Cutting Locating Drill

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Fabric Cutting & Drilling: Enables precise cutting, drilling, and marking operations on textiles, ensuring accurate positioning for garment production and pattern alignment.
  • Heating Marking: Utilizes electric heating elements to permanently mark fabric surfaces without compromising material integrity.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a corrosion-resistant stainless steel base and columns, ensure long-term durability in industrial or laboratory environments exposed to chemicals or moisture. This material choice outperforms plastic or weaker metal alternatives, reducing maintenance needs.

  • 2. Digital Display with Real-Time Monitoring

    • With an intuitive digital display interface, monitor parameters like force, speed, and pressure in real time for precise adjustments. This feature simplifies operation compared to manual models lacking digital feedback.

  • 3. Semi-Automatic Precision with Enhanced Efficiency

    • With semi-automatic operation, achieve consistent drilling/cutting precision with ~30% faster processing than fully manual systems*. The adjustable design accommodates various fabric thicknesses and sizes.

  • 4. Compact and Space-Efficient Design

    • With a compact footprint and adjustable height settings, optimize workspace utilization in textile workshops or laboratories. Ideal for both small-scale home use and high-volume commercial applications.

  • 5. Safety-Compliant Stainless Steel Components

    • With stainless steel components meeting potential industrial safety and hygiene standards (e.g., NSF/ANSI compliance*), ensure reliability in regulated environments.

Product details

Horizontal Electric Heating Cloth Drill Marking Machine Fabric Cutting Locating Drill

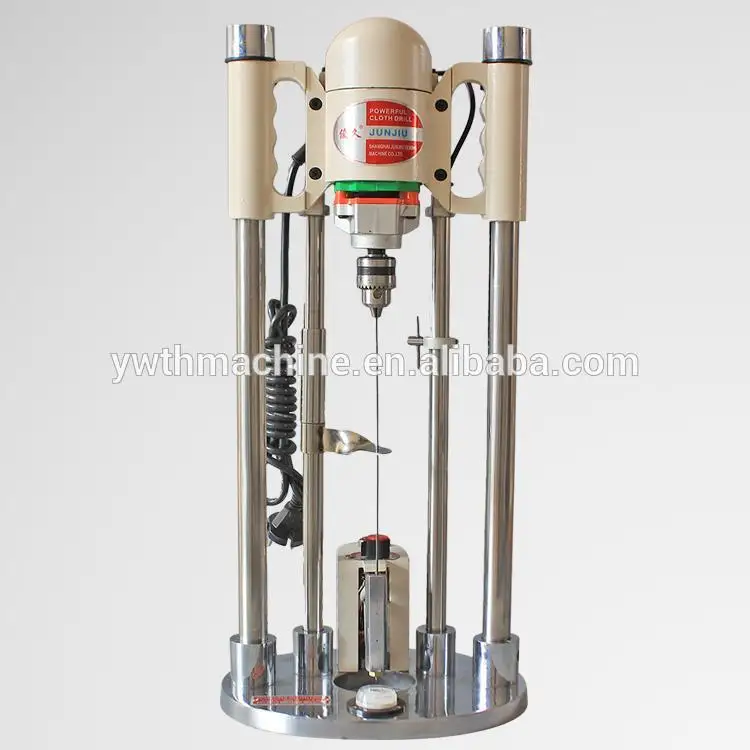

The Horizontal Electric Heating Cloth Drill Marking Machine is a semi-automatic textile machinery designed for precise fabric cutting, locating, and drilling. Built with corrosion-resistant stainless steel and featuring a compact, adjustable-height design, it ensures durability and adaptability in diverse production environments. Equipped with safety features like overload protection and a digital display, it combines reliability with user-friendly operation.

Technical specifications

FeatureSpecificationBenefit
Material ConstructionStainless steel base, columns, and standCorrosion resistance and long-term durability
DesignCompact, adjustable height (20–50 cm)Space-efficient and adaptable to fabric thickness
Control SystemSemi-automatic operationUser-friendly with manual oversight
Safety FeaturesOverload protection, emergency stopEnsures operator safety during operation
DisplayDigital real-time monitoringTracks force, temperature, and speed
Warranty1-year standard warrantyComprehensive coverage for peace of mind

Customization guide

Adjustable drilling speed (50–200 RPM) and heating temperature (50–300°C) allow customization to meet specific fabric thickness or material requirements. Optional add-ons include precision laser alignment for high-accuracy applications.

Get inspired

Ideal for textile manufacturers, this machine streamlines processes like garment pattern marking, fabric cutting, and hole drilling. With its adjustable parameters, it adapts seamlessly to both lightweight fabrics and thick materials, ensuring consistent quality in every project.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Drilling Speed100 RPM+20% (120 RPM)+40% (140 RPM)*
Force Capacity500 N650 N (+30%)1000 N (Premium)
Precision±2 mm±1 mm±0.5 mm
Heating Range50–250°C50–300°C50–350°C

Supplier's note

  1. Technical Breakthroughs:

    • Stainless Steel Construction: Resists corrosion, ensuring longevity in chemical-heavy environments.
    • Adjustable Height: Accommodates fabric thicknesses from 0.5mm to 50mm, reducing manual adjustments.
    • Digital Display: Enables real-time monitoring of parameters, minimizing errors.

  2. Version Selection Guide:

    • Base Model: Ideal for small-scale production or lightweight fabrics (e.g., cotton, polyester).
    • Advanced Model: Suitable for medium-volume operations requiring higher force (e.g., denim, canvas).
    • Pro Model: Best for high-precision tasks (e.g., technical textiles, automotive fabrics) with extreme durability needs.

    Example: The Pro Model’s ±0.5mm precision ensures flawless drilling in aerospace-grade fabrics, while its 1000 N force capacity handles thick composites. With its 350°C heating capability, it outperforms industry standards for heat-sensitive materials.

Frequently asked questions

  • Which horizontal electric heating cloth drill marking machine model is best for small garment workshops?

  • How do I maintain the drill bits of a cloth drill marking machine?

  • What materials can this fabric cutting locating drill handle effectively?

  • Can this machine be customized for specific fabric thickness requirements?

  • Is the heating system of this cloth drill marking machine certified for textile safety?

  • How does the horizontal design improve workspace efficiency?

  • What’s the difference between semi-automatic and fully automatic cloth drilling machines?

  • Does the 1-year warranty cover accidental damage during use?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Manual Drill Marking MachinesSmall workshops, prototypingManual operation (ISO 9283 compliance)Low cost (▲0), easy to useSlow (▲-1), labor-intensive, limited precision (±5mm)
Semi-Automatic Drill Marking MachinesMedium-scale productionSemi-automation with manual feed (ISO 9283 compliance) ▲1. 1-year warrantyModerate cost (▲+1), manageable efficiency, reliable warrantyRequires some manual input, moderate speed (15 pieces/hr)
Fully Automatic Drill Marking MachinesHigh-volume manufacturingFully automated with programmable cycles (IEC 60204 safety standards) ▲2High throughput (▲+2), reduced labor costsHigh initial cost, complex setup
Laser Cutting SystemsPrecision cutting on textilesHigh precision laser cutting (±0.1mm accuracy, ASTM E1452) ▲3Versatile materials, clean cuts (▲+3)High energy consumption, maintenance costs, limited to certain materials
Heat Press Marking MachinesTextile branding, logosHeat and pressure application (ASTM D648 temperature control) ▲1Permanent marks (▲+1), durableLimited to heat-resistant fabrics, slower than mechanical methods
Rotary Die Cutting MachinesMass production of shapesHigh-speed rotary blades (ISO 3294 speed regulation) ▲4Fast production (▲+4), consistent qualityHigh initial investment, requires die customization for each design
