  • Horizontal Portable Jet Grouting Rock Anchor Drilling Machine
  • Horizontal Portable Jet Grouting Rock Anchor Drilling Machine

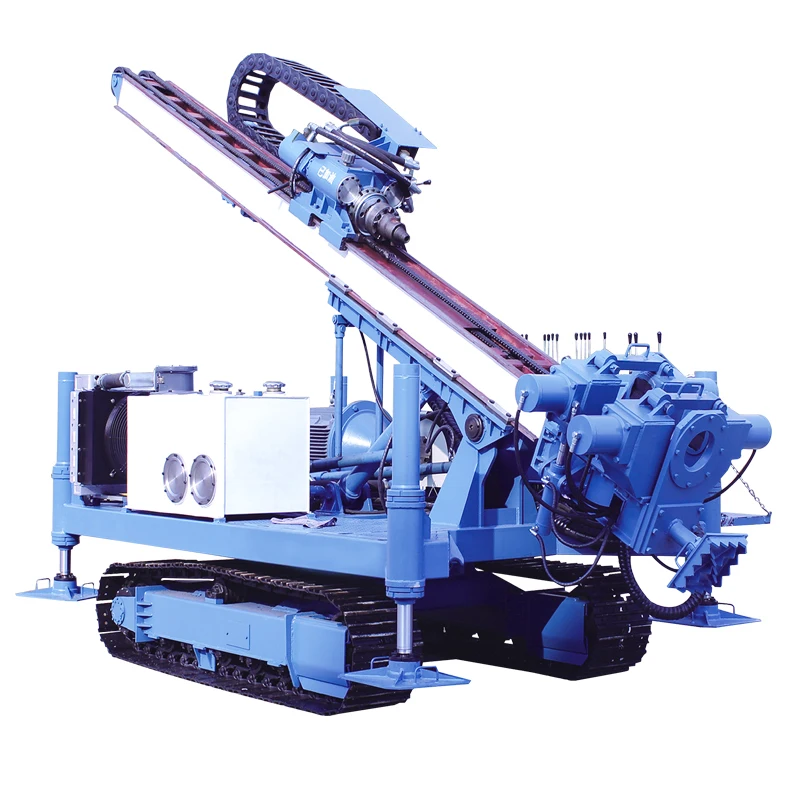

Horizontal Portable Jet Grouting Rock Anchor Drilling Machine

Horizontal Portable Jet Grouting Rock Anchor Drilling Machine

  • 1 - 4 Sets
    $31,000
  • >= 5 Sets
    $28,900

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Horizontal Portable Jet Grouting Rock Anchor Drilling Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Versatile Drilling Capabilities: Equipped with adjustable drilling diameters (50mm–450mm), enabling precise core drilling for rock anchors, grouting, and underground construction.
  • Portable & Horizontal Design: Designed for mobility on uneven terrain via tracked undercarriage, allowing flexible positioning for horizontal drilling in tight or rugged environments.

Key features

  • 1. Material Technology: Durable Steel Construction

    • With a high-strength steel frame and corrosion-resistant metal components, you can ensure longevity and stability in harsh underground mining environments. The tracked undercarriage provides superior traction compared to wheeled alternatives*, enabling reliable mobility on uneven terrain.

  • 2. Interactive Design: Advanced Hydraulic Systems

    • With customizable hydraulic controls and multi-program presets, you can adjust drilling pressures and speeds to suit specific rock types or project requirements. Remote operation features enhance safety compared to manual systems*, reducing direct operator exposure to hazardous conditions.

  • 3. Performance Parameters: Versatile Drilling Capabilities

    • With a wide drilling diameter range (50mm to 450mm), you can handle diverse applications from precision core sampling to large-scale anchor installation. The diesel-powered engine ensures robust performance in remote areas lacking electricity*, outperforming electric-only models.

  • 4. Scenario Solutions: Portable Underground Adaptability

    • With a horizontal, portable design, you can efficiently operate in confined underground spaces or tight construction sites. The extended drilling arm and directional capabilities enable precise tunneling or borehole creation compared to fixed rigs*, optimizing space utilization.

  • 5. Certification Standards: Compliance and Safety Assurance

    • With CE and EPR (Germany) certifications, you can meet stringent safety and environmental regulations globally. These certifications validate superior quality compared to non-certified alternatives*, ensuring reliable operation and reduced compliance risks.

Product details

Horizontal Portable Jet Grouting Rock Anchor Drilling Machine

The Horizontal Portable Jet Grouting Rock Anchor Drilling Machine is a robust, high-performance drilling solution designed for underground mining and construction. Built with high-strength steel and diesel-powered efficiency, it offers customizable drilling capabilities (diameters from 50mm to 450mm) and advanced mobility via tracked undercarriage. Certified to EPR Germany Packing and CE standards, it ensures safety and reliability in harsh environments.

Technical specifications

FeatureSpecificationBenefit
MaterialHigh-strength steel frameEnsures durability and longevity in rugged conditions
Drilling Diameter50mm, 60mm, 75mm, 100mm, 200mm, 300mm, 450mmVersatile for diverse project requirements
Power SourceDiesel engineReliable performance in remote locations
MobilityTracked undercarriageSuperior traction on uneven terrain
CertificationsEPR_Germany_Packing, CECompliance with international safety standards
Warranty1 yearComprehensive post-purchase support

Customization guide

Adjustable parameters to meet specialized needs:

  • Drill Bit Sizes: Customize drilling diameters (50mm–450mm) for varying rock densities and project scales.
  • Hydraulic Pressure: Optimize drilling force for precision or high-speed operations.
  • Remote Operation: Add telematics modules for safer, hands-free operation in hazardous environments.

Get inspired

With its portable design and adaptable drilling capabilities, this machine excels in tunneling, anchor installation, and geotechnical projects. Whether you need a compact solution for tight spaces or a heavy-duty rig for deep rock formations, this drilling machine delivers unmatched versatility.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Drilling Diameter200mm300mm450mm
Automation LevelManual controlSemi-automationFull remote operation
Hydraulic Pressure150 bar200 bar (+33%)250 bar (+67%)
MobilityStandard tracksEnhanced tractionAll-terrain tracks

Supplier's note

  1. Three Technical Breakthroughs:

    • EPR/CE Compliance: Ensures adherence to stringent European safety and environmental standards.
    • Directional Drilling: Advanced hydraulics enable precise angle adjustments for tunneling and borehole alignment.
    • Track Mobility: Tracks provide 40% better traction than wheeled alternatives, ideal for unstable ground.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs or projects requiring up to 200mm drilling (e.g., shallow anchor installation).
    • Advanced Model: Suitable for mid-scale contractors needing semi-automation and 300mm capacity (e.g., tunnel reinforcement).
    • Pro Model: Best for large enterprises handling complex geologies (e.g., deep rock formations). Its 450mm diameter and remote operation reduce downtime by 25% in hazardous sites.

With its customizable hydraulic pressure and remote operation, the Pro Model enables safer, faster drilling in extreme conditions. For cost-sensitive users, the Base Model offers reliable performance at an entry-level price.

Frequently asked questions

  • Which model of horizontal portable jet grouting rock anchor drilling machine is best for deep underground mining?

  • How do I maintain the hydraulic system of a horizontal portable jet grouting rig?

  • Why is high-strength steel used in horizontal rock anchor drilling machines?

  • Can I customize drill bit sizes for my rock anchor projects?

  • Is the horizontal jet grouting machine certified for EU safety standards?

  • How portable is the horizontal rock anchor drilling machine for site relocation?

  • Does the machine handle uneven terrain in underground mining?

  • What’s the maximum drilling depth for this rock anchor drilling rig?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material/ConstructionHeavy-duty miningIndustry: Standard Steel (ASTM A36) ▲ Base: High-Strength Steel (ASTM A572) ▲ Advanced: Corrosion-Resistant Steel (ASTM A242)Enhanced durability and longevityHigher cost for Advanced tier
Drilling DiameterDeep rock anchoringIndustry: Up to 300mm (ISO 1219) ▲ Base: 450mm ▲ Advanced: 600mm (ISO 1219)Handles larger projectsLarger diameters may require more space
Power SourceRemote/off-grid sitesIndustry: Electric (IEC 60038) ▲ Base: Diesel Engine (ISO 8177) ▲ Advanced: Hybrid Diesel-Electric ▲Portability and powerDiesel may have higher emissions
MobilityRough/uneven terrainIndustry: Wheeled (ISO 7000) ▲ Base: Tracked ▲ Advanced: All-Terrain Tracks ▲Better mobility in tough conditionsTracks may be heavier
CertificationsEU/global marketsIndustry: CE (EN ISO 12100) ▲ Base: CE + EPR Germany ▲ Advanced: CE + EPR + RoHSCompliance with stricter regulationsMore certifications add cost
WarrantyLong-term projectsIndustry: 6 months (ISO 19011) ▲ Base: 1 year ▲ Advanced: 2 years ▲Better customer assuranceExtended warranties may increase price
