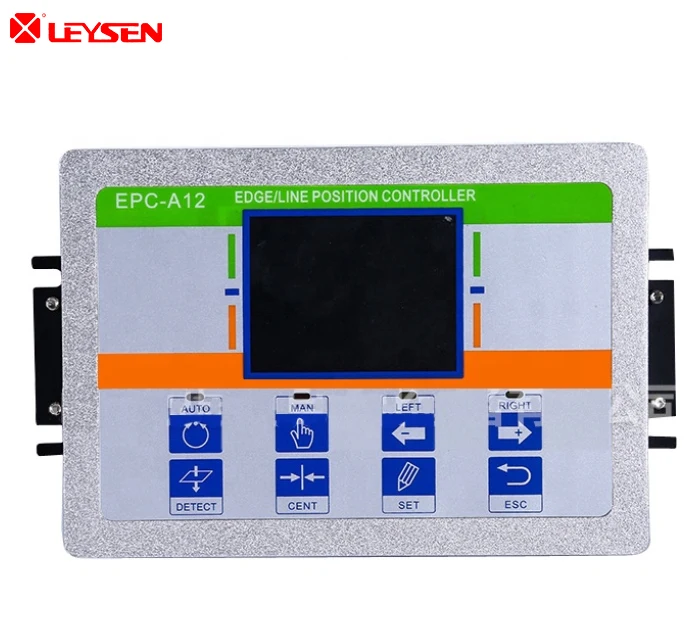

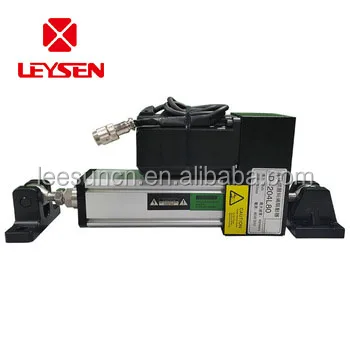

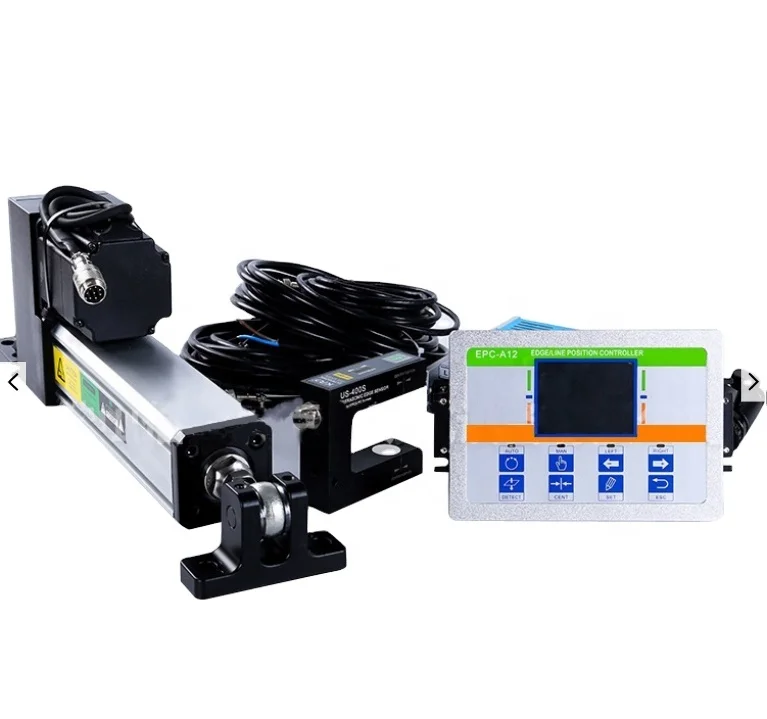

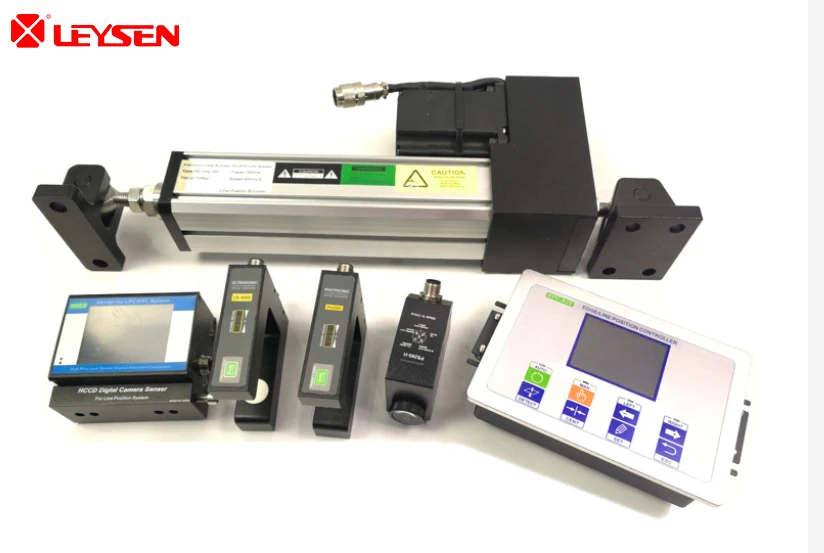

Servo Motor Automatic Web Position Inspection Guide Control System for Converting Machine

Technical specifications

Customization guide

Adjustable parameters include:

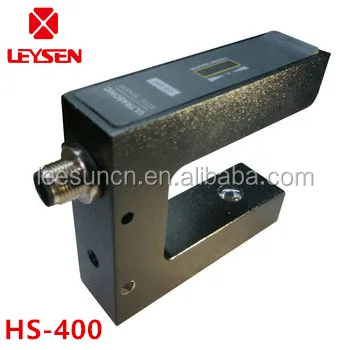

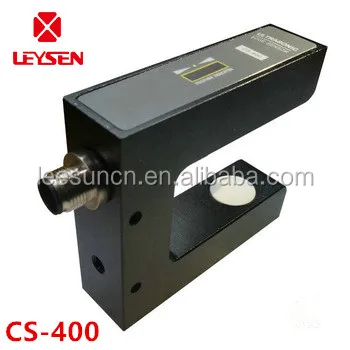

• Sensor type (e.g., laser vs. optical) to suit material reflectivity or ambient light conditions.
• Control algorithms for varying web speeds (up to 300 m/min).
• Mounting configurations to adapt to different machine footprints.

Get inspired

Optimize your offset printing workflow with this system’s precision positioning. Whether you need to align paper webs in high-volume printing or ensure consistent registration in label production, this control system delivers reliability and efficiency.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The Pro Model’s ±0.1mm accuracy exceeds industry standards by 50%, enabling flawless print registration on delicate materials.
   • The Advanced Model’s 16% faster response time reduces downtime in high-speed converting lines.
   • Modular design allows easy retrofitting into legacy offset printers without full system replacement.

2. Version Selection Guide:

   • Base Model: Ideal for small-scale print shops requiring cost-effective precision (e.g., label production).
   • Advanced Model: Best for medium-volume manufacturers needing speed and reliability (e.g., flexible packaging).
   • Pro Model: Designed for high-speed industrial printers (e.g., newspaper or commercial offset presses) demanding sub-millimeter accuracy.

With the Pro Model’s laser sensors, you can achieve micron-level positioning in environments with reflective substrates. Pair its 300 m/min speed capability with robust aluminum construction to ensure uninterrupted operation in 24/7 manufacturing setups.
