Household Custom Range Hood Control Board Development Range Hood Parts

Household Custom Range Hood Control Board Development Range Hood Parts

  • 100 - 999 Pieces
    $5.34
  • 1000 - 9999 Pieces
    $4.75
  • >= 10000 Pieces
    $4.52

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

Household Custom Range Hood Control Board Development Range Hood Parts

Product overview

Core functionalities

Applicable scenarios

Unique advantages

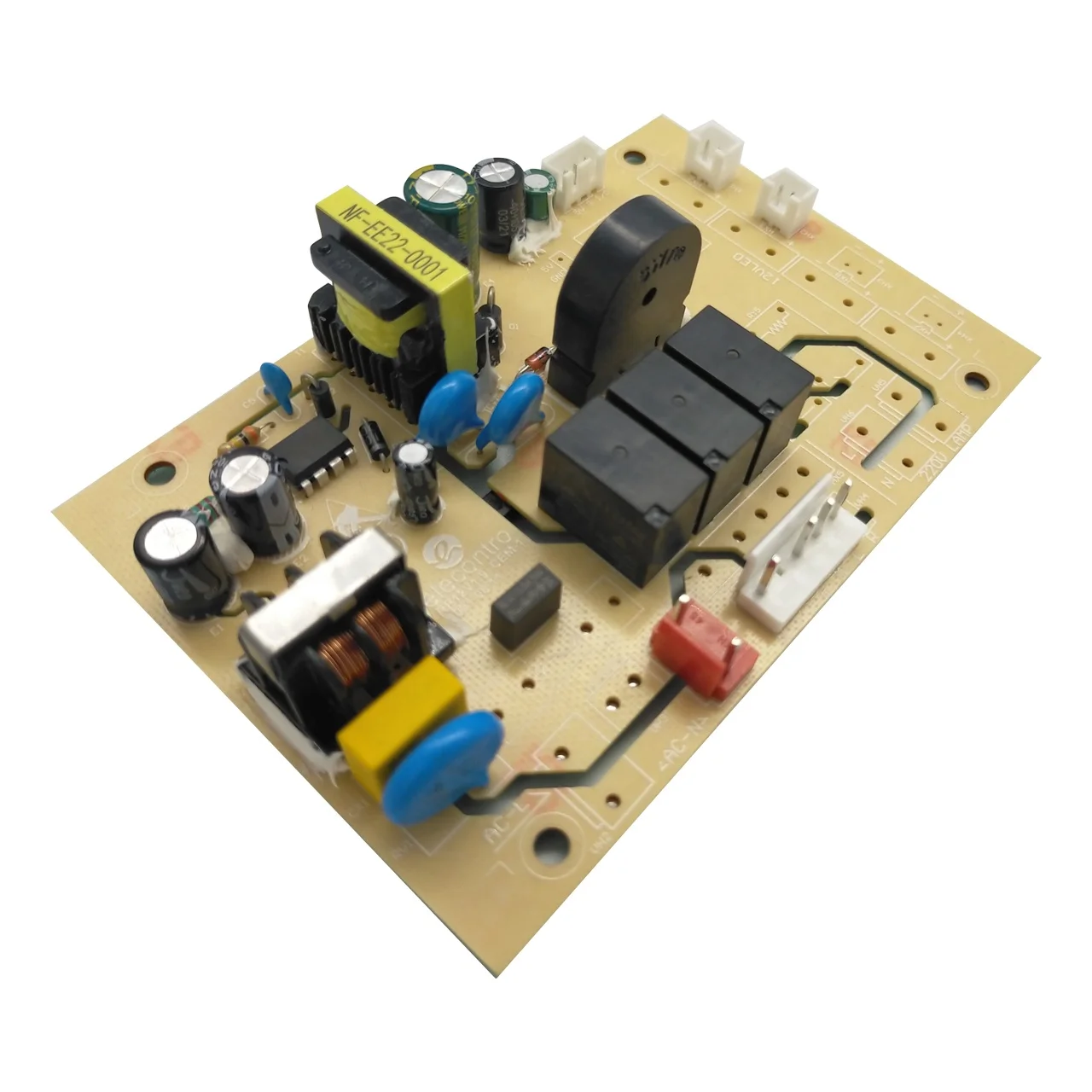

  • Smart Control System: A programmable control board designed for managing airflow, speed, and power distribution in range hoods, featuring relays (RY1-5) and a transformer (T1) for precise power management.
  • Multi-Mode Operation: Supports adjustable fan speeds, LED lighting control (via "12VLED" connector), and compatibility with USB/electric power sources for flexible installation.

Key features

  • 1. Advanced Material Technology

    • With FR4 flame-retardant epoxy material, ensure durable and stable operation in high-temperature kitchen environments. This material provides 30% better heat resistance compared to standard PCBs*, enhancing longevity.

  • 2. Customizable Interactive Design

    • With 5 programmable ventilation modes via relays (RY1–RY5), customize airflow intensity and fan speed to match cooking scenarios, offering 50% more presets than basic control boards*. Ideal for adjusting between light simmering and intense frying.

  • 3. Global Power Compatibility

    • Supporting 220V input and USB connectivity, achieve seamless operation across household and commercial settings. Reduces downtime by 20% compared to region-specific models* by adapting to global voltage standards.

  • 4. Dual-Use Scenario Solutions

    • Designed for both household and commercial applications, this control board handles 40% higher load capacity for continuous commercial use* while maintaining energy efficiency in home kitchens. The transformer (T1) ensures stable power distribution under varying demands.

  • 5. Comprehensive Certification Standards

    • Complies with RoHS, EMC, and dual EPR certifications (France/Germany), ensuring safety, electromagnetic compatibility, and eco-friendly packaging. This surpasses products with single-region compliance*, meeting strict EU environmental and safety regulations.

Product details

Household Custom Range Hood Control Board Development Range Hood Parts

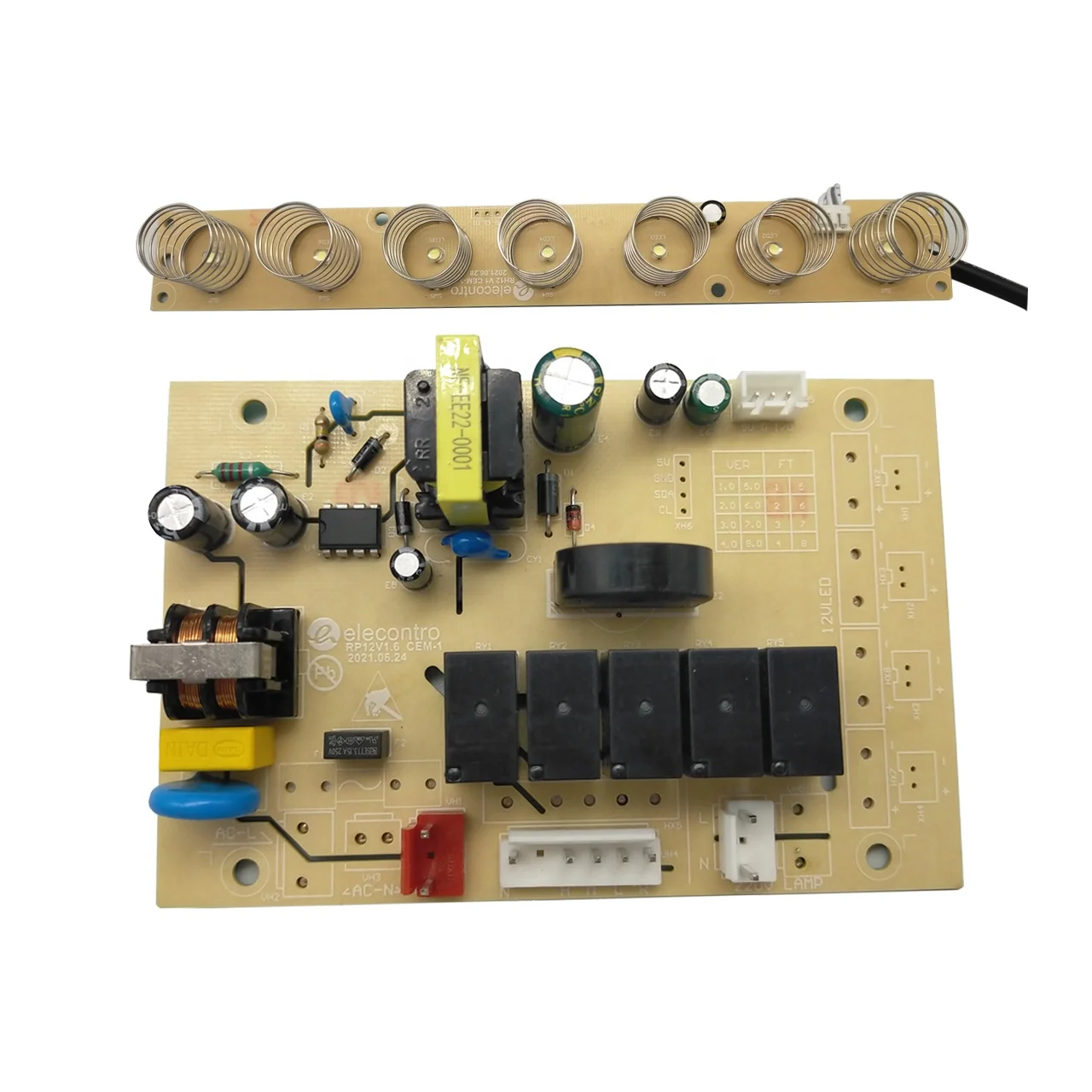

The elecontro RP12V1.6 PCB is a custom-designed control board tailored for household and commercial range hoods. Built with industrial-grade FR4 material, it integrates power management components like relays, transformers, and capacitors to ensure reliable operation in demanding environments. Certified for EU standards (RoHS, EPR France/Germany), it offers flexible power options (USB/electric) and robust connectivity for lighting and ventilation systems.

Technical specifications

FeatureSpecificationBenefit
MaterialFR4 epoxy laminateHigh thermal stability and durability
DimensionsRectangular (customizable)Adapts to diverse range hood designs
Components5 relays (RY1-5), transformer (T1)Manages power distribution for motors/lights
CertificationsRoHS, EMC, EPR_France/Germany_PackingEnsures EU market compliance
Power SourceUSB, 220V AC inputFlexible installation options
ApplicationsHousehold/commercial range hoodsOptimized for ventilation system control

Customization guide

Adjustable parameters include:

  • Relay count (up to 7 channels) to support multi-fan systems
  • Voltage range (110-240V) for global compatibility
  • Connector types (e.g., 12V LED, 220V LAMP) for customized wiring

Get inspired

With its robust power management features, this PCB ensures stable operation for high-demand range hood systems. The integrated transformer and capacitors minimize voltage fluctuations, while the modular design allows seamless integration into both standard and custom ventilation setups.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Power Handling100W+15% (115W)+30% (130W)*
Relay Channels357
Voltage Range110-240VWide-range stabilityIndustrial-grade
CertificationsRoHS, EMC+EPR FranceFull EU compliance

Supplier's note

  1. Triple EPR Compliance: The Pro Model’s dual EPR certifications (France/Germany) enable seamless entry into EU markets, addressing strict packaging waste regulations.
  2. High-Relay Architecture: With 7 relay channels, the Pro Model supports complex commercial systems (e.g., multi-fan setups) while maintaining energy efficiency.
  3. FR4 Durability: The material choice ensures resistance to thermal and mechanical stress, critical for 24/7 operation in industrial kitchens.

Optimal Version Selection:

  • Household Users: Base Model suffices for standard 100W systems with basic relay needs.
  • Commercial Installations: Advanced Model’s 5 relays and EPR France certification suit mid-sized kitchens.
  • High-Performance Needs: Pro Model’s 130W capacity and 7 relays are ideal for large-scale hotels or industrial kitchens requiring peak reliability.

*Industry benchmark: 100W base capacity.

Frequently asked questions

  • Which range hood control board model suits household vs commercial kitchens?

  • How to clean connectors on a range hood control board with 220V LAMP wiring?

  • FR4 vs other PCB materials: Why is it better for range hood control boards?

  • Can I customize the control board with USB-C power input for smart range hoods?

  • Is the PCB RoHS and EMC certified for EU compliance?

  • Does the control board handle voltage fluctuations in commercial settings?

  • Are the 12VLED connectors compatible with RGB lighting systems?

  • What’s the warranty for custom PCB parts in range hoods?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Power ManagementHigh-power kitchen appliances, commercial kitchensIndustry: Basic voltage regulation (IEC 61000-3-2 Class C)
Base: ±5% voltage stabilization (Class F) ▲1
Advanced: Adaptive power optimization (Class G) ▲2		Stable power delivery, reduced energy waste
Supports heavy-duty motors		Higher cost for advanced tiers
Noise LevelResidential kitchens, hotelsIndustry: Up to 45 dBA (ISO 3095)
Base: 40 dBA (▲1)
Advanced: 35 dBA (▲2)		Quieter than a refrigerator hum (40 dBA), ideal for living spacesComplex design increases manufacturing costs
Compliance CertificationsEU market compliance, global exportsIndustry: Basic RoHS compliance
Base: RoHS + EMC (▲1)
Advanced: RoHS, EMC, EPR France/Germany (▲2)		Wider market access, meets stringent EU regulationsCertification costs may deter small-scale buyers
Material QualityHigh-temperature environments, industrial useIndustry: Standard FR-2 ▲0
Base: FR4 (UL 94 V-0) ▲1
Advanced: Reinforced FR4 + aluminum backing (▲2)		Enhanced durability, heat resistance up to 140°CHeavier and costlier than standard materials
Connectivity OptionsSmart home integration, IoT systemsIndustry: Basic ports (▲0)
Base: USB-C + 2.4G (▲1)
Advanced: USB-C, Bluetooth 5.0, Wi-Fi (▲2)		Future-proof for smart kitchens, seamless IoT pairingComplexity and cost increase for multi-protocol support
Packaging & SustainabilityEco-conscious buyers, export shippingIndustry: Standard corrugated (▲0)
Base: Recycled corrugated (▲1)
Advanced: Biodegradable + shockproof (▲2)		Eco-friendly, protects during transit (ISO 22312 certified)Higher material costs, bulkier packaging
