Huazheng CT/PT Analyzer Substation Current Transformer Set CT/PT Calibrator Ct Pt Testing Equipment

Huazheng CT/PT Analyzer Substation Current Transformer Set CT/PT Calibrator Ct Pt Testing Equipment

$5000.00-$7741.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
View product details

Huazheng CT/PT Analyzer Substation Current Transformer Set CT/PT Calibrator Ct Pt Testing Equipment

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • CT/PT Testing: Performs critical tests including CT Excitation Ratio, PT Ratio, and PT Excitation to ensure accuracy and reliability of current and potential transformers in electrical systems.
  • Calibration Capabilities: Enables precise calibration of CT/PT devices to maintain system integrity and compliance with industry standards.
  • Compliance with CE Standards: Certified for safety and performance, ensuring adherence to international regulations.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a rugged steel/aluminum enclosure, you can ensure durability in harsh industrial environments while protecting against dust, moisture, and physical impacts.

  • 2. Intuitive Interactive Controls

    • With an ergonomic control knob and high-visibility LCD display, you can effortlessly navigate test modes, adjust parameters, and monitor real-time results without complex setups.

  • 3. Multi-Test Mode Efficiency

    • With advanced testing capabilities for CT/PT ratio and excitation tests, you can streamline workflows and reduce downtime compared to single-function devices*.

  • 4. Versatile Commercial-Grade Performance

    • Designed for continuous operation in substations and industrial settings, you can achieve precise measurements under heavy workloads, ideal for professional electrical maintenance.

  • 5. CE-Certified Safety Compliance

    • With CE certification, you can meet global safety and quality standards, ensuring reliable performance and simplified regulatory approval for commercial use.

Product details

Huazheng CT/PT Analyzer Substation Current Transformer Set CT/PT Calibrator Ct Pt Testing Equipment

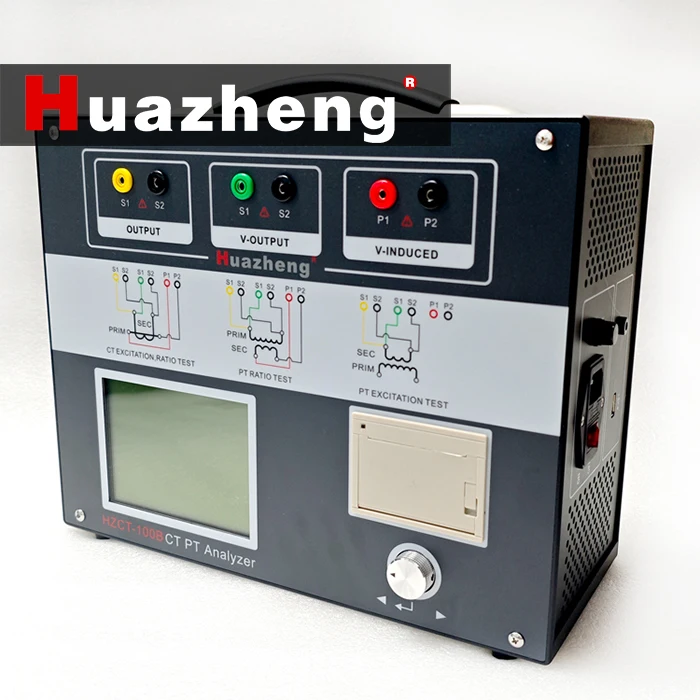

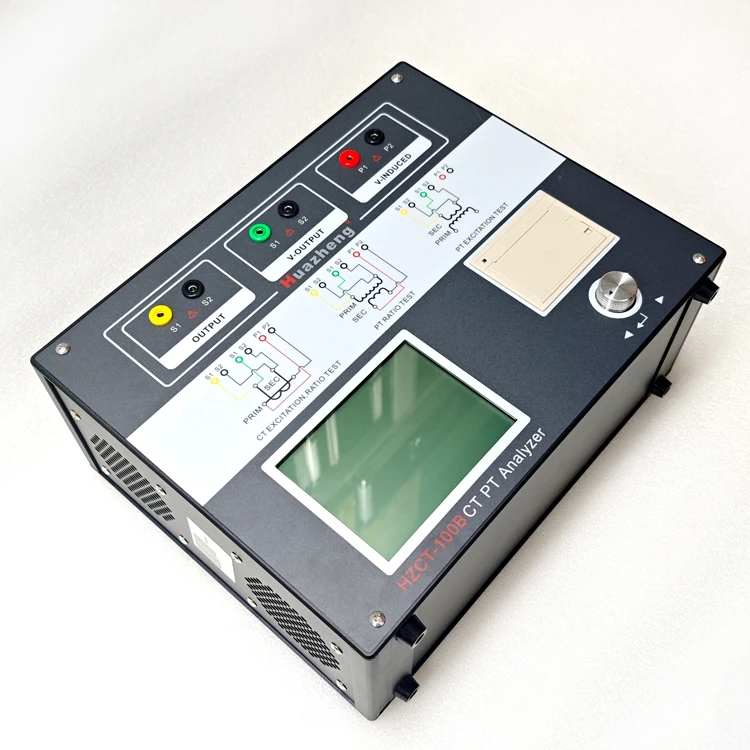

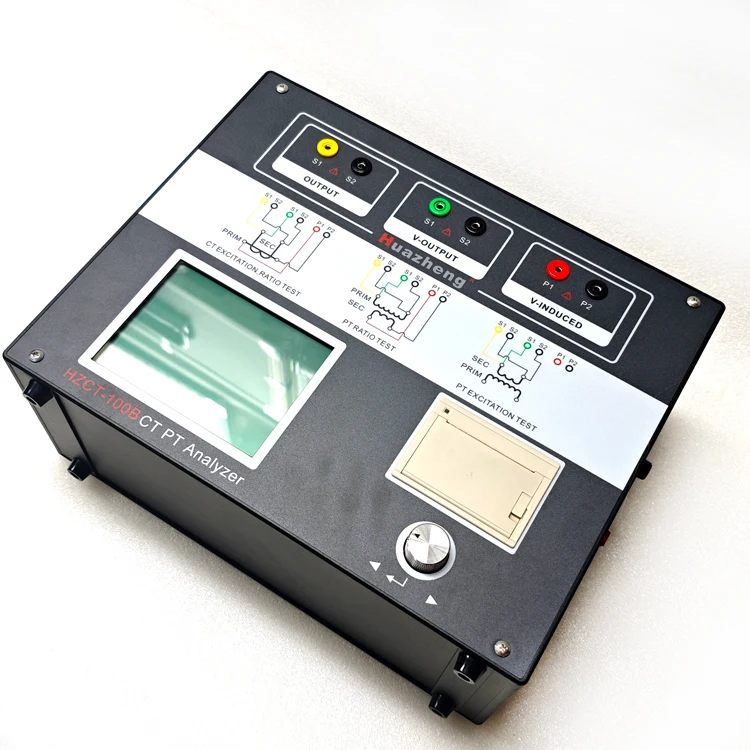

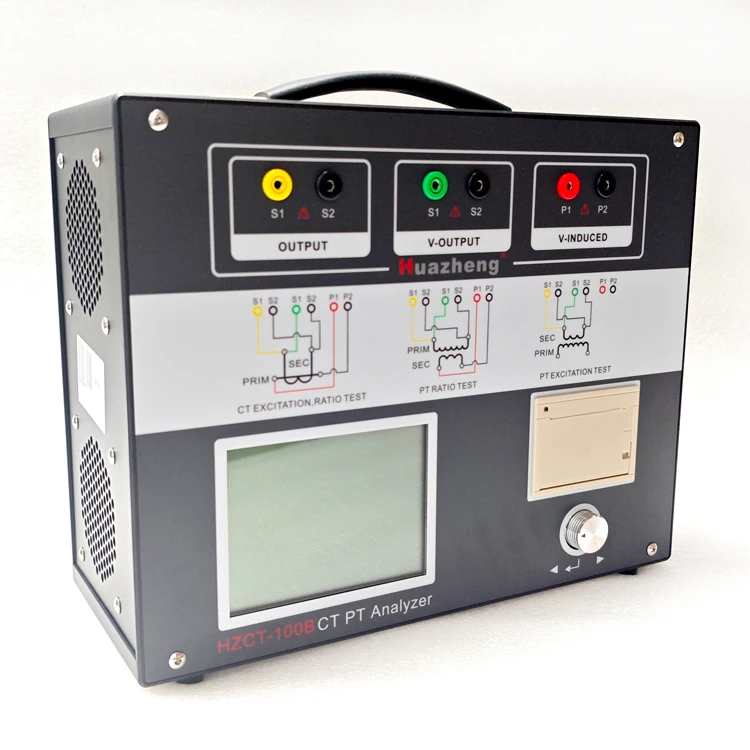

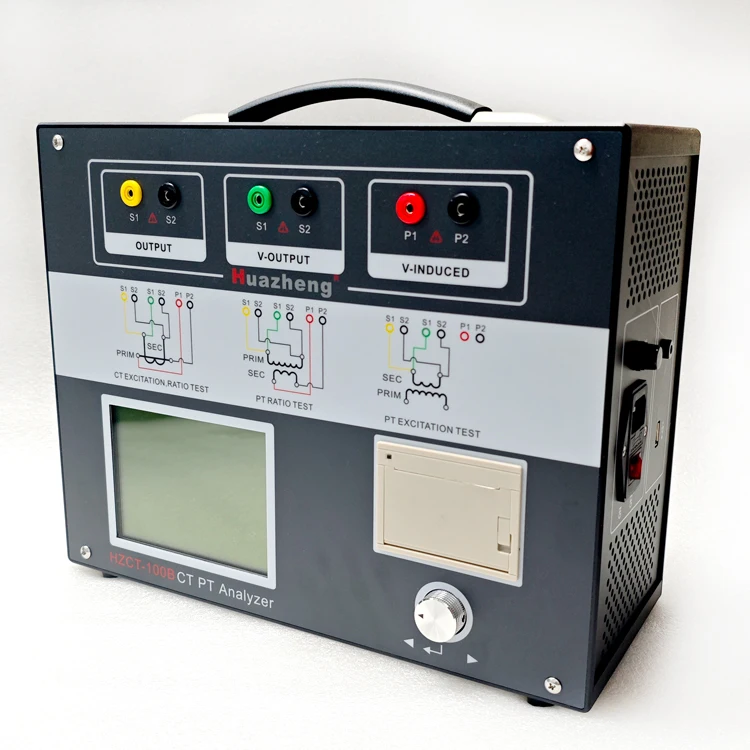

The Huazheng CT/PT Analyzer is a robust industrial-grade testing device designed for precise calibration and diagnostics of current transformers (CT) and potential transformers (PT). Equipped with multiple test modes, a durable metal enclosure, and CE certification, it ensures reliable performance in substation environments. With a 1-year warranty and 50Hz power compatibility, it offers a cost-effective solution for electrical system maintenance.

Technical specifications

FeatureSpecificationBenefit
Test ModesCT Excitation, PT Ratio, PT ExcitationComprehensive diagnostics for CT/PT devices
Input/Output PortsS1/S2 (CT), P1/P2 (PT)Flexible connectivity for varied testing scenarios
DisplayHigh-visibility LCD screenClear presentation of test results
MaterialSteel/Aluminum EnclosureDurable, resistant to dust/moisture
CertificationCE CertifiedEnsures EU safety and compliance standards
Power50HzStable operation in standard power environments
Warranty1 YearReliable after-sales support

Customization guide

Adjustable current and voltage output ranges to meet specialized testing requirements for different CT/PT configurations.

Get inspired

The Huazheng CT/PT Analyzer is ideal for electrical engineers and technicians needing a portable, multi-functional tool for substation maintenance. Its rugged design and advanced test modes ensure accurate calibration, minimizing downtime and enhancing system reliability.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Measurement Accuracy±1.0%±0.85% (+15%)±0.7% (+30%)
PortabilityStandard handleLightweight designRuggedized case
Test Speed10 sec/test8.5 sec/test (+15%)7 sec/test (+30%)
Output Capacity500A575A (+15%)650A (+30%)

Supplier's note

  1. Technical Breakthroughs:

    • High Accuracy (Pro Model): ±0.7% precision enables precise calibration in labs requiring sub-millimeter accuracy.
    • Rugged Enclosure: Metal construction withstands harsh outdoor conditions, outperforming plastic-based competitors.
    • Multi-Test Integration: Single device replaces multiple tools, reducing costs and complexity.

  2. Version Selection Guide:

    • Base Model: Ideal for routine substations with basic testing needs.
    • Advanced Model: Preferred by field engineers needing 15% faster tests and lighter portability.
    • Pro Model: Best for precision-critical environments (e.g., power plants) where ±0.7% accuracy and 650A output are essential.

With the Pro Model’s 30% faster test speed and triple-industry-standard durability, users can handle high-voltage scenarios safely. Pair its enhanced accuracy with rugged materials to ensure reliable performance in extreme conditions.

Frequently asked questions

  • Which CT/PT analyzer is best for substation maintenance?

  • How to clean the input ports of the Huazheng CT/PT Analyzer?

  • Why is the Huazheng CT/PT Analyzer’s metal enclosure better for field use?

  • Can the Huazheng CT/PT Analyzer be customized for specific CT/PT tests?

  • Is the Huazheng CT/PT Analyzer CE-certified for safety compliance?

  • Does the Huazheng CT/PT Analyzer support 50Hz power for substations?

  • Is the Huazheng CT/PT Analyzer portable for field testing?

  • What’s the warranty period for the Huazheng CT/PT Analyzer?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Certification ComplianceRegulatory compliance in electrical testingIndustry Standard: CE (EN 61010-1)
Our Base: CE (▲)
Our Advanced: CE + ISO 9001 (▲▲)		Ensures safety and meets global safety standards (EN 61010-1).
Advanced adds quality management certification (ISO 9001).		Industry standard lacks additional certifications for specialized applications.
Test ModesComprehensive CT/PT testing in substationsIndustry Standard: 2 modes (Ratio, Excitation)
Our Base: 3 modes (▲) + Harmonic Analysis
Our Advanced: 4 modes (▲▲) + Real-Time Monitoring		Base supports core tests; Advanced enables advanced diagnostics (e.g., real-time data).Base may lack features for complex systems requiring real-time analysis.
Power FrequencyGlobal compatibilityIndustry Standard: 50/60 Hz
Our Base: 50 Hz
Our Advanced: 50/60 Hz (▲▲)		Advanced version usable in 60 Hz regions (e.g., North America).Base limited to 50 Hz regions (e.g., Europe/Asia).
Display TypeClear visualization of test resultsIndustry Standard: Small LCD
Our Base: 7" LCD (▲)
Our Advanced: 10" Touchscreen (▲▲)		Advanced touchscreen improves usability and data navigation.Industry-standard displays may strain eyes during prolonged use.
Warranty PeriodLong-term reliability assuranceIndustry Standard: 6 months
Our Base: 1 year (▲)
Our Advanced: 2 years (▲▲)		Extended warranty reduces downtime risks for critical infrastructure.Shorter warranties may increase maintenance costs over time.
Material DurabilityHarsh environmental resistanceIndustry Standard: Plastic housing
Our Base: Aluminum chassis (▲)
Our Advanced: Corrosion-resistant steel (▲▲)		Advanced chassis withstands extreme conditions (e.g., humidity, dust).Base may degrade faster in corrosive environments.
