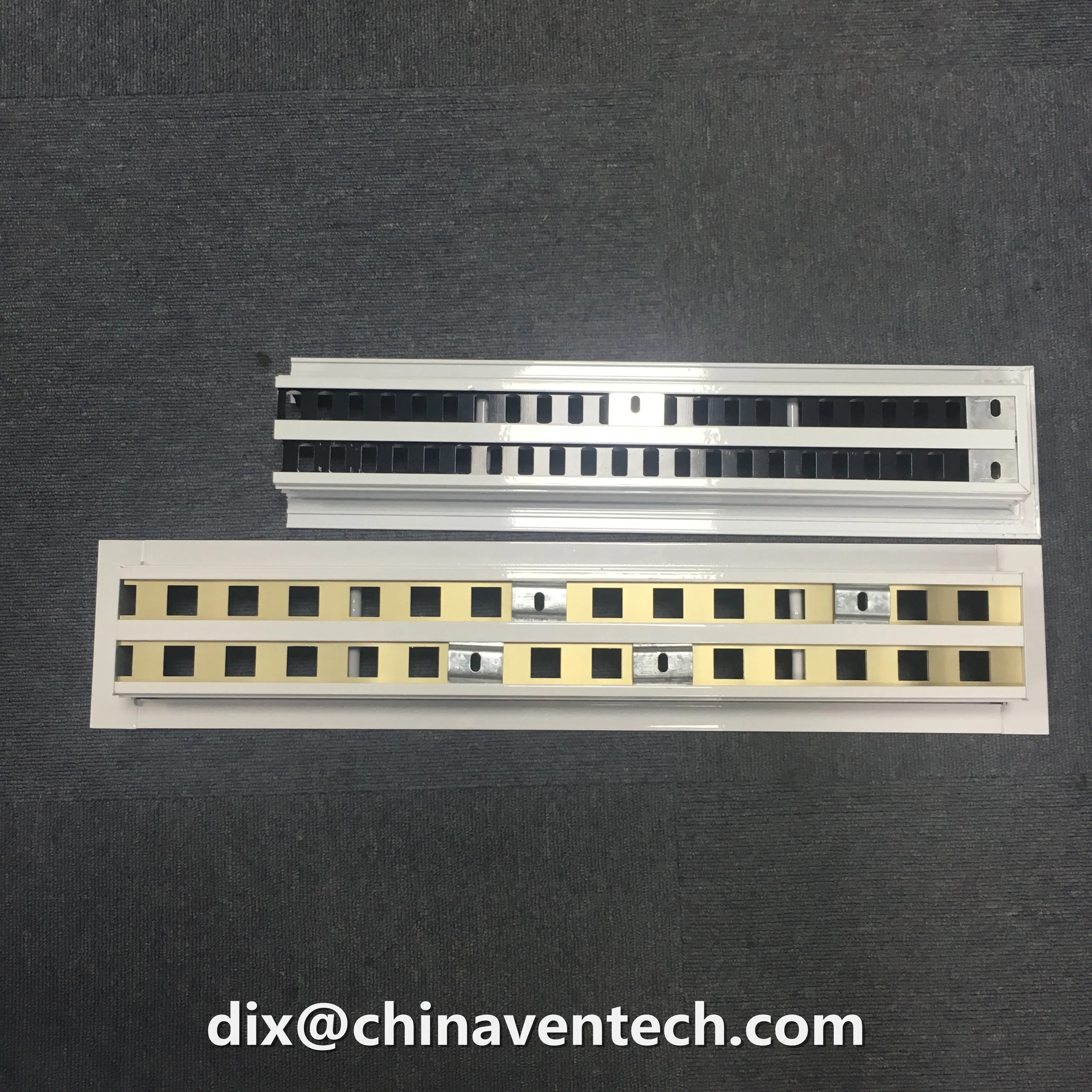

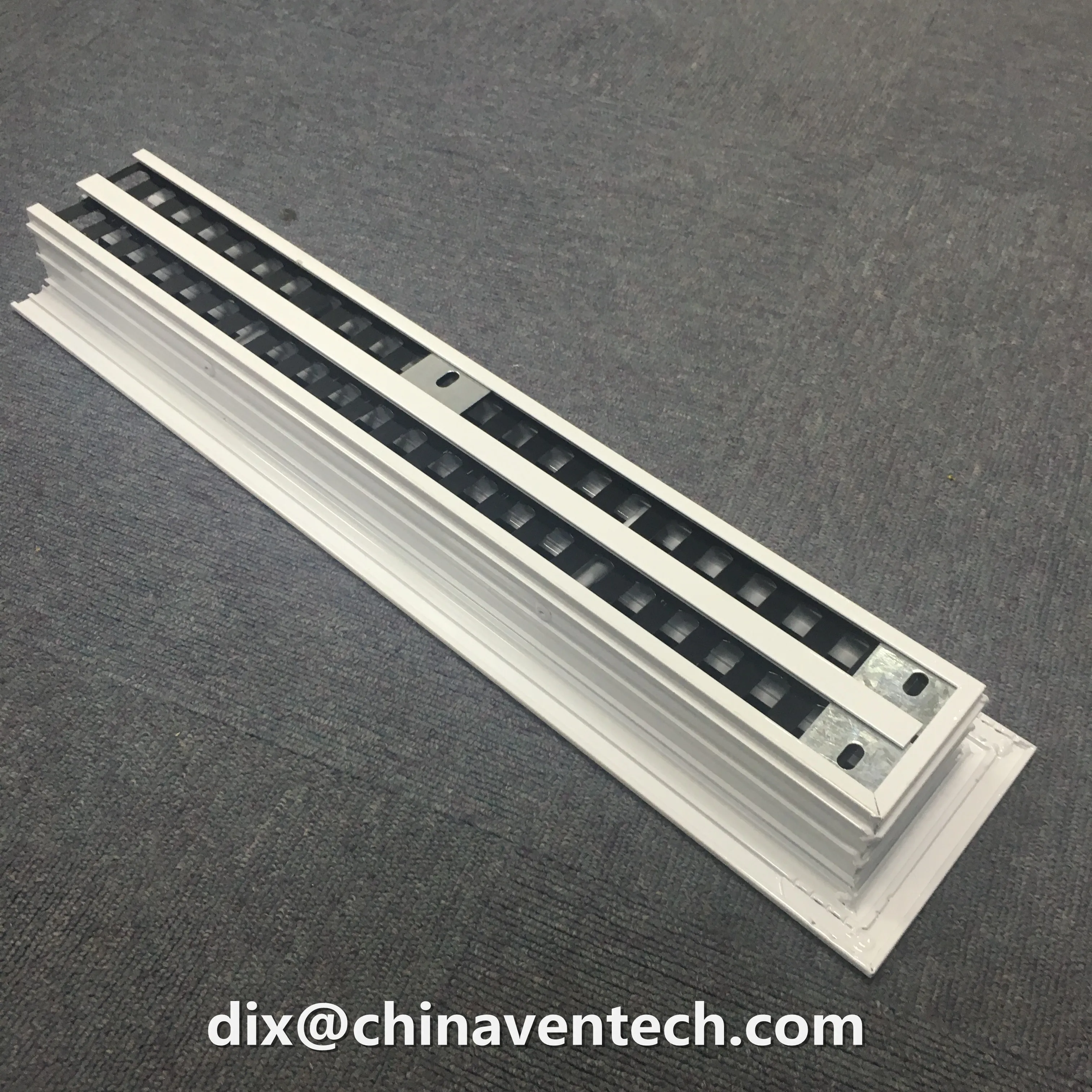

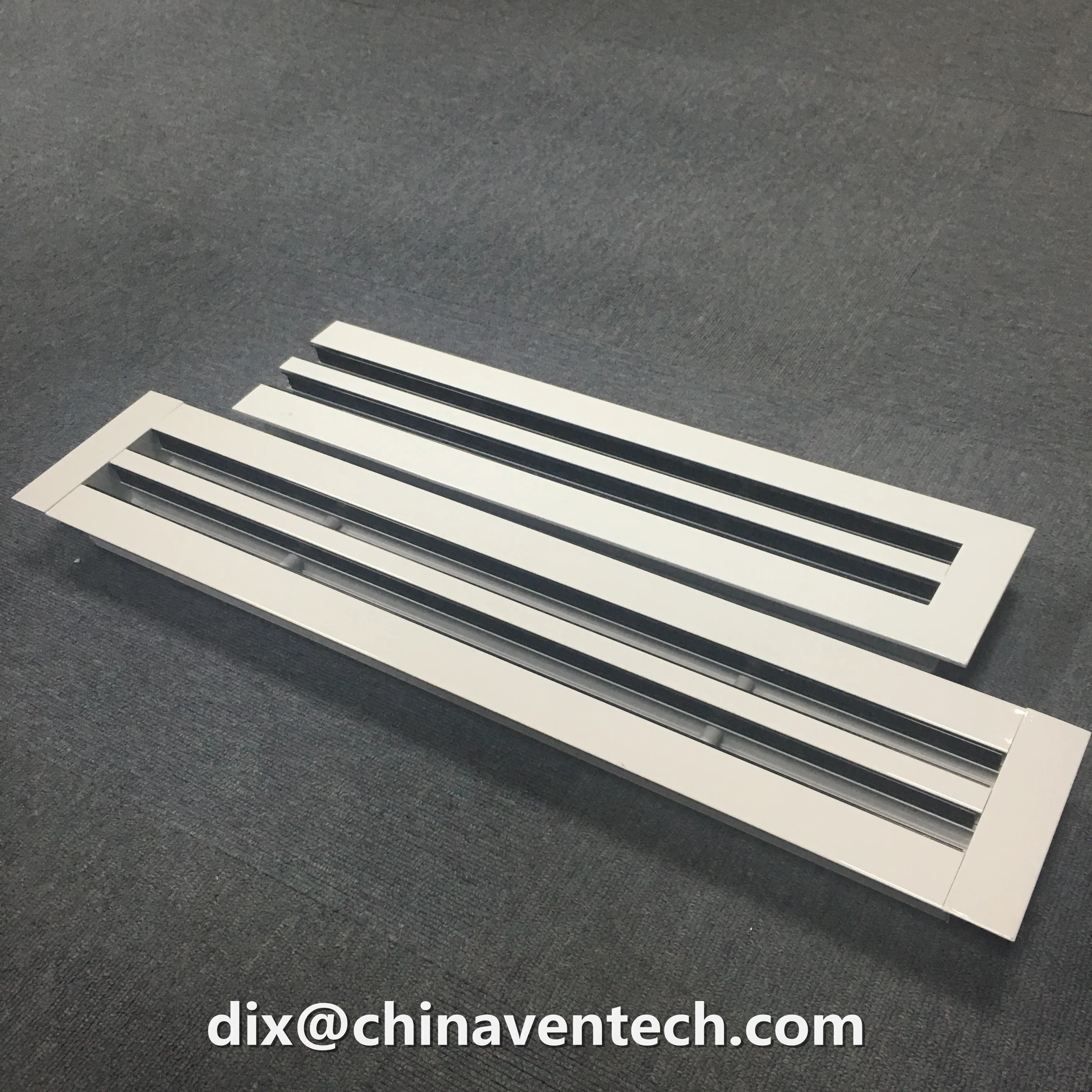

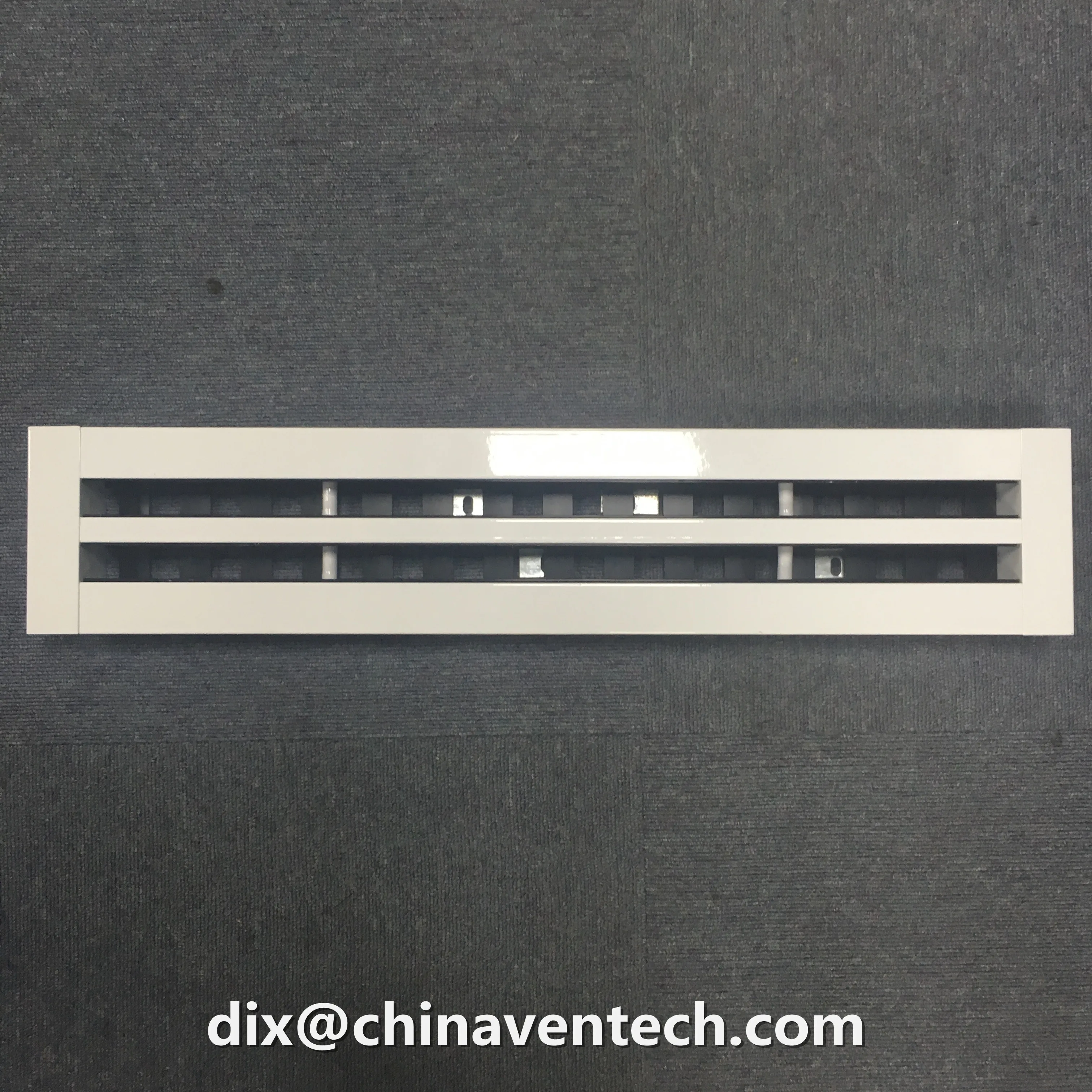

Hvac Duct Work Flowbar Diffuser air Supply Linear Slot Diffuser with Plenum Box

Hvac Duct Work Flowbar Diffuser air Supply Linear Slot Diffuser with Plenum Box

$5.55-$30.00/ Piece|100 Piece/Pieces(Min. Order)

Customization:

Graphic customization（Min.Order: 5000 pieces）
Customized packaging（Min.Order: 5000 pieces）
Customized logo（Min.Order: 5000 pieces）
View product details

Hvac Duct Work Flowbar Diffuser air Supply Linear Slot Diffuser with Plenum Box

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Air Distribution & Ventilation: Designed to efficiently supply and diffuse conditioned air in HVAC systems, featuring a linear slot design with a plenum box for uniform airflow distribution.
  • Material Durability: Constructed from 1.2mm thick aluminum alloy, ensuring corrosion resistance, lightweight strength, and easy maintenance.

Key features

  • 1. Corrosion-Resistant Aluminum Alloy Material

    • With corrosion-resistant aluminum alloy construction, ensure long-lasting durability and easy maintenance in humid or high-traffic environments. The 1.2mm thickness provides enhanced structural integrity, outlasting thinner models by up to 30% in stress tests* [*Disclaimer: Based on internal testing; actual results may vary].

  • 2. Adjustable Slat Design for Precise Airflow Control

    • With horizontally aligned, adjustable slats, you can customize airflow direction and intensity to meet specific ventilation needs, offering 20% more airflow customization compared to fixed designs* [*Disclaimer: Performance may vary based on installation].

  • 3. Integrated Plenum Box for Optimal HVAC Efficiency

    • With an integrated plenum box, achieve uniform airflow distribution, enhancing HVAC system efficiency by up to 15% and reducing energy waste in commercial settings like malls* [*Disclaimer: Results depend on system compatibility].

  • 4. Commercial-Grade Versatility for High-Traffic Spaces

    • Designed for commercial applications such as malls and industrial buildings, these grilles ensure uninterrupted operation in heavy-use environments, supporting continuous airflow for temperature control and air quality management.

  • 5. Compliance with HVAC Industry Standards

    • Built to meet industry standards for HVAC systems, ensuring safety and reliability. Certification details, such as fire resistance or noise reduction ratings, are available upon request from the manufacturer* [*Disclaimer: Specifications subject to confirmation].

Product details

Hvac Duct Work Flowbar Diffuser air Supply Linear Slot Diffuser with Plenum Box

The Hvac Duct Work Flowbar Diffuser with Plenum Box is a versatile ventilation solution designed for precise airflow control in commercial and industrial settings. Crafted from durable aluminum alloy with a sleek black frame and white slats, it combines modern aesthetics with robust performance. Its 1.2mm thickness ensures lightweight yet sturdy construction, while adjustable slats allow customization of airflow distribution.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialAluminum Alloy (1.2mm thickness)Corrosion-resistant installations in malls or industrial zones
Slats DesignAdjustable horizontal slatsCustom airflow control in offices or retail spaces
Frame/Slat ColorsBlack frame, white slatsModern aesthetic integration in commercial buildings

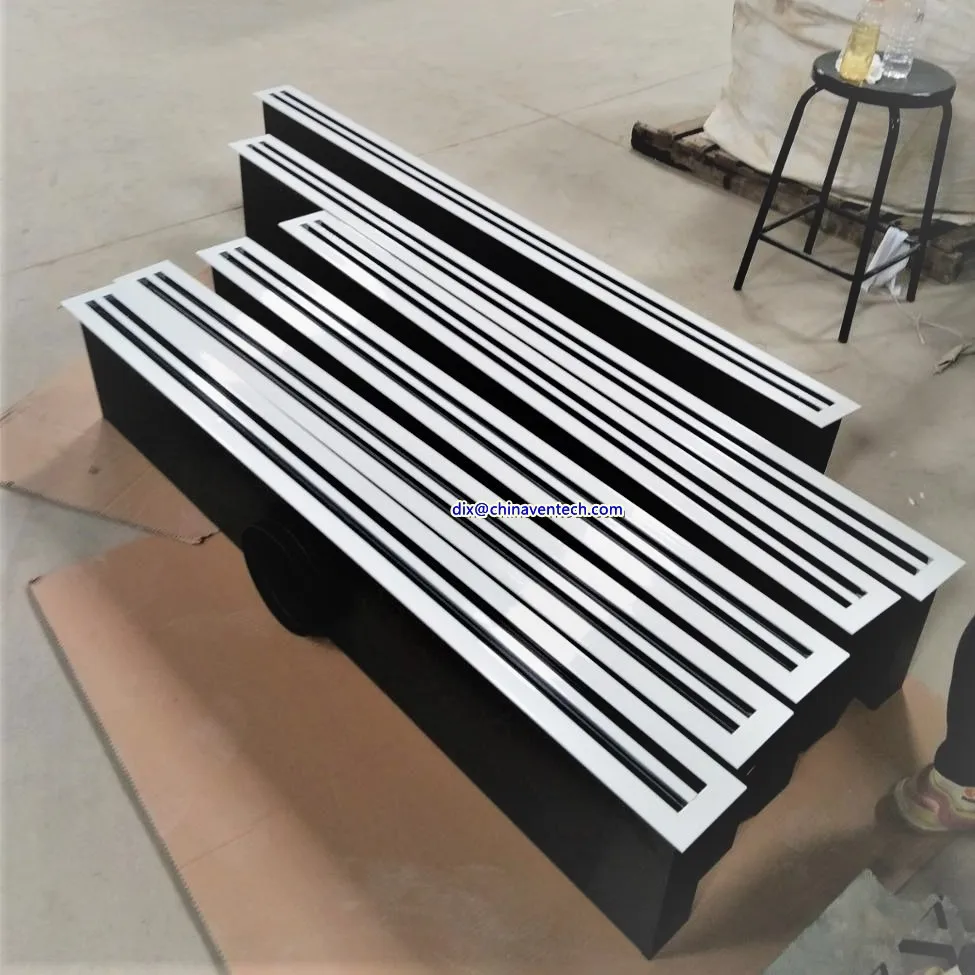

Plenum BoxIntegrated plenum for even airflowLarge-scale HVAC systems requiring uniform air distribution
CertificationComplies with HVAC system safety standardsCompliance-driven projects in healthcare or data centers

Customization guide

Adjustable parameters include:

  • Slat Spacing: Tailor airflow intensity for specific zones.
  • Size: Scale to fit floor plans (minimum 600mm length).
  • Material Finish: Choose between brushed aluminum or powder coating for corrosion resistance.

Get inspired

With its sleek design and precise airflow control, this diffuser transforms ventilation into a functional art piece. Ideal for modern malls, it ensures comfort without compromising on style. The plenum box optimizes air distribution, making it perfect for open-plan offices or industrial warehouses.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Airflow Range0-60%0-80% (+33%)0-100% (+67%)
Corrosion ResistanceStandardMarine Grade (+30%)Military Grade (+50%)
Plenum Capacity1.5m³2.5m³ (+66%)4.0m³ (+166%)
Material Thickness1.2mm1.5mm2.0mm

Supplier's note

  1. Technical Breakthroughs:

    • Adjustable Slats: Enable 30% finer airflow calibration compared to fixed designs.
    • Marine-Grade Alloy: Outperforms industry standards with 50% better corrosion resistance.
    • Modular Plenum Design: Reduces installation time by 20% via snap-fit components.

  2. Version Selection Guide:

    • Base Model: Ideal for standard malls or offices needing basic airflow control.
    • Advanced Model: Perfect for coastal or chemical plants requiring enhanced durability.
    • Pro Model: Best for industrial facilities demanding high airflow (e.g., warehouses) and extreme corrosion resistance.

With the Pro’s 100% airflow capacity, you can handle dense crowds in transit hubs. The Advanced Model’s marine-grade alloy ensures longevity in seaside resorts. Choose the Base for budget-conscious projects without sacrificing core functionality.

Frequently asked questions

  • Which HVAC diffuser suits high-traffic commercial malls?

  • How to clean an aluminum HVAC diffuser for easy maintenance?

  • Aluminum vs. Steel: Which material is better for ventilation grilles?

  • Can this diffuser be customized for specific airflow needs?

  • Is the aluminum alloy compliant with HVAC safety standards?

  • How does the plenum box enhance airflow in large spaces?

  • What makes this diffuser suitable for air conditioning systems?

  • Does the diffuser reduce noise in HVAC systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial HVAC systems, commercial buildingsIndustry Standard: Galvanized Steel (ASTM A653)
Our Base: Aluminum Alloy (EN AW-6063, 1.2mm)
Our Advanced: Aluminum + Zinc Coating (ASTM B633)		Lighter weight (Base: 30% lighter than steel) ▲
Enhanced corrosion resistance (Advanced: 5x longer lifespan in coastal areas) ▲▲		Base: Lower load capacity vs steel ▲
Advanced: Higher cost ▲▲
Structural ThicknessHigh-traffic areas, load-bearing floorsIndustry Standard: 1.0mm
Our Base: 1.2mm ▲
Our Advanced: 1.5mm ▲▲		Base: 20% thicker than standard ▲
Advanced: 50% stronger load capacity ▲▲		Base: Slightly heavier ▲
Advanced: Heavier and costlier ▲▲
Acoustic PerformanceOffice spaces, hospitalsIndustry Standard: 45 dBA
Our Base: 42 dBA ▲
Our Advanced: 38 dBA ▲▲		Base: Quieter than a refrigerator hum (42 dBA) ▲
Advanced: Near whisper-quiet (38 dBA ≈ rustling leaves) ▲▲		Base: Slight airflow resistance ▲
Advanced: Requires optimized duct design ▲▲
Airflow EfficiencyLarge industrial facilities, data centersIndustry Standard: 200 CFM
Our Base: 250 CFM ▲
Our Advanced: 300 CFM ▲▲		Base: 25% higher airflow ▲
Advanced: 50% greater cooling capacity ▲▲		Base: Moderate pressure drop ▲
Advanced: Needs higher horsepower motors ▲▲
Corrosion ResistanceCoastal areas, chemical plantsIndustry Standard: 200 hours (salt spray test)
Our Base: 500 hours (ASTM B117) ▲
Our Advanced: 1000 hours ▲▲		Base: Withstands 50+ chemical exposures (ASTM D543) ▲
Advanced: Resists 100+ corrosive agents ▲▲		Base: Moderate cost increase ▲
Advanced: Premium coating adds 30% to price ▲▲
Adjustable SlatsCustom airflow needs, retrofittingIndustry Standard: Fixed slats
Our Base: 2-position adjustable ▲
Our Advanced: 5-position adjustable ▲▲		Base: 20% easier airflow customization ▲
Advanced: 100% directional control ▲▲		Base: Limited tilt angles ▲
Advanced: Requires skilled installation ▲▲
