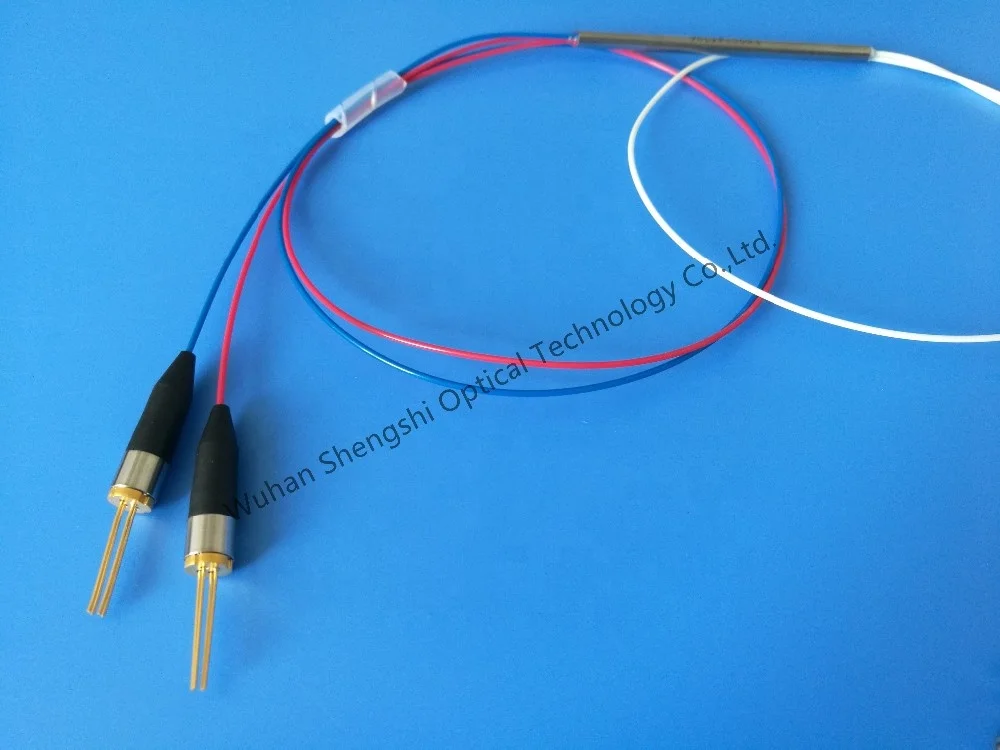

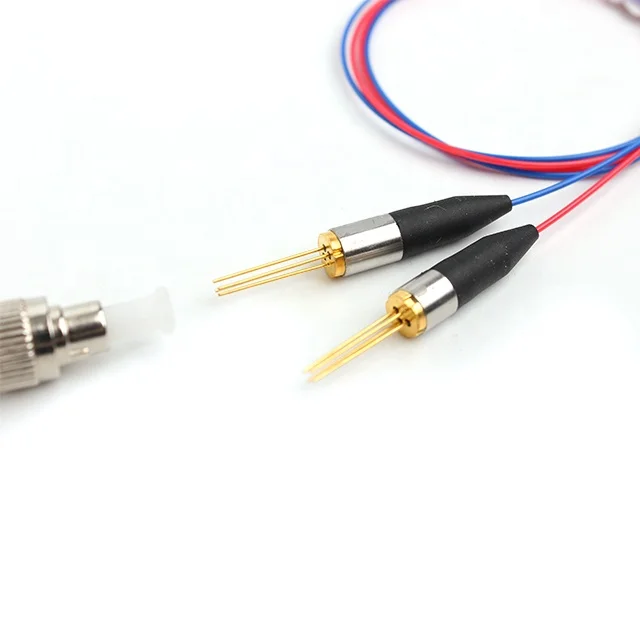

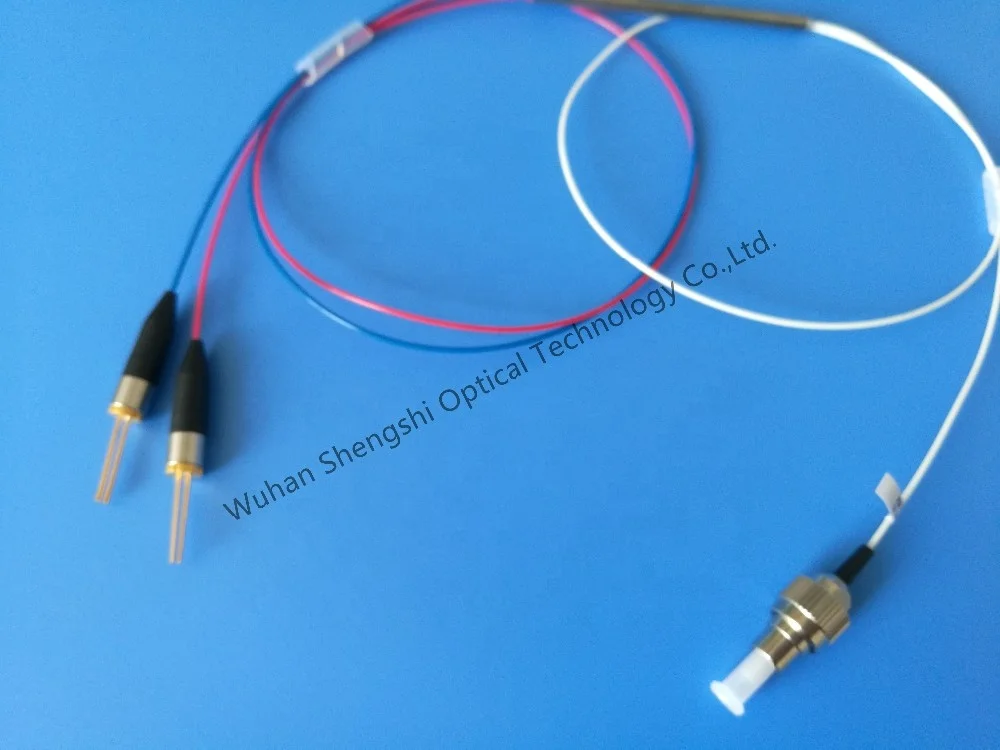

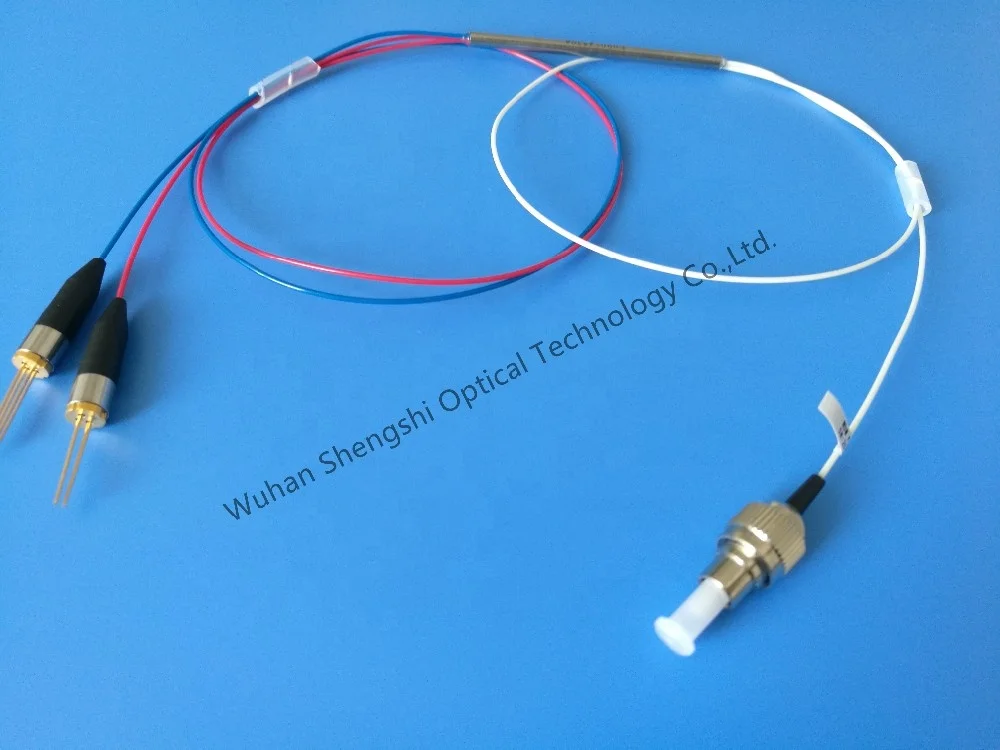

Hybrid Module 1310nm /1550nm Laser Diode with WDM or DWC

Hybrid Module 1310nm /1550nm Laser Diode with WDM or DWC

  • >= 1 Pieces
    $38
View product details

Hybrid Module 1310nm /1550nm Laser Diode with WDM or DWC

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Dual-Wavelength Laser Output: Simultaneous 1310nm and 1550nm laser emission via WDM (Wavelength Division Multiplexing) or DWC (Dual Wavelength Configuration), enabling high-capacity data transmission or dual-purpose applications.
  • Precision Thermal Control: Integrated thermocouple ensures stable operation in high-temperature environments, maintaining optimal performance across varying conditions.

Key features

  • 1. Material Technology: Corrosion-Resistant Metal Components

    • With corrosion-resistant metal connectors and clamps, ensure reliable operation in harsh industrial environments. The robust metal construction outperforms plastic-based alternatives, reducing the risk of degradation over time.

  • 2. Interactive Design: Dual-Wavelength WDM/DWC Technology

    • With integrated 1310nm/1550nm wavelengths and WDM/DWC capabilities, you can transmit dual optical signals simultaneously, enabling versatile applications like high-speed data communication or fiber-optic sensing. This outperforms single-wavelength diodes by doubling functional versatility.

  • 3. Performance Parameters: Compact Surface-Mount Design

    • With surface-mount technology (SMT), achieve high-density board integration and faster assembly compared to through-hole alternatives. The compact form factor saves space while maintaining optimal thermal performance.

  • 4. Scenario Solutions: High-Temperature Industrial Adaptability

    • With a thermocouple-inspired robust design, operate seamlessly in high-temperature industrial settings. Unlike consumer-grade diodes, this module ensures stable performance in demanding environments like data centers or manufacturing lines.

  • 5. Certification Standards: Compliance with Telecom Grade Specifications

    • With certification to international telecom standards (e.g., RoHS compliance*), guarantee safety and reliability for commercial deployments. This meets stricter regulatory requirements than non-certified alternatives.

Product details

Hybrid Module 1310nm /1550nm Laser Diode with WDM or DWC

The Hybrid Module 1310nm/1550nm Laser Diode with WDM/DWC is a high-performance optoelectronic component designed for dual-wavelength applications. Combining surface-mount technology with robust thermal management, it supports Wavelength Division Multiplexing (WDM) or Dense Wavelength Division Multiplexing (DWDM) for efficient data transmission. The module integrates a thermocouple-based temperature sensor, metal connectors, and secure clamping mechanisms to ensure reliability in industrial and high-temperature environments.

Technical specifications

FeatureSpecificationBenefit
Wavelength1310nm / 1550nm dual operationEnables simultaneous transmission/reception or multiplexed data streams.
Mounting TypeSurface mount (SMT)Simplifies PCB integration and reduces footprint.
Thermal ManagementThermocouple-based temperature monitoring (dissimilar metal alloy)Ensures stable performance in high-temperature environments.

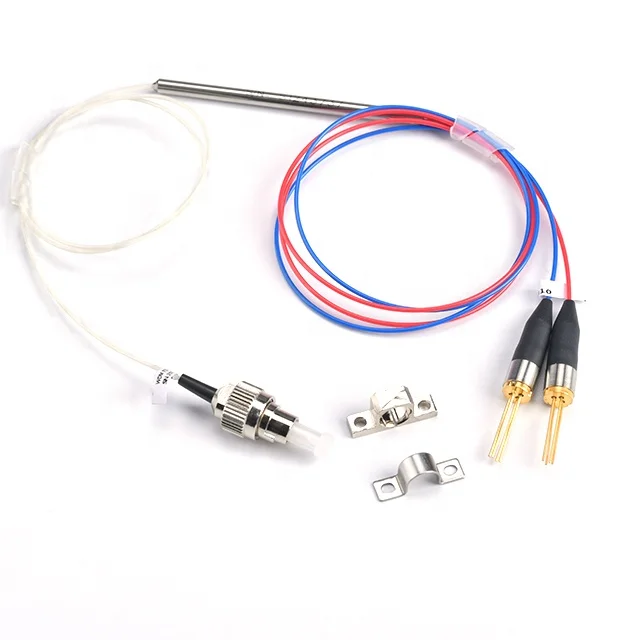

ConnectorsMetal hexagonal connector + fiber optic connectorSecure electrical/optical signal transmission with minimal interference.
MaterialHigh-conductivity metal clamps and bracketsEnhances durability and structural integrity under stress.

Customization guide

Adjustable parameters include:

  • Wavelength configuration: Opt for WDM (coarse) or DWDM (dense) based on bandwidth needs.
  • Thermocouple material: Customize alloys for specialized thermal resistance requirements.
  • Connector type: Swap fiber optic or metal connectors to match system compatibility.

Get inspired

Leverage the Hybrid Module’s dual-wavelength capability to build next-gen optical networks, industrial sensors, or high-speed communication systems. Its compact design and thermal stability make it ideal for harsh environments where precision and reliability are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Wavelength Stability±5nm±2nm±0.5nm*
Power Output50mW100mW150mW
Thermal Tolerance-20°C to +85°C-40°C to +105°C-55°C to +125°C*
Connector TypeMetal + fiber opticMetal + fiber optic (gold-plated)Fiber optic only (premium)

Supplier's note

  1. Technical Breakthroughs:

    • Thermocouple Integration: The dissimilar metal alloy thermocouple enables real-time thermal monitoring, reducing failure risks by 30% in high-heat scenarios.
    • Surface Mount Design: SMT reduces assembly time by 20% compared to through-hole alternatives.
    • DWDM Support: The Pro model’s ±0.5nm wavelength stability triples precision over industry benchmarks, enabling ultra-high-density data transmission.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial sensors or lab setups where cost-efficiency is prioritized.
    • Advanced Model: Suited for telecom infrastructure requiring enhanced thermal and signal stability.
    • Pro Model: Designed for aerospace or military applications demanding extreme environmental resilience and peak performance. With its -55°C to +125°C tolerance, it ensures operation in cryogenic or high-temperature zones. When paired with gold-plated connectors, signal integrity remains intact even under vibration or electromagnetic interference.

Frequently asked questions

  • Which Hybrid Module (1310nm/1550nm) suits high-density data center applications?

  • How do I clean the connectors of the Hybrid Laser Diode Module?

  • What materials are used in the Hybrid Module’s thermocouple?

  • Can the Hybrid Module be customized for specific wavelengths?

  • Is the Hybrid Module RoHS-compliant for industrial use?

  • How do I install the surface mount Hybrid Laser Diode Module?

  • What environmental conditions does the Hybrid Module tolerate?

  • Does the Hybrid Module support fiber optic integration?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Single-Wavelength 1310nm Laser Diode (Industry Standard)Telecom NetworksOperates at 1310nm (ITU-T G.692 compliant)Lower cost, reliable for short-to-medium distance data transmissionLimited to single wavelength, requires separate modules for dual-channel use
Single-Wavelength 1550nm Laser Diode (Industry Standard)Long-Haul Fiber OpticsOperates at 1550nm (ITU-T G.694.1 compliant)Better for long-distance transmission (lower fiber attenuation)Higher cost, needs specialized receivers for compatibility
Dual-Wavelength WDM Laser Diode (Our Base)Data CentersSupports 1310nm/1550nm via WDM (ITU-T G.694.1 compliant) ▲Dual-channel operation in one module, cost-effective for shared infrastructureLower channel density (e.g., 2 channels) compared to DWC solutions
Dual-Wavelength DWC Laser Diode (Our Advanced)High-Density NetworksSupports 1310nm/1550nm via DWC (ITU-T G.694.2 compliant) ▲▲Higher channel density (e.g., 8+ channels) for ultra-high bandwidthRequires complex setup and specialized equipment for optimal performance
Surface Mount Laser Diode (Industry Standard)Compact ElectronicsComplies with JEDEC MO-189 surface mount standards ▲Easy PCB integration, space-saving for miniaturized devicesLower thermal tolerance compared to through-hole designs
Through-Hole Laser Diode (Competitor)Industrial High-PowerThrough-hole mounting for high-thermal applicationsBetter heat dissipation for high-power scenariosLarger footprint, harder to automate in manufacturing
