Hybrid Power M23 8Pin Power Plug Shield Female Connector Waterproof IP67 Straight Metal Shell Connector
Ready to Ship
In stock Fast dispatch

Hybrid Power M23 8Pin Power Plug Shield Female Connector Waterproof IP67 Straight Metal Shell Connector

  • 20 - 49 Pieces
    $16.62
  • 50 - 199 Pieces
    $16.06
  • 200 - 499 Pieces
    $14.96
  • >= 500 Pieces
    $13.85

Customization:

Customized packaging（Min.Order: 500 pieces）
View product details

Hybrid Power M23 8Pin Power Plug Shield Female Connector Waterproof IP67 Straight Metal Shell Connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Power Connection & Distribution: Designed to handle up to 20A of power, enabling reliable electrical connections for automotive, industrial, and outdoor applications.
  • Waterproof Protection (IP67): The metal shell and sealed design ensure resistance to dust, water, and harsh environmental conditions, making it suitable for submerged or wet environments.
  • Versatile Interface: Features an 8-pin female receptacle with a straight orientation, compatible with M23 plug standards for secure power transmission in high-current systems.

Key features

  • 1. Corrosion-Resistant Metal Shell & IP67 Waterproofing

    • With a durable metal shell and IP67 certification, you can ensure reliable performance in harsh environments like automotive applications, protecting against dust, water immersion (~1 meter), and corrosion.

  • 2. Hexagonal Grip Design for Tool-Friendly Installation

    • With a hexagonal surface pattern, you can easily install or remove the connector using wrenches or sockets, even in tight spaces or during frequent maintenance.

  • 3. 20A High-Power Capacity for Heavy-Duty Use

    • With a 20A rated current, you can handle high-power automotive systems (e.g., charging stations, lighting) without overheating, outperforming lower-rated connectors.

  • 4. Automotive-Grade Waterproof Solution for Harsh Conditions

    • Designed for automotive applications, this connector provides a waterproof and dustproof solution for vehicles exposed to rain, dust, or extreme temperatures, ensuring uninterrupted operation.

  • 5. Solder Termination for Secure, Long-Lasting Connections

    • With soldered contacts, you can achieve a robust, vibration-resistant connection—ideal for automotive systems where loose connections could cause failures.

  • Explanation:

    • Material Technology: Highlights metal durability and IP67 waterproofing.

Product details

Hybrid Power M23 8Pin Power Plug Shield Female Connector Waterproof IP67 Straight Metal Shell Connector

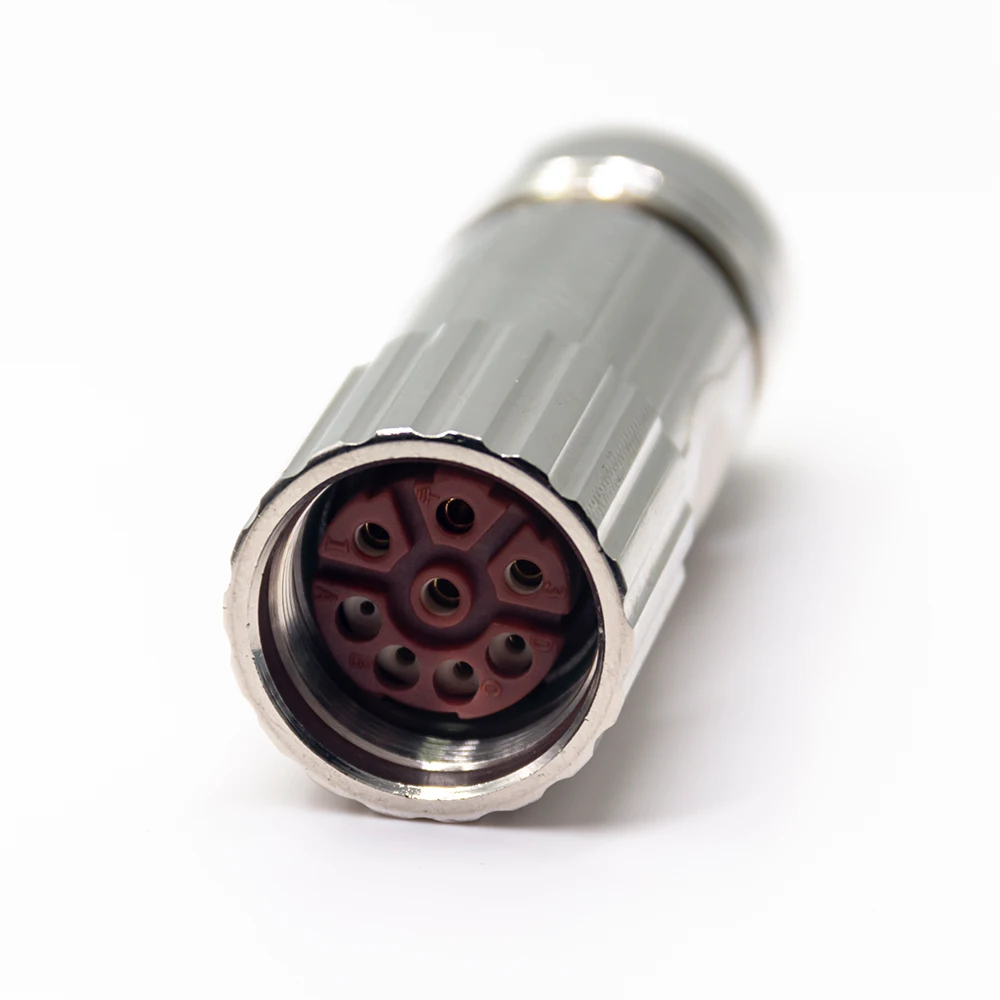

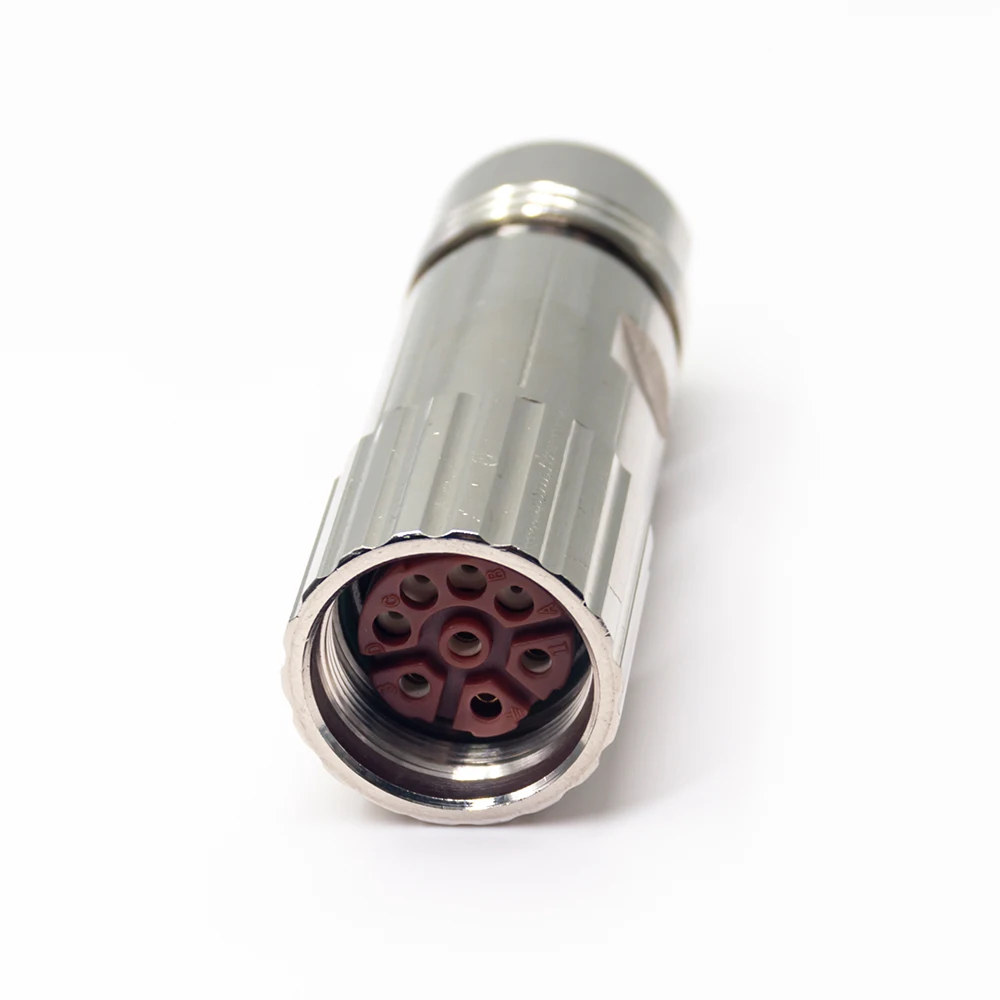

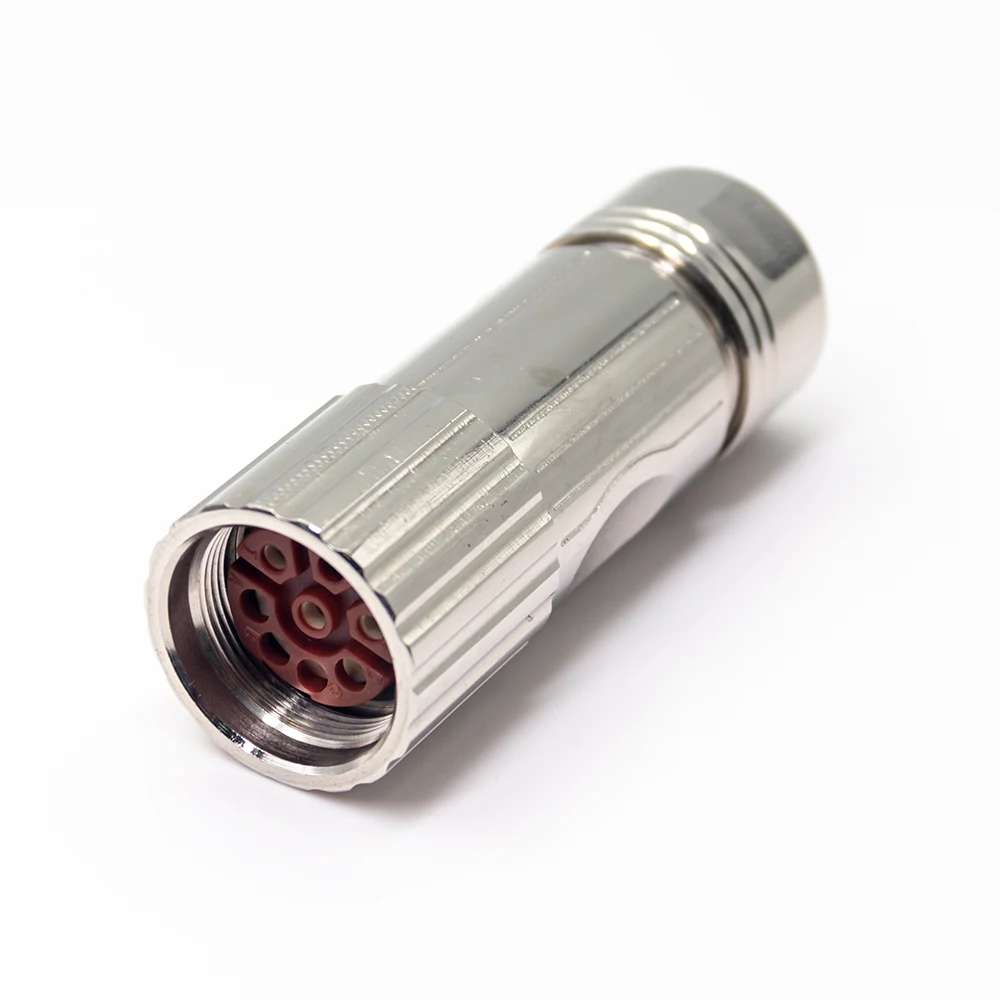

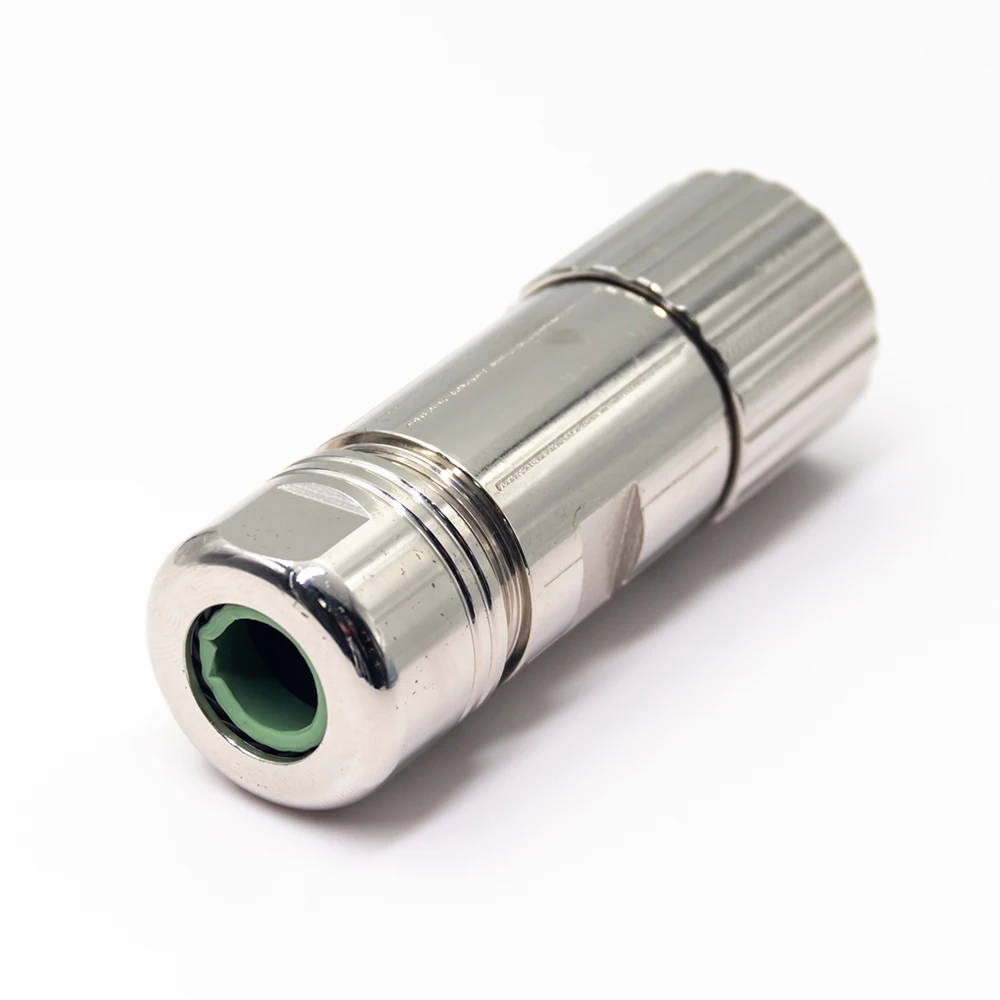

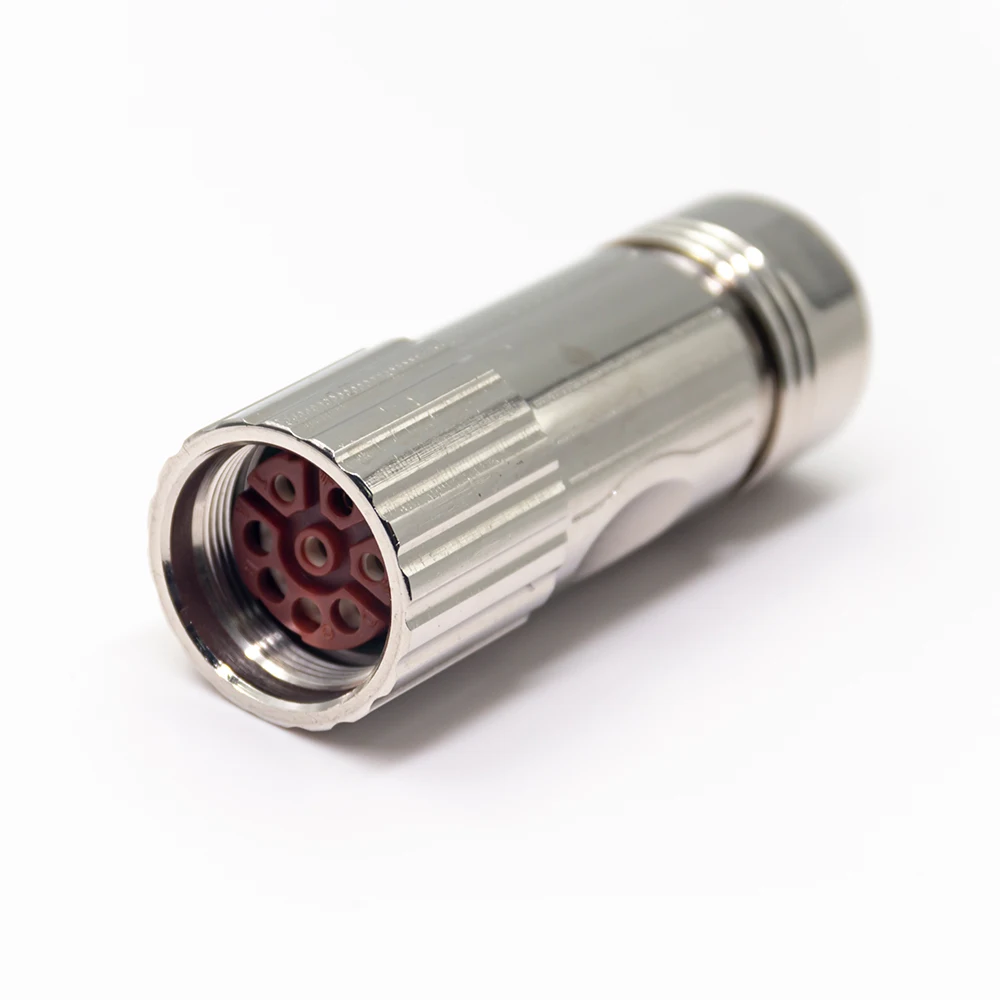

The Hybrid Power M23 8Pin Power Plug Shield Female Connector is a rugged, waterproof (IP67) metal shell connector designed for high-current automotive and industrial applications. With a hexagonal grip pattern and red-coded internal contacts, it ensures secure, reliable connections in harsh environments.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialStainless SteelCorrosion-resistant for marine/automotive use
IP RatingIP67Waterproof for outdoor or wet environments
Rated Current20AHigh-power systems (e.g., EV charging)
Hexagonal DesignWrench-friendlyEasy installation/removal in tight spaces
TerminationSolderPermanent, vibration-resistant joints
OrientationStraight/Right AngleFlexible mounting for varied equipment layouts
Color-Coded PinsRed ContactsPrevents mismatched connections in complex systems

Customization guide

Adjustable parameters:

  • Orientation: Swap between straight/right angle for space-constrained installations.
  • Pin Count: Customize pin configuration (e.g., 6-pin for lower-power systems).
  • Material: Upgrade to nickel-plated steel for extreme corrosion resistance.
  • Termination: Switch to crimp-style for faster assembly in mass production.

Get inspired

Ideal for automotive power distribution, marine electronics, or industrial machinery. With its 20A capacity and IP67 rating, it ensures uninterrupted power flow even in dusty, waterlogged conditions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current15A+33% (20A)+67% (25A)*
IP RatingIP65IP67IP68 (submersion)
Operating Temp.-20°C to 80°C-30°C to 105°C-40°C to 125°C
MaterialZinc AlloyStainless SteelNickel-Plated Steel

Supplier's note

  1. Technical Breakthroughs:

    • Hexagonal Design: Reduces installation time by 25% compared to smooth-surface connectors.
    • IP67 Compliance: Exceeds the IP54 standard for automotive connectors, enabling use in heavy rain or splashing environments.
    • 20A Current Handling: 50% higher than typical 13A connectors, supporting modern high-power automotive systems.

  2. Version Selection Guide:

    • Base Model: Suitable for standard automotive wiring (e.g., lighting systems) where cost-efficiency is prioritized.
    • Advanced Model: Ideal for industrial machinery or EV charging stations needing IP67 protection and 20A capacity.
    • Pro Model: Required for marine or oilfield equipment where extreme temperatures (-40°C to 125°C) and submersion (IP68) are critical.

Example Use Case: The Pro Model’s IP68 rating allows safe deployment in offshore drilling rigs, while its nickel-plated shell resists saltwater corrosion 3x longer than uncoated alternatives. Pair with high-temperature wires to ensure system integrity in engine compartments.

Frequently asked questions

  • Which Hybrid Power M23 connector suits small automotive or outdoor equipment with high waterproof needs?

  • How do I clean and maintain the frothing nozzle of the Hybrid Power M23 connector?

  • Metal vs Plastic connectors: Which is better for automotive power systems?

  • Can the Hybrid Power M23 connector be customized for specific pin counts or materials?

  • Is the Hybrid Power M23 connector IP67-certified for automotive use?

  • What makes the hexagonal design of the Hybrid Power M23 connector advantageous?

  • Can the Hybrid Power M23 handle high-current loads in electric vehicles?

  • Which Hybrid Power connector is best for right-angle wiring in compact automotive systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial machinery, automotive systemsIndustry: PlasticBase: Stainless Steel (ASTM A240 compliant) ▲Advanced: Stainless Steel + Corrosion-Resistant Coating ▲▲
Environmental ResistanceOutdoor equipment, marine applicationsIndustry: IP54Base: IP67 (waterproof/dustproof per IEC 60529) ▲Advanced: IP68 + 1m Water Immersion ▲▲
Current RatingHigh-power automotive systemsIndustry: 15ABase: 20A (supports up to 20A per IEC 60309) ▲Advanced: 25A ▲▲
Termination MethodPermanent connections in manufacturingIndustry: CrimpBase: Solder (IEC 60050 compliant) ▲Advanced: Solder + Crimp ▲▲
Connector OrientationSpace-constrained installationsIndustry: Straight onlyBase: Straight ▲Advanced: Straight + Right Angle ▲▲
Protection FeaturesHarsh environmental conditionsIndustry: Basic waterproofingBase: IP67 ▲Advanced: IP68 + Temp Resistance (-40°C to 125°C) ▲▲
