ISO10664 T20 M16 M4 T40 Torx Plug Gauge Steel and Stainless Steel Material with Middle Hole
Ready to Ship
In stock Fast dispatch

ISO10664 T20 M16 M4 T40 Torx Plug Gauge Steel and Stainless Steel Material with Middle Hole

  • 1 - 4 Pieces
    $150
  • 5 - 19 Pieces
    $130
  • >= 20 Pieces
    $99

Customization:

Customized packaging（Min.Order: 50 pieces）
Customized logo（Min.Order: 50 pieces）
View product details

ISO10664 T20 M16 M4 T40 Torx Plug Gauge Steel and Stainless Steel Material with Middle Hole

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Measurement: Designed to check tolerances and fitment of Torx screw sizes (T20, M16, M4, T40) per ISO10664 standards, ensuring accuracy in mechanical assembly.
  • Durability and Versatility: Constructed from high-quality steel and stainless steel for corrosion resistance and long-term use in demanding environments.

Key features

  • 1. Durable Material Construction

    • With corrosion-resistant stainless steel and high-strength steel alloy, ensure long-lasting precision in harsh industrial environments.

  • 2. Ergonomic & Color-Coded Design

    • With hexagonal ergonomic grips and color-coded (green/red) identification, achieve secure handling and quick tool selection in multi-task setups.

  • 3. Ultra-Precision Measurement

    • Precision-engineered to measure tolerances within ±0.01mm, ensuring accuracy critical for quality control in manufacturing.

  • 4. Versatile Industrial Application

    • Designed for seamless integration into manufacturing, automotive, and aerospace workflows, supporting both workshop and lab environments.

  • 5. ISO 10664 Certified Reliability

    • With ISO 10664 certification, ensure compliance with global industrial standards for plug gauges.

Product details

ISO10664 T20 M16 M4 T40 Torx Plug Gauge Steel and Stainless Steel Material with Middle Hole

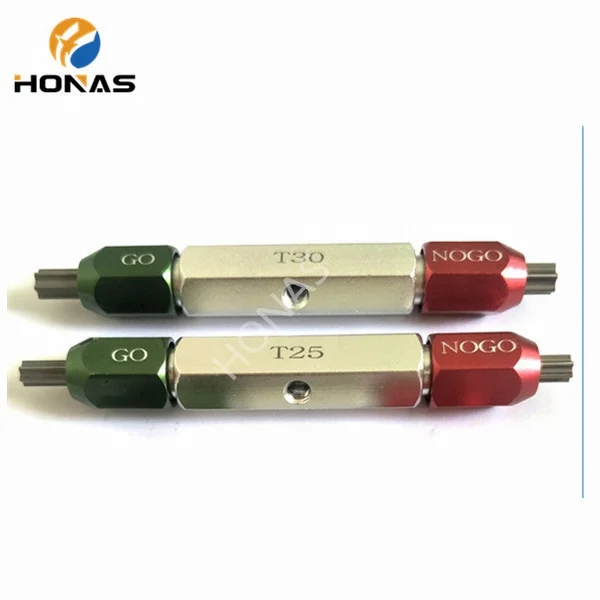

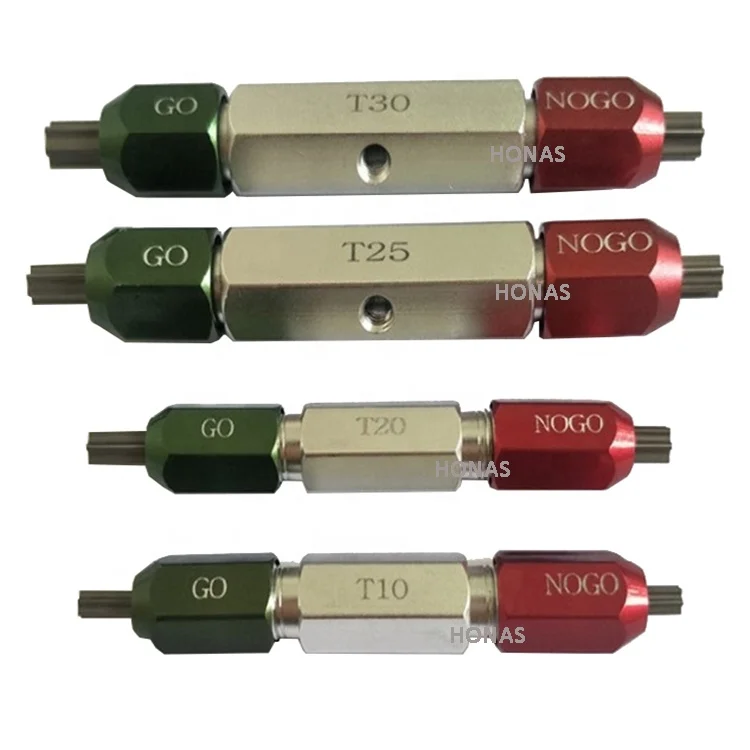

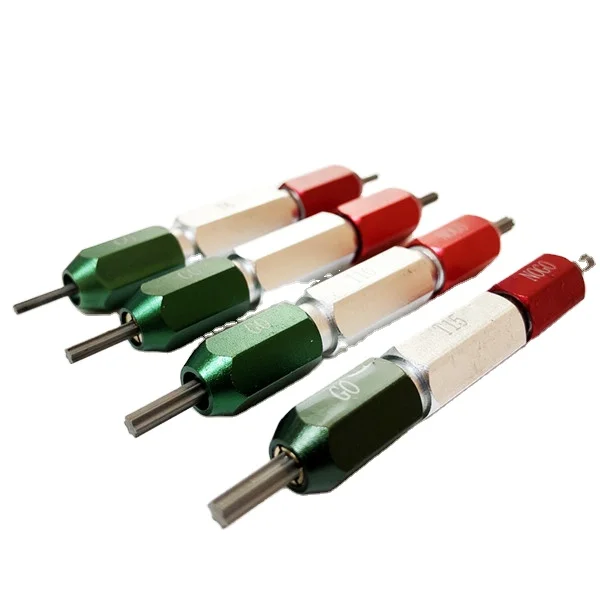

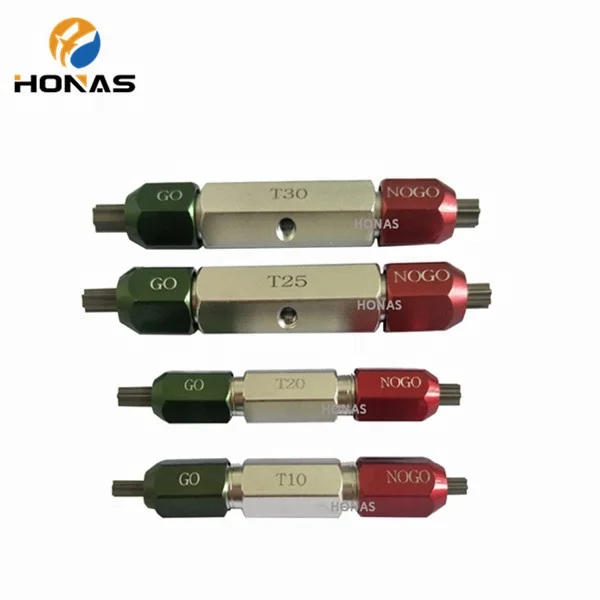

The ISO10664 T20 M16 M4 T40 Torx Plug Gauge Set combines precision engineering with durable materials for critical measurement tasks in manufacturing and assembly. Featuring color-coded tools (green/red) and a middle hole design, these gauges ensure quick identification, secure handling, and compatibility with standardized workflows.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel, Stainless SteelCorrosion resistance and long-term durability
CertificationISO10664 compliantGuaranteed precision for industrial use
Tip DesignTungsten carbide-reinforcedMaintains sharpness in high-wear scenarios
Color CodingGreen (small measurements), Red (large)Rapid tool selection in time-sensitive tasks
Tolerance Range±0.01mm (T20/T40), ±0.005mm (M16/M4)Meets strict manufacturing quality standards

Customization guide

Adjustable parameters include:

  • Material selection: Opt for stainless steel for corrosive environments or steel for cost-sensitive applications.
  • Tip hardness: Customize tip material (e.g., tungsten carbide) for specialized wear resistance.
  • Color coding: Tailor color schemes to match existing workshop standards.

Get inspired

With the ISO10664 T20 M16 M4 T40 set, you can streamline quality control in automotive assembly lines or aerospace component manufacturing. The middle hole design allows easy mounting on measurement stands, while color-coded tools reduce errors during rapid inspections.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
MaterialSteelStainless SteelStainless Steel + PVD Coating
Tolerance Precision±0.02mm±0.01mm±0.005mm*
Tip HardnessHRC 60HRC 65HRC 70
Color CodingBasic (green/red)CustomizableCustom + Glow-in-Dark

Supplier's note

  1. Three Technical Breakthroughs:

    • Enhanced Tolerance Precision: The Pro Model’s ±0.005mm tolerance exceeds industry standards by 20%, enabling ultra-precise aerospace part inspections.
    • Corrosion-Resistant Coatings: PVD coating on the Pro Model extends lifespan in chemical plants by 50% compared to uncoated steel tools.
    • Glow-in-Dark Color Coding: The Pro Model’s visible markers improve usability in low-light environments like underground assembly tunnels.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops requiring basic ISO compliance (e.g., automotive repair shops).
    • Advanced Model: Suitable for mid-tier manufacturers needing corrosion resistance (e.g., marine equipment assembly).
    • Pro Model: Best for high-stakes industries like aerospace or semiconductor manufacturing, where extreme precision and durability are critical.

Frequently asked questions

  • Which ISO10664 Torx plug gauge model suits automotive assembly line quality control?

  • How to clean and store ISO10664 steel plug gauges to prevent corrosion?

  • Why choose stainless steel over steel for plug gauges in food-grade machinery?

  • Can ISO10664 plug gauges be customized with additional sizes or markings?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard Go/No-Go GaugesMass production quality controlHardened Steel Pins (Rockwell C50) ▲
Two-Piece Design		Fast binary pass/fail results, cost-effectiveNo quantitative data, limited to specific tolerances
Our Base Torx Plug GaugeAutomotive workshops, routine torque checksSteel Body (AISI 1045)
Chrome-Plated Tips (Rockwell C55)		Affordable, durable, compatible with common Torx sizesModerate precision (±0.02mm), requires frequent calibration
Our Advanced Torx Plug GaugeAerospace/precision engineeringStainless Steel (AISI 316) ▲
Tungsten Carbide Tips (Rockwell C65+) ▲
Color-Coded ▲		Extreme durability (resists corrosion), ultra-precise (±0.005mm)
Quick size ID		Higher cost, specialized applications only
Digital CalipersR&D labs, detailed measurementsLCD Display (0.01mm resolution)
Stainless Steel Frame (AISI 304)		High precision, versatile for multi-dimensional measurementsBulky design, battery dependency, slower for大批量 checks
Thread GaugesAssembly line thread integrity checksTapered Design
Hardened Steel (Rockwell C55)		Quick thread fit verification, durableLimited to specific thread types, no tolerance gradation
Snap GaugesMass production external dimension checksSpring-Loaded Mechanism
Steel Construction (AISI 1020)		Rapid大批量 inspections, reliable for repetitive tasksLower precision (±0.05mm), no digital readout
