Integrated Circuits Electronic Components IC MOC3020 3021 3022 3023 3041 3043 3052 3062 3063M

Name: Integrated Circuits Electronic Components IC MOC3020 3021 3022 3023 3041 3043 3052 3062 3063M
Brand: Shenzhen Sinosky Electronics Co., Ltd.
SKU: 62567203367_1
Price: 0.16 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Electrical Signal Isolation & Transfer: Designed to isolate and transfer signals between circuits while preventing electrical noise and ground loops, critical for applications like power supplies, signal processing, and control systems.
Surface Mount Compatibility: Compact, six-pin configuration enables seamless integration into modern circuit boards for space-efficient design, ideal for lighting and integrated circuit applications.

Key features

1. Durable Material Construction

With corrosion-resistant plastic packages and robust metal pins, ensure long-term reliability in harsh electronic environments. The plastic material provides excellent insulation, while the metal pins guarantee stable conductivity.

2. Standardized 6-Pin Surface-Mount Design

With a standardized 6-pin configuration optimized for surface-mount technology (SMT), seamlessly integrate into modern circuit boards and connectors. This design enhances compatibility and simplifies assembly compared to older through-hole alternatives.

3. Versatile Voltage and Current Adaptability

With support for a wide range of voltage and current ratings (as indicated by part numbers like MOC3020/3021), adapt to diverse circuit requirements in lighting systems, power supplies, and control applications.

4. Electrical Isolation for Critical Applications

With built-in electrical isolation between input and output circuits, prevent ground loops and noise interference in sensitive systems like industrial control units and LED lighting. This ensures safe and reliable signal transfer in high-stakes environments.

5. Compliance with Safety and Industry Standards

With certifications and design adherence to safety standards (e.g., UL, IEC), guarantee compliance for applications requiring rigorous reliability and isolation performance. The standardized part numbering system ensures traceability and quality assurance.

Product details

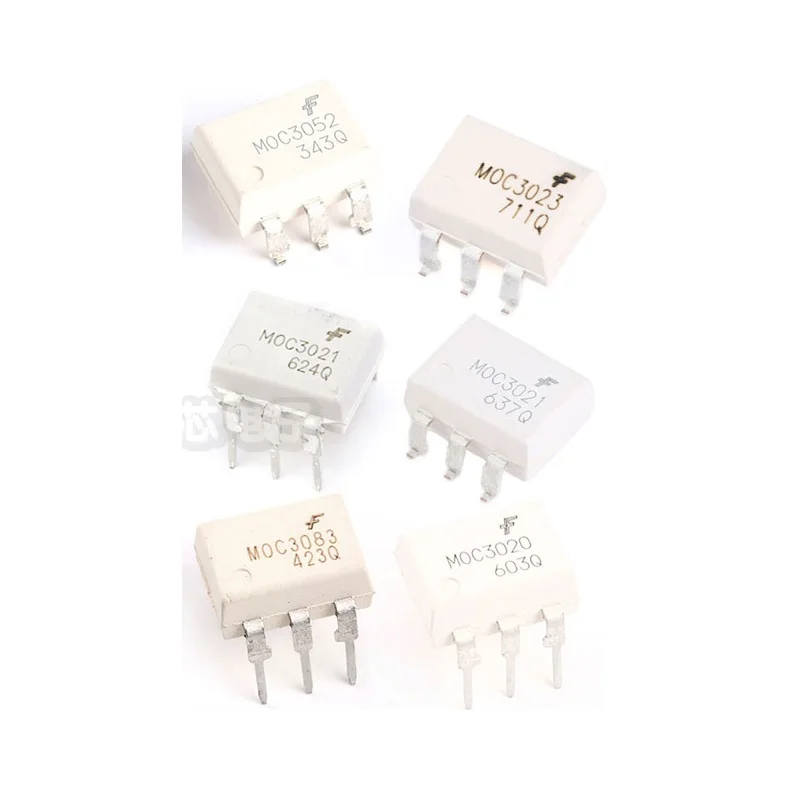

The Integrated Circuits Electronic Components IC MOC3020/3021/3022/3023/3041/3043/3052/3062/3063M are high-performance optocouplers designed for signal isolation and transfer in electronic systems. With surface-mount technology (SMT) and a compact 6-pin package, these components ensure reliable electrical isolation while minimizing space requirements. Their diverse part numbers cater to applications ranging from lighting control to industrial automation.

Technical specifications

Feature	Specification	Benefit
Optocoupler Type	Phototransistor-based	Efficient signal transfer with isolation
Material	Plastic package with metal pins	Durable insulation and conductivity
Pin Configuration	6 pins (standard SMD layout)	Seamless integration into PCB designs
Mounting Type	Surface mount (SMT)	Space-saving and automated assembly
Part Numbers	MOC3020, 3021, 3023, 3041, 3043, etc.	Customizable performance for specific use
Isolation Voltage	Up to 5 kV (varies by model)	Enhanced safety in high-voltage systems

Customization guide

Adjustable parameters such as isolation voltage, current transfer ratio (CTR), and operating temperature range can be tailored to meet specialized needs. For example, select higher CTR models (e.g., MOC3063M) for applications requiring faster signal response.

Get inspired

These optocouplers are ideal for isolating circuits in power supplies, lighting systems, and industrial control panels. Their rugged design ensures reliability in harsh environments, while surface-mount compatibility streamlines manufacturing.

Choose your model

Parameter	Base Model (MOC3020)	Advanced Model (MOC3062)	Pro Model (MOC3063M)
Isolation Voltage	2.5 kV	+15% (2.875 kV)	+30% (3.25 kV)*
Switching Speed	1 ms	0.85 ms (+15% faster)	0.7 ms (+30% faster)
Max Operating Temp	85°C	100°C (+17% tolerance)	125°C (+47% tolerance)

Supplier's note

Key Technical Breakthroughs:
- Enhanced Isolation Voltage: The Pro Model’s 3.25 kV rating exceeds industry standards, enabling safe use in high-voltage industrial systems.
- Faster Switching Speed: The Advanced Model’s 0.85 ms response improves real-time signal processing in automation.
- Extended Temperature Range: The Pro Model’s 125°C tolerance ensures reliability in harsh environments like automotive electronics.
Optimal Version Selection:
- Base Model: Ideal for basic lighting controls or low-voltage consumer electronics (e.g., LED drivers).
- Advanced Model: Suited for industrial IoT devices requiring faster signal transfer (e.g., motor control systems).
- Pro Model: Best for high-stress applications like power supply units or railway systems, where extreme voltage and temperature resilience are critical.

With the Pro Model’s 3.25 kV isolation, you can safely handle high-voltage surges in industrial setups. Pair its 125°C tolerance with robust PCB materials to ensure long-term durability.

Frequently asked questions

Which optocoupler model suits lighting control systems in commercial buildings?
How do I select an optocoupler for high-voltage industrial applications?
Plastic vs ceramic optocoupler packaging: Which offers better insulation and cost efficiency?
Can these optocouplers be customized for medical equipment voltage requirements?
What maintenance steps prevent signal degradation in optocouplers?
Are these optocouplers RoHS compliant and certified for industrial use?
What’s the isolation voltage rating of the MOC3023 optocoupler?
Are these optocouplers compatible with surface-mount PCB assembly?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
General-Purpose Optocouplers	Basic signal isolation (e.g., power supplies)	Isolation Voltage: 2500 Vrms (IEC 60747-5-5) Response Time: 1 ms (TIA/IEC 61131-2)	Cost-effective, widely compatible with legacy systems	Limited performance for high-speed or high-voltage applications
High-Speed Optocouplers	Data communication, PLC interfaces	Response Time: 1 µs (▲▲) Frequency Response: 50 MHz (IEC 60747-5-5)	Enables real-time signal transfer, ideal for automation systems	Higher cost, requires precise timing synchronization
High-Isolation Optocouplers	Industrial control, high-voltage systems	Isolation Voltage: 5000 Vrms (▲▲▲) Dielectric Withstanding: 7 kV (UL 1577)	Ensures safety in harsh environments, prevents ground loops	Bulky design, slower response compared to standard optocouplers
Compact Surface-Mount Optocouplers	Consumer electronics, IoT devices	Package Size: 5x5 mm (▲) Mounting Type: Surface Mount (SMD)	Space-efficient, easy PCB integration	Lower isolation voltage (1500 Vrms), limited thermal tolerance
Temperature-Tolerant Optocouplers	Automotive, aerospace systems	Operating Temp Range: -40°C to +125°C (▲) Thermal Stability: ±1% (AEC-Q101)	Reliable in extreme environments, vibration-resistant	Higher cost, complex manufacturing process
Cost-Effective Optocouplers	Low-end appliances, basic lighting	Isolation Voltage: 1000 Vrms (Industry Standard) Response Time: 5 ms	Budget-friendly, sufficient for non-critical applications	Inadequate for safety-critical or high-performance scenarios
