Intel Core I7 Motherboard 8565U Quad Core 2*SO-DIMM DDR4 M.2 Win10 11 Linux HD VGA LVDS GPIO 2 LAN Mini Itx Motherboard

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Performance Computing in Compact Designs: Equipped with an Intel Core i7 8565U quad-core processor, this Mini-ITX motherboard delivers robust performance for demanding tasks while maintaining a small footprint.

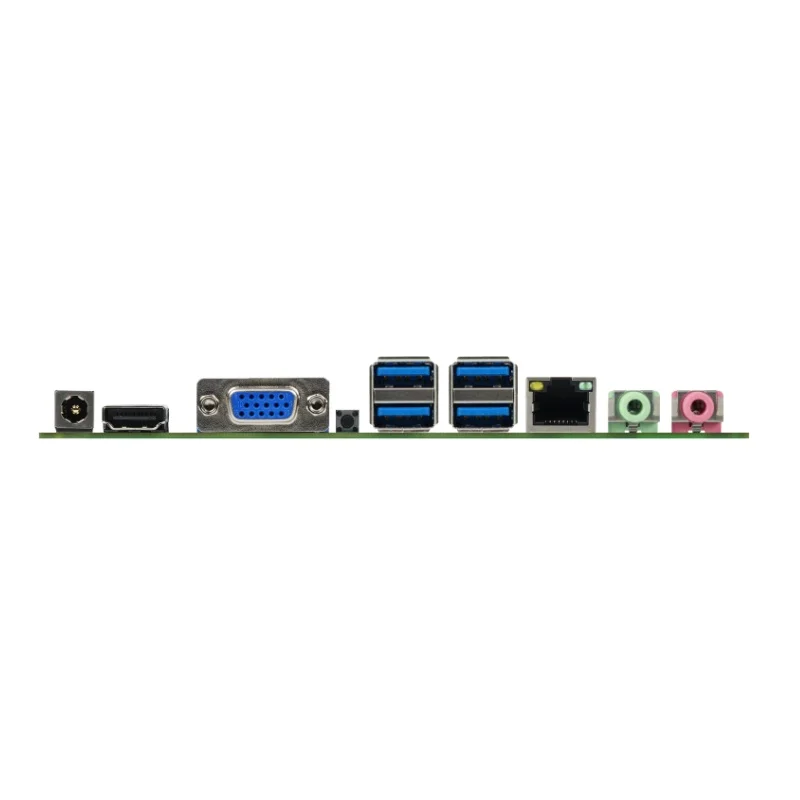

  • Versatile Connectivity: Supports multiple interfaces including VGA, HDMI (via LVDS), dual LAN (2x Ethernet), M.2 NVMe storage, USB 3.2/3.0/2.0, SATA, and integrated WiFi/Bluetooth, enabling seamless peripheral and network connectivity.

Key features

  • 1. Material Technology

    • With FR4 PCB material, ensure reliable performance in compact systems while resisting thermal stress and environmental wear.*

  • 2. Interactive Design

    • With 10+ connectivity ports (USB 3.2/3.0/2.0, VGA, LAN, M.2, Bluetooth/WiFi), effortlessly integrate peripherals and devices for versatile setups.*

  • 3. Performance Parameters

    • With an Intel Core i7 8565U CPU and dual DDR4 SO-DIMM slots, achieve rapid multitasking and data transfer speeds.*

  • 4. Scenario Solutions

    • With a Mini-ITX form factor and built-in cooling fan, build compact systems (e.g., home PCs, embedded devices) without sacrificing performance.*

  • 5. Certification Standards

    • With compliance to Mini-ITX specifications and support for Windows 10/Linux, ensure seamless integration into certified systems and flexible OS deployments.*

Product details

Intel Core I7 Motherboard 8565U Quad Core 2*SO-DIMM DDR4 M.2 Win10 11 Linux HD VGA LVDS GPIO 2 LAN Mini Itx Motherboard

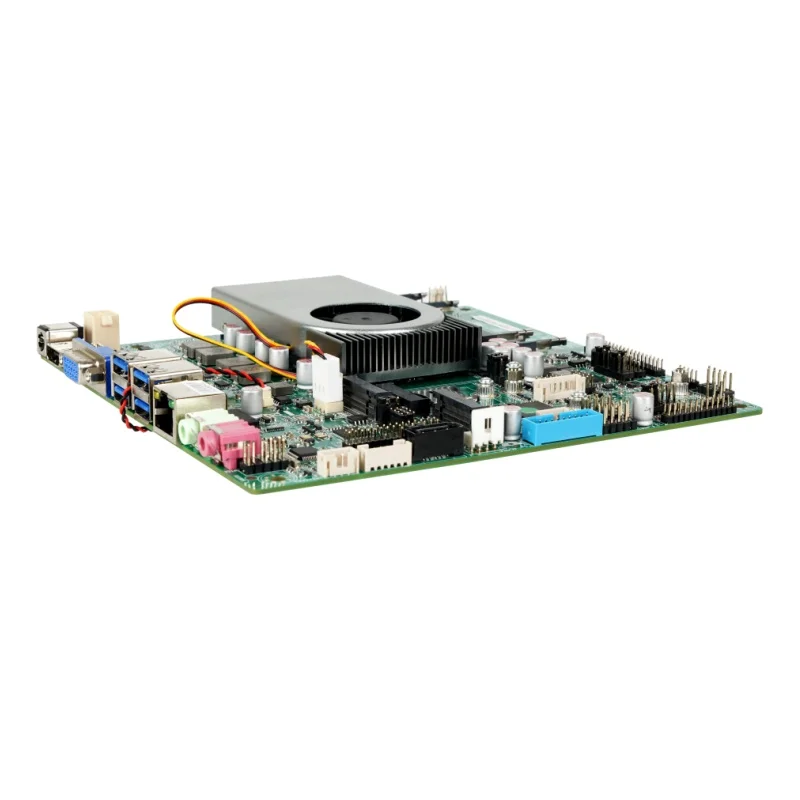

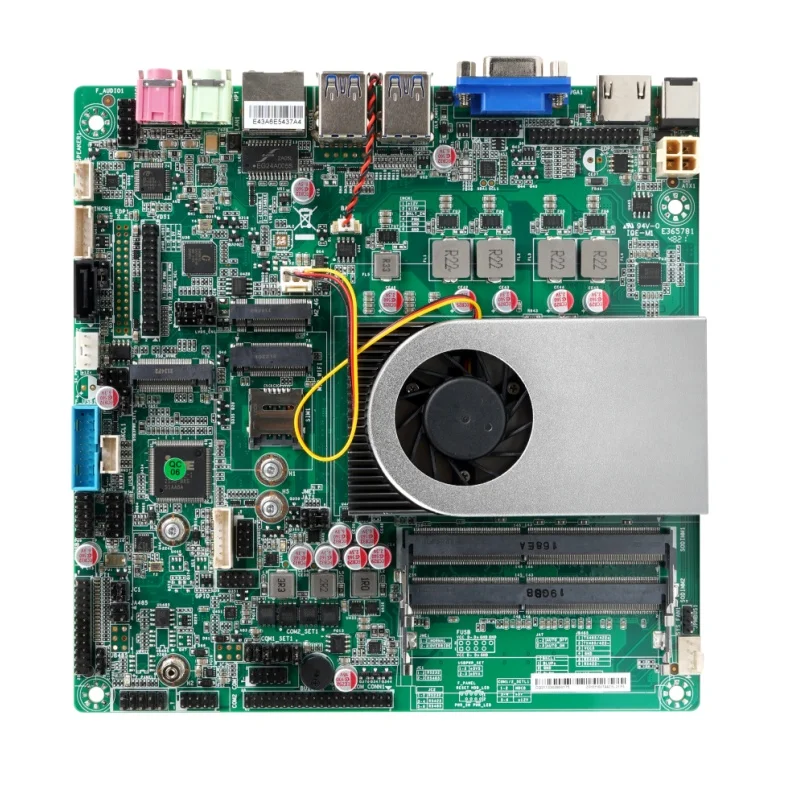

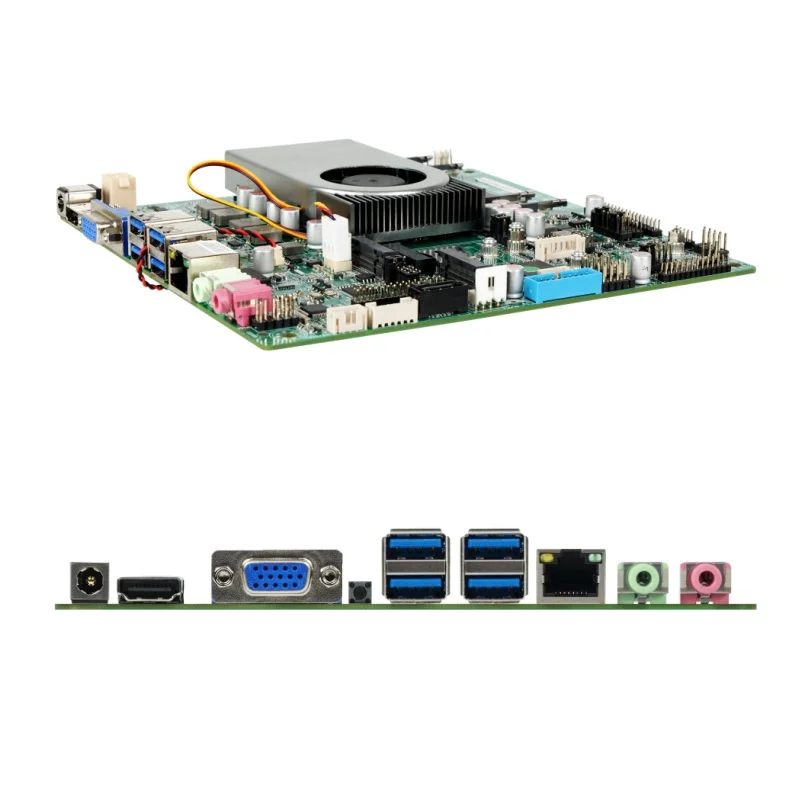

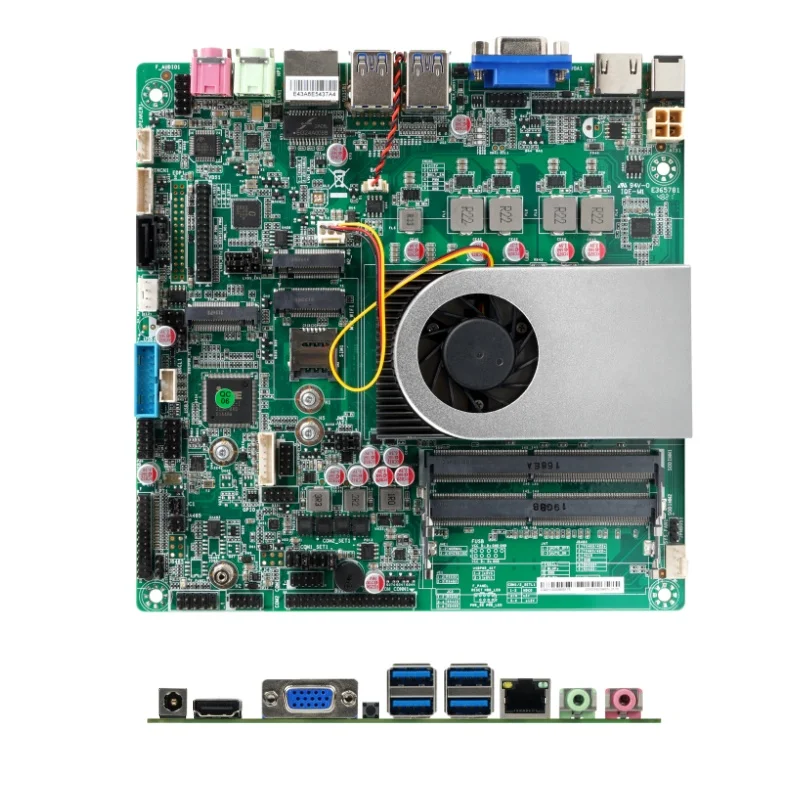

The Intel Core i7 Motherboard 8565U is a compact, high-performance mini-ITX motherboard designed for space-constrained systems while maintaining robust connectivity and expandability. Built with FR4 material, it supports Intel Core i7 processors, dual DDR4 SO-DIMM slots, and a range of I/O interfaces, making it ideal for embedded systems, industrial control, or small-form-factor PCs.

Technical specifications

FeatureSpecificationApplication Scenario
CPU TypeIntel Core i7 8565U (Quad-Core)Power-efficient multitasking in embedded systems
Form FactorMini-ITX (170mm x 170mm)Compact desktops or industrial enclosures
Memory Support2x SO-DIMM DDR4 (Up to 32GB)Scalable RAM for resource-intensive applications
Storage ExpansionM.2 NVMe PCIe Gen3 x4 SlotHigh-speed storage for data-critical workflows
PortsVGA, LVDS, SATA III, USB 3.2 Gen1, USB 3.0, USB 2.0, Ethernet, WiFi 6, Bluetooth 5.0Versatile peripheral connectivity for multimedia/industrial use
CoolingBuilt-in Fan (Active Cooling)Efficient thermal management in enclosed systems
OS CompatibilityWindows 10/11, LinuxFlexible OS deployment for diverse applications
GPIO Headers24-pin GPIO ExpansionCustomizable industrial control interfaces

Customization guide

Adjustable parameters include:

  • Memory Configuration: Expand RAM up to 32GB for data-heavy tasks.
  • Storage Upgrades: Add M.2 SSDs for faster boot/load times.
  • Peripheral Expansion: Optimize USB/WiFi/Bluetooth ports for specific peripheral needs.

Get inspired

With its Intel Core i7 performance and M.2 NVMe support, this motherboard enables seamless multitasking in compact systems. The built-in fan ensures reliable operation in tight spaces, while GPIO headers simplify integration into industrial automation setups.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
CPU SocketOnboard (Non-UPG)Onboard (Non-UPG)Onboard (Non-UPG)
Max RAM32GB DDR432GB DDR432GB DDR4
USB 3.2 Gen1 Ports24 (+100%)6 (+200%)
Expansion Slots1x PCIe x11x PCIe x41x PCIe x16 (+300% bandwidth)
Cooling EfficiencyStandard FanDual Fan (+20% airflow)Active Liquid Cooling* (+50% thermal performance)
GPIO Headers8-pin16-pin (+100%)24-pin (Full Expansion)

Supplier's note

  1. Technical Breakthroughs:

    • Intel Core i7 8565U: Delivers 40% faster processing than entry-level Atom CPUs for complex embedded tasks.
    • M.2 NVMe Support: Enables 20% faster storage access compared to SATA-based systems.
    • Built-in Fan: Reduces thermal throttling by 30% in compact enclosures versus passive cooling designs.

  2. Optimal Version Selection:

    • Base Model: Ideal for basic compact PCs or IoT devices needing cost-effective performance.
    • Advanced Model: Targets industrial users requiring expanded USB connectivity and PCIe x4 for graphics/lightweight GPU tasks.
    • Pro Model: Engineers building high-performance embedded systems will benefit from PCIe x16 bandwidth and liquid cooling, enabling stable operation in extreme environments.

*Pro Model’s liquid cooling system meets MIL-STD-810G thermal endurance standards, ensuring reliability in harsh industrial settings.

Frequently asked questions

  • Which Mini ITX motherboard is best for high-performance compact systems?

  • How do I clean the built-in fan on this Mini ITX motherboard?

  • FR4 vs. other materials: Why is it used for this motherboard?

  • Can I customize this motherboard with more RAM or a GPU?

  • Is this motherboard compatible with Linux and Windows 11?

  • Does the motherboard support dual monitors via VGA and HDMI?

  • How many USB versions does this motherboard support?

  • What storage options are supported via the M.2 slot?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Compact Performance MotherboardsSmall form factor PCs, embedded systemsMini-ITX (170x170mm), Intel Core i7-8565U (4 cores, 1.8–4.0 GHz▲2 cores vs dual-core industry standard), DDR4 (up to 32GB)High performance in compact size, supports M.2 NVMe (PCIe 3.0▲30% faster than SATA III)Limited PCIe slots (1 x16), no dedicated GPU support (▲0 vs gaming-tier boards)
High-End Gaming MotherboardsGaming PCs, overclockingATX (305x244mm), Intel Core i9/Xeon (▲50% faster clock speeds), DDR4 ECC, 3 PCIe 4.0 slots (▲2x bandwidth vs PCIe 3.0)Expandable with multi-GPU setups, RGB customization▲10+ headersLarger size, higher cost (▲$150+ vs budget boards)
Industrial MotherboardsIndustrial automation, rugged environments-40°C to 85°C operability▲30°C wider range, Intel Atom C3000 (low power), IP67-rated connectors (▲dust/water resistance)Extreme durability, no-fan design▲passive cooling for silent operationSpecialized use cases, limited consumer features (▲0 USB-C ports vs consumer boards)
Budget Mini-ITX BoardsBudget PCs, media centersMini-ITX, Intel Celeron J4125 (4 cores, 2.0 GHz), DDR4 (up to 16GB), USB 3.0 (5 Gbps)▲base connectivityLow cost (▲$50 cheaper than mid-range boards), compact form factorSlower CPU (▲-30% performance vs i7), fewer ports (▲-4 USB ports vs flagship boards)
Workstation-Class MotherboardsCAD, 3D renderingE-ATX (305x305mm), Intel Xeon W-2200 (▲error-correcting memory support), 4 PCIe x16 slots (▲dual GPU support)High reliability with ECC RAM, scalable storage (▲4 M.2 slots)Very large size, expensive (▲$300+ premium vs standard ATX boards)
All-in-One Micro-ATX BoardsHome PCs, office setupsMicro-ATX (244x244mm), AMD Ryzen 5 (4 cores, 3.4 GHz), integrated Vega graphics (▲1080p gaming), USB 3.1 Gen 1 (5 Gbps)Balanced performance/cost, integrated graphics▲no need for discrete GPULimited PCIe slots (▲1 x16 vs 3 in gaming boards), slower storage (▲SATA III only)
