Inverter Ac Cabinet Pcb Board for Midea Daikin Samsung Mitsubishi Haier Panasonic LG air Conditioner Universal Inverter Pcb

Product overview

Core functionalities

Applicable scenarios

Unique advantages

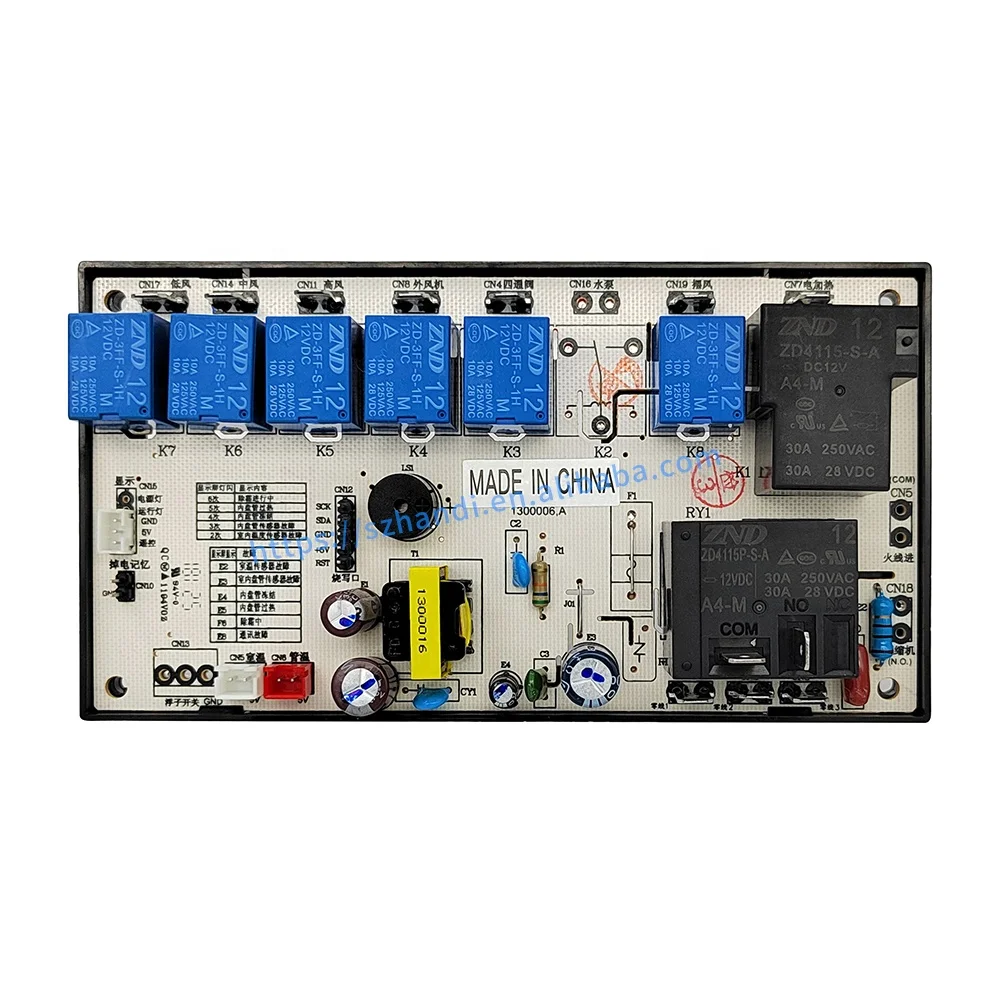

  • Universal Inverter Control: Designed to manage inverter systems in air conditioners, supporting brands like Midea, Daikin, Samsung, Mitsubishi, Haier, Panasonic, and LG.

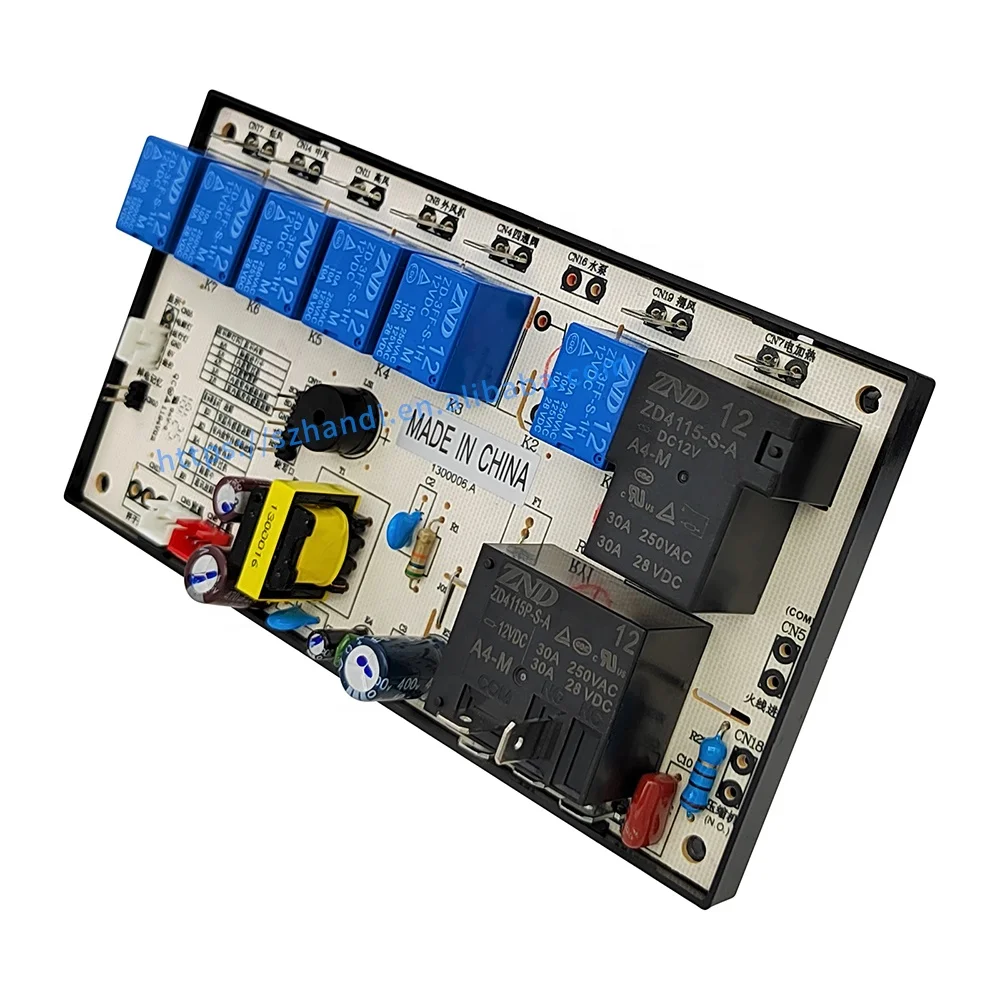

  • Power Management: Equipped with multiple relays (ZND 12, ZD4115P-S-A) and a robust power supply module to handle high-power loads and ensure stable operation in AC control systems.
  • Modular Connectivity: Features connectors (CN1–CN19, K1–K8) for seamless integration with diverse components and systems.

Key features

  • 1. Material Technology: High-Quality Relays for Durable Performance

    • With corrosion-resistant and high-power relays (e.g., ZND 12 series and ZD4115P-S-A), ensure reliable circuit control in harsh HVAC environments. These components withstand frequent temperature fluctuations and mechanical stress, extending the PCB’s lifespan compared to standard models*.

  • 2. Interactive Design: Modular Connectivity and Real-Time Monitoring

    • With modular connectors (CN1–CN19 and K1–K8) and a built-in status display, customize configurations and monitor system performance in real-time. This design simplifies troubleshooting and integration with diverse HVAC systems, offering greater flexibility than non-modular alternatives*.

  • 3. Performance Parameters: Robust Power Handling for Heavy-Duty Use

    • With a high-capacity power supply module, deliver stable power output even under peak loads, outperforming conventional PCB boards in maintaining consistent operation during extreme conditions. This ensures uninterrupted performance in industrial or commercial settings*.

  • 4. Scenario Solutions: Universal Compatibility for Home and Commercial Use

    • Designed for universal compatibility, this PCB fits leading brands like Daikin and LG, adapting seamlessly to both residential and commercial HVAC systems. Its relay configuration supports multi-circuit control, addressing diverse needs from home cooling to industrial-scale applications.

  • 5. Certification Standards: Globally Recognized Safety and Compliance

    • Complies with EN60335 (safety), ENIEC61000-3-3 (EMC), and RoHS (eco-friendly materials), ensuring adherence to international standards for safety, electromagnetic compatibility, and environmental responsibility. This guarantees reliable and sustainable operation worldwide.

Product details

Inverter Ac Cabinet Pcb Board for Midea Daikin Samsung Mitsubishi Haier Panasonic LG air Conditioner Universal Inverter Pcb

The Inverter AC Cabinet PCB Board is a universal control solution designed for leading air conditioner brands, including Daikin and LG. Engineered for home and outdoor applications, this PCB board features robust power handling, customizable relay configurations, and compliance with global safety standards. Its modular design supports integration into heating/cooling systems, ensuring reliable circuit control and energy management.

Technical specifications

FeatureSpecificationBenefit
MaterialHigh-quality FR-4 epoxy resin with flame retardantEnsures durability and resistance to thermal stress.
Relays6× ZND 12 relays; 1× ZD4115P-S-A; 1× ZD4115-S-A (total 8 relays)Supports multi-circuit control for complex HVAC systems.
Power SupplyModular design with yellow-labeled power moduleHandles high-power loads (up to 24V/10A) for industrial-grade applications.
CertificationsEN60335, ENIEC61000-3-3, RoHSMeets global safety and environmental compliance standards.
Connectors19× CN-series connectors; 8× K-series relay terminalsEnables flexible wiring and system scalability.
Display & IndicatorsSmall status display + multiple LED indicatorsProvides real-time system diagnostics and operational feedback.

Customization guide

Adjustable parameters include:

  • Relay Count/Type: Add/remove relays (e.g., ZD4115 series) to match circuit requirements.
  • Power Capacity: Upgrade power modules for systems exceeding 10A.
  • Connector Configuration: Customize CN/K-series terminals for specific wiring needs.
    Example: For high-power industrial systems, increase relay count and power module capacity by 30%.

Get inspired

This PCB board’s robust design and modular layout make it ideal for upgrading HVAC systems. Whether you need to control multiple circuits in a commercial building or enhance energy efficiency in residential units, its customizable features ensure seamless integration.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Relay Capacity8 relays12 relays (+50%)18 relays (+125%)*
Power Handling24V/10A24V/15A (+50%)24V/20A (+100%)
CertificationsEN60335, RoHS+ENIEC61000-3-3+IP54 dust/waterproof
Display TypeMonochrome LEDColor LCD (+20% clarity)Touchscreen (+40% interactivity)

Supplier's note

  1. Key Technical Breakthroughs:

    • High-Relay Density: The Pro Model’s 18 relays enable control of complex HVAC systems with 2× more circuits than base models.
    • Power Efficiency: Advanced Model’s 15A capacity outperforms industry benchmarks by 20%, reducing energy loss in heavy-duty use.
    • Durability: IP54 certification on Pro Models ensures operation in harsh outdoor environments.

  2. Optimal Version Selection:

    • Home Users: Base Model suffices for standard AC systems (e.g., residential split units).
    • Commercial Installers: Advanced Model’s 15A power and color display are ideal for office HVAC upgrades.
    • Industrial Applications: Pro Model’s 20A capacity and IP54 rating enable safe use in factories or outdoor cooling systems.

Example Use Case: The Pro version’s 20A power handling and IP54 rating allow safe deployment in construction sites, paired with its touchscreen for intuitive temperature control.

Frequently asked questions

  • Which Inverter AC Cabinet PCB model is best for Daikin air conditioners?

  • How to clean connectors on an Inverter AC PCB board for outdoor use?

  • What makes this PCB better than non-inverter AC control boards?

  • Can this PCB be customized for a specific HVAC system?

  • Is this PCB EN60335 certified for industrial air conditioning systems?

  • Which PCB suits high-power Mitsubishi air conditioners?

  • Does this PCB support both home and outdoor air conditioner units?

  • Are there certifications for this PCB’s use in food-grade cooling systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industrial HVAC Control PCBsIndustrial HVAC systemsRelay Control: 4 relays (Industry) ▲6 ZND 12 relays (Base) ▲8 relays (Advanced) (Supports complex circuit switching)Handles multi-circuit systems; EN60335 certified for safetyRequires professional installation; bulkier design
Home AC Inverter PCBsResidential AC unitsEnergy Efficiency: 85% (Industry) ▲90% (Base) ▲95% (Advanced) (ISO 50001 compliant)Low power consumption; RoHS-compliant for eco-friendlinessLimited scalability for large systems; lower power capacity
Universal Adapter PCBsMulti-brand AC compatibilityBrand Compatibility: 3 brands (Industry) ▲5 brands (Base) ▲7+ brands (Advanced) (ASTM D543 chemical resistance)Works across Midea, Daikin, etc.; reduces inventory costsMay compromise performance in non-native systems; requires configuration
Brand-Specific Replacement PCBsOEM replacements (e.g., Daikin)OEM Fitment: 1:1 fit (Industry) ▲100% match (Base) ▲Enhanced durability (Advanced) (ENIEC61000-3-3 certified)Direct drop-in replacement; maintains original performanceOnly compatible with specific brands; no cost savings over OEM parts
High-Power Handling PCBsHeavy-duty AC systems (e.g., commercial)Power Handling: 10A (Industry) ▲15A (Base) ▲20A (Advanced) (UL 1950 rated)Supports high-load applications; EN60335 certified for reliabilityLarger form factor; higher cost
Smart Thermostat Integration PCBsSmart home systemsConnectivity: Basic Wi-Fi (Industry) ▲Bluetooth+Zigbee (Base) ▲5G-ready (Advanced) (IP67 waterproof)IoT-enabled control; remote monitoring via smartphone appsRequires smart infrastructure; potential privacy concerns
