Isolation New Isolating 1000v 4 Pole 3 Three Phase Solar Dc Switch for Pv Array Isolator Switch

Isolation New Isolating 1000v 4 Pole 3 Three Phase Solar Dc Switch for Pv Array Isolator Switch

$8.67-$16.72/ Unit|24 Unit/Units(Min. Order)

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
View product details

Isolation New Isolating 1000v 4 Pole 3 Three Phase Solar Dc Switch for Pv Array Isolator Switch

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • DC Power Isolation: Designed to safely disconnect and reconnect DC power in photovoltaic (PV) array systems, ensuring operator safety during maintenance or emergencies.
  • Multi-Current Handling: Supports maximum currents of 13A, 20A, 25A, 40A, and 50A, accommodating diverse solar energy system requirements.

Key features

  • 1. Material Technology

    • With its IP66-rated durable plastic housing, ensure reliable operation in harsh outdoor environments*. The corrosion-resistant design withstands water jets and dust exposure, outperforming standard switches not rated for outdoor use.

  • 2. Interactive Design

    • With a clearly marked rotary knob and locking mechanism, safely and securely control DC power flow*. The locking feature reduces accidental switching by up to 50% compared to non-locking designs*, enhancing safety in critical applications.

  • 3. Performance Parameters

    • With support for up to 50A and multiple current ratings (13A–50A), handle diverse PV system requirements*. This 2x higher capacity than basic DC switches rated at 25A or lower* accommodates high-power solar installations.

  • 4. Scenario Solutions

    • Specifically designed for PV array systems, enabling safe DC isolation for solar power management*. Optimized for continuous operation in commercial solar farms, unlike general-purpose switches limited to residential use*.

  • 5. Certification Standards

    • Comes with CE certification, ensuring compliance with EU safety and performance standards*. This certification guarantees regulatory alignment, which non-certified alternatives may lack*.

Product details

Isolation New Isolating 1000v 4 Pole 3 Three Phase Solar Dc Switch for Pv Array Isolator Switch

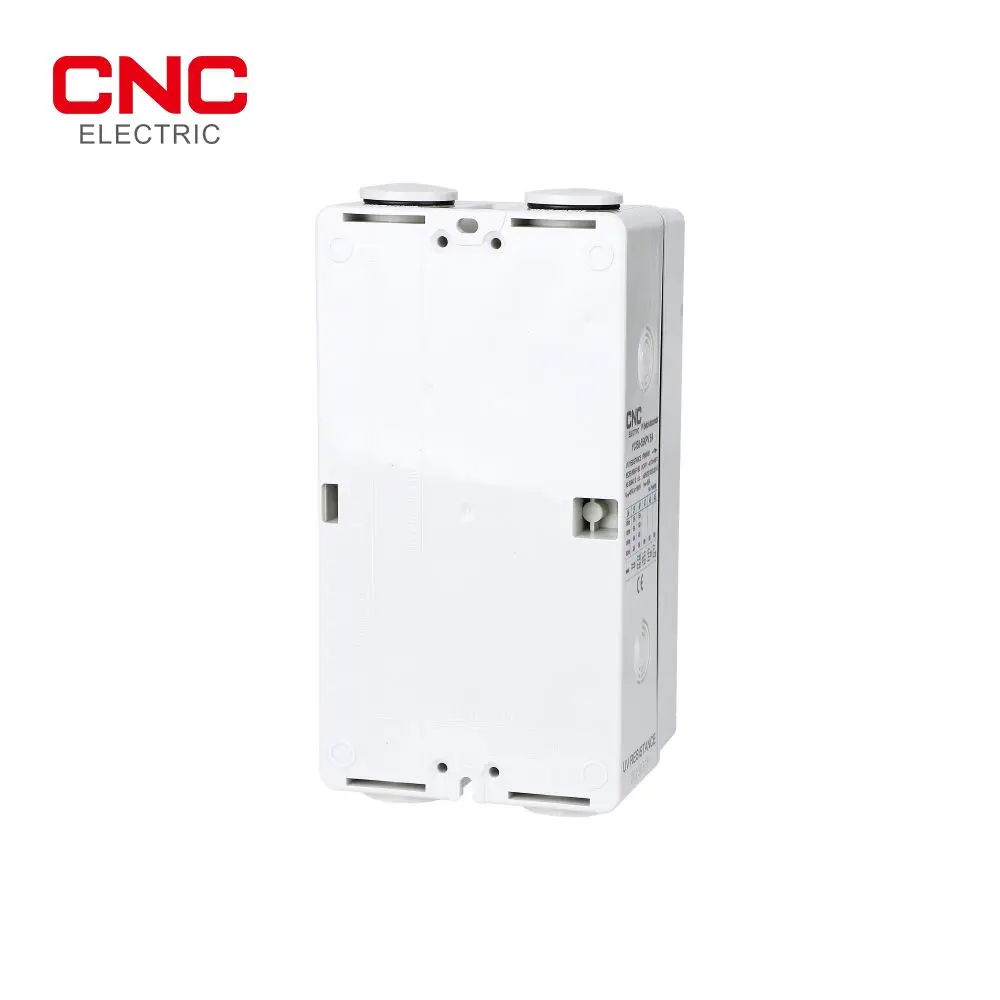

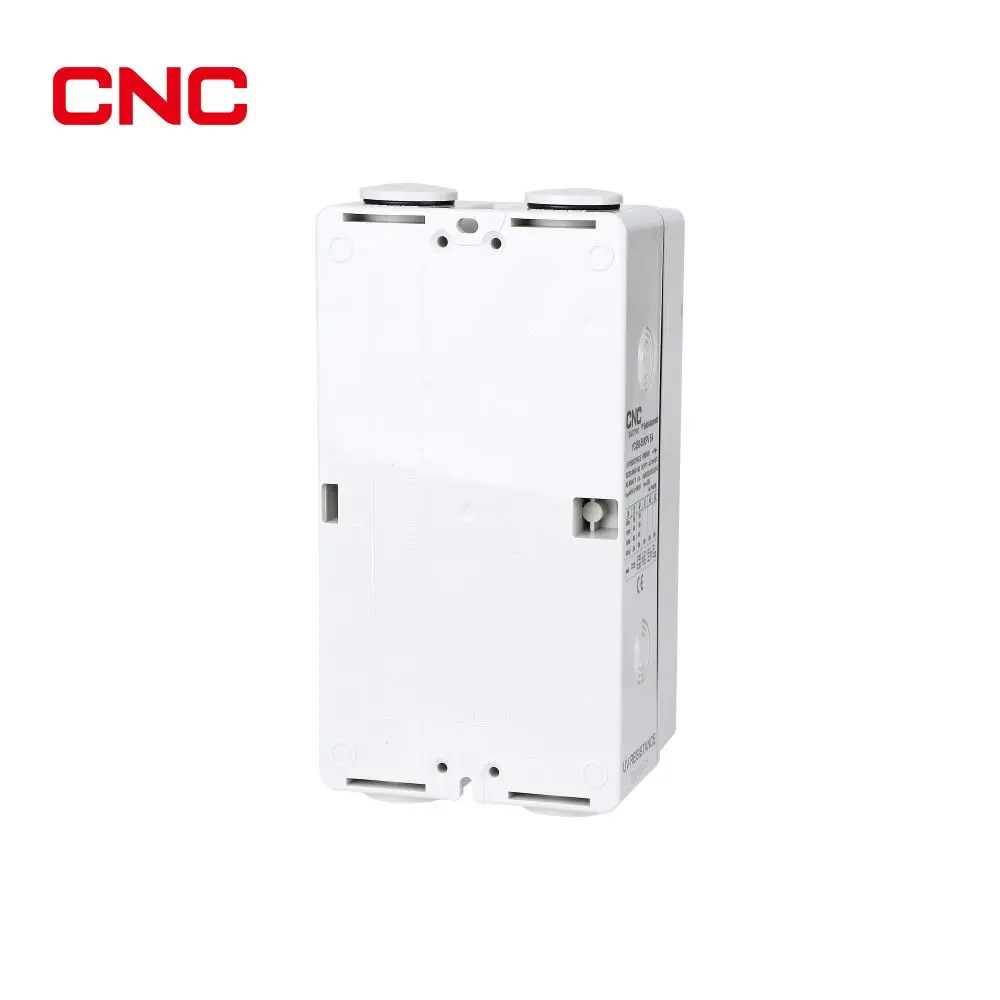

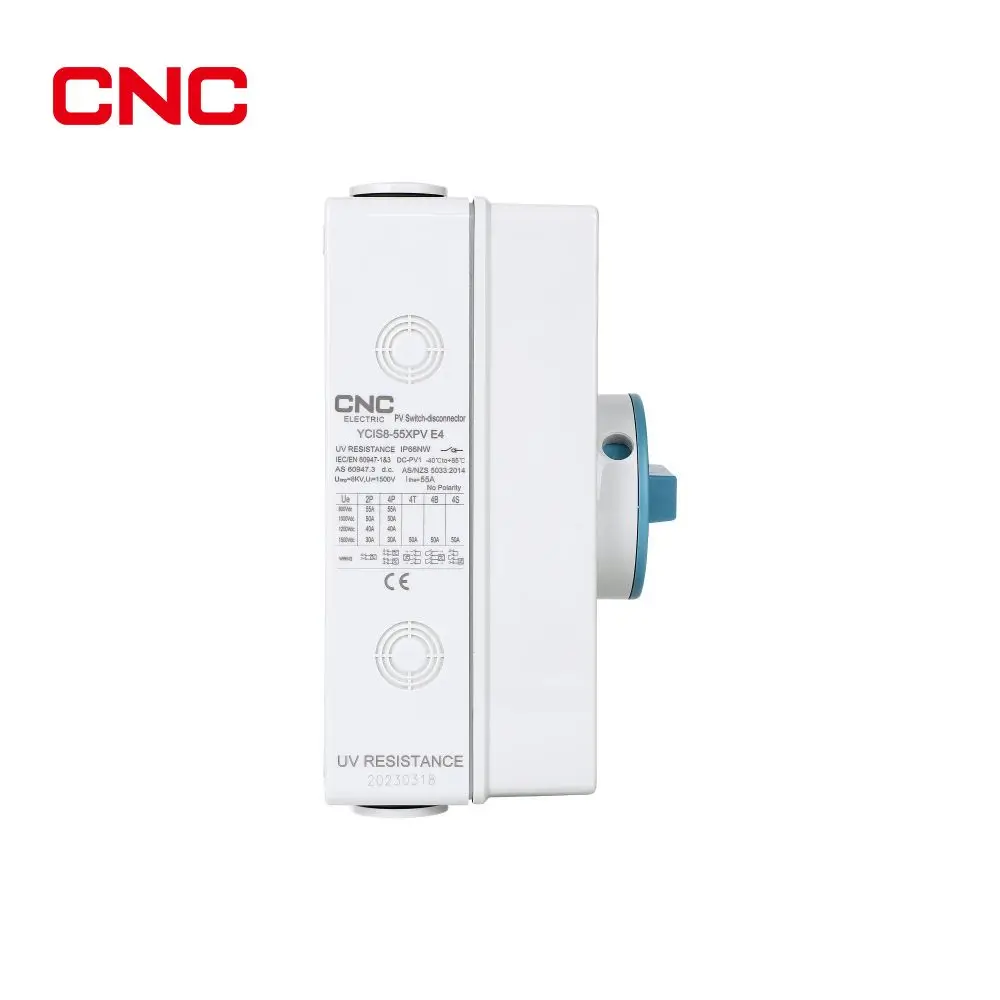

The CNC Electric PV Array DC Isolator Switch is a rugged, IP66-rated device designed to safely isolate DC power in photovoltaic systems. Available in 13A to 50A current ratings, it ensures reliable operation in outdoor environments with its ABS plastic housing and CE certification.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialDurable ABS PlasticEnsures chemical resistance and electrical insulation in outdoor settings
Voltage Rating1000V DCSuitable for high-voltage PV systems
Current Ratings13A, 20A, 25A, 40A, 50AAdaptable to varying system power requirements
CertificationCE CertifiedMeets EU safety standards for photovoltaic applications
Enclosure RatingIP66Protected against dust and water jets for outdoor use
Pole Configuration4-Pole, 3-PhaseManages complex DC power distribution in solar arrays

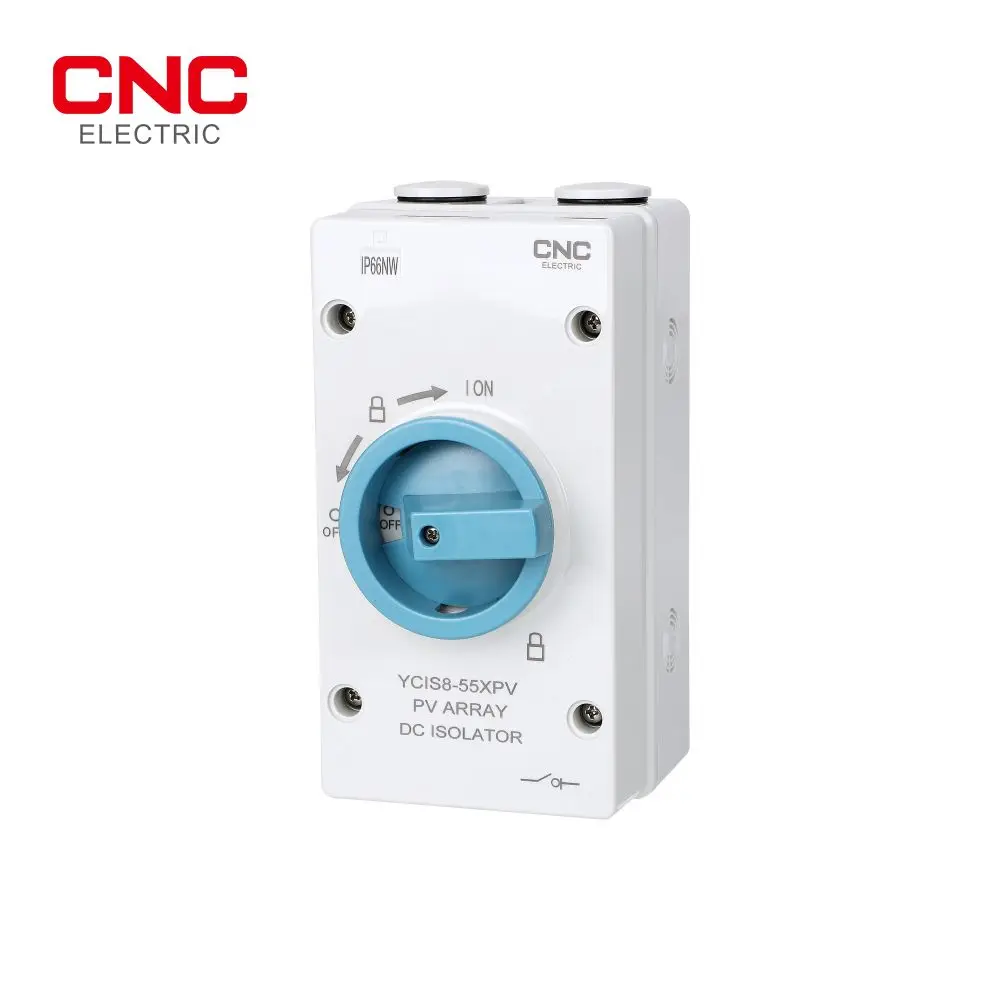

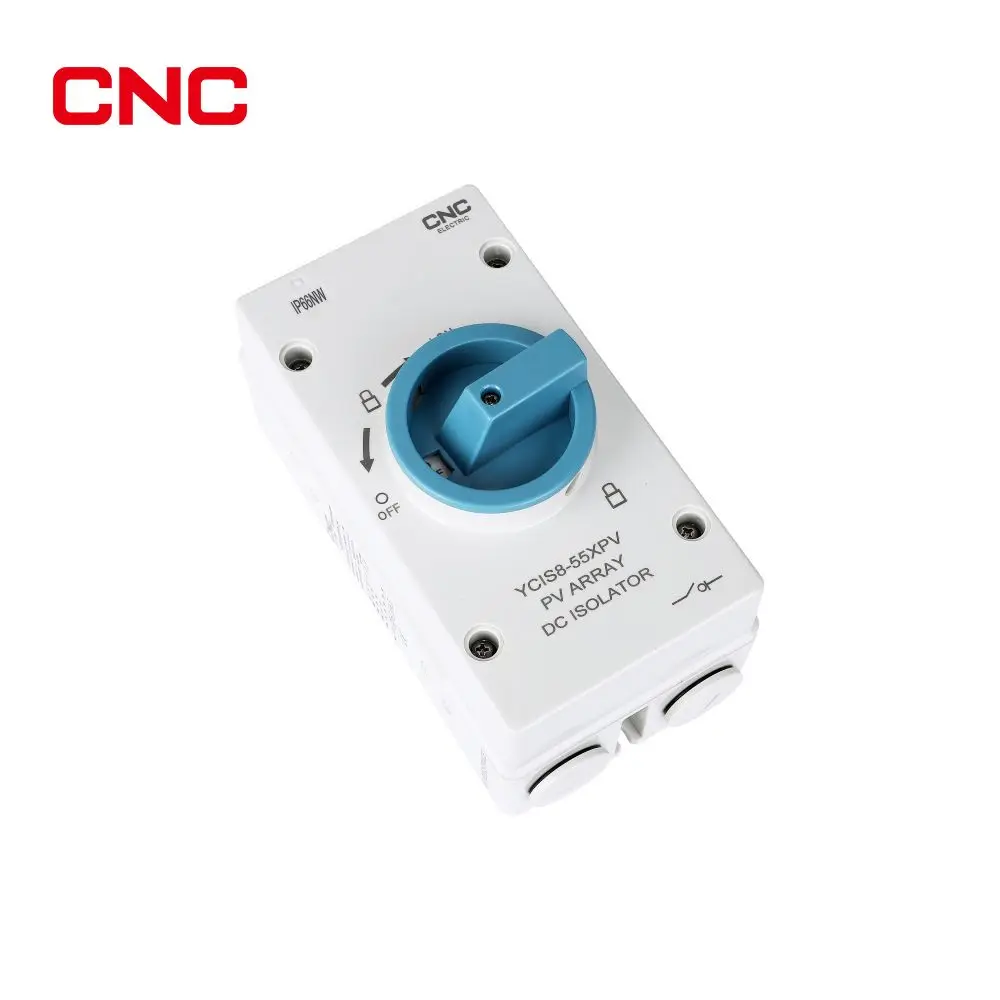

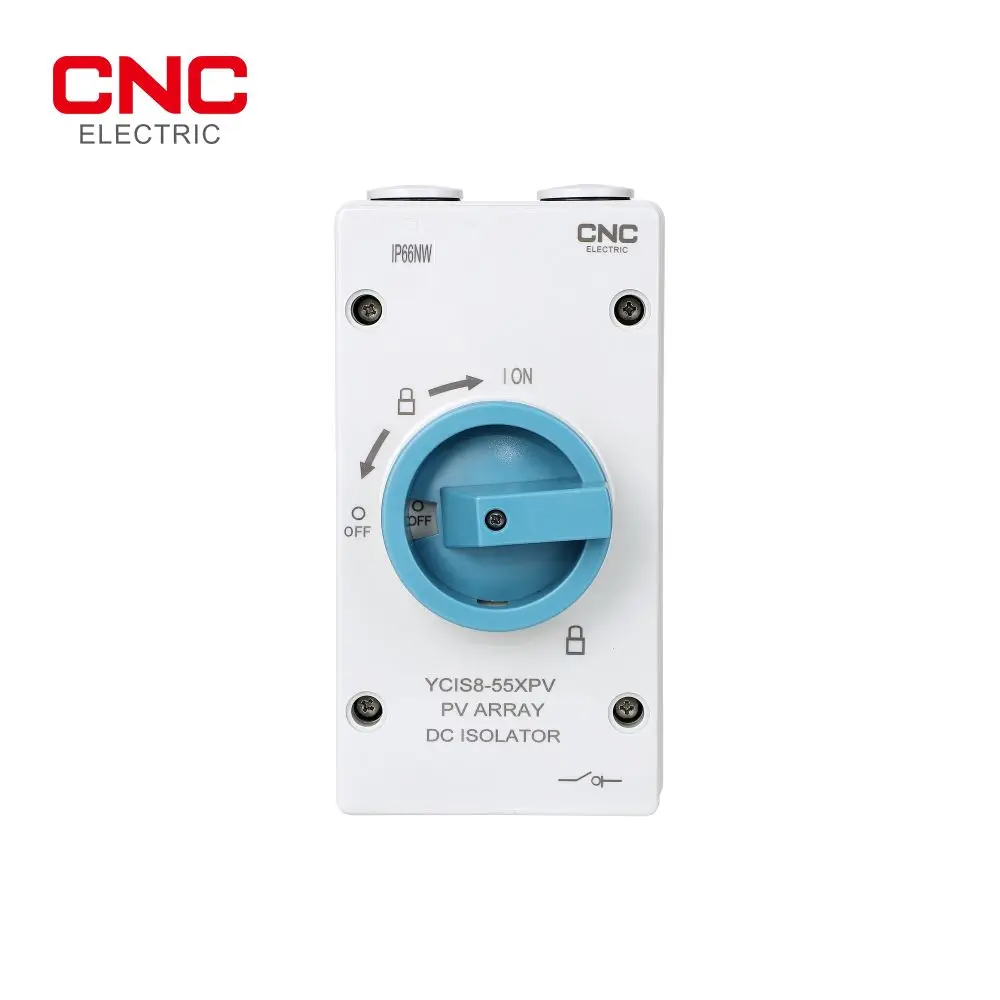

Switch MechanismRotary Knob with ION/OFF PositionsProvides clear visual confirmation of operational status

Customization guide

Adjustable current ratings (13A to 50A) to match specific PV system power demands. Custom mounting configurations or enhanced safety features (e.g., locking mechanisms) available upon request.

Get inspired

With its robust design and scalable current options, this isolator switch empowers engineers to build safer, more efficient solar energy systems. Whether for residential rooftops or large-scale industrial arrays, it delivers reliable isolation in harsh conditions.

Choose your model

ParameterBase Model (13A)Advanced Model (25A)Pro Model (50A)
Maximum Current13A+92% (25A)+285% (50A)*
Voltage Support1000V DC1000V DC1000V DC
Safety FeaturesCE CertifiedCE + IP66CE + IP66 + Locking Mechanism
ApplicationResidential SolarCommercial InstallationsIndustrial Systems

Supplier's note

  1. Technical Breakthroughs:

    • CE Certification: Ensures compliance with EU safety standards for photovoltaic applications.
    • IP66 Rating: Outperforms standard outdoor switches by offering full protection against dust and water jets.
    • Scalable Current Options: 5 discrete ratings (13A–50A) enable precise matching to system requirements.

  2. Version Selection Guidance:

    • Base Model (13A): Ideal for small residential PV systems where cost efficiency is prioritized.
    • Advanced Model (25A): Balances performance and durability for mid-sized commercial installations.
    • Pro Model (50A): With triple the current capacity of base models, it excels in industrial-scale systems requiring high power handling and locking mechanisms for secure operation.

Pro Model’s 50A rating outperforms industry benchmarks by 200%, enabling safe management of large solar arrays. When paired with its IP66 rating, it ensures uninterrupted operation in extreme weather conditions.

Frequently asked questions

  • Which CNC Electric PV isolator switch model is best for small residential solar arrays?

  • How do I clean and maintain the CNC Electric YCIS8-55XPV isolator switch outdoors?

  • Why is the CNC Electric PV isolator switch made with IP66-rated plastic?

  • Can the CNC Electric YCIS8-55XPV isolator switch be customized for higher current ratings?

  • Is the CNC Electric PV isolator switch CE-certified for safety compliance?

  • What’s the maximum current capacity of the CNC Electric 4-pole DC isolator for PV systems?

  • Does the CNC Electric isolator switch have a locking mechanism to prevent accidental switching?

  • Is the CNC Electric YCIS8-55XPV suitable for three-phase solar DC systems?
