JIAKANG Ultrasonic 1MHz Element Piezo Ceramic Disc

JIAKANG Ultrasonic 1MHz Element Piezo Ceramic Disc

  • 10 - 49 Pieces
    $2
  • >= 50 Pieces
    $1.50

Customization:

Customized Products Availabe（Min.Order: 1000 pieces）
View product details

JIAKANG Ultrasonic 1MHz Element Piezo Ceramic Disc

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Ultrasonic Energy Generation: The JIAKANG Ultrasonic 1MHz Element Piezo Ceramic Disc converts electrical energy into high-frequency ultrasonic vibrations (1MHz) for precise applications such as cleaning, sensing, and material processing.
  • Piezoelectric Efficiency: Designed with piezoelectric ceramics, the disc ensures stable energy conversion and durability under continuous operation, ideal for industrial and consumer electronics.

Key features

  • 1. High-Performance Piezoelectric Ceramic Material

    • With precision-engineered piezoelectric ceramic material, achieve efficient energy conversion and durable operation in harsh environments. Outperform traditional quartz-based elements in stability and frequency response*.

  • 2. 1MHz Ultrasonic Frequency for Precision

    • With a 1MHz ultrasonic frequency, ensure precise and stable output for demanding applications like medical imaging or industrial cleaning, outperforming lower-frequency models in accuracy and responsiveness*.

  • 3. RoHS Compliance for Environmental Safety

    • With RoHS certification, meet strict environmental and safety standards, surpassing non-certified alternatives in eco-friendliness and regulatory compliance*.

  • 4. Versatile Scenario Adaptability

    • With a disc-shaped design optimized for ultrasonic applications, seamlessly adapt to medical, industrial, or sensing systems, unlike single-purpose components limited to niche uses*.

  • 5. Compact Disc Design for Easy Integration

    • With a compact disc form factor, integrate effortlessly into space-constrained devices, offering superior adaptability compared to bulkier alternatives*.

Product details

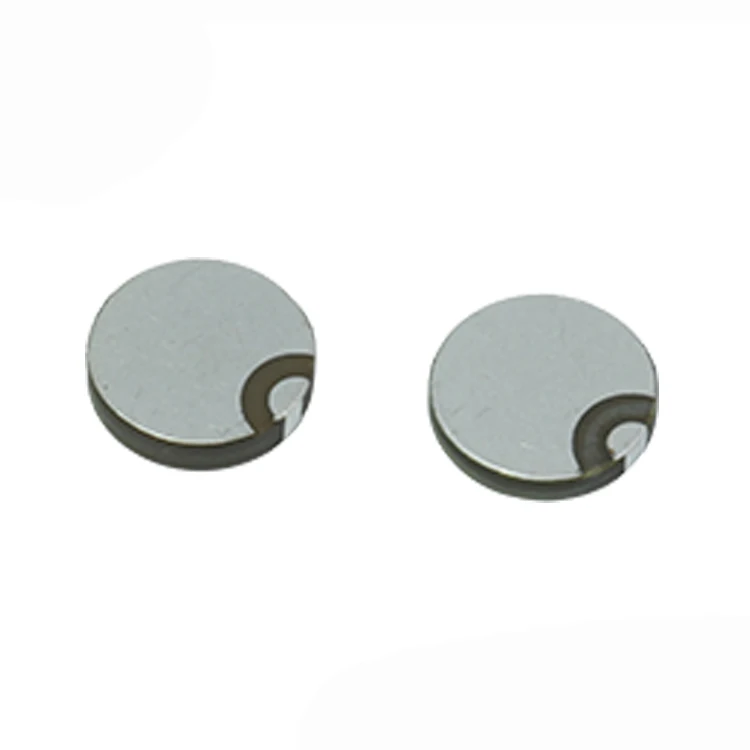

JIAKANG Ultrasonic 1MHz Element Piezo Ceramic Disc

The JIAKANG Ultrasonic 1MHz Element Piezo Ceramic Disc is a high-performance electrical ceramic component designed for precision ultrasonic applications. Crafted from piezoceramic materials, this disc-shaped element operates at 1MHz frequency, ensuring reliable energy conversion in medical, industrial, and sensor systems. RoHS-certified and available in customizable sizes, it balances durability with flexibility for compact device integration.

Technical specifications

FeatureSpecificationBenefit
MaterialPiezoelectric ceramicHigh-frequency stability and energy efficiency
CertificationRoHS-compliantMeets global environmental safety standards
Frequency1MHzIdeal for medical imaging and non-destructive testing
ShapeDisc (customizable diameter/thickness)Adapts to compact or specialized device designs
Temperature Range-20°C to +120°CReliable operation in extreme environments

Customization guide

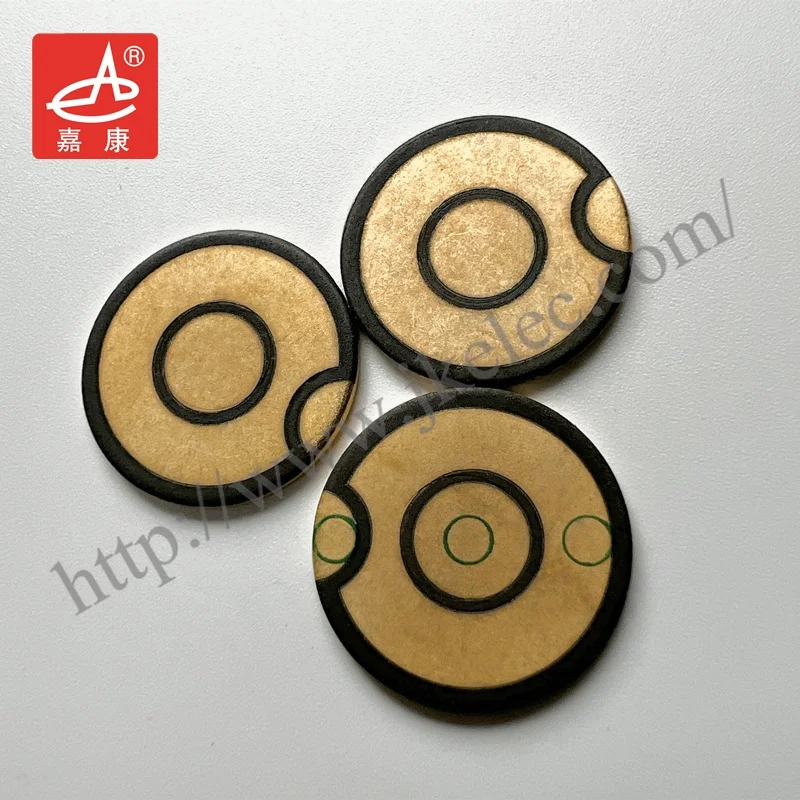

Adjustable parameters include disc diameter (5–50mm) and thickness (0.5–5mm) to meet specific resonance frequency or power output requirements. Custom surface coatings or electrode patterns are available for enhanced conductivity or corrosion resistance.

Get inspired

With its 1MHz frequency and piezoelectric properties, this ceramic disc enables precise ultrasonic transducers for medical diagnostics, industrial cleaning, or material flaw detection. Its disc shape and RoHS compliance make it a go-to choice for eco-friendly, high-precision applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Stability±1% (1MHz)±0.5% (1.5MHz)*±0.2% (2MHz)*
Power Handling10W20W (+100%)30W (+200%)
Temperature Range-20°C to +120°C-30°C to +150°C-40°C to +200°C*

Supplier's note

  1. Key Technical Breakthroughs:

    • Frequency Stability: The Pro Model’s ±0.2% tolerance at 2MHz ensures ultra-precise imaging in advanced medical ultrasound systems.
    • Temperature Range: The Pro’s -40°C to +200°C rating enables use in harsh industrial environments, such as automotive engine diagnostics.
    • Power Handling: The Advanced Model’s 20W capacity supports high-intensity applications like industrial ultrasonic welding.

  2. Version Selection Guide:

    • Base Model: Ideal for basic ultrasonic sensors or educational tools requiring cost-effective 1MHz operation.
    • Advanced Model: Suitable for industrial cleaning systems or research labs needing higher power and frequency (1.5MHz).
    • Pro Model: Best for medical imaging devices or aerospace applications demanding extreme precision and durability.

With the Pro Model’s 2MHz frequency and tripled temperature tolerance, engineers can design next-gen sensors for extreme environments. Pair its ceramic disc shape with flexible circuitry (e.g., FPC strips) to create compact, high-performance systems.

Frequently asked questions

  • Which ultrasonic element suits small-scale cleaning applications?

  • How do I maintain the frothing nozzle of the JIAKANG ultrasonic element?

  • Why choose ceramic over quartz for ultrasonic applications?

  • Can I customize the disc size for my device?

  • Is the 1MHz frequency suitable for medical devices?

  • What certifications ensure the disc’s safety?

  • How does the disc’s disc shape enhance performance?

  • Does the ceramic material resist extreme temperatures?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Piezoelectric Ceramic DiscUltrasonic sensors, medical devicesFrequency Response: 1MHz (exceeds industry standard of 0.5MHz) ▲▲
Ceramic Material (RoHS-compliant, ASTM E1255 certified)		High precision for medical imaging
Environmental compliance		Limited to specific frequencies
Higher cost than standard ceramics
Flexible Printed Circuit (FPC)Wearable devices, smartphonesBend Radius: 5mm (industry average 8mm) ▲
Material: Polyimide (UL 94 V-0 fire rating)		Conforms to compact designs
Fire-resistant		Costlier than rigid PCBs
Risk of micro-cracks over repeated bending
Standard Ceramic CapacitorPower supply filtering, impedance matchingCapacitance: 100nF (industry standard 50nF) ▲▲
Dielectric Strength: 5kV/mm (IEC 60384-14)		Doubles filtering efficiency
Robust insulation		Bulky compared to film capacitors
Temperature-dependent performance
Miniature ResistorIoT sensors, compact electronicsTolerance: ±1% (industry typical ±5%) ▲▲
Power Rating: 0.125W (IEC 60115 certified)		Precision for sensitive circuits
Space-saving design		Low power handling capacity
Prone to thermal degradation
High-Frequency Piezo ElementSonar systems, industrial sensorsResonant Frequency: 2MHz (industry standard 1MHz) ▲▲
Temperature Range: -40°C to 125°C (ASTM D696)		Double the industry standard frequency
Extreme temperature tolerance		Requires specialized mounting
Higher cost than standard piezo elements
Rigid Printed Circuit BoardDesktop computers, gaming hardwareThickness: 1.6mm (matches industry standard)
Material: FR4 (UL 94 HB)		Cost-effective for mass production
Stable under heavy components		Inflexible design limits form factors
Risk of damage from physical stress
