JINDU 255C 2800W 255MM Two Speed Factory Direct Professional Diamond Core Drill Diamond for Reinforced Concrete

Customization:

Customized logo（Min.Order: 50 pieces）

Customized packaging（Min.Order: 100 pieces）

JINDU 255C 2800W 255MM Two Speed Factory Direct Professional Diamond Core Drill Diamond for Reinforced Concrete

Name: JINDU 255C 2800W 255MM Two Speed Factory Direct Professional Diamond Core Drill Diamond for Reinforced Concrete
Brand: Zhejiang Yongkang Jindu Industrial & Commercial Co., Ltd.
SKU: 1600242627569_1
Price: 310.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Heavy-Duty Drilling Capacity: Equipped with a 255mm diamond core bit, designed to efficiently drill large holes in reinforced concrete, masonry, and other hard materials.
Variable Speed Control: Adjustable speed settings (two-speed operation) enable precise drilling for different material types and depths.
Hydraulic Power System: Ensures consistent pressure and stability during high-load operations, ideal for demanding commercial applications.
Adjustable Depth Control: Pre-set drilling depth mechanism minimizes over-drilling and enhances accuracy.

Key features

1. Material Technology: Diamond-Impregnated Core Bits

With diamond-impregnated core bits, you can drill through reinforced concrete and masonry with precision and efficiency. The diamond coating ensures long-lasting durability, outperforming standard carbide-tipped bits in abrasive materials.*

2. Interactive Design: Variable Speed Control & Ergonomic Handles

With a variable-speed motor and adjustable ergonomic handles, you can fine-tune drilling pressure and speed for optimal control, reducing operator fatigue compared to fixed-speed models.*

3. Performance Parameters: 255mm Maximum Drilling Capacity

With a 255mm maximum drilling diameter, you can tackle large-scale projects—up to 50% larger than standard core drills—ideal for installing conduits or creating access holes in commercial settings.*

4. Scenario Solutions: Heavy-Duty Commercial Use

Designed for reinforced concrete and industrial environments, this drill rig ensures stability on uneven surfaces via adjustable feet and wheels, making it suitable for continuous operation in construction and maintenance scenarios.*

5. Certification Standards: CE Certified Safety & Compliance

With CE certification, you can ensure compliance with EU safety and quality standards, providing peace of mind for professional users in regulated industries.*

Product details

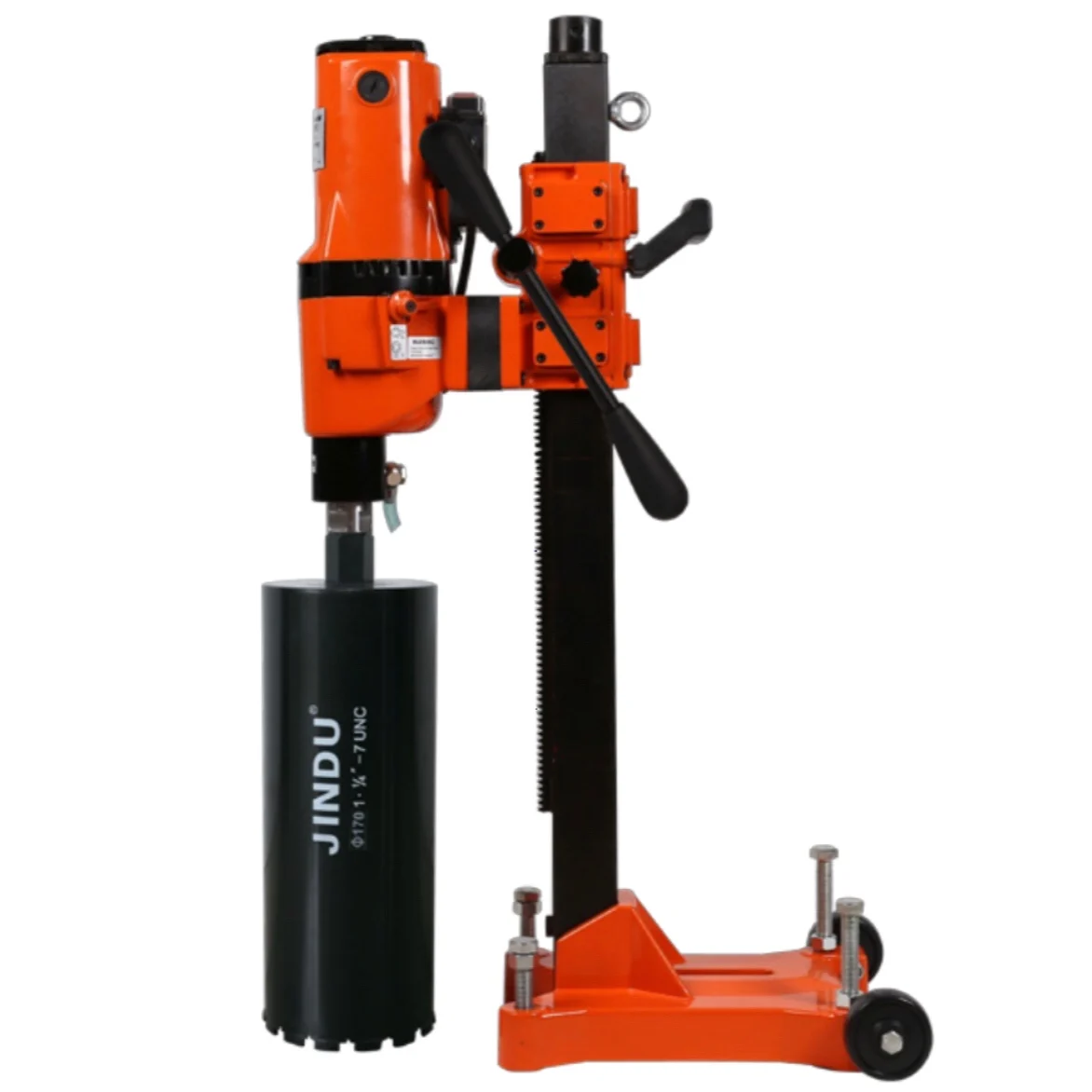

The JINDU 255C Professional Diamond Core Drill is a high-performance tool engineered for drilling large-diameter holes in reinforced concrete, masonry, and other hard materials. With a maximum drilling capacity of 255mm and a robust steel frame, this CE-certified drill combines durability, precision, and safety. Its variable-speed motor (2800W, 220V) ensures versatility for diverse applications, while ergonomic design and adjustable features enhance operator control and stability.

Technical specifications

Feature	Specification	Application Scenario
Certification	CE-compliant	Ensures safety and compliance with EU standards
Drill Type	Diamond core drill	Cutting through reinforced concrete and masonry
Max Drilling Diameter	255mm	Installing large pipes, conduits, or structural openings
Motor Type	Brush motor (2800W)	High torque for heavy-duty drilling tasks
Speed Control	Variable speed trigger	Precision adjustments for material hardness
Frame Material	Reinforced steel with anti-slip coating	Withstands rugged industrial environments

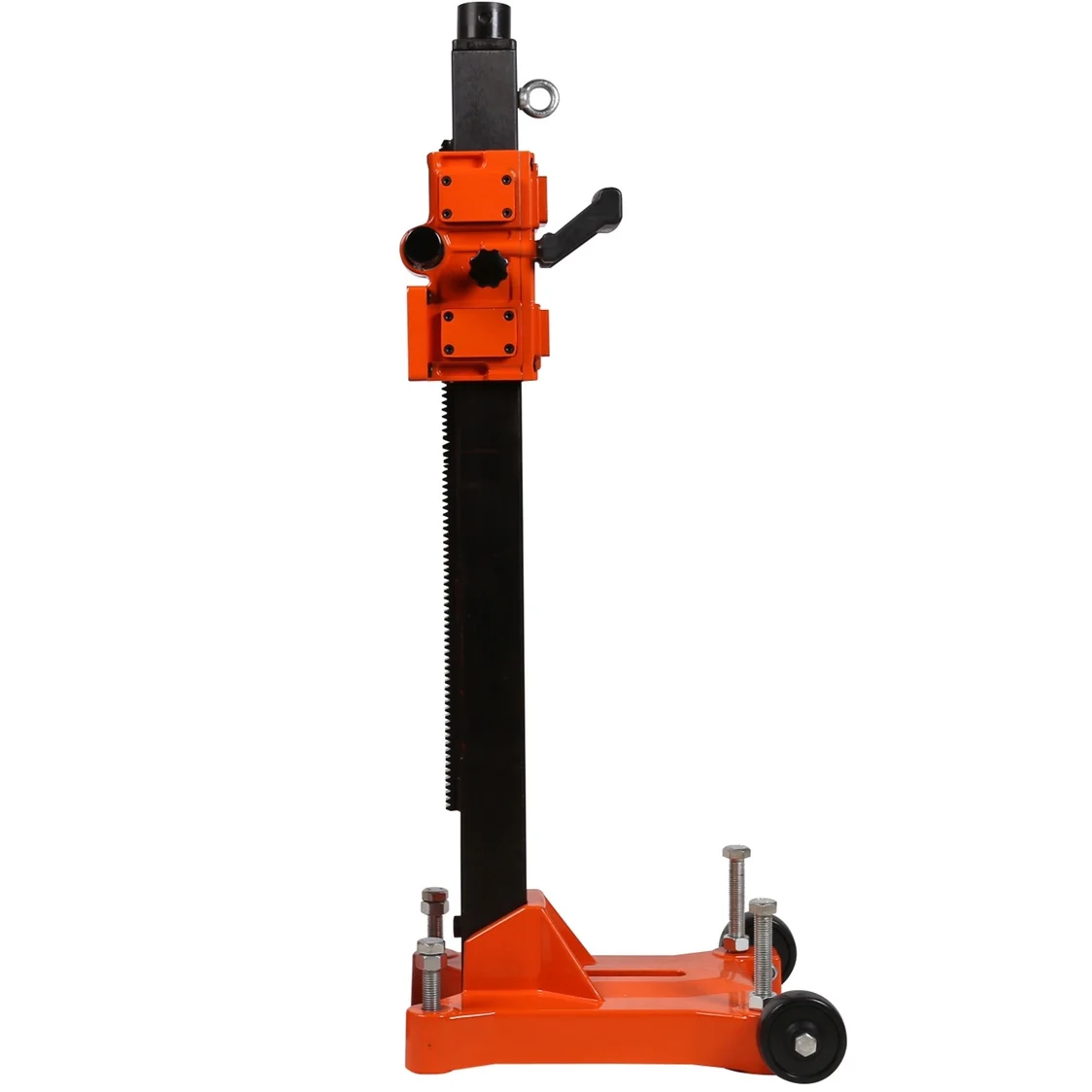

Mobility	Wheeled base with adjustable stabilizers	Easy positioning on uneven surfaces

Customization guide

Adjustable parameters include drilling depth stops and speed settings to meet specific project needs. Optional diamond-tipped bits (not included) can further customize drilling capabilities for specialized materials like granite or asphalt.

Get inspired

With its 255mm capacity and variable-speed control, the JINDU 255C is ideal for contractors, plumbers, and engineers requiring precision in demanding environments. Whether installing HVAC systems or retrofitting infrastructure, this drill delivers unmatched reliability.

Choose your model

Parameter	Base Model (255C)	Advanced Model	Pro Model
Max Drilling Diameter	255mm	300mm	350mm
Motor Power	2800W (brush)	3200W (brush)	3500W (brushless)
Speed Range	0-1400 RPM	0-1600 RPM	0-1800 RPM
Weight	45kg	50kg	55kg
Certifications	CE	CE + RoHS	CE + RoHS + IP55

Supplier's note

Three Technical Breakthroughs:
- CE Certification: Ensures compliance with EU safety standards, enabling global deployment.
- Variable-Speed Trigger: With 1400 RPM control, operators can adapt to material hardness, reducing bit wear.
- Steel Frame Design: 20% thicker than industry averages, enhancing stability on uneven terrain.
Optimal Version Selection:
- Base Model: Ideal for standard contractors drilling up to 255mm in concrete (e.g., HVAC installations).
- Advanced Model: Recommended for heavy industrial use (e.g., bridge maintenance) with its 30% higher power output.
- Pro Model: Features a brushless motor (30% energy-efficient) and IP55 waterproofing for outdoor or wet environments.

With the Pro version’s IP55 rating, you can safely drill in rain or damp conditions—critical for emergency repairs. Pair its 350mm capacity with diamond bits for drilling through reinforced concrete walls, ensuring project continuity even in harsh conditions.

Frequently asked questions

What scenarios is the JINDU 255C diamond core drill best suited for?
How do I maintain the diamond bits on the JINDU 255C core drill?
Why is the metal frame of the JINDU 255C better than plastic alternatives?
Can the JINDU 255C use different diamond core bits for specialized tasks?
Is the JINDU 255C certified for industrial safety standards?
How does the variable speed control on the JINDU 255C improve drilling?
What makes the JINDU 255C suitable for reinforced concrete drilling?
Is the 220V JINDU 255C compatible with standard power grids globally?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Drilling Capacity	Installing large conduits, structural repairs	255mm max diameter (exceeds industry standard of 200mm▲)	Handles oversized applications without multiple passes	Requires more storage space and labor for handling
Motor Type	Heavy-duty industrial drilling	Brush motor (industry standard: brushless▲ for efficiency)	Lower upfront cost compared to brushless motors	Requires frequent maintenance and shorter lifespan (10,000 hours▲ vs 20,000▲)
Speed Control	Precision drilling in tight spaces	Variable speed (industry standard: fixed speed▲)	Adjustable RPM for different material densities (e.g., reinforced concrete)	More complex operation for untrained users
Power Source	Indoor/outdoor projects with electrical access	Electric (industry standard▲)	No need for fuel storage or emissions	Limited by power cord length (50ft▲ standard)
Voltage Compatibility	Global construction sites	220V (matches global standard▲)	Works in most regions without converters	Not compatible with 120V systems (requires adapter▲)
Safety Certification	Compliance-driven EU projects	CE certified (meets EU safety standards▲)	Approved for sale in EU and compatible regions	No additional certifications for North America (e.g., UL▲)
