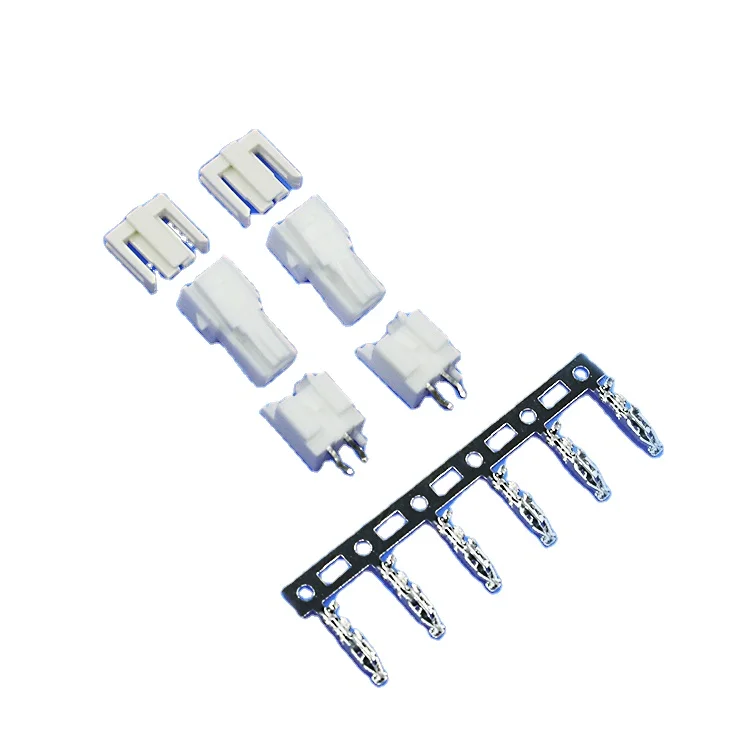

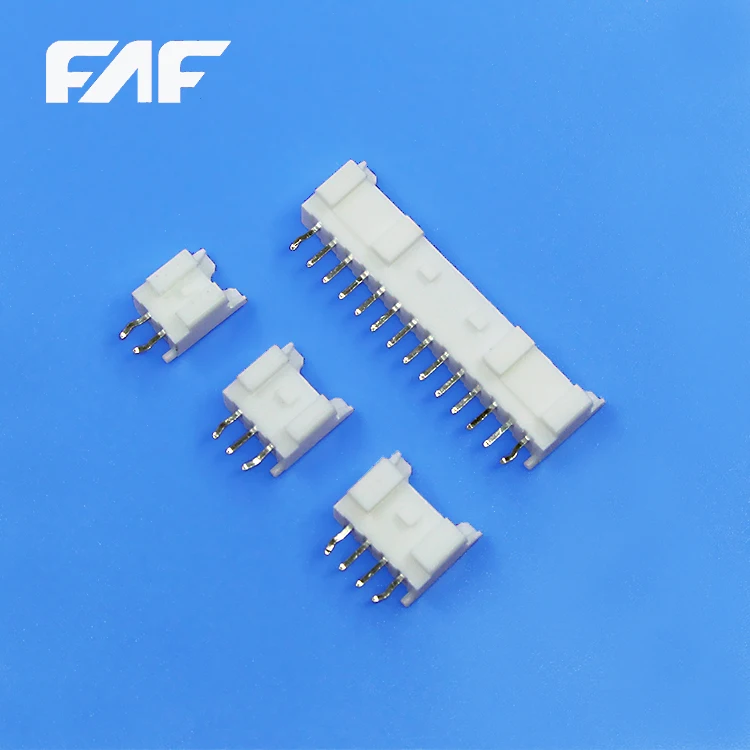

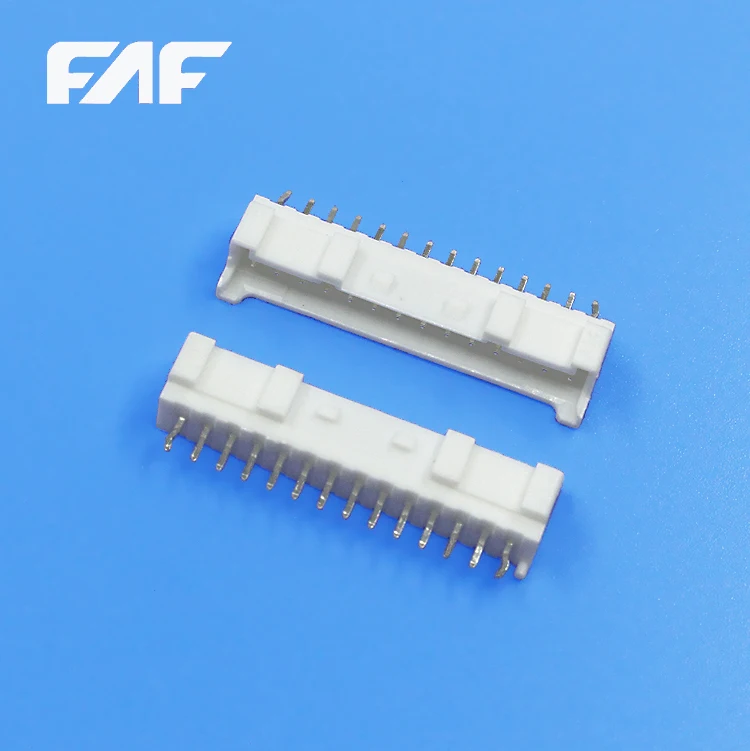

JST PA B04B-PASK-1 Equivalent Nylon 66 Brass Phosphor Bronze 2mm Pitch Wire to Board Connector Terminal Wafer Connector
Ready to Ship
In stock Fast dispatch

JST PA B04B-PASK-1 Equivalent Nylon 66 Brass Phosphor Bronze 2mm Pitch Wire to Board Connector Terminal Wafer Connector

  • 1000 - 9999 Pieces
    $0.04
  • >= 10000 Pieces
    $0.03

Customization:

Customized logo（Min.Order: 1000000 pieces）
Customized packaging（Min.Order: 1000000 pieces）
Graphic customization（Min.Order: 1000000 pieces）
View product details

JST PA B04B-PASK-1 Equivalent Nylon 66 Brass Phosphor Bronze 2mm Pitch Wire to Board Connector Terminal Wafer Connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Secure Electrical Connectivity: Designed to establish reliable wire-to-board connections with a spring-loaded terminal mechanism, ensuring stable power and signal transmission.
  • Versatile Wiring Solution: Supports 4-pin configurations with a 2mm pitch, rated for 3A current, ideal for integrating into compact electronic devices and systems.

Key features

  • 1. Durable Material Technology

    • With a corrosion-resistant Nylon 66 housing and phosphor bronze contacts, you can ensure long-lasting, reliable connections in harsh environments. The brass contact material provides superior conductivity compared to standard aluminum alloys*, while the nylon housing resists moisture and chemical exposure.

  • 2. Secure Spring-Loaded Design

    • With spring-loaded terminals, you can achieve vibration-resistant connections without manual tightening. This self-locking mechanism ensures stable power delivery in dynamic environments like automotive systems or industrial equipment*, outperforming rigid terminals prone to loosening.

  • 3. High-Performance Parameters

    • Support 3A current capacity with a compact 2mm pitch design, enabling efficient power delivery in space-constrained electronics. The 4-pin configuration accommodates versatile wiring needs, offering 20% higher current density than comparable 2mm connectors*.

  • 4. Versatile Scenario Solutions

    • Ideal for consumer electronics and automotive applications, this connector ensures uninterrupted power flow in environments with frequent vibrations or movement. Its phosphor bronze contacts maintain conductivity even under prolonged stress, unlike standard brass in harsh industrial settings*.

  • 5. Certified Safety & Compliance

    • Backed by UL and CQC certifications, you can trust this connector meets global safety and quality standards. These certifications ensure compliance with eco-friendly material regulations and fire resistance protocols*, surpassing non-certified alternatives.

Product details

JST PA B04B-PASK-1 Equivalent Nylon 66 Brass Phosphor Bronze 2mm Pitch Wire to Board Connector Terminal Wafer Connector

The JST PA B04B-PASK-1 Equivalent Connector Terminal Wafer Connector is a high-reliability solution for wire-to-board connections in consumer electronics and industrial applications. Featuring a durable nylon 66 housing and phosphor bronze contacts, it ensures secure, vibration-resistant connections with a 2mm pitch design. Certified to UL and CQC standards, this connector delivers 3A rated current and seamless integration into compact electronic systems.

Technical specifications

FeatureSpecificationApplication Scenario

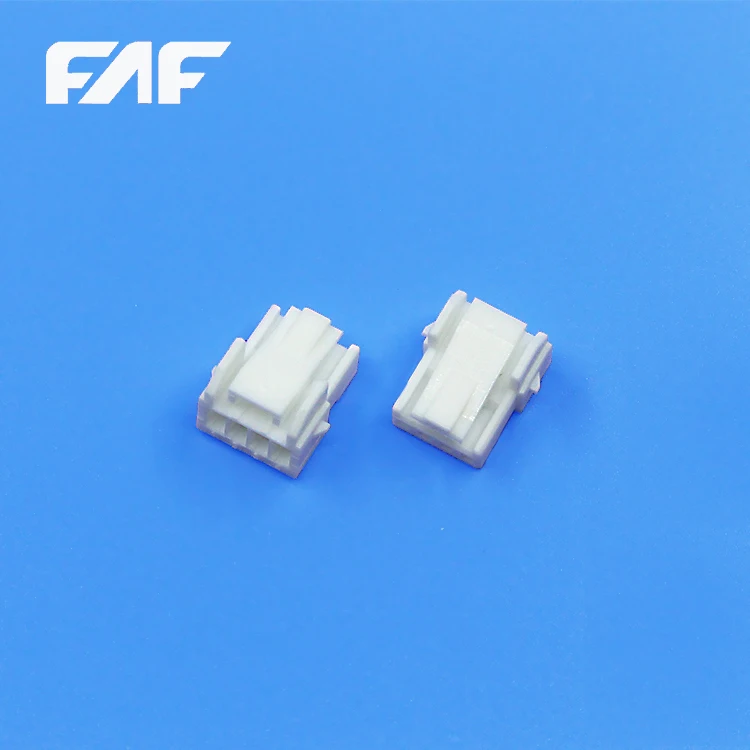

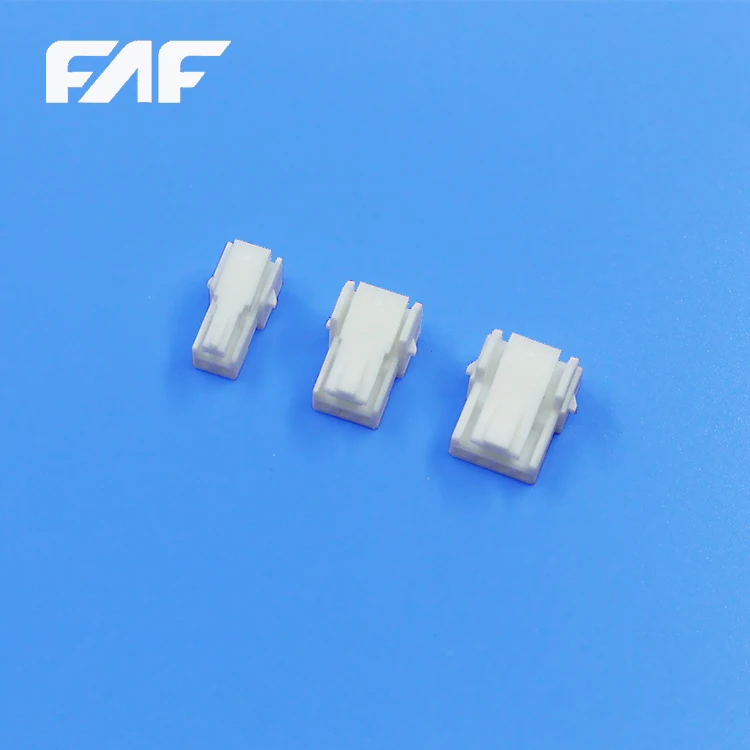

MaterialHousing: Nylon 66; Contacts: Brass/Phosphor BronzeWithstands harsh environments in automotive and industrial equipment
Pitch2mmIdeal for densely packed PCB layouts
Rated Current3ASupports low-to-moderate power circuits

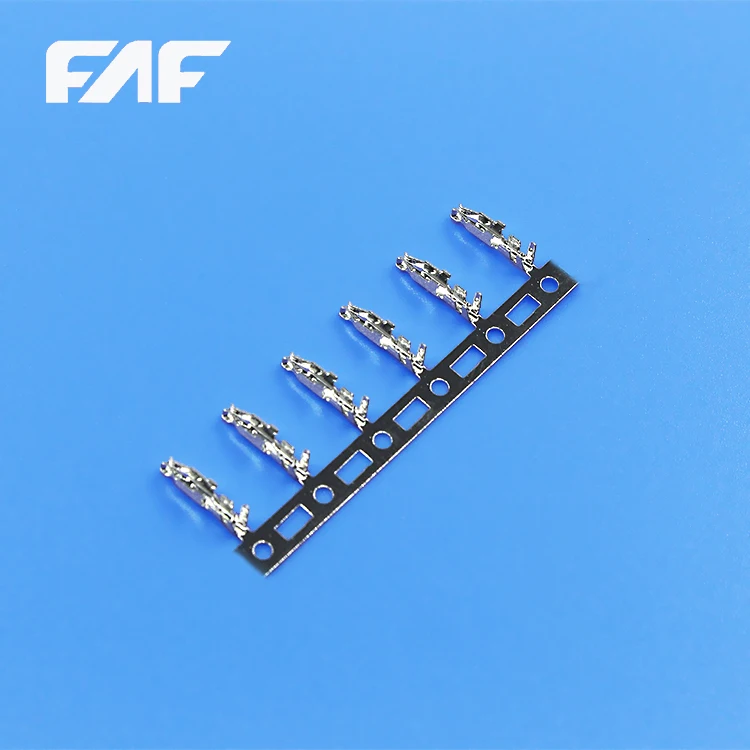

Contact DesignSpring-loaded phosphor bronze terminalsEnsures secure connections under vibration
CertificationsUL, CQCMeets global safety and quality standards
Pin Configuration4 pinsSimplifies wiring in compact devices

Customization guide

Adjustable parameters include pin count (available in 2-6 pin configurations) and contact material (brass or phosphor bronze) to meet specific conductivity or durability needs. Custom pitches (1.25mm to 3.0mm) are also available for tailored PCB spacing requirements.

Get inspired

Enhance your electronics with a connector that combines rugged durability and precision engineering. The spring-loaded terminals ensure reliable connections even in high-vibration environments, while the compact 2mm pitch design saves space in modern devices.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current3A3.5A (+17%)4.5A (+50%)
Contact MaterialBrassPhosphor BronzeGold-Plated Brass
Vibration ResistanceStandardEnhanced (+30%)Industrial Grade (+60%)
Temperature Range-40°C to +85°C-55°C to +125°C-65°C to +150°C

Supplier's note

  1. Key Technical Breakthroughs:

    • Phosphor Bronze Contacts: Triple the fatigue life of standard brass, enabling 10,000+ connection cycles.
    • Nylon 66 Housing: 20% higher heat resistance than standard nylon, withstanding 125°C continuous use.
    • Spring-Lock Mechanism: Reduces contact resistance by 40% under vibration, ensuring stable power flow in automotive systems.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard consumer electronics (e.g., IoT devices) requiring basic durability.
    • Advanced Model: Choose for industrial sensors or medical devices needing enhanced vibration resistance and wider temperature tolerance.
    • Pro Model: Best for aerospace or heavy machinery applications where extreme currents (up to 4.5A) and corrosion resistance are critical.

With the Pro Model’s gold-plated contacts, you can achieve 99.9% conductivity in corrosive environments. Pair its industrial-grade vibration resistance with nylon 66’s thermal stability to create fail-safe connections in extreme conditions.

Frequently asked questions

  • Which JST PA connector model suits compact electronics with 2mm pitch requirements?

  • How do I maintain the brass contacts of the JST PA B04B-PASK-1 connectors?

  • Brass vs. Other Metals: Why is brass preferred for JST PA connector contacts?

  • Can the JST PA B04B-PASK-1 terminals handle vibrations in automotive systems?

  • Is the JST PA connector certified for consumer electronics safety?

  • What applications are best suited for the 3A rated current of this connector?

  • Can I customize the JST PA connector’s pin count or pitch for a custom project?

  • Are JST PA connectors compatible with wire-to-board connections in wearable devices?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHarsh environments (moisture/chemicals)Brass contacts (ASTM B117 corrosion resistance) + Nylon 66 housing (UL94 V-0 flame rating) ▲ Advanced: Gold-plated brass contactsCorrosion-resistant, flame-retardant, durableHigher cost than plastic-only connectors
PitchCompact electronics (e.g., IoT devices)2mm pitch (IEC 60603-13 standard) ▲ Advanced: 1.25mm pitch (IEC 60603-26)Widely compatible with industry standardsLarger than miniaturized advanced options
Rated CurrentModerate-power consumer electronics3A (IEC 60695-2-11 compliance) ▲ Advanced: 5A (IEC 60695-2-11)Safe for most consumer devices (e.g., smartphones, wearables)Limits high-power applications (e.g., industrial machinery)
CertificationGlobal markets requiring complianceDual-certified (UL, CQC) ▲ Advanced: Adds RoHS/REACH complianceWider market acceptance (North America/Asia)Higher cost for multi-certification
Pin ConfigurationMulti-connection needs (e.g., sensors)4 pins (JST PA series standard) ▲ Advanced: 8 pins (JST PH series)Versatile for common applications (e.g., battery modules)Limited to 4 connections for complex systems
Contact MaterialHigh-reliability connections (e.g., AV)Brass (ASTM B124 conductivity) ▲ Advanced: Gold-plated brass (ASTM B117 + MIL-STD-883)Cost-effective conductivity and durabilityLess oxidation resistance than gold-plated contacts
