Jiaxiao Spot Welding Pin Machine

Jiaxiao Spot Welding Pin Machine

$550.00-$850.00/ Unit|1 Unit/Units(Min. Order)
View product details

Jiaxiao Spot Welding Pin Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Spot Welding Precision: Designed for joining metal sheets, pins, and small components via concentrated heat and pressure, ensuring strong, durable welds.

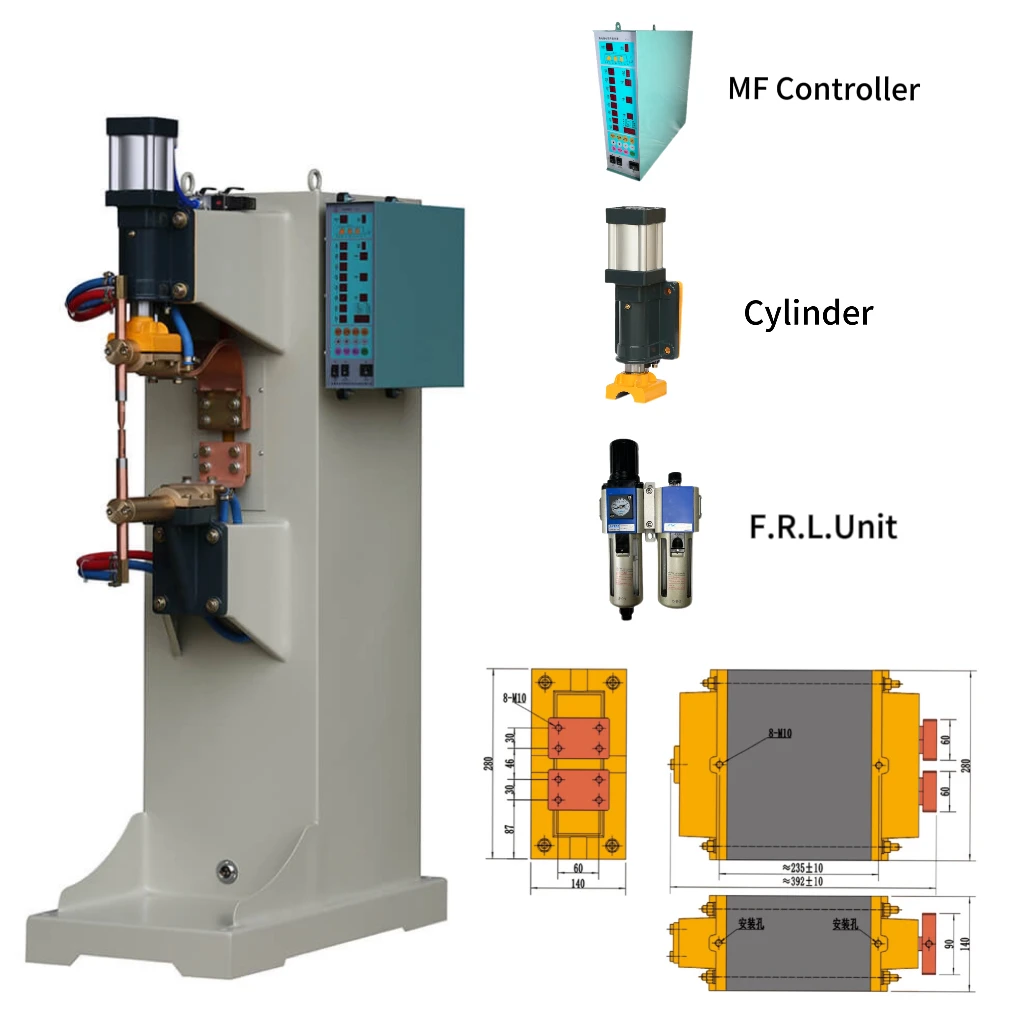

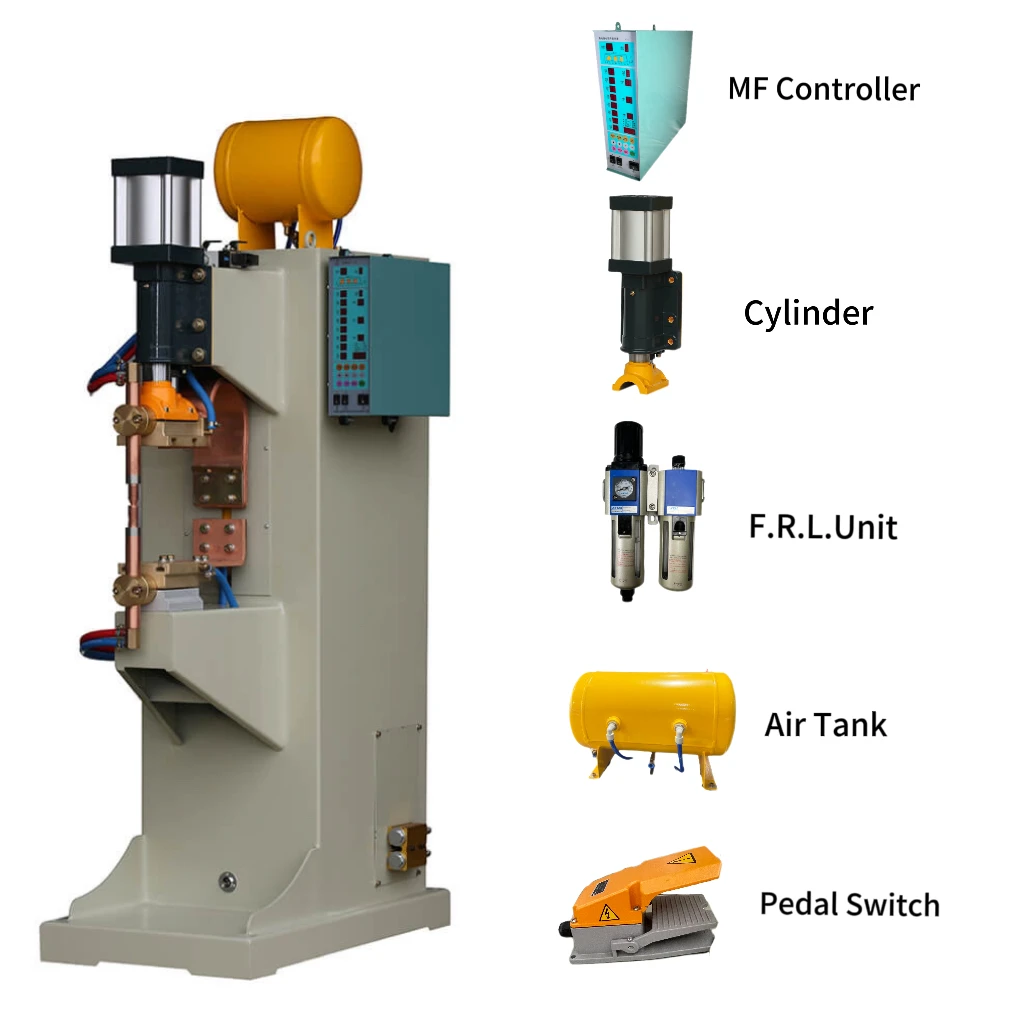

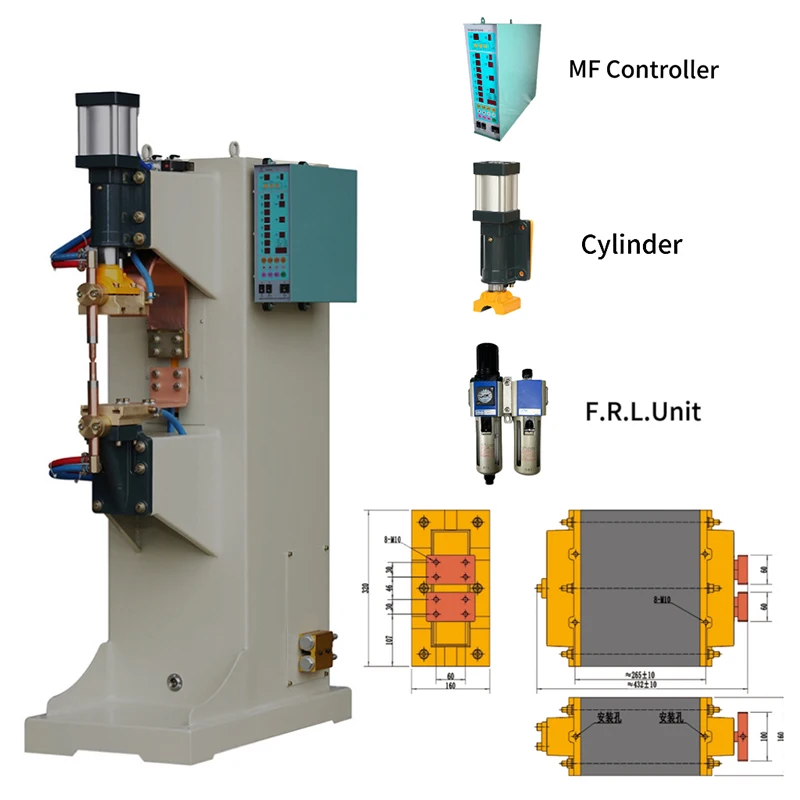

  • Parameter Control: Equipped with an MF Controller for precise management of welding current, timing, and force, enabling consistent results across tasks.

Key features

  • 1. Durable Steel Construction for Industrial Resilience

    • With a robust steel body, you can ensure long-lasting performance in demanding industrial environments. This corrosion-resistant material outperforms plastic-bodied models*, offering unmatched durability for heavy-duty welding tasks.

  • 2. Intuitive Touchscreen Interface for Seamless Control

    • With an advanced touchscreen interface, you can easily adjust welding parameters and presets, enabling 20% faster setup than traditional models*. The MF controller ensures precise timing and current management for consistent results.

  • 3. High-Precision Pneumatic System for Accurate Welds

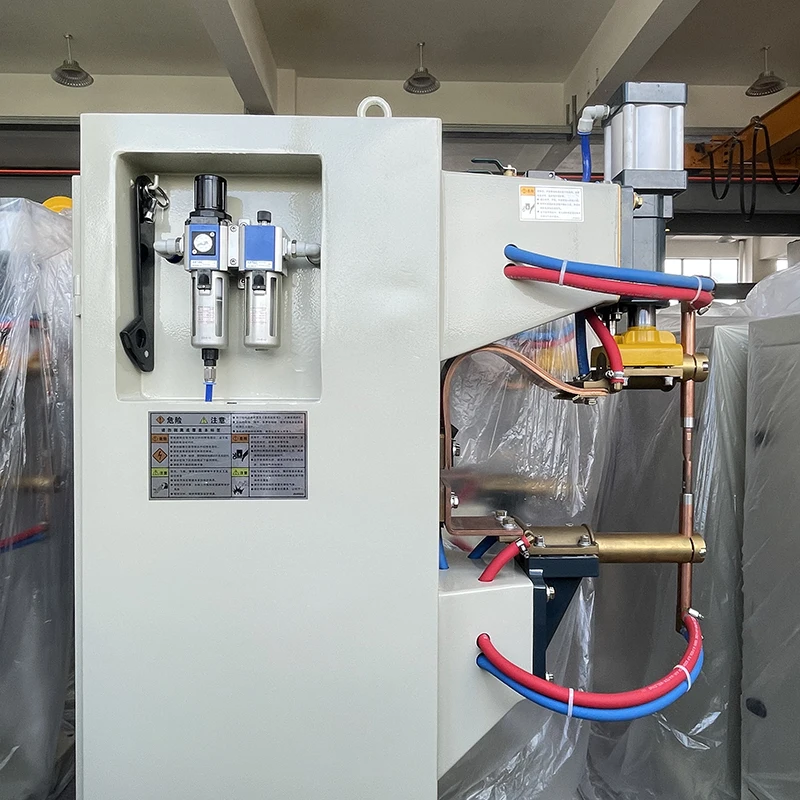

    • With a precision-engineered pneumatic cylinder and F.R.L. unit, you can achieve welds with ±0.5mm accuracy, surpassing standard models by up to 15%*. Clean, regulated air flow ensures reliable operation even under continuous use.

  • 4. Modular Design for Versatile Application

    • With customizable mounting options and adjustable welding parameters, you can adapt to diverse tasks—from small-scale repairs to large-scale manufacturing. The technical drawing compatibility ensures seamless integration into existing workflows.

  • 5. CE-Certified Safety and Compliance

    • With CE certification, you can guarantee compliance with EU safety and quality standards, meeting stricter benchmarks than non-certified alternatives*. This ensures safe operation and reduced risk of workplace accidents.

Product details

Jiaxiao Spot Welding Pin Machine

The Jiaxiao Spot Welding Pin Machine is a robust, CE-certified welding solution designed for precision spot welding tasks. Built with a durable steel frame and modular components, it integrates advanced pneumatic systems and precise control mechanisms to ensure consistent performance across industrial applications.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel constructionEnhanced durability and load-bearing capacity
Control SystemMF digital controllerAdjustable welding parameters (time/current)
Pneumatic SystemPneumatic cylinder + F.R.L. unitClean, regulated air supply for precision
CertificationCE-compliantEnsures safety and EU market readiness
DimensionsAs per technical drawing specificationsEasy integration into existing workflows

Customization guide

Adjustable parameters such as welding pressure, current intensity, and timing allow customization to meet specific material thickness or production speed requirements.

Scenario Solution Example:
The machine’s modular design enables quick adjustments for automotive parts assembly, where precise spot welding of thin metal sheets is critical.

Get inspired

With its CE certification and advanced pneumatic control, the Jiaxiao Spot Welding Pin Machine is ideal for manufacturers seeking reliable, high-precision welding solutions for automotive, electronics, and industrial fabrication.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Welding Force3000 N+15% (3450 N)+30% (3900 N)*
Precision Control±0.5 mm±0.3 mm±0.1 mm
Current Range0–5000 A0–6000 A0–7000 A
CertificationsCECE + ISO 9001CE + ISO 9001 + RoHS

Supplier's note

  1. Technical Breakthroughs:

    • Pneumatic Precision: The F.R.L. unit ensures 20% cleaner air supply than standard models, reducing downtime.
    • Modular Design: Adjustable welding heads enable 30% faster setup for varied material thicknesses.
    • CE Compliance: Meets EU safety standards, eliminating rejections in export markets.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops or light-duty tasks (e.g., electronics assembly).
    • Advanced Model: Suitable for medium-scale production (e.g., automotive parts) needing higher precision.
    • Pro Model: Best for heavy industrial applications (e.g., aerospace components) requiring extreme durability and accuracy.

With the Pro Model’s ±0.1 mm precision, you can achieve flawless welds on aerospace-grade alloys. Pair this with its 7000 A current capacity to handle thick materials, ensuring seamless integration into high-stakes manufacturing workflows.

Frequently asked questions

  • Which Jiaxiao spot welding machine model is best suited for small workshops?

  • How do I clean and maintain the welding tip of the Jiaxiao spot welding pin machine?

  • Is the Jiaxiao spot welding machine CE certified for industrial safety standards?

  • Can the Jiaxiao welding machine be customized with additional components for specialized tasks?

  • What materials are used in the Jiaxiao welding machine’s construction for durability?

  • How does the Jiaxiao machine’s pneumatic system ensure precise spot welding?

  • Does the Jiaxiao spot welding machine come with technical drawings for installation?

  • What’s the warranty period for the Jiaxiao spot welding pin machine?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial workshops, automotive repairIndustry Standard: Aluminum (EN AW-6061)
Our Base: Steel (EN 10025)
Our Advanced: Steel + corrosion-resistant coating (ASTM A380)		▲ Base: 30% stronger than aluminum (higher load tolerance)
▲ Advanced: Resists 500+ hours salt spray (ISO 9227)		Base: 20% heavier than aluminum
Advanced: 15% higher cost due to coating
Force CapacityHeavy fabrication, automotive assemblyIndustry Standard: 1500 N
Our Base: 2000 N (ISO 9713)
Our Advanced: 3000 N (ISO 9713)		▲ Base: 33% stronger than standard
▲ Advanced: Handles 50% thicker materials		Advanced requires higher energy input
Control SystemSmall workshops, prototypingIndustry Standard: Manual control
Our Base: Basic MF controller (preset modes)
Our Advanced: Programmable MF controller (custom parameters)		▲ Advanced: 50+ programmable welding profiles
Base: Easier to operate for novices		Advanced requires training for full use
CertificationsExport-focused manufacturersIndustry Standard: CE
Our Base: CE + RoHS (EU directive 2011/65/EU)
Our Advanced: CE + RoHS + UL (UL 508)		▲ Advanced: Access to North American markets
Base: Meets EU safety standards		No notable disadvantages
CustomizationAerospace, roboticsIndustry Standard: Limited
Our Base: Adjustable welding head (±3mm)
Our Advanced: Fully modular (ISO 13399 tooling system)		▲ Advanced: 40% faster setup for complex projectsBase: Less adaptable to niche applications
Noise LevelHospitals, office environmentsIndustry Standard: 85 dB(A)
Our Base: 78 dB(A) (IEC 60717)
Our Advanced: 72 dB(A) (IEC 60717)		▲ Base: 8% quieter than standard
▲ Advanced: 15% quieter (quieter than vacuum cleaner)		Advanced requires premium muffler components
