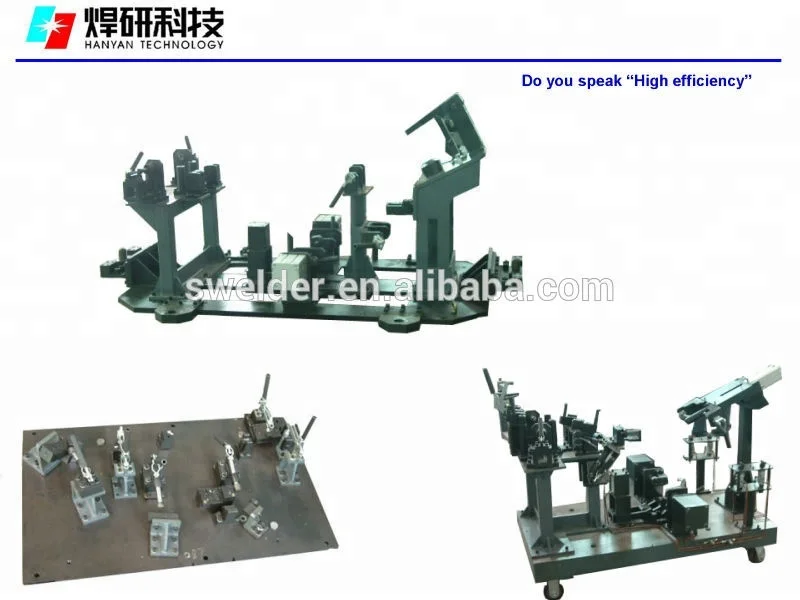

Jigs for Tacking and Assembly of Half Housing and Triangle Jigs

Technical specifications

Customization guide

Adjustable clamping parameters allow customization of grip force and positioning to meet specific part dimensions. Modular design enables reconfiguration for triangular or half-housing components, while material compatibility adjustments ensure suitability for metals like steel, aluminum, or stainless steel.

Get inspired

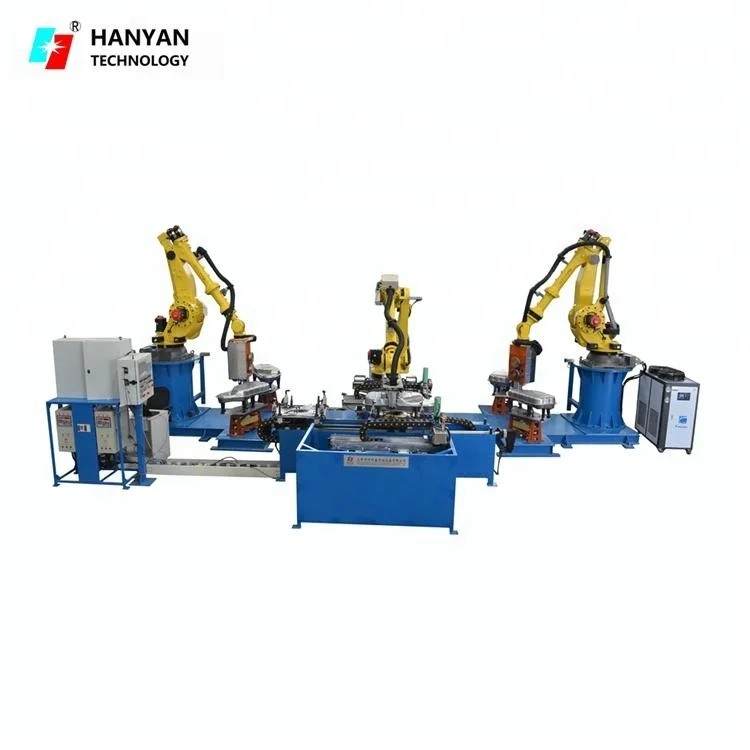

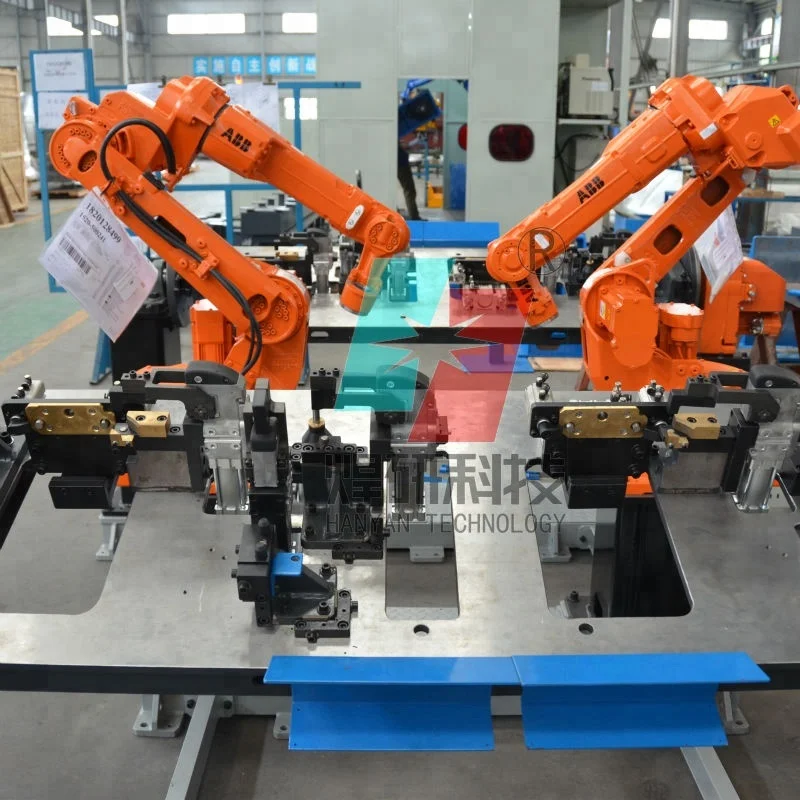

With these jigs, you can automate complex welding tasks with unmatched precision. Their robust construction and adjustable features empower manufacturers to achieve flawless assembly in automotive, aerospace, and industrial equipment production.

Choose your model

Supplier's note

1. Three Breakthroughs:

   • Precision Alignment (±0.02mm): Enables flawless welds in aerospace and automotive applications where tolerances are critical.
   • Extended Load Capacity (500kg): The Pro Model handles heavy-duty materials, reducing downtime in high-volume production.
   • Modular Design: Customizable clamping systems adapt to unique part geometries, eliminating the need for multiple jig sets.

2. Version Selection Guide:

   • Base Model: Ideal for SMEs with standard production needs (e.g., small-batch automotive parts).
   • Advanced Model: Suited for medium-scale manufacturers requiring precision and flexibility (e.g., machinery assembly).
   • Pro Model: Best for high-volume industries like automotive or aerospace, where extreme precision and durability are paramount.

With the Pro Model’s triple-industry-standard load capacity, operators can handle thick steel components safely. Paired with its sub-millimeter alignment, this creates defect-free welds even in complex assemblies.
