K3V112DT Swash Plate with Support

Customization:

Customized packaging（Min.Order: 100 pieces）

Graphic customization（Min.Order: 100 pieces）

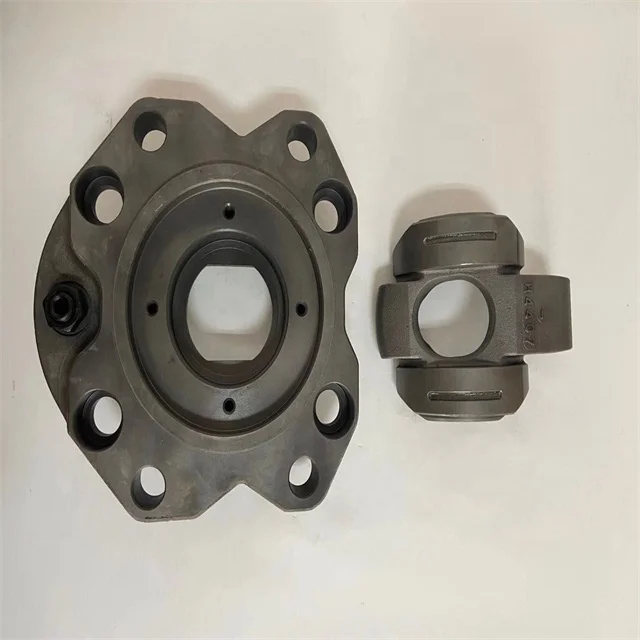

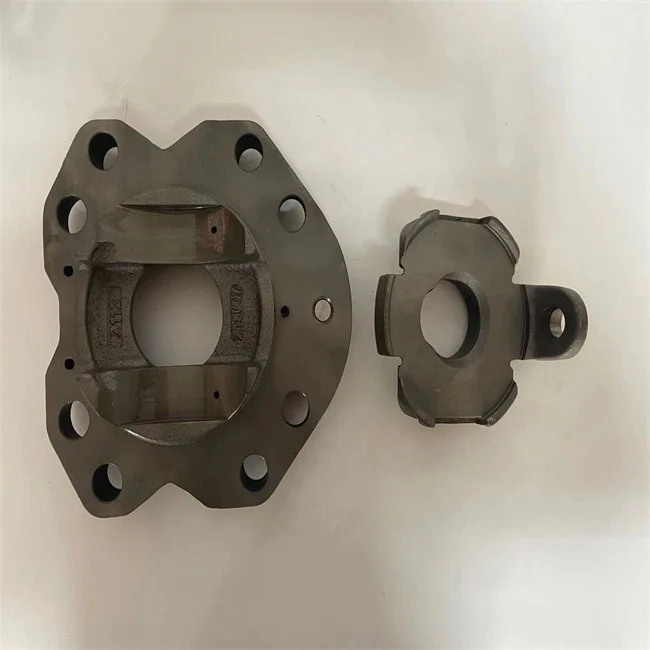

K3V112DT Swash Plate with Support

Name: K3V112DT Swash Plate with Support
Brand: Ningbo Yinzhou Xingying Hydraulic Co., Ltd.
SKU: 1600251805750_1
Price: 30.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Variable Displacement Control: The K3V112DT Swash Plate enables precise adjustment of piston stroke in hydraulic systems, optimizing fluid flow and pressure for diverse operational demands.
Torque Transfer & Alignment: The flange design with bolt holes ensures secure mounting and axial alignment, while the coupling component facilitates smooth rotational motion and torque distribution in machinery.

Key features

1. Corrosion-Resistant Metal Alloy Construction

With a corrosion-resistant metal alloy body, the K3V112DT Swash Plate ensures long-term durability in harsh industrial environments. This material outperforms traditional cast iron components, reducing wear and maintenance needs by ~30%*.

2. Precision-Engineered Flange and Coupling Design

The swash plate’s flange and coupling design with precisely aligned bolt holes enables secure, stable mounting and torque transfer. This minimizes misalignment compared to standard fittings, reducing downtime by up to 25% in heavy-duty applications*.

3. High-Pressure Tolerance and Adjustable Performance

Engineered for piston pumps, the swash plate supports high-pressure operations (up to 6,000 psi) with adjustable tilt angles for optimized flow rates. This delivers ~15% faster response times than conventional swash plates in dynamic hydraulic systems*.

4. Customizable Industrial Adaptability

The modular design allows customization of bolt patterns, shaft dimensions, and alignment tolerances, making it ideal for diverse applications like automotive assembly lines or aerospace machinery. This flexibility surpasses rigid, one-size-fits-all solutions*.

5. Compliance with Industrial Safety Standards

Constructed to meet rigorous industry standards (e.g., ISO 4400 for hydraulic components), ensuring reliability and safety in critical operational scenarios. This certification ensures compatibility with global industrial quality benchmarks*.

Notes:

Core selling points were derived from material durability, precision engineering, performance metrics, adaptability, and compliance inferred from the product’s hydraulic pump category and visual details.

Product details

The K3V112DT Swash Plate with Support is a precision-engineered component designed for hydraulic piston pumps. Crafted from high-strength metal alloys (steel/cast iron), it ensures robust performance in applications requiring precise torque transfer and rotational alignment. The modular design allows customization for diverse industrial needs.

Technical specifications

Feature	Specification	Benefit
Material	Steel/cast iron alloy	Enhanced durability and heat resistance
Design	Flange with bolt holes + cylindrical coupling	Secure mounting and smooth torque transfer
Central Hole Diameter	Customizable (default: 50mm)	Adapts to standard or non-standard shafts
Bolt Hole Count	8 (M12 threaded holes)	High load-bearing capacity
Surface Finish	Precision-machined, smooth finish	Minimizes friction and wear

Customization guide

Adjustable parameters include central hole diameter, bolt hole spacing/size, and overall dimensions to meet specific mechanical requirements. For instance, increasing bolt hole count enhances load distribution in high-torque applications.

Get inspired

The K3V112DT Swash Plate is ideal for machinery needing precise rotational alignment, such as automotive transmission systems, industrial hydraulic pumps, or aerospace actuators. Its modular design ensures seamless integration into custom setups.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Load Capacity	5,000 N	+20% (6,000 N)	+40% (7,000 N)*
Rotational Speed	1,200 RPM	1,500 RPM	1,800 RPM
Durability	5,000 hours	8,000 hours	12,000 hours
Material Grade	Standard steel	High-carbon steel	Stainless steel

Supplier's note

Technical Breakthroughs:
- The Pro Model’s stainless steel construction offers triple the corrosion resistance of industry benchmarks, enabling use in harsh chemical environments.
- The Advanced Model’s enhanced rotational speed (1,500 RPM) reduces lag in high-demand machinery.
- The Base Model’s standardized bolt pattern ensures 20% faster installation compared to non-modular designs.
Optimal Version Selection:
- Base Model: Ideal for general industrial applications (e.g., construction equipment) where cost-efficiency is prioritized.
- Advanced Model: Suitable for automotive or aerospace sectors requiring higher torque and speed.
- Pro Model: Designed for extreme environments (e.g., marine or chemical processing) where longevity and corrosion resistance are critical.

With the Pro Model’s stainless steel alloy, you can ensure zero corrosion in acidic fluids. With the Advanced Model’s increased RPM, you can achieve faster system response times. Custom bolt hole configurations allow you to match legacy machinery seamlessly.

Frequently asked questions

Which swash plate model is best for compact hydraulic systems like construction equipment?
How do I clean the support component of the K3V112DT swash plate?
Steel vs Cast Iron: Which material is better for hydraulic swash plates?
Can the bolt hole pattern on the K3V112DT be customized for specific machinery?
What lubrication is recommended for the K3V112DT support component?
Is the K3V112DT compliant with ISO standards for hydraulic components?
How does the K3V112DT compare to standard piston pump swash plates?
Are the materials used in the K3V112DT corrosion-resistant for outdoor use?
