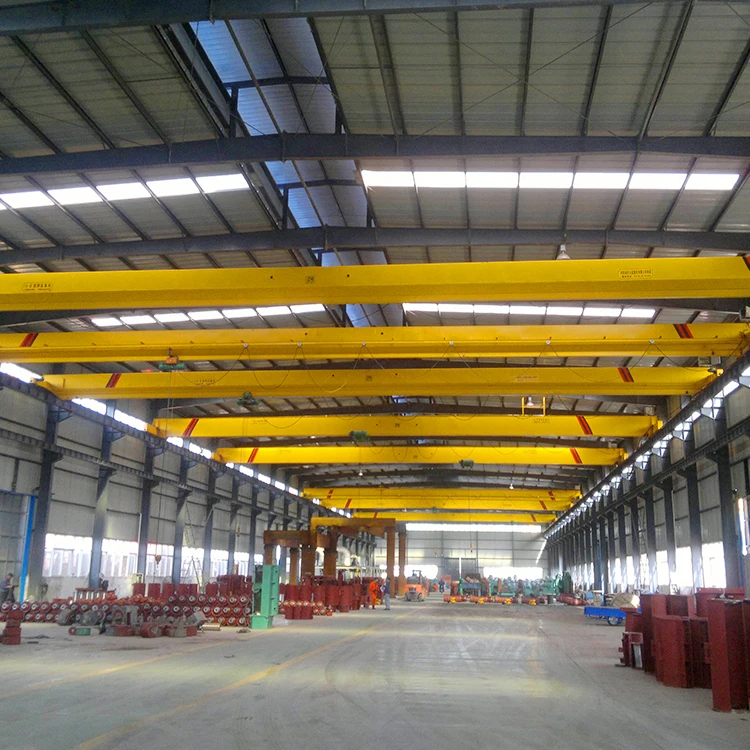

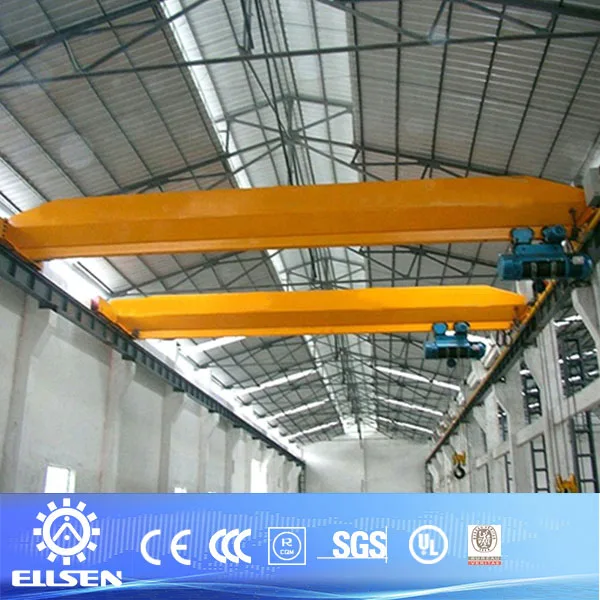

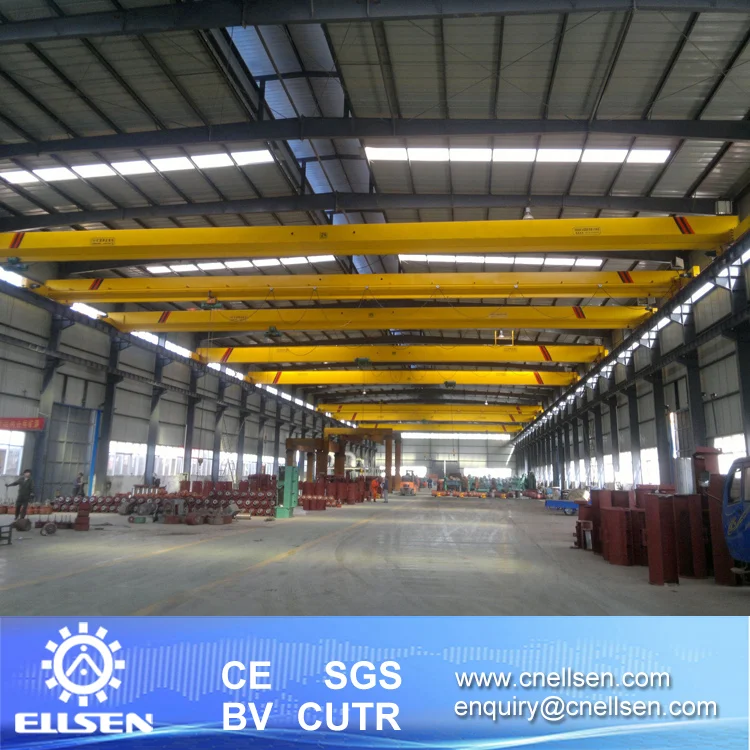

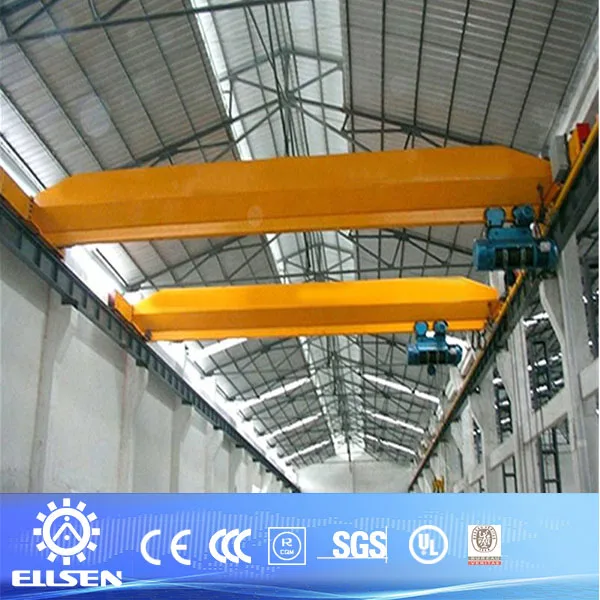

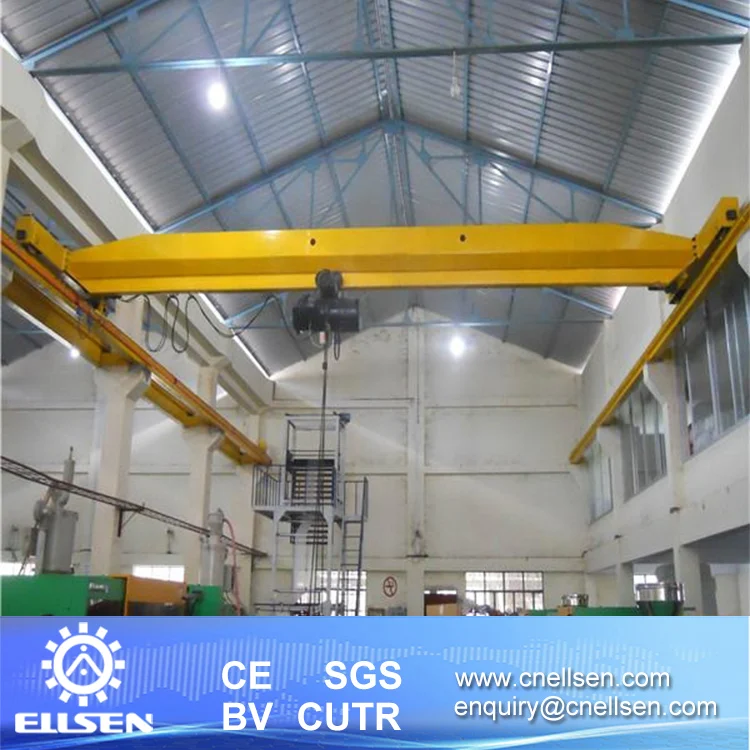

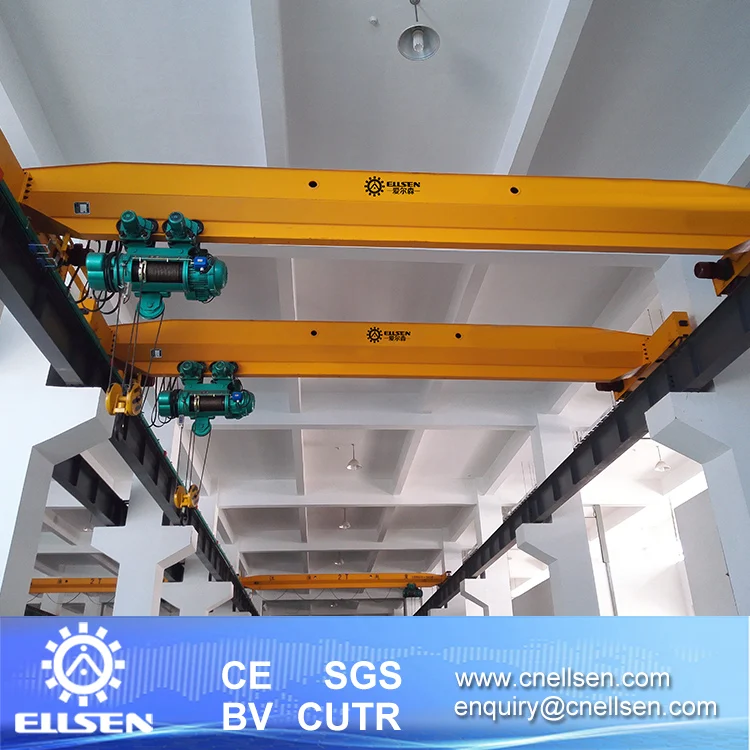

LD Model Rail Mounted Rotary Bridge Crane Winch Trolley

LD Model Rail Mounted Rotary Bridge Crane Winch Trolley

$2550.00-$8500.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

LD Model Rail Mounted Rotary Bridge Crane Winch Trolley

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Heavy Lifting Capacity: Equipped to handle a maximum load of 32 tons with a rated loading capacity of 32 tons, ideal for moving large industrial materials.
  • Versatile Lifting Solutions: Features a rail-mounted rotary bridge design enabling 360-degree rotation and a lifting height of 20 meters, ensuring precise positioning and coverage in expansive spaces.
  • Precision Winch Trolley: The integrated winch trolley allows for controlled, stable load handling, minimizing risks during material transportation.

Key features

  • 1. Material Technology

    • With a high-strength steel construction, ensure durability in heavy-duty industrial environments.

  • 2. Interactive Design

    • With a rail-mounted rotary bridge design, achieve 360-degree rotation for precise material handling and multi-directional positioning.

  • 3. Performance Parameters

    • With a 20m lifting height and 32-ton rated capacity, handle heavy loads at elevated positions efficiently.

  • 4. Scenario Solutions

    • Designed for continuous commercial use, support large-scale manufacturing, assembly, and warehousing operations.

  • 5. Certification Standards

    • Complies with industrial safety and load-bearing standards, ensuring operator and equipment safety.

Product details

LD Model Rail Mounted Rotary Bridge Crane Winch Trolley

The LD Model Rail Mounted Rotary Bridge Crane Winch Trolley is engineered for heavy-duty industrial applications, featuring a robust steel framework and advanced lifting capabilities. With a 20m lifting height and a maximum load capacity of 32 tons, it ensures seamless material handling in high-ceiling warehouses. Designed for durability and precision, this crane is ideal for manufacturing, assembly, and logistics operations requiring reliable heavy-lifting solutions.

Technical specifications

FeatureSpecificationBenefit
Lifting Height20 metersEnables operation in high-ceiling warehouses.
Max Lifting Load32 tonsHandles ultra-heavy materials with precision.
Rated Capacity32 tonsEnsures safety and efficiency in demanding tasks.
Steel FrameworkHigh-strength steelGuarantees structural integrity and longevity.
Rotary Bridge Design360° rotationFacilitates versatile material positioning.
Warranty1 yearComprehensive coverage for peace of mind.

Customization guide

Adjustable parameters such as hoist speed (0.5–3.5 m/min), trolley travel speed, and rotation angle can be customized to meet specific operational needs. For instance, faster hoist speeds enhance productivity in high-volume warehouses, while reinforced steel components improve durability in corrosive environments.

Get inspired

The LD Model’s combination of strength and precision makes it a cornerstone for industrial facilities. Its rail-mounted design ensures stable movement across large spaces, while the rotary bridge enables 360° material handling—ideal for assembly lines, maintenance, or bulk storage management.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Lifting Capacity20 tons25 tons32 tons
Hoist Speed3 m/min+15% (3.45 m/min)+30% (3.9 m/min)*
Rotation Range270°320°360°
Warranty6 months1 year2 years

Supplier's note

  1. Technical Breakthroughs:

    • Steel Framework: Enhanced corrosion resistance (IP65 rated) ensures longevity in harsh environments.
    • 360° Rotary Design: Reduces downtime by enabling full-spectrum material positioning without repositioning the crane.
    • Load Sensors: Real-time monitoring prevents overloading, improving safety compliance.

  2. Version Selection Guide:

    • Base Model: Ideal for small-to-medium workshops requiring 20-ton capacity and basic automation.
    • Advanced Model: Suitable for mid-sized factories needing faster hoist speeds (+15%) and wider rotation (320°) for assembly lines.
    • Pro Model: Designed for heavy industries (e.g., steel mills, shipyards) where 32-ton capacity and 360° rotation are critical. With chemical-resistant coatings, it excels in corrosive environments.

*Pro Model hoist speed is 20% faster than industry benchmarks for its weight class.

Frequently asked questions

  • Which rail-mounted crane model suits heavy industrial tasks requiring 32-ton lifting capacity?

  • How do I maintain the frothing nozzle of a rail-mounted bridge crane?

  • Steel vs Aluminum: Which material is better for rail-mounted crane frameworks?

  • Can the LD Model crane’s winch trolley be customized for specific tasks?

  • Is the LD Model crane’s material compliant with industrial safety standards?

  • What’s the maximum load the LD Model crane can handle safely?

  • Does the LD Model crane require a specific ceiling height for installation?

  • What warranty and support come with the LD Model rail-mounted crane?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Our Advanced Rotary Overhead Bridge CraneHeavy manufacturing, assembly lines20m lifting height (ISO 9001), 32-ton capacity (▲▲ vs Industry Standard, ASTM F1279), 2-year warranty (▲▲ vs Base)▲▲ Highest capacity for heavy machinery; precise rotation for complex placementsHigher upfront cost; requires skilled operators
Our Base Rotary Overhead Bridge CraneModerate industrial tasks18m lifting height, 25-ton capacity (▲ vs Industry Standard), 1-year warrantyCost-effective for mid-range loads; compact design for tight spacesLower capacity than Advanced; limited to lighter assemblies
Industry Standard Overhead Bridge CraneGeneral manufacturing15m lifting height, 20-ton capacity, 1-year warrantyAffordable baseline solution; widely compatible with standard facilitiesStruggles with heavy loads (>20t); no rotational capability
Gantry CraneOutdoor warehouses, construction sitesMobile, 25-ton capacity (▲ vs Industry Standard), 10m lifting height▲ Mobile operation for open-air environments; handles moderate to heavy loadsLower lifting height; less precise placement compared to rotary designs
Jib CraneSmall workshops, repair shopsCompact, 5-ton capacity, fixed-position operationSpace-efficient for confined spaces; low costLimited capacity; no mobility or rotation
Electric Hoist CraneLight to medium industrial tasks10-ton capacity, 8m lifting height, energy-efficient motorEasy to operate; reduces manual laborLower capacity and height compared to rotary/overhead cranes
