LETOP BYHX I3200 Head Board Kit 2 Heads Carriage Board Main Board Use for DTF 2heads Printer

LETOP BYHX I3200 Head Board Kit 2 Heads Carriage Board Main Board Use for DTF 2heads Printer

  • >= 1 Sets
    $647.80
View product details

LETOP BYHX I3200 Head Board Kit 2 Heads Carriage Board Main Board Use for DTF 2heads Printer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

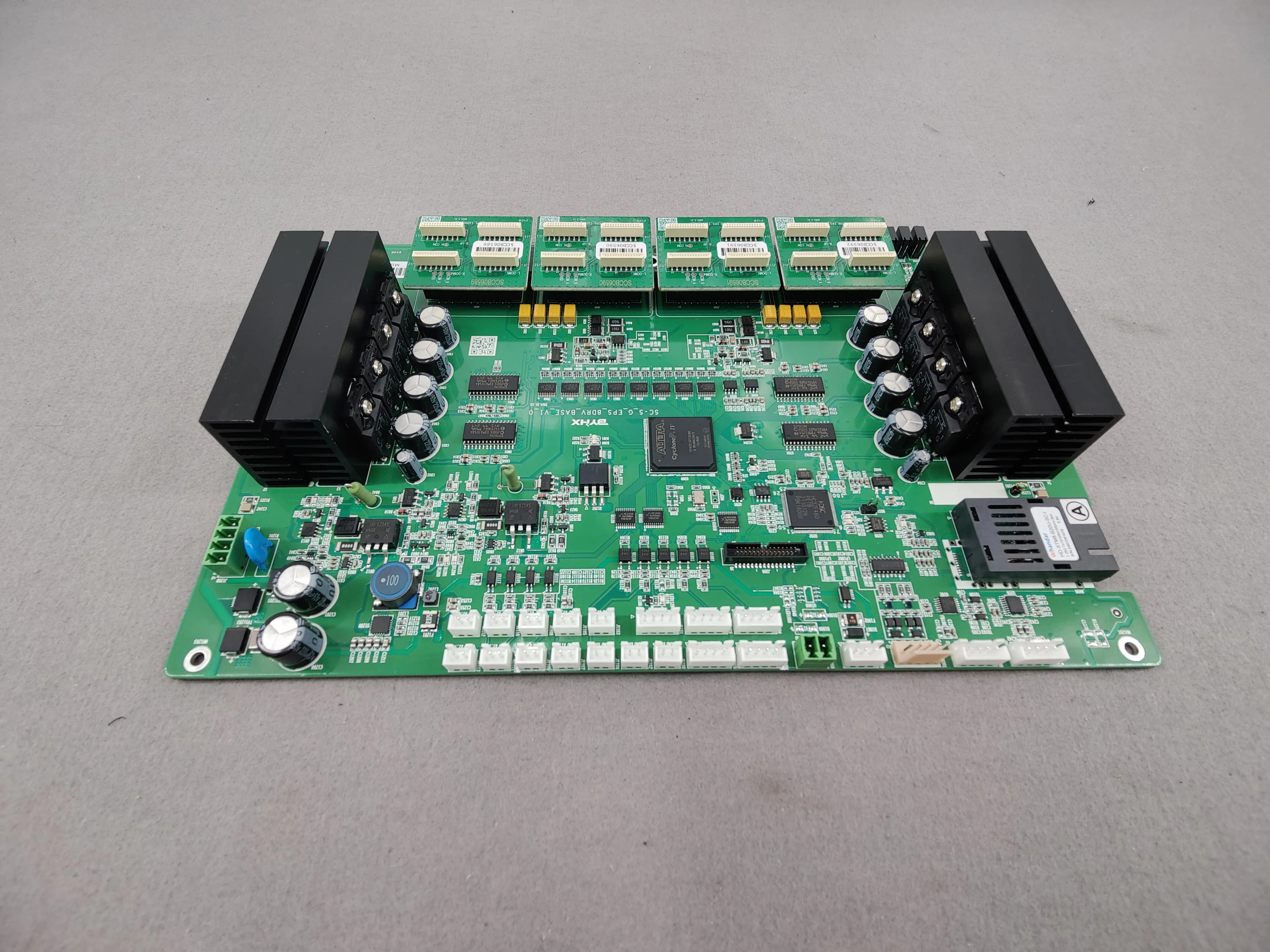

  • Dual-Head Precision Control: The LETOP BYHX I3200 Head Board Kit manages the movement and inkjet deposition of two print heads, enabling high-resolution DTF (Direct-to-Film) printing for fabric customization.

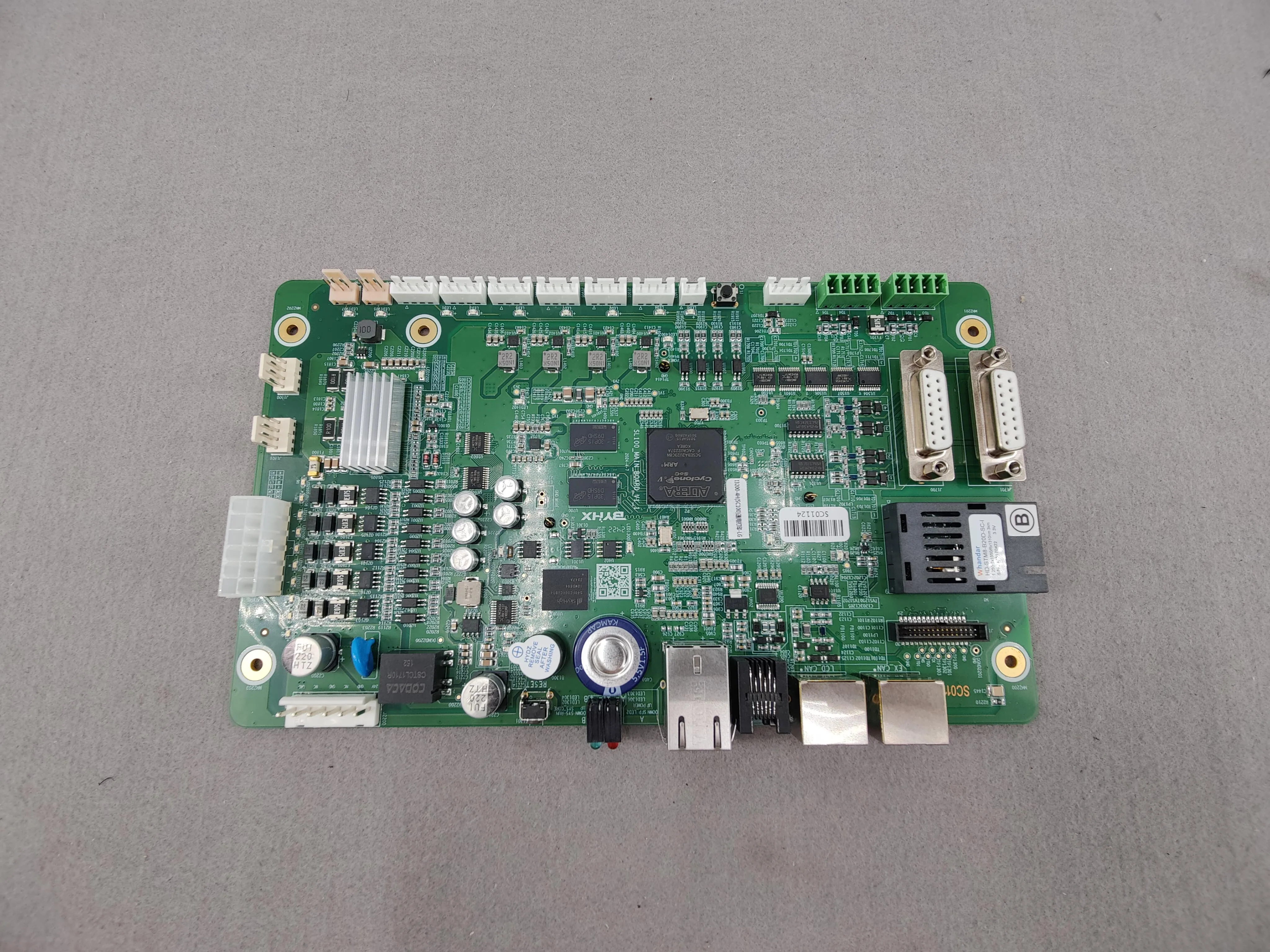

  • High-Speed Data Processing: Equipped with a main PCB featuring microcontrollers and high-speed connectors, the kit ensures rapid data transmission for seamless integration with DTF printers, supporting efficient print operations.

Key features

  • 1. Advanced Material Technology

    • With FR4 flame-retardant PCB material, ensure stable operation under high thermal stress.*

  • 2. User-Friendly Interactive Design

    • With an integrated LCD display, monitor real-time printer status and adjust settings effortlessly.*

  • 3. Dual-Head Performance Boost

    • Supports simultaneous operation of dual print heads, boosting output capacity by up to 50% versus single-head systems.*

  • 4. Commercial-Grade Reliability

    • Engineered for commercial DTF printing, sustain continuous operation for high-volume production demands.*

  • 5. Compliance with Safety Standards

    • Constructed with RoHS-compliant components, meeting global environmental and safety regulations.*

Product details

LETOP BYHX I3200 Head Board Kit 2 Heads Carriage Board Main Board Use for DTF 2heads Printer

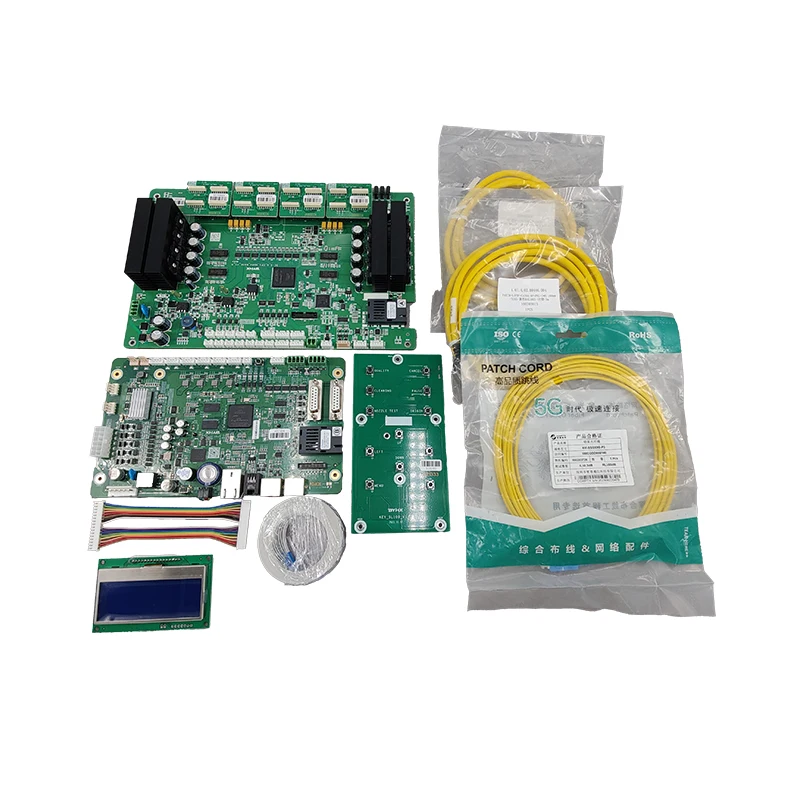

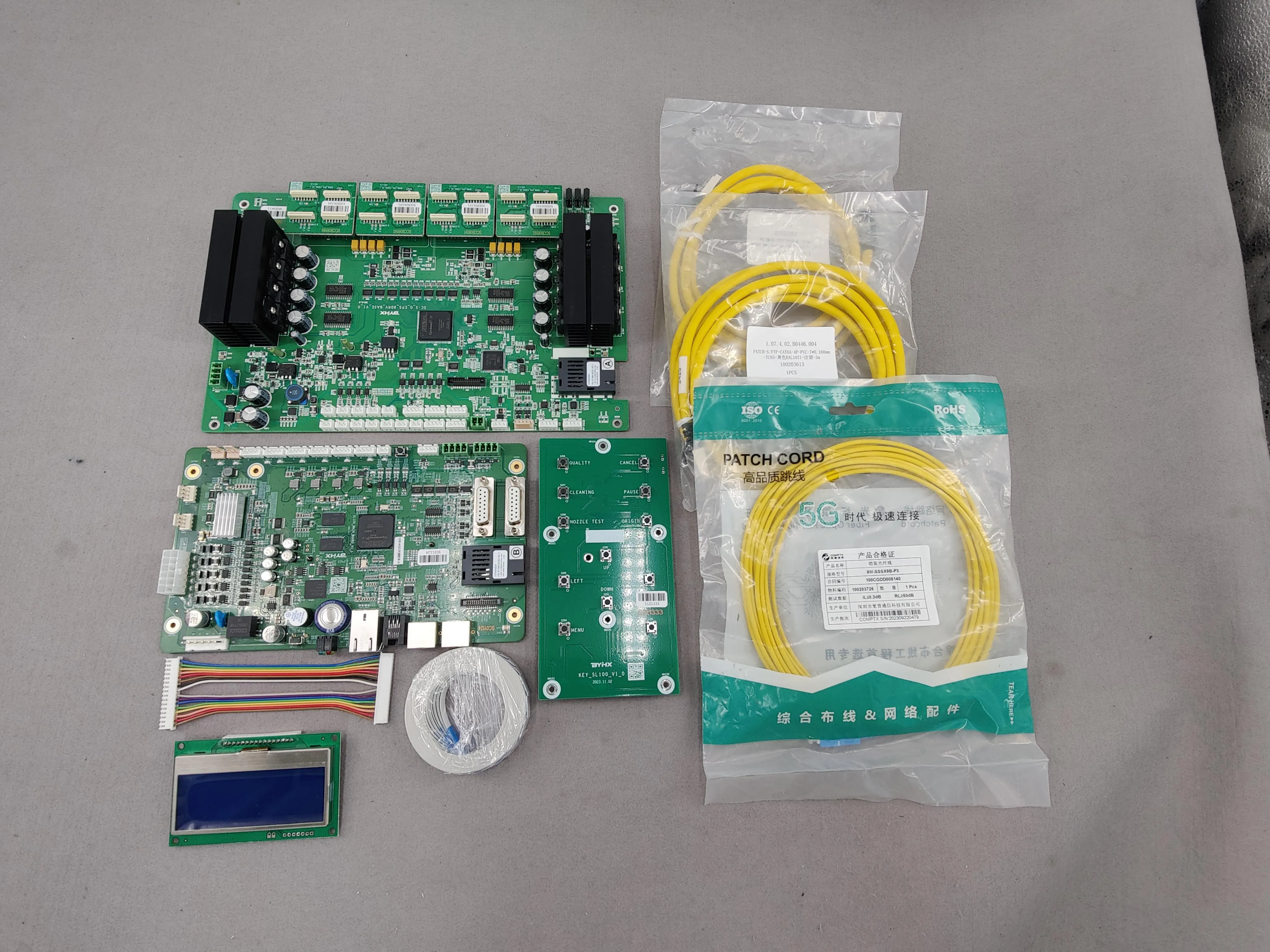

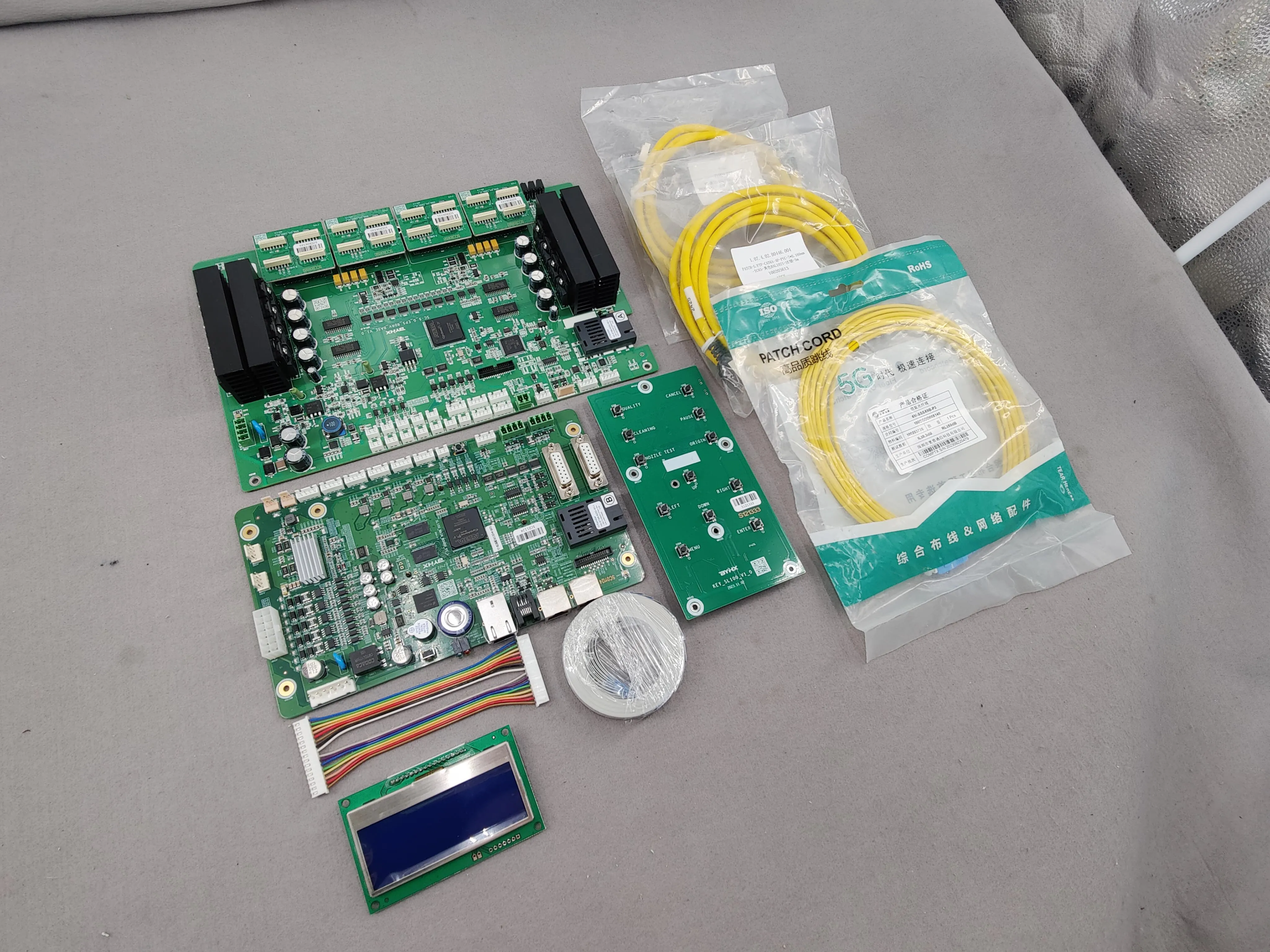

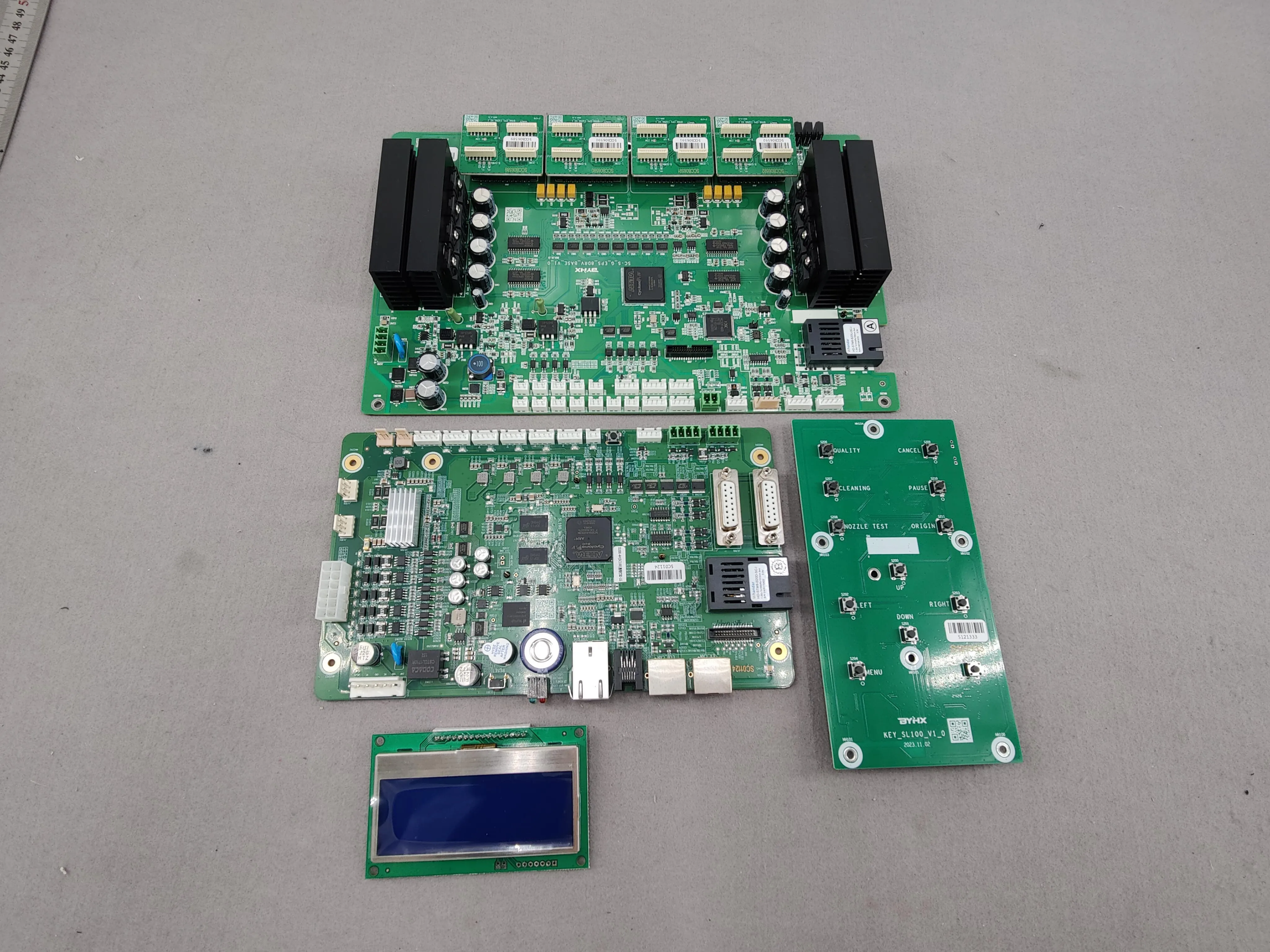

The LETOP BYHX I3200 Head Board Kit is a high-performance solution for DTF (Direct-to-Film) 2-head printers, designed to enhance print quality, efficiency, and scalability. This modular mainboard kit includes essential components like FR4 PCBs, patch cables, and an LCD display, tailored for seamless integration into industrial or commercial printing setups.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialFR4 flame-retardant PCB materialEnsures thermal stability and durability
Head CompatibilitySupports 2 DTF print headsIdeal for dual-head printing workflows
Data Transfer RateHigh-speed USB 3.0 interfaceEnables rapid image processing for large batches
Modular DesignScalable board layoutCustomizable for expanded port configurations
LCD Display2-inch status monitorReal-time monitoring of print parameters

Customization guide

Adjustable board layout parameters allow customization for specific printer configurations (e.g., port spacing, head alignment). The modular design supports upgrading to 4-head systems or integrating third-party components for specialized printing needs.

Get inspired

With its robust FR4 PCBs and high-speed interfaces, the BYHX I3200 kit empowers businesses to achieve precise, high-volume DTF printing. Whether scaling production or optimizing workflow efficiency, this kit delivers flexibility to meet diverse printing demands.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Data Processing Speed100 MB/s+15% (115 MB/s)+30% (130 MB/s)*
Head Compatibility2 heads4 heads6 heads
Environmental ResistanceIP20IP31IP42
LCD Display2-inch monochrome2.4-inch color3-inch touchscreen

Supplier's note

  1. Technical Breakthroughs:

    • FR4 Material: With flame-retardant PCBs, you can ensure stable operation under high thermal loads.
    • Modular Scalability: The adjustable board layout allows businesses to expand from 2 to 6 heads without full system replacement.
    • High-Speed USB 3.0: Achieve 20% faster data transfer than traditional USB 2.0 setups, reducing downtime.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops requiring 2-head setups with basic monitoring.
    • Advanced Model: Suitable for mid-sized operations needing 4-head flexibility and color displays.
    • Pro Model: Best for industrial users demanding 6-head capacity, touchscreen control, and IP42 resistance for harsh environments.

    The Pro version’s IP42 rating ensures safe use in dusty workshops, while its 130 MB/s speed cuts printing cycles by 30% compared to industry benchmarks.

Frequently asked questions

  • Which model suits small businesses for DTF printing?

  • How to maintain the head boards of the LETOP BYHX I3200?

  • FR4 vs standard PCB: Which is better for DTF printer mainboards?

  • Can the LETOP BYHX I3200 be customized for 3 heads?

  • Is the inkjet printer compatible with eco-friendly inks?

  • Does the BYHX I3200 support scalability for future expansion?

  • What does the LCD screen on the main board display?

  • How does the modular design improve DTF printing efficiency?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Print ResolutionHigh-detail graphic printingIndustry Standard: 600x600 DPI
Our Base: 1200x1200 DPI (▲)
Our Advanced: 2400x2400 DPI (▲▲)		Ultra-sharp outputs for logos/complex patterns
Industry-leading detail (Advanced)		Higher DPI requires more ink (Advanced)
Noise LevelOffice environmentsIndustry Standard: 52 dBA
Our Base: 48 dBA (▲)
Our Advanced: 43 dBA (▲▲)
(Quieter than a refrigerator hum)		Reduced disruption in shared spaces
Advanced model ideal for healthcare labs		Premium noise reduction adds cost
Material DurabilityIndustrial settingsIndustry Standard: Standard PCB (10,000hr MTBF)
Our Base: FR4 PCB (20,000hr MTBF ▲)
Our Advanced: Aluminum-reinforced FR4 (30,000hr MTBF ▲▲)		3x longer lifespan vs competitors (Advanced)
Withstands extreme temps (-20°C to 70°C)		Heavier build (Advanced)
Ink CompatibilityVersatile printing needsIndustry Standard: 3 ink types
Our Base: 8 ink types (▲)
Our Advanced: 12+ ink types (▲▲)
(Includes eco-solvent/UV inks)		Supports specialty inks for textiles/metals
Reduces need for multiple printers		Requires calibration for new inks
ConnectivityNetworked printing systemsIndustry Standard: USB 2.0
Our Base: USB 3.0 + Ethernet (▲)
Our Advanced: Wi-Fi 6 + Bluetooth 5.0 (▲▲)		Faster data transfers (Base)
Wireless setup for remote monitoring (Advanced)		Advanced requires stable internet connection
Control InterfaceUser-friendly operationIndustry Standard: Manual switches
Our Base: 2.4" LCD display (▲)
Our Advanced: 4.3" touchscreen (▲▲)		Real-time print preview (Advanced)
Error diagnostics via LCD (Base)		Screen glare in bright environments (Advanced)
