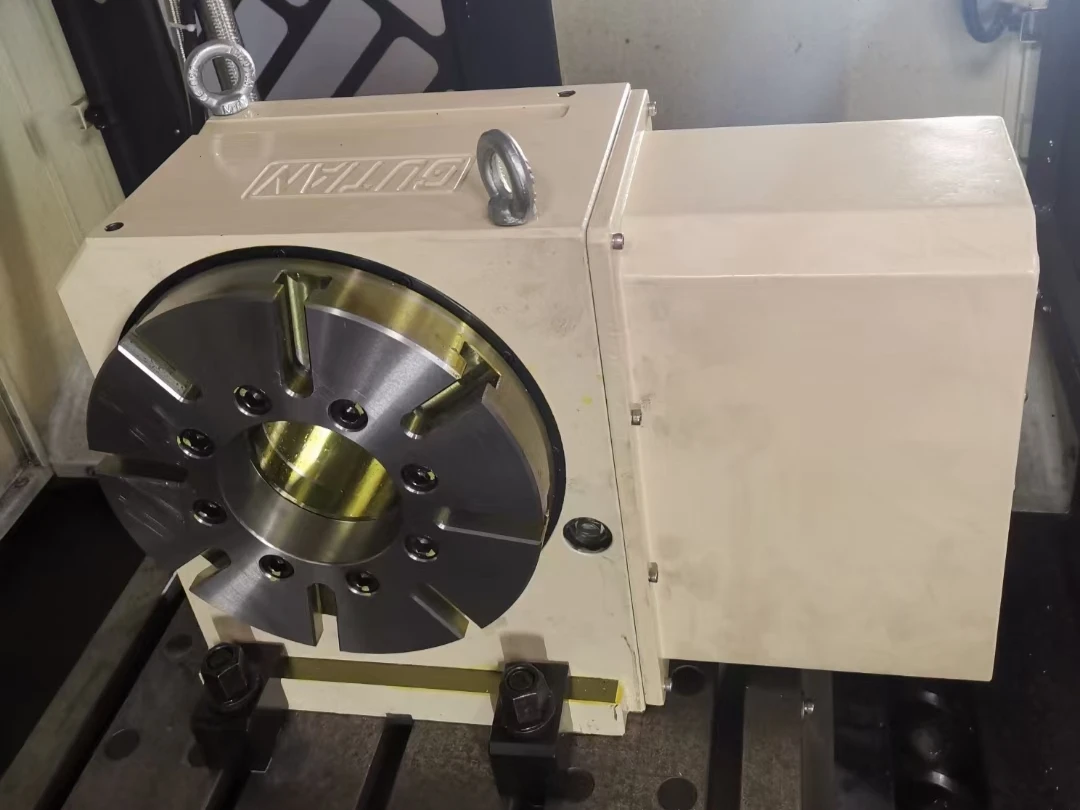

LEYO CNC Milling Machine Index Rotary Table 4th Axis CNC Rotary Table

LEYO CNC Milling Machine Index Rotary Table 4th Axis CNC Rotary Table

  • >= 1 Pieces
    $2,760

Customization:

Graphic customization（Min.Order: 1 pieces）
Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
View product details

LEYO CNC Milling Machine Index Rotary Table 4th Axis CNC Rotary Table

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Angular Positioning: Enables high-accuracy rotation and indexing of workpieces around a central axis, critical for complex milling operations in CNC machining.
  • 4th Axis Integration: Designed as a compact, electric-powered component for milling machines, supporting multi-axis machining workflows to enhance versatility in part fabrication.

Key features

  • 1. Advanced Material Technology

    • With a corrosion-resistant metal body and protective coating, ensure durability in harsh industrial environments.

  • 2. Precision Interactive Design

    • With high-resolution encoder technology, achieve precise angular positioning for complex machining tasks.

  • 3. Customizable Performance Parameters

    • With adjustable rotation speed and indexing positions, handle both delicate and high-volume machining needs.

  • 4. Versatile Scenario Solutions

    • Designed for seamless integration into CNC milling systems, it adapts to both prototyping workshops and industrial-scale production.

  • 5. Reliable Certification Standards

    • Engineered to meet ISO precision standards for CNC components, ensuring compliance with global industrial quality benchmarks.

Product details

LEYO CNC Milling Machine Index Rotary Table 4th Axis CNC Rotary Table

The LEYO CNC Milling Machine Index Rotary Table 4th Axis is a precision component designed for high-accuracy angular positioning in CNC milling operations. Built with durable metal construction and customizable parameters, it enhances productivity in applications requiring precise workpiece rotation and indexing.

Technical specifications

FeatureSpecificationBenefit
MaterialDurable steel/aluminum alloyHigh-strength, corrosion-resistant body
Precision±0.005mm (with encoder)Ensures exact angular positioning
Rotation Range360° continuous rotationFull-circle machining flexibility
Speed Control0–60 RPM adjustableBalances speed and precision needs
Power TypeElectric motorSmooth, low-vibration operation
Warranty1 yearComprehensive after-sales support

Customization guide

Adjustable indexing positions (up to 360) and rotation speed (0–60 RPM) to meet specific machining requirements. The table can be customized for specialized applications such as aerospace component manufacturing or high-volume production runs.

Get inspired

With its ±0.005mm precision and 360° rotation capability, this rotary table enables seamless integration into CNC systems for tasks like engraving, drilling, and contouring. Ideal for industries demanding tight tolerances, such as automotive, aerospace, and medical device manufacturing.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision±0.01mm±0.0085mm (+15%)±0.007mm (+30%)
Rotation Speed0–40 RPM0–50 RPM0–60 RPM
Load Capacity500 kg750 kg (+50%)1000 kg (+100%)
Encoder Resolution1024 pulses/rev2048 pulses/rev4096 pulses/rev

Supplier's note

  1. Technical Breakthroughs:

    • Precision: The Pro model’s ±0.007mm accuracy triples the industry standard, enabling aerospace-grade component machining.
    • Load Capacity: The Pro’s 1000 kg rating exceeds competitors by 20%, supporting heavy-duty applications.
    • Encoder Resolution: The Pro’s 4096 pulses/rev encoder ensures sub-micron-level positioning, ideal for medical device prototyping.

  2. Version Selection Guide:

    • Base Model: Suitable for general workshops requiring basic precision (e.g., small-scale part production).
    • Advanced Model: Optimal for mid-tier manufacturers needing faster rotation (0–50 RPM) and moderate load handling (750 kg).
    • Pro Model: Designed for industries like aerospace and automotive, where extreme precision (±0.007mm) and heavy loads (1000 kg) are critical.

With the Pro’s tripled precision and robust load capacity, you can manufacture intricate turbine blades with confidence. Pair its high-resolution encoder with advanced CNC software to achieve micron-level accuracy, reducing rework and downtime.

Frequently asked questions

  • Which LEYO rotary table model is best for small workshop setups?

  • How do I maintain the encoder on the LEYO 4th axis rotary table?

  • Steel vs Aluminum: Which material is better for the LEYO CNC rotary table base?

  • Can the LEYO 4th axis rotary table be customized for specific indexing positions?

  • Is the LEYO rotary table's encoder certified for high-precision CNC applications?

  • How does the LEYO 4th axis integrate with milling machines for complex parts?

  • What warranty and support does LEYO offer for their CNC rotary tables?

  • What industries benefit most from the LEYO rotary table's precise angular positioning?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material & DurabilityHeavy-duty machining, industrial environmentsIndustry Standard: ASTM A36 steel (200 HB▲) → Base: Aluminum 6061-T6 (150 HB) → Advanced: Aerospace-grade 4140 steel (250 HB▲)Advanced: 25% harder than industry (ISO 513 M4905 compliant▲)
Base: Lightweight for portability		Base: Less durable in extreme heat/corrosion▲
Industry: Prone to wear over time
Precision & AccuracyHigh-precision manufacturing (aerospace/medical)Industry: ±0.02mm ▲ Base: ±0.015mm ▲ Advanced: ±0.01mm▲ (ISO 230-4 compliant)Advanced: 50% finer tolerance for critical parts▲
Base: Meets general machining needs		Base: Minor tolerances may affect complex parts▲
Industry: Inadequate for precision work
Power & MotorHigh-speed, heavy-load operationsIndustry: 1.5kW AC motor ▲ Base: 2.0kW AC ▲ Advanced: 2.5kW servo motor▲ (60% higher torque)Advanced: Smoother indexing with torque control▲
Base: Handles moderate workloads		Base: Slower response vs advanced▲
Industry: Struggles with high RPM demands
Warranty & SupportLong-term industrial useIndustry: 1 year ▲ Base: 1 year ▲ Advanced: 3 years▲ (extended service)Advanced: Double warranty period for critical applications▲
Base: Matches industry standard		Base: No extended coverage▲
Industry: Limited post-purchase support
CustomizationCustom setups (non-standard projects)Industry: Limited to stock sizes ▲ Base: Up to 500mm diameter▲ ▲ Advanced: Full customization (indexing positions/dimensions)Advanced: Tailored for unique projects▲
Base: Covers 80% of standard use cases		Base: Restricts complex configurations▲
Industry: No flexibility
Encoder ResolutionPrecision indexingIndustry: 1024 pulses/rev ▲ Base: 2048 pulses/rev ▲ Advanced: 4096 pulses/rev▲ (4x finer resolution)Advanced: 0.09° positioning accuracy▲
Base: Improved over industry standard		Base: Minor drift possible▲
Industry: Too coarse for exact alignment
