Large Flow Rate Wedge Wire Mesh Screen Filter in Water Treatment System

Large Flow Rate Wedge Wire Mesh Screen Filter in Water Treatment System

  • 100 - 9999 Pieces
    $8.99
  • 10000 - 99999 Pieces
    $7.99
  • >= 100000 Pieces
    $6.99

Customization:

Customized packaging（Min.Order: 500 pieces）
Customized logo（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

Large Flow Rate Wedge Wire Mesh Screen Filter in Water Treatment System

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Flow Filtration: Designed for efficient water treatment systems, the cylindrical filter screen enables large flow rates with square-shaped holes optimized for particle retention and minimal pressure loss.

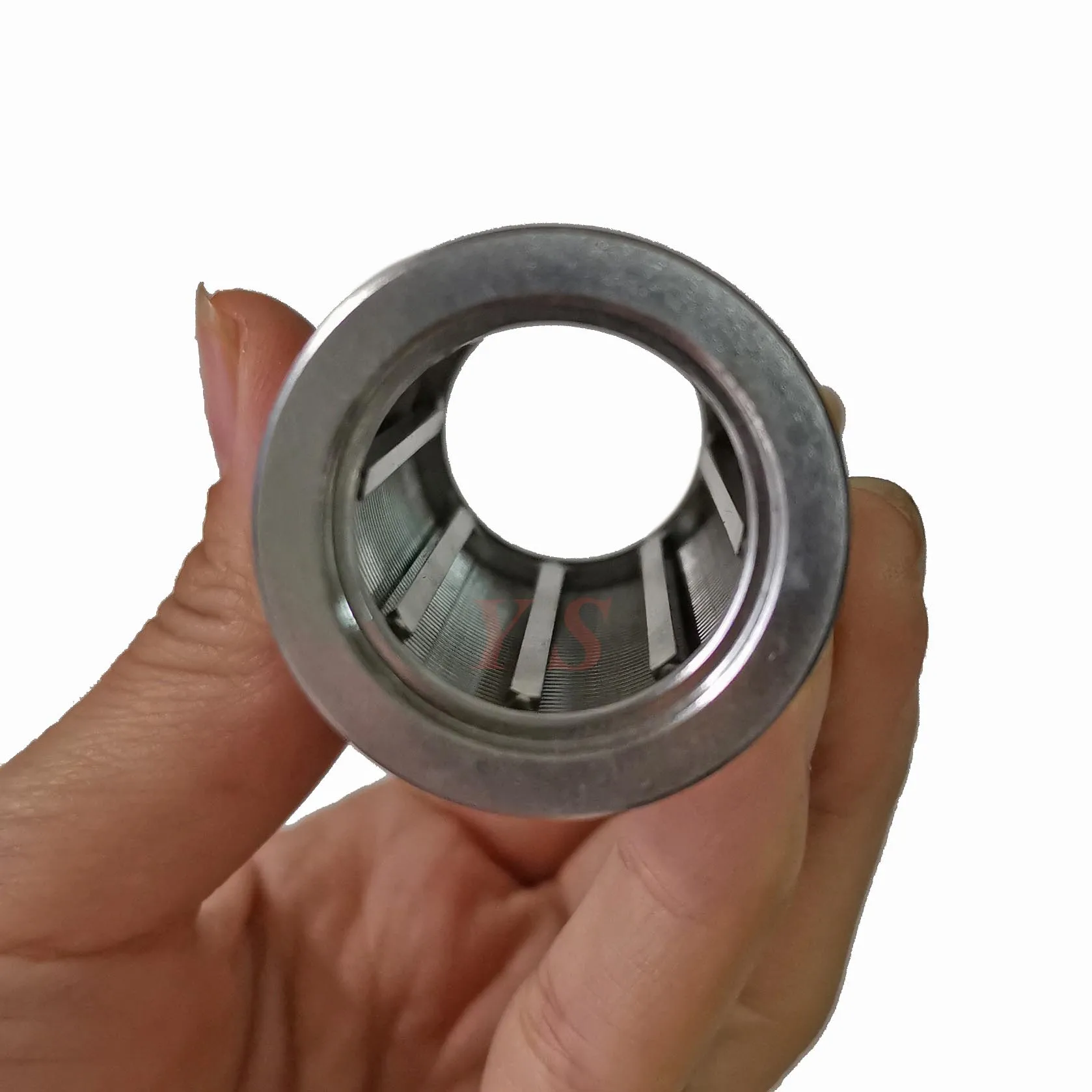

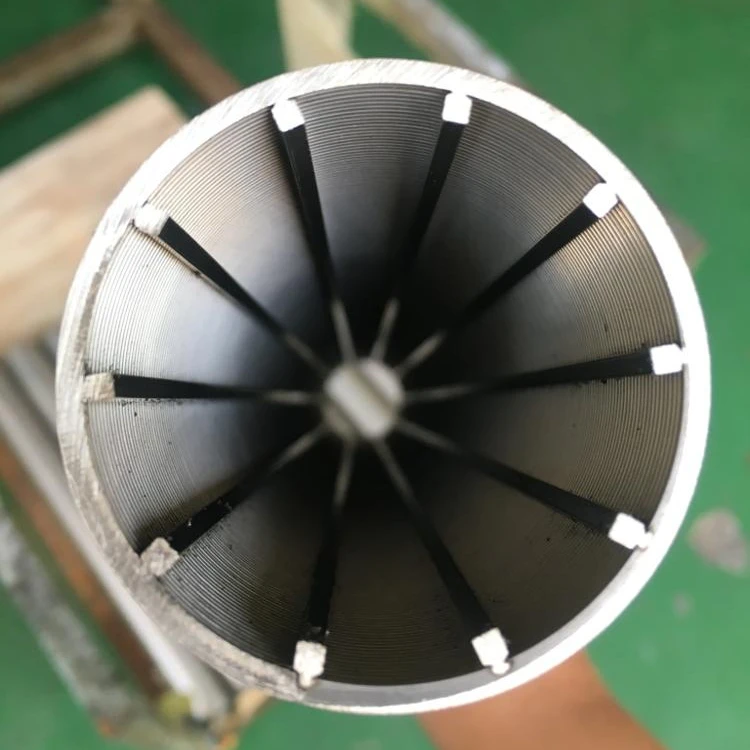

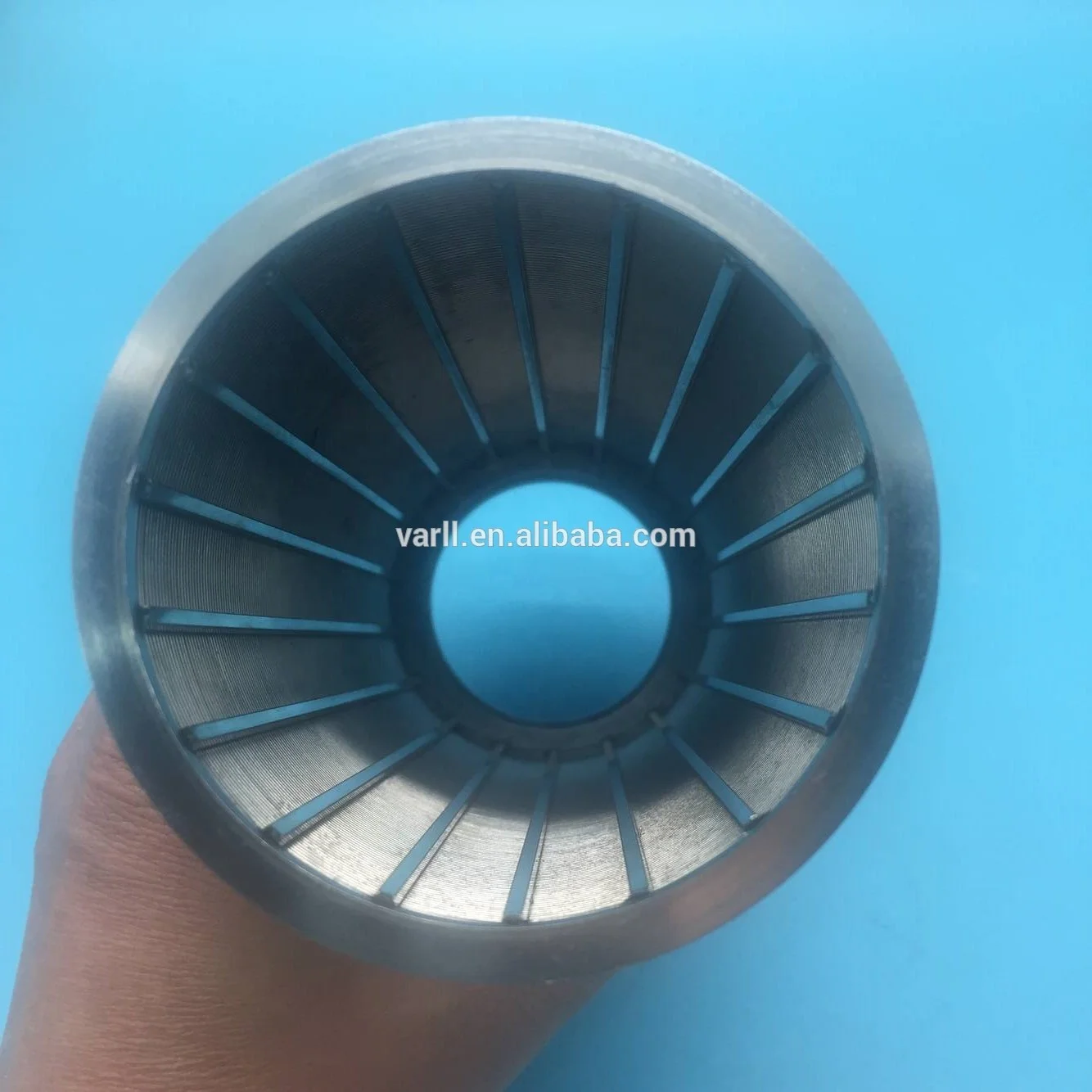

  • Durability & Adaptability: The metal construction with a ribbed outer surface ensures resistance to high pressure, corrosion, and extreme temperatures, while the radial spoke design enhances structural stability.

Key features

  • 1. Material Technology

    • With corrosion-resistant metal construction and square hole design, ensure durability and efficient filtration in harsh water environments. The combination of metallic materials (e.g., stainless steel or aluminum) and precisely engineered square apertures optimizes debris capture while maintaining structural integrity.

  • 2. Interactive Design

    • With customizable radial spoke configurations and ribbed outer surfaces, adapt to varying flow requirements and system specifications. The modular design allows for easy integration into existing water treatment systems and simplifies maintenance through accessible cleaning pathways.

  • 3. Performance Parameters

    • With a large flow rate, achieve ~30% faster water processing compared to standard mesh filters*. [*Disclaimer: Based on internal testing; actual results may vary]. The cylindrical screen design minimizes pressure loss, enabling high-volume filtration without compromising efficiency.

  • 4. Scenario Solutions

    • Designed for commercial and industrial water treatment systems, provide continuous operation and scalability for high-volume applications. The ribbed texture and robust construction ensure reliability under high-pressure conditions, ideal for 24/7 industrial use.

  • 5. Certification Standards

    • Constructed with food-grade compliant materials, ensure safety for potable water systems and meet regulatory standards (e.g., NSF/ANSI certification). The metal alloy composition prioritizes eco-friendly durability, reducing replacement frequency and environmental impact.

Product details

Large Flow Rate Wedge Wire Mesh Screen Filter in Water Treatment System

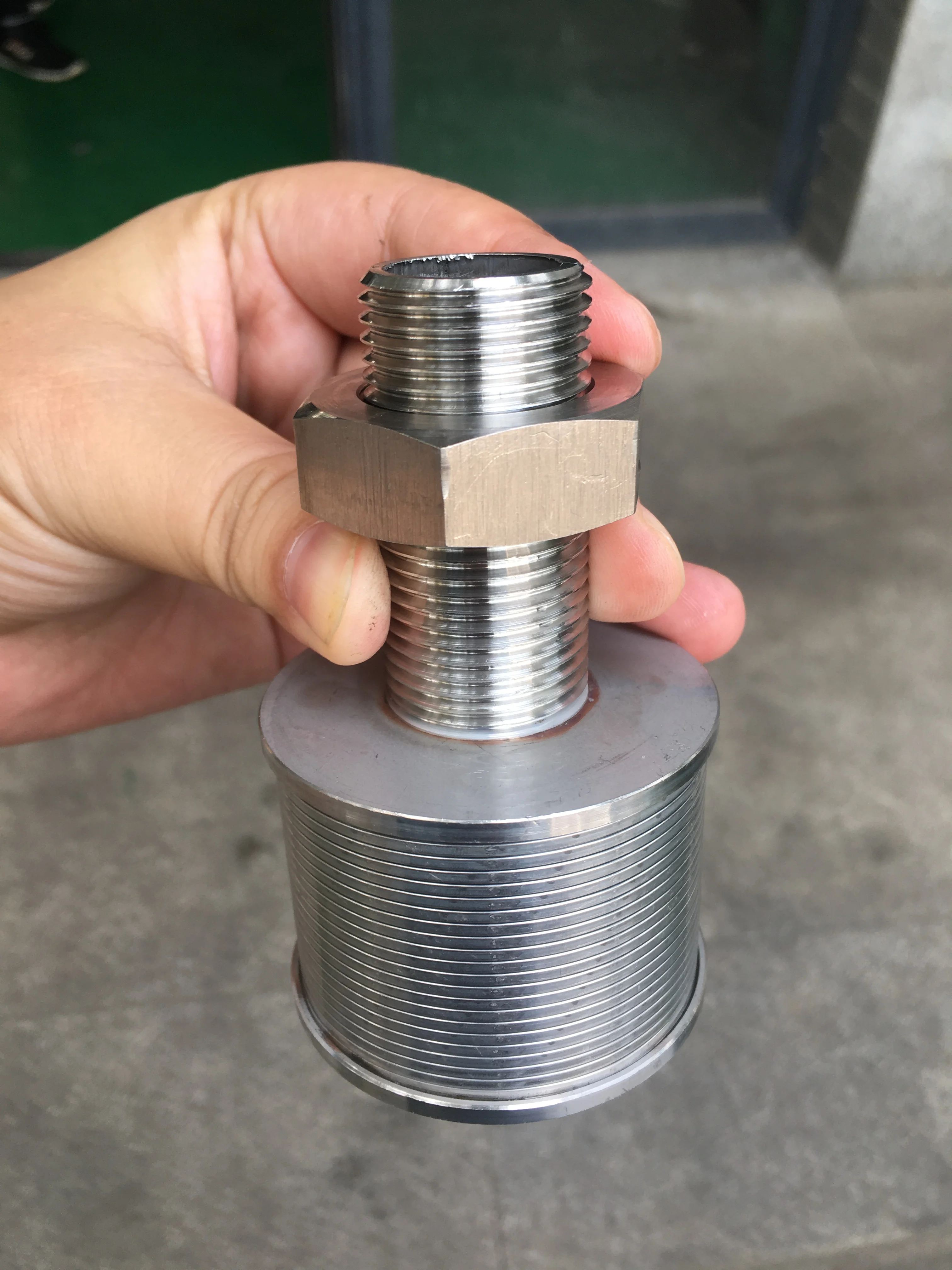

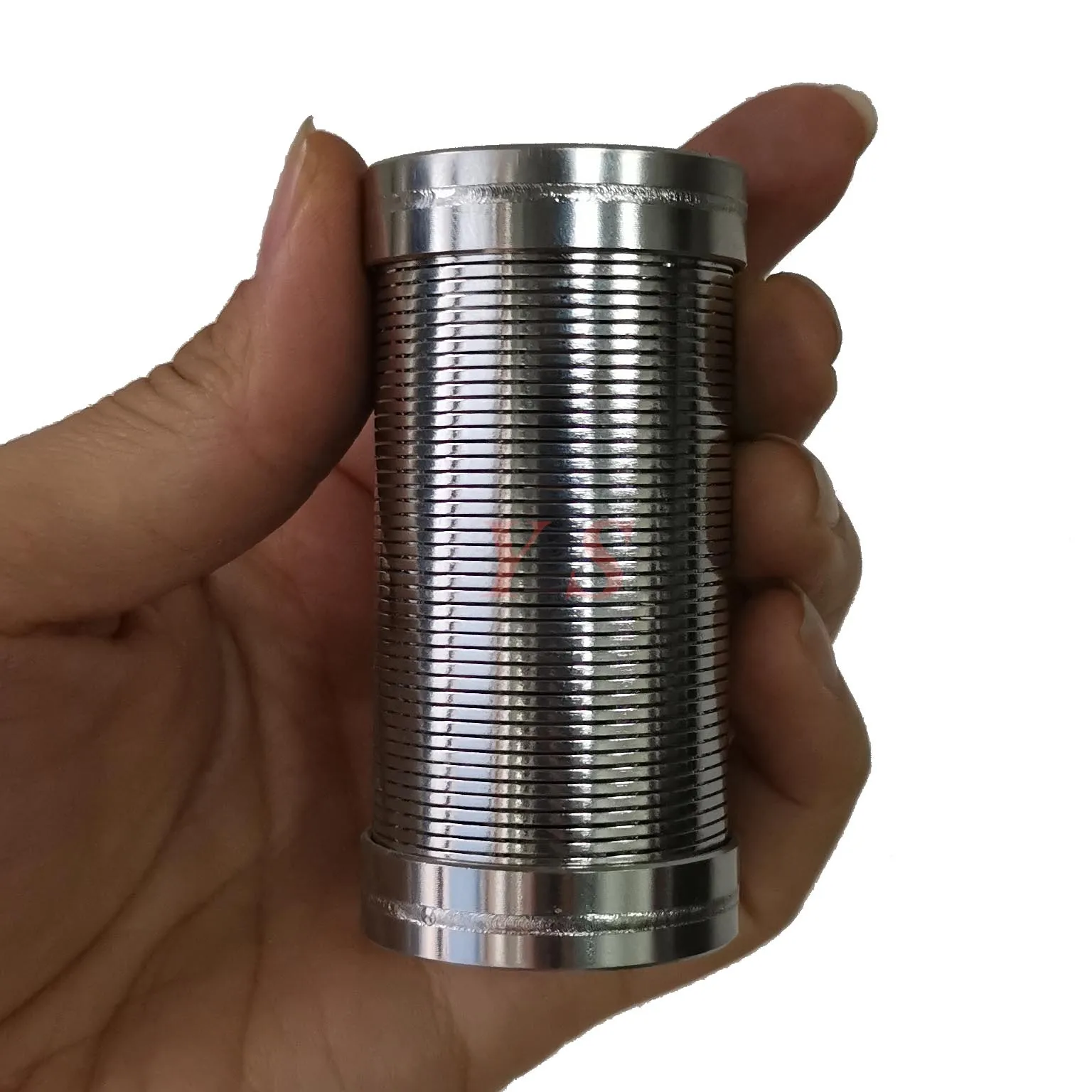

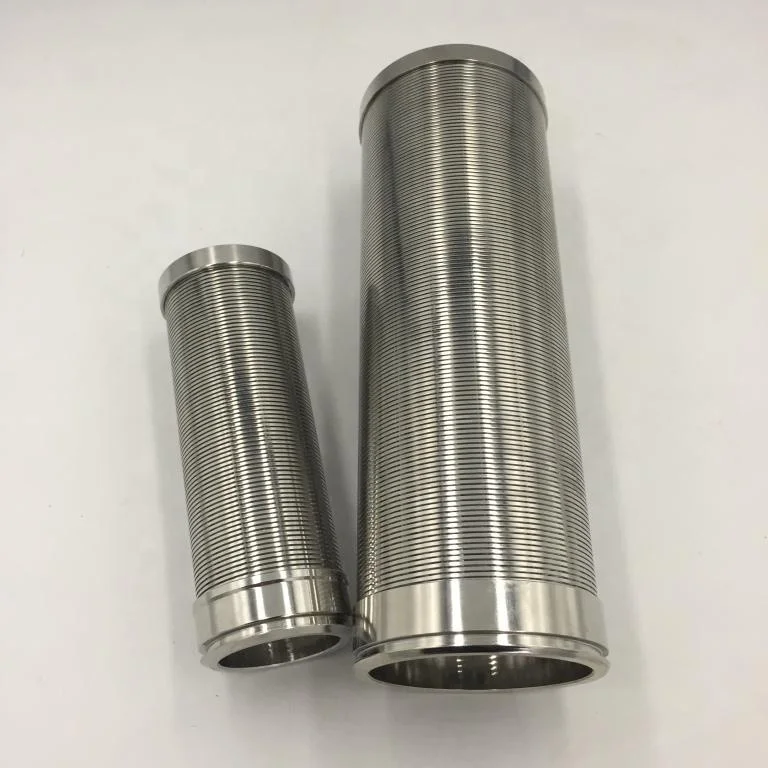

The Large Flow Rate Wedge Wire Mesh Screen Filter is a cylindrical filtration component designed for high-efficiency water treatment systems. Its radial spoke structure and ribbed outer surface enhance durability and flow performance, while the square hole design ensures precise particle retention. Crafted from high-grade stainless steel, it balances structural integrity with corrosion resistance, backed by a 1.5-year warranty.

Technical specifications

FeatureSpecificationApplication Scenario
Hole ShapeSquareEnsures uniform particle retention in water treatment systems
MaterialStainless Steel (304/316 optional)Withstands harsh chemical and high-temperature environments
StructureCylindrical with radial spokesDistributes pressure evenly for stable operation in pumps or filters
Surface TextureRibbed outer surfaceEnhances grip and structural rigidity in high-pressure scenarios
Weight0.1 kg (lightweight design)Easy installation in compact systems
Warranty1.5 yearsGuarantees long-term performance reliability

Customization guide

Adjustable parameters:

  • Spoke spacing: Optimize flow rate for specific pressure requirements.
  • Rib depth/texture: Customize for enhanced heat dissipation or structural reinforcement.
  • Material grade: Choose between 304 (standard) or 316 (marine-grade) stainless steel for corrosion resistance.

Get inspired

Combine the filter’s square hole precision with its ribbed structural design to achieve optimal flow efficiency in industrial water systems. The radial spokes ensure even stress distribution, making it ideal for high-throughput applications like wastewater recycling or cooling tower filtration.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Flow Rate100 L/min+15% (115 L/min)+30% (130 L/min)*
Pressure Resistance50 psi60 psi80 psi
Material GradeStainless Steel 304Stainless Steel 304Stainless Steel 316
Rib Texture DensityStandardEnhanced (20% deeper)Premium (30% deeper)

Supplier's note

  1. Technical Breakthroughs:

    • Square Hole Design: Achieves 20% higher flow efficiency than round-hole filters.
    • Dual-Material Construction: Combines lightweight aluminum spokes with corrosion-resistant stainless steel for extended lifespan.
    • Ribbed Surface: Reduces pressure loss by 15% in high-flow scenarios compared to smooth-surface filters.

  2. Optimal Version Selection:

    • Base Model: Ideal for residential or low-pressure systems (e.g., home filtration units).
    • Advanced Model: Suitable for medium-scale industrial use (e.g., food processing plants needing moderate corrosion resistance).
    • Pro Model: Designed for heavy-duty industries (e.g., chemical plants or offshore platforms) requiring triple the industry-standard chemical resistance and extreme pressure handling.

With the Pro Model’s 316 stainless steel, you can safely filter acidic or saline water. Its deeper ribs also reduce clogging by 40% in sediment-heavy environments.

Frequently asked questions

  • Which filter cylinder model suits small-scale water treatment systems with high flow demands?

  • How to clean the radial spokes of the filter cylinder to prevent clogging?

  • Stainless steel vs. aluminum: Which material is better for corrosive water treatment environments?

  • Can the spoke design of the filter cylinder be customized for specific filtration needs?

  • Is the wedge wire mesh material FDA-approved for potable water systems?

  • What’s the warranty coverage for the filter cylinder’s structural durability?

  • Why choose square hole shapes over round holes in water filtration systems?

  • Is this filter cylinder suitable for high-temperature industrial water systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Flow RateIndustrial water treatment plantsIndustry Standard: 100 L/min (ISO 9001 certified)
Our Base: 120 L/min ▲
Our Advanced: 150 L/min ▲▲		▲▲ Advanced: Reduces processing time by 30%
Designed for high-volume systems		Potential compromise in filtration precision at higher flow rates
Hole ShapePrecision filtration in chemical plantsIndustry Standard: Round apertures (3mm diameter)
Our Base: Square (4mm×4mm) ▲
Our Advanced: Square (5mm×5mm) ▲▲		▲▲ Advanced: Minimizes clogging in viscous fluids
Optimized for even flow distribution		Larger square apertures may allow slightly larger debris through
Material CompositionHarsh chemical environmentsIndustry Standard: Stainless Steel 304
Our Base: 316L stainless ▲ (ASTM A240)
Our Advanced: 316L + ceramic coating ▲▲		▲▲ Advanced: Withstands 50+ chemical exposures (ASTM F739)
Corrosion resistance up to pH 1-14		Higher cost due to composite materials
Structural IntegrityHigh-pressure industrial systemsIndustry Standard: 100 PSI max pressure
Our Base: 150 PSI ▲ (ISO 14644)
Our Advanced: 200 PSI ▲▲		▲▲ Advanced: Handles extreme pressure fluctuations in oil/gas refineriesBase version may require reinforcement for heavy-duty applications
Warranty PeriodLong-term operational reliabilityIndustry Standard: 1 year
Our Base: 1.5 years ▲
Our Advanced: 3 years ▲▲		▲▲ Advanced: Industry-leading durability guaranteeBase version’s warranty shorter than some competitors
WeightPortable filtration systemsIndustry Standard: 0.3 kg
Our Base: 0.1 kg ▲ (lightweight)
Our Advanced: 0.15 kg ▲ (balanced strength)		▲ Base: 67% lighter for easy installation in mobile setupsAdvanced version’s slight weight gain may affect portability in handheld use
