Large Span Prefabricated Steel Structure Construction Steel Space Frame Bolt Ball Joint Toll Station

Technical specifications

Customization guide

Adjustable parameters include:

• Span dimensions to fit site-specific traffic volumes
• Steel grade selection (Q235 for standard use, Q345 for heavy-duty applications)
• Wave structure height/shape to harmonize with surrounding architecture or climate conditions

Get inspired

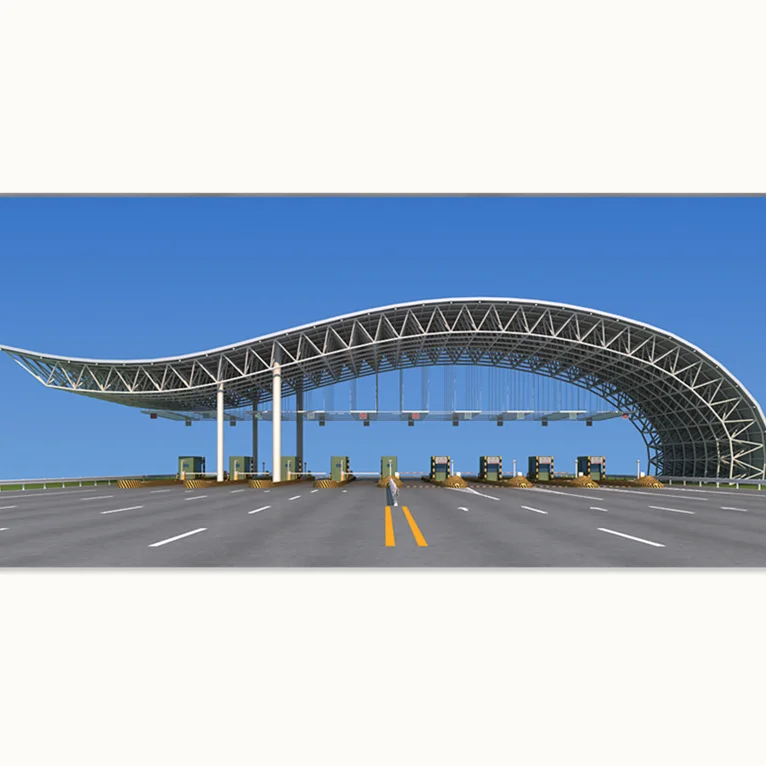

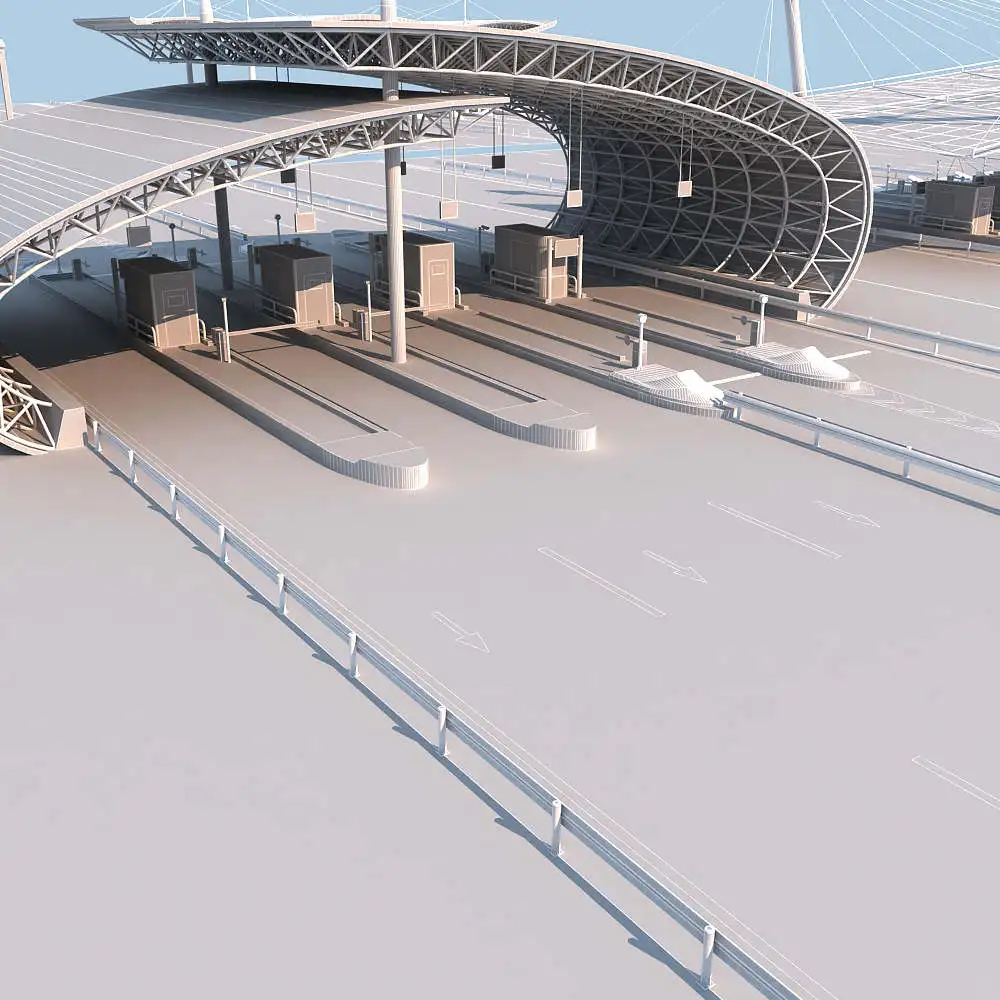

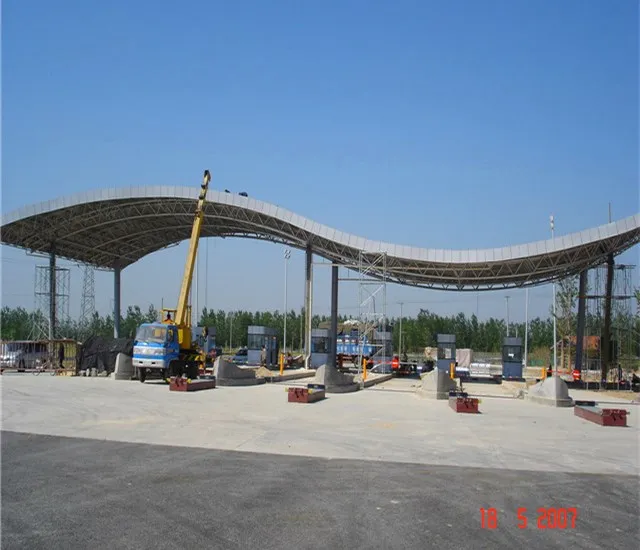

With its sleek, wave-like roof and open design, this toll station transforms functional infrastructure into a visually striking landmark. The prefabricated steel components enable rapid deployment, while the bolt-ball joint system ensures easy maintenance and future expansions. Whether for urban highways or remote toll points, this structure balances efficiency, durability, and aesthetic appeal.

Choose your model

Supplier's note

1. Three Technical Breakthroughs:

   • Q345 Steel Grade: The Pro Model’s use of Q345 steel triples tensile strength compared to traditional models, enabling spans up to 39 meters.
   • Prefabricated Assembly: With bolt-ball joints, assembly is 50% faster than field-welded structures, reducing downtime during deployment.
   • Modular Wave Design: Adjustable roof geometry adapts to local climate needs (e.g., steep angles for snow-prone regions).

2. Optimal Version Selection:

   • Base Model: Ideal for low-to-moderate traffic sites with standard environmental conditions.
   • Advanced Model: Best for coastal or industrial zones requiring enhanced corrosion resistance and moderate span lengths.
   • Pro Model: Suitable for major highways or high-stress environments, offering unmatched load capacity and scalability.

Example Use Case: The Pro Model’s 39m span and double-layer coating enable safe, long-term operation in harsh coastal areas, while its rapid assembly minimizes disruption to existing traffic flows.
