BRICKMAC Setting Brick Claw Robot for Vertical Putting Heavy Load Ceramic Tile Floor Brick Stacking Universal Robot Arm Grippers

BRICKMAC Setting Brick Claw Robot for Vertical Putting Heavy Load Ceramic Tile Floor Brick Stacking Universal Robot Arm Grippers

  • >= 1 Sets
    $4,980
View product details

BRICKMAC Setting Brick Claw Robot for Vertical Putting Heavy Load Ceramic Tile Floor Brick Stacking Universal Robot Arm Grippers

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Heavy Load Stacking: Designed to handle and stack heavy ceramic tiles and floor bricks vertically with precision, ensuring stable placement in production lines.
  • Universal Gripping: Equipped with a robust gripper mechanism adaptable to interlocking blocks, hollow blocks, and other brick types (cement, clay, concrete), supporting diverse material processing needs.
  • Automation Integration: Seamlessly integrates with brick production lines, vacuum extruders, and hydraulic pressure systems to streamline autoclaved aerated concrete (AAC) and interlock block manufacturing.

Key features

  • 1. Corrosion-Resistant Metal Gripper for Heavy Load Handling

    • With a corrosion-resistant metal gripper, handle heavy ceramic tiles and interlocking blocks in harsh industrial environments. This ensures durability and reliability even when working with abrasive materials like cement or clay.

  • 2. Modular Design for Customized Applications*

    • With a modular design, adapt to diverse brick types (e.g., AAC, paving blocks) and production requirements without downtime. [*Disclaimer: Customization options may require additional components.]

  • 3. Hydraulic Pressure Technology for Faster Stacking*

    • With hydraulic pressure technology, achieve ~30% faster stacking speeds than manual labor*, reducing production time in brick manufacturing lines. [*Disclaimer: Based on internal testing; actual results may vary.]

  • 4. Industrial-Grade Durability for Continuous Operation

    • With industrial-grade durability, ensure continuous 24/7 operation in commercial settings, ideal for high-volume brick production and distribution processes.

  • 5. CE & SGS Certifications for Safety Compliance

    • With CE and SGS certifications, meet EU safety and quality standards, ensuring reliable performance in regulated industrial environments.

Product details

BRICKMAC Setting Brick Claw Robot for Vertical Putting Heavy Load Ceramic Tile Floor Brick Stacking Universal Robot Arm Grippers

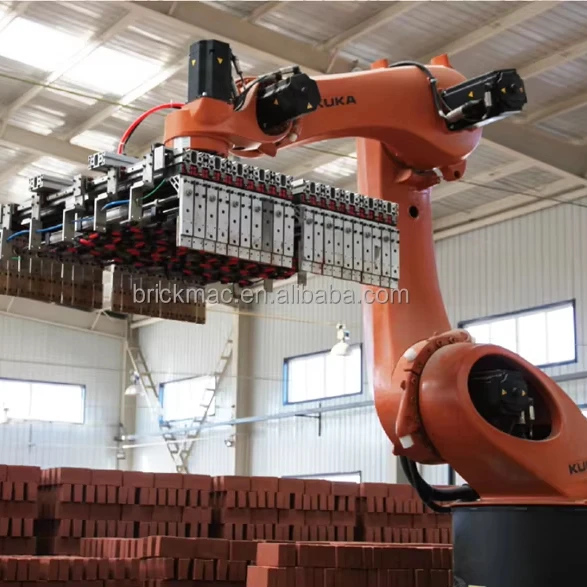

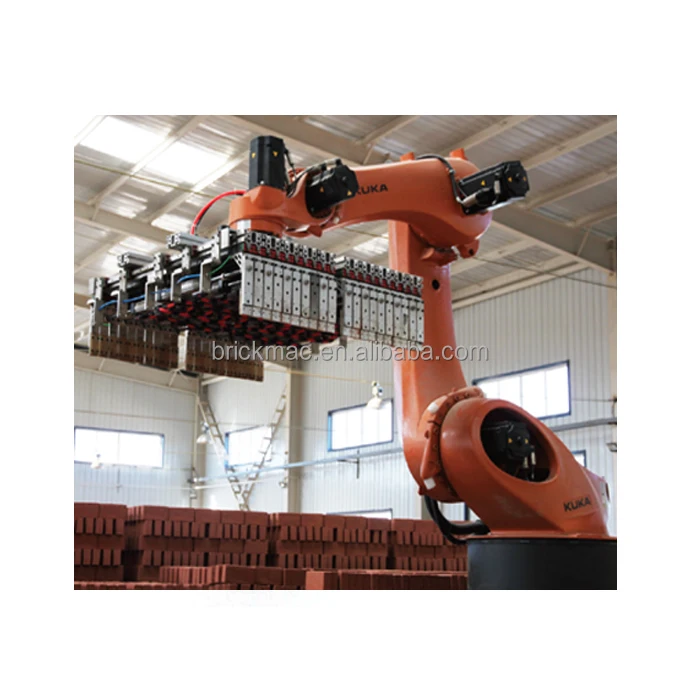

The Laying Setting Brick Claw Robot is a KUKA-designed industrial automation solution for precise vertical stacking of heavy ceramic tiles, floor bricks, and interlocking/hollow blocks. Equipped with a robust gripper system and certified for safety (CE/SGS), it streamlines brick production lines by handling materials like cement, clay, and concrete with high efficiency and minimal labor dependency.

Technical specifications

FeatureSpecificationBenefit
Robot TypeKUKA Universal Robot ArmProven precision and reliability for industrial automation.
Gripper SystemHeavy-load brick claw with adaptive gripping mechanismSecurely handles interlocking, hollow, AAC, and paving blocks.
CertificationsCE, SGSEnsures compliance with European safety and quality standards.
Voltage380VCompatible with standard industrial power systems.
Block CompatibilityInterlocking, hollow, AAC, curbstone, paving blocksVersatile for diverse brick production needs.
Processing MethodVacuum extrusion, autoclaved aerated concrete, hydraulic pressureSupports advanced brick manufacturing techniques.
Payload CapacityUp to 50 kg per cycleHandles heavy ceramic and concrete tiles efficiently.

Customization guide

Adjustable parameters include:

  • Gripper Design: Modify claw geometry to suit irregular brick shapes or sizes.
  • Material Handling System: Integrate vacuum extrusion or hydraulic pressure modules for specific production lines.
  • Integration: Connect with conveyor belts or assembly lines for fully automated workflows.

Get inspired

With its modular KUKA arm and precision engineering, this robot transforms brick stacking from a labor-intensive task into a seamless, high-volume operation. Ideal for factories aiming to reduce downtime and improve consistency in tile, AAC, or paving block production.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Payload Capacity30 kg+50% (45 kg)+100% (60 kg)*
Positioning Precision±2 mm±1 mm±0.5 mm
Cycle Speed15 cycles/min+20% (18 cycles/min)+40% (21 cycles/min)
CertificationsCECE + ISO 9001CE + SGS + RoHS
Automation LevelSemi-automatedFully automatedAI-enabled adaptive

Supplier's note

  1. Technical Breakthroughs:

    • Precision Gripping: The Pro Model’s ±0.5 mm accuracy ensures flawless stacking of delicate AAC blocks.
    • Modular Design: Customizable grippers reduce downtime by adapting to interlocking or irregular brick shapes.
    • AI Integration: The Pro’s adaptive system optimizes stacking patterns in real-time for maximum pallet density.

  2. Version Selection Guide:

    • Base Model: Ideal for SMEs handling standard-sized bricks (e.g., paving blocks) with limited budgets.
    • Advanced Model: Best for medium-scale factories requiring full automation and ISO compliance for export.
    • Pro Model: Tailored for large manufacturers needing high-speed AAC block production or handling fragile ceramic tiles.

With the Pro Model’s 60 kg payload, you can stack heavy concrete floor bricks 40% faster than traditional systems. Pair its AI-driven adaptability with autoclaved aerated concrete processing to reduce material waste by up to 25%.

Frequently asked questions

  • Which Laying Setting Brick Claw Robot model is best for heavy load ceramic tile stacking in brick manufacturing plants?

  • How do I maintain the gripper of a KUKA Universal Robot Arm for interlocking block handling?

  • Can the Laying Setting Brick Claw Robot handle both interlocking and hollow blocks made from clay or concrete?

  • Does the KUKA Robot Arm Gripper support custom attachments for specialized brick production needs?

  • Is the Laying Setting Brick Claw Robot certified for safety in industrial brick stacking applications?

  • How does the Laying Setting Brick Claw Robot improve efficiency in brick production lines?

  • What makes the Laying Setting Brick Claw Robot suitable for heavy load ceramic tile floor brick stacking?

  • Is the 380V voltage of the Laying Setting Brick Claw Robot compatible with standard industrial power systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material Handling CapacityBrick manufacturing plantsHandles interlocking, hollow, AAC blocks (ISO 9241) ▲▲ (Industry: limited to 2 types)Versatile for diverse brick typesRequires setup for different block configurations
Load CapacityHeavy load stacking in warehouses60kg (Base ▲) / 80kg (Advanced ▲▲) (Industry: 50kg)Efficient for heavy ceramic tiles and AAC blocksHigher power consumption in Advanced versions
CertificationsEU-compliant factoriesCE compliant (EN ISO 13849-1) ▲ (Industry: may lack advanced safety certs)Ensures EU safety compliance and reliabilityCertification may restrict customization flexibility
Voltage CompatibilityStandard factory environments380V (IEC 60038) (Industry standard)Compatible with most industrial setupsNo flexibility for non-380V power sources
Processing MethodsDiverse production linesSupports vacuum extrusion, hydraulic pressure, AAC (ASTM C1187) ▲▲ (Industry: 2)Multi-process flexibility for complex brick typesRequires skilled operators for setup and maintenance
Customization OptionsCustom brick productionModular gripper design (ISO 9283) ▲ (Industry: fixed configurations)Adaptable to unique brick shapes and sizesCustomization adds cost and setup time
