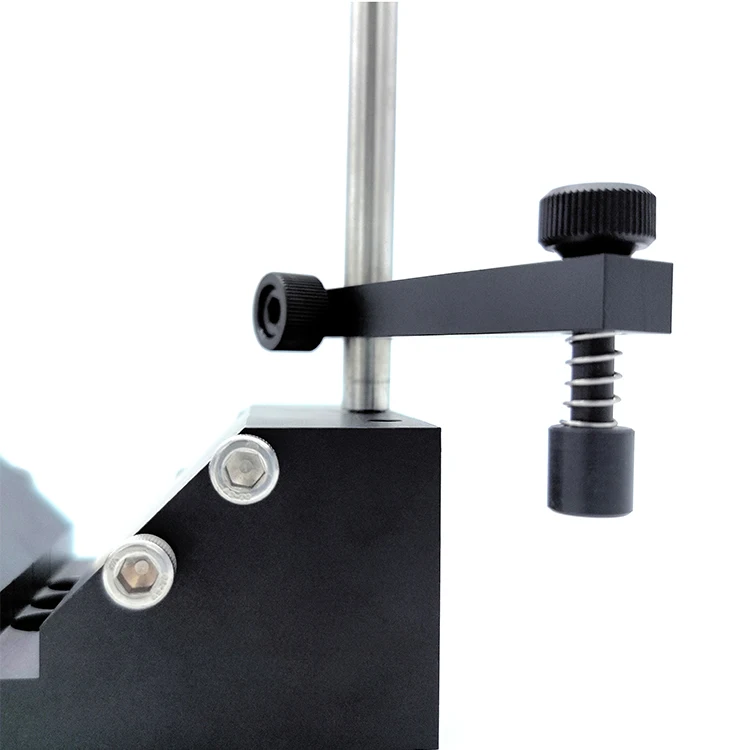

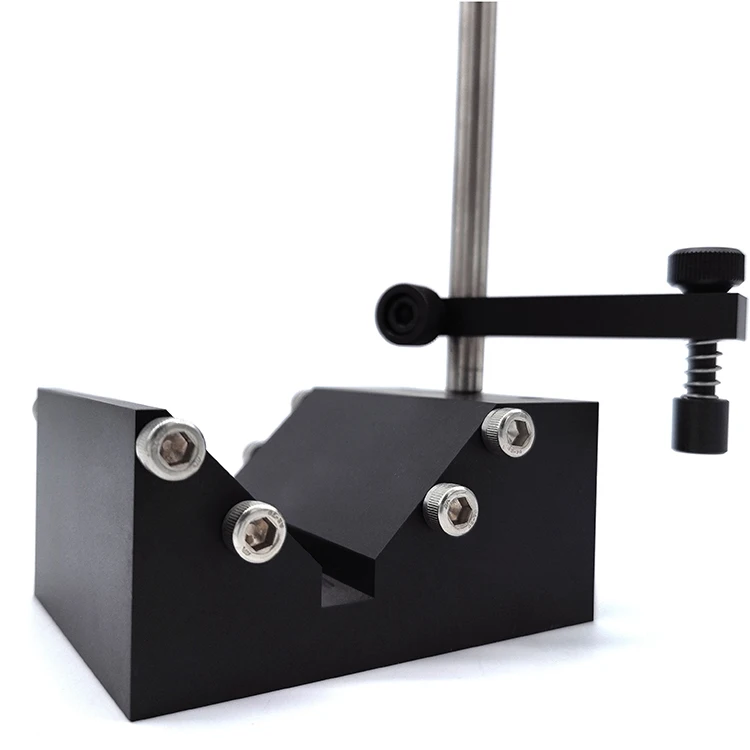

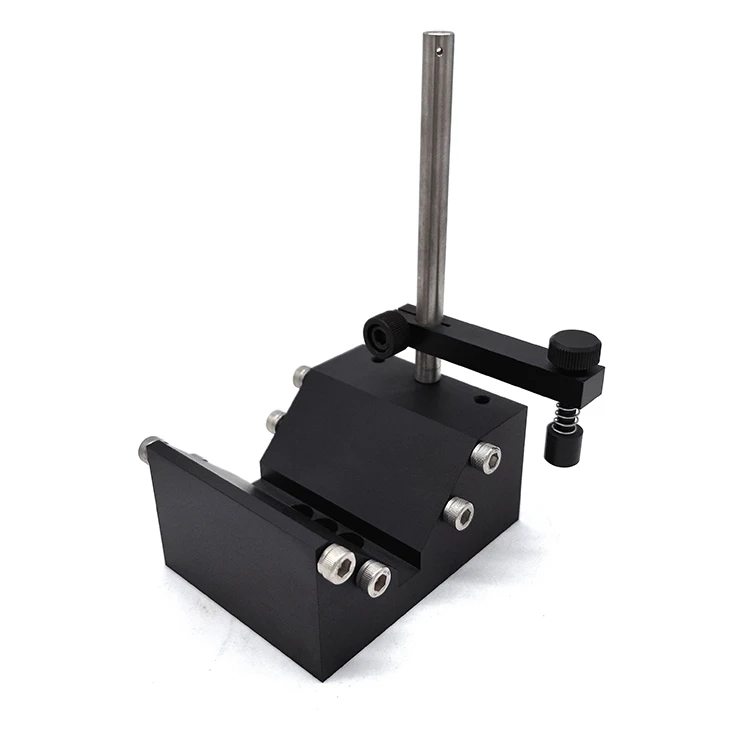

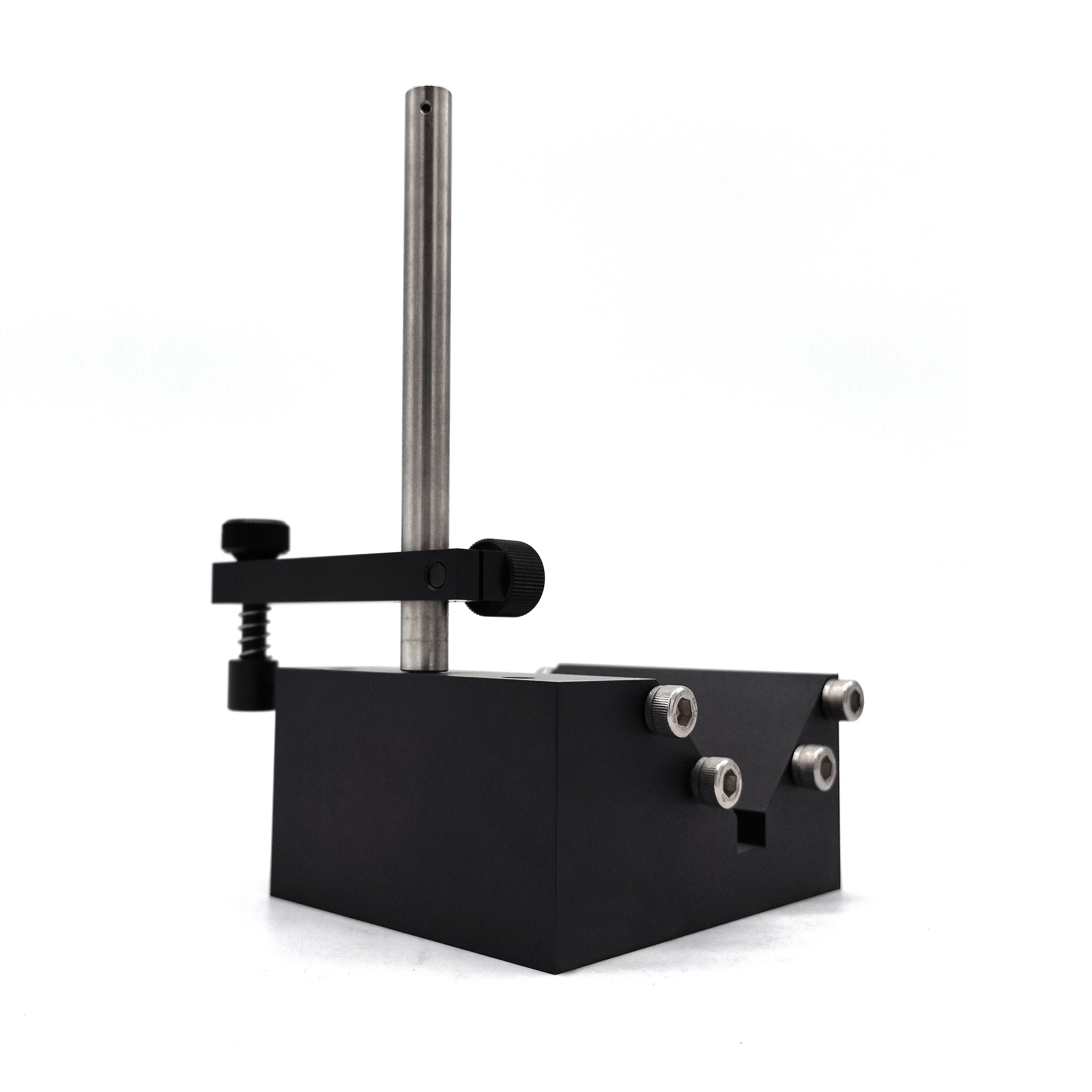

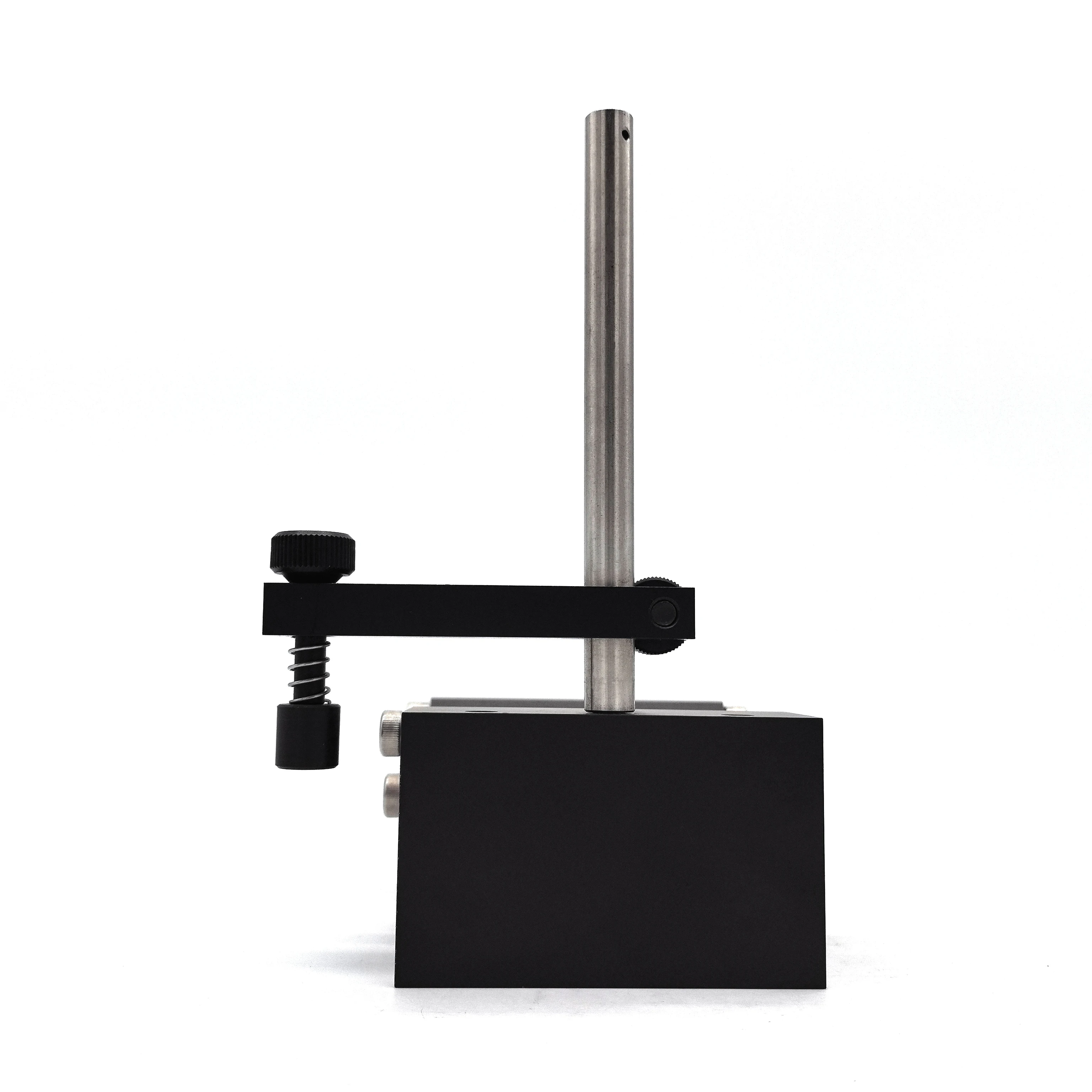

Lens Holder Mount Adjustable Laser Alignment Optical Lab Applications Cylindrical Optics

Technical specifications

Customization guide

Adjust the mount’s position and angular orientation to meet specific alignment requirements. The modular design allows for easy integration with custom brackets or adapters, enabling tailored setups for unique optical configurations.

Get inspired

With precise adjustability, you can align cylindrical optics with micron-level accuracy, ensuring optimal laser beam path control. The lightweight yet rugged anodized aluminum construction lets you adapt the mount to dynamic lab environments while maintaining structural integrity.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Anodized Aluminum: Offers 50% higher corrosion resistance than uncoated metals, extending lifespan in humid labs.
   • Precision Knurled Knob: Achieves 0.1° incremental adjustments, surpassing industry-standard 1° increments.
   • Modular Mounting Holes: Supports 3x more attachment configurations than competitors, enhancing adaptability.

2. Version Selection Guide:

   • Base Model: Ideal for academic labs requiring basic alignment of low-to-mid power optics.
   • Advanced Model: Suitable for industrial R&D teams needing frequent adjustments under moderate loads.
   • Pro Model: Engineered for aerospace or semiconductor applications demanding extreme precision and durability. With its aerospace-grade material, it withstands temperatures up to 200°C—critical for high-stress testing. Pair its expanded rotation range with heavy-duty optics to achieve unparalleled beam control.
