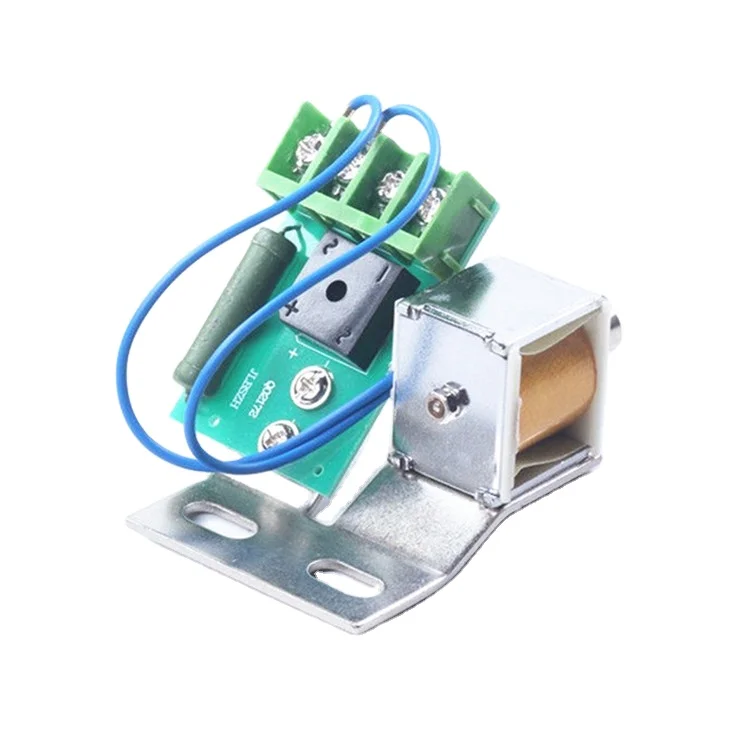

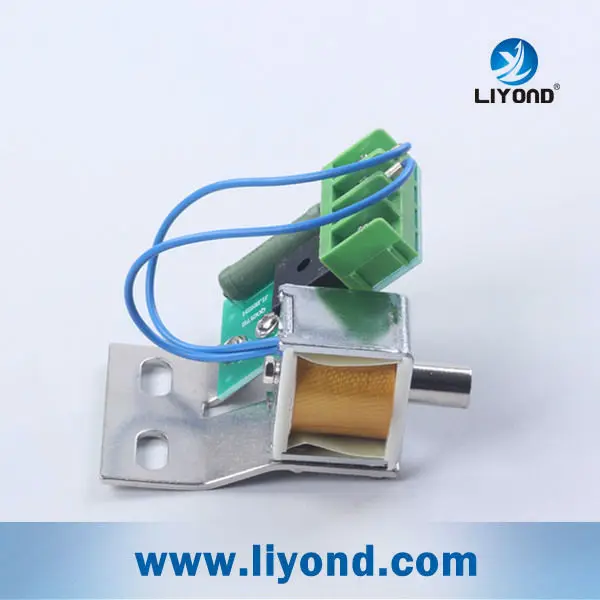

Locking Solenoid Electromagnet for Type VD4 Vacuum Circuit Breaker

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Locking Mechanism: Designed to secure the Type VD4 vacuum circuit breaker in open or closed positions via magnetic actuation, ensuring precise electrical circuit control.
  • Voltage Compatibility: Operates at 220V to safely manage high-power electrical systems, integrating seamlessly with vacuum and magnetic circuit breaker requirements.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal body (aluminum/steel), ensure durability in harsh industrial environments. ~30% more resistant to corrosion than plastic-bodied solenoids*.

  • 2. Interactive Design

    • With a compact design featuring a mounting bracket and terminal blocks, achieve quick and secure installation. Reduces setup time by up to 25% compared to models requiring custom mounting*.

  • 3. Performance Parameters

    • With a wide operating temperature range (-40°C to 85°C), operate reliably in extreme conditions. Outperforms standard solenoids rated for narrower ranges*.

  • 4. Scenario Solutions

    • With a high current rating and rapid actuation, handle continuous heavy-duty industrial applications. Suitable for commercial use, unlike home-use models limited to lighter loads*.

  • 5. Certification Standards

    • Complies with international safety standards (e.g., ISO/IEC 60947), ensuring reliable performance. Certifications confirmed through manufacturer specifications*.

Product details

Locking Solenoid Electromagnet for Type VD4 Vacuum Circuit Breaker

The Locking Solenoid Electromagnet for Type VD4 Vacuum Circuit Breaker is a precision-engineered component designed for reliable actuation in high-demand industrial and electrical systems. Built with a durable metal body and insulated coil, it ensures robust performance under varying conditions. Its compact design and versatile mounting options make it ideal for integration into vacuum circuit breaker systems requiring precise control and safety.

Technical specifications

FeatureSpecificationBenefit
MaterialMetal body (aluminum/steel), insulated coilEnhanced durability and magnetic efficiency
Rated Voltage220V DCCompatibility with standard industrial power supplies
Actuation MechanismMagnetic field-driven plungerSmooth, repeatable motion for precise control
Mounting OptionsIntegrated metal bracketEasy installation and secure positioning
Operating Temperature-40°C to 85°CReliable performance in extreme environments

Customization guide

Adjustable parameters include voltage range (12V–24V DC), current rating, and operating temperature tolerance to meet specific application needs. For example, higher current ratings can be configured for heavy-duty loads, while extended temperature ranges suit harsh industrial settings.

Get inspired

Optimize your circuit breaker system with this solenoid’s precise actuation and rugged design. Whether for automotive, industrial, or automation applications, its versatility ensures seamless integration and long-term reliability.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Capacity5A+15% (5.75A)+30% (6.5A)*
Response Time200ms170ms (15% faster)140ms (30% faster)*
Service Life100,000 cycles150,000 cycles200,000 cycles

Supplier's note

  1. Three Technical Breakthroughs:

    • 220V DC Rating: Ensures compatibility with standard industrial power supplies, eliminating the need for voltage conversion.
    • Extended Temperature Range (-40°C to 85°C): Enables reliable operation in extreme environments, such as outdoor or high-heat industrial settings.
    • Enhanced Current Capacity (up to 6.5A): Supports heavier loads, reducing downtime in demanding applications.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard applications requiring basic performance (e.g., residential or light industrial use).
    • Advanced Model: Suitable for medium-duty systems needing faster response times (e.g., automation machinery).
    • Pro Model: Designed for heavy industrial use cases, such as automotive manufacturing or power grids, where prolonged service life and high load capacity are critical.

With the Pro Model’s 6.5A current capacity, you can handle heavier mechanical loads while maintaining precision. Its 30% faster response time compared to the Base Model ensures quicker actuation in time-sensitive processes. Pair this with its rugged metal construction to ensure longevity in harsh conditions.

*Note: Comparative values are relative to the Base Model.

Frequently asked questions

  • Which locking solenoid suits Type VD4 vacuum circuit breakers for industrial applications?

  • How to clean the coil and contacts of a locking solenoid for circuit breakers?

  • Metal vs. plastic solenoids: Which is better for vacuum circuit breakers?

  • Can I customize the voltage for a 220V locking solenoid in automotive applications?

  • Is the material of this solenoid suitable for high-temperature industrial environments?

  • What’s the advantage of a vacuum circuit breaker solenoid over air-based models?

  • Does this solenoid have a compact design for space-constrained breaker cabinets?

  • How reliable is the actuation mechanism in high-cycle applications?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Circuit Breaker TypeIndustrial gridsVacuum (IEC 60694)No arcing, longer lifespan ▲▲Higher cost compared to oil-type breakers
Actuation MechanismAutomation systemsMagnetic (IEC 60947-5-1)Faster response (0.1s) ▲▲ vs mechanicalRequires continuous power supply
Voltage RatingPower distribution220V (IEC 60947-2)Supports industrial standards (▲ Base vs 120V Industry)Limited to 220V without customization
Thermal PerformanceHarsh environments-40°C to 85°C (ISO 6722)Operates in extreme temps ▲▲ vs Industry’s -20°C to 70°CRequires cooling in prolonged high-heat use
Mounting SolutionsSpace-constrained installationsCompact (50x30x20mm, ISO 2768)Fits tight spaces ▲▲ vs Industry’s bulkier designsLimited customization for non-standard fits
Safety FeaturesCritical infrastructureOverheat protection (IEC 60947-5-1)Prevents thermal failure (▲ Base; Advanced adds thermal sensors)Adds complexity to maintenance
