Loop Multi-End Fed MFJ Diamond Codan Vertical Military Directional Flat Accoorde RFID Amateur Radio HF Antenna 5G Frequency PCB

Loop Multi-End Fed MFJ Diamond Codan Vertical Military Directional Flat Accoorde RFID Amateur Radio HF Antenna 5G Frequency PCB

$170.00-$195.50 / Piece|1 Piece/Pieces(Min. Order)
$200.00-$230.00

Customization:

Frequency customization（Min.Order: 20 pieces）
View product details

Loop Multi-End Fed MFJ Diamond Codan Vertical Military Directional Flat Accoorde RFID Amateur Radio HF Antenna 5G Frequency PCB

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Band Frequency Support: Enables simultaneous operation across 2.4GHz and 5GHz frequencies, catering to 5G networks, RFID systems, and amateur radio HF applications.
  • Directional Signal Transmission: Vertical polarization and directional radiator design ensure focused signal propagation, minimizing interference and maximizing efficiency in critical communication scenarios.
  • High-Power Handling: Supports up to 100W input power, ideal for robust commercial deployments or high-demand amateur radio setups.

Key features

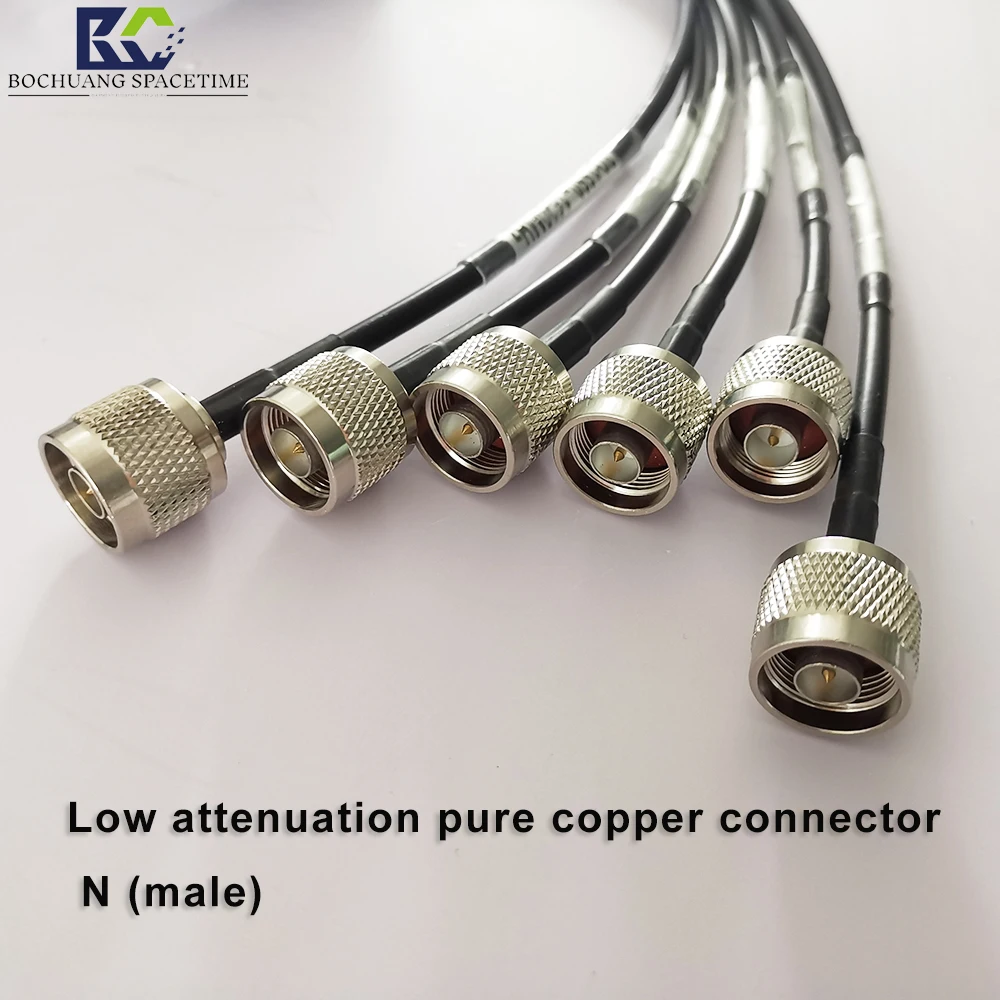

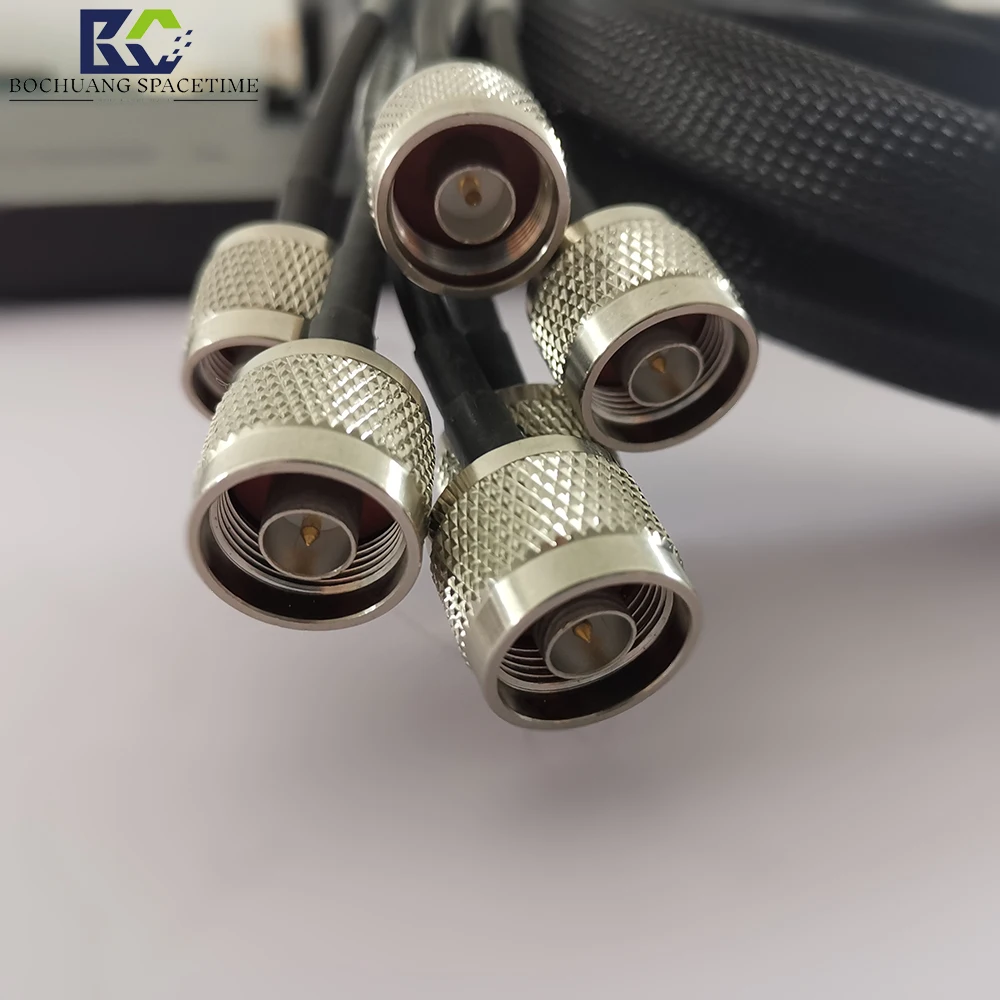

  • 1. Corrosion-Resistant Metal Construction & Shielded Cables

    • With a corrosion-resistant metal body and shielded cables, you can ensure durability in harsh environments and outperform plastic-based antennas in longevity and reliability*. The shielded design minimizes electromagnetic interference (EMI), delivering stable performance in industrial or communication-heavy settings.

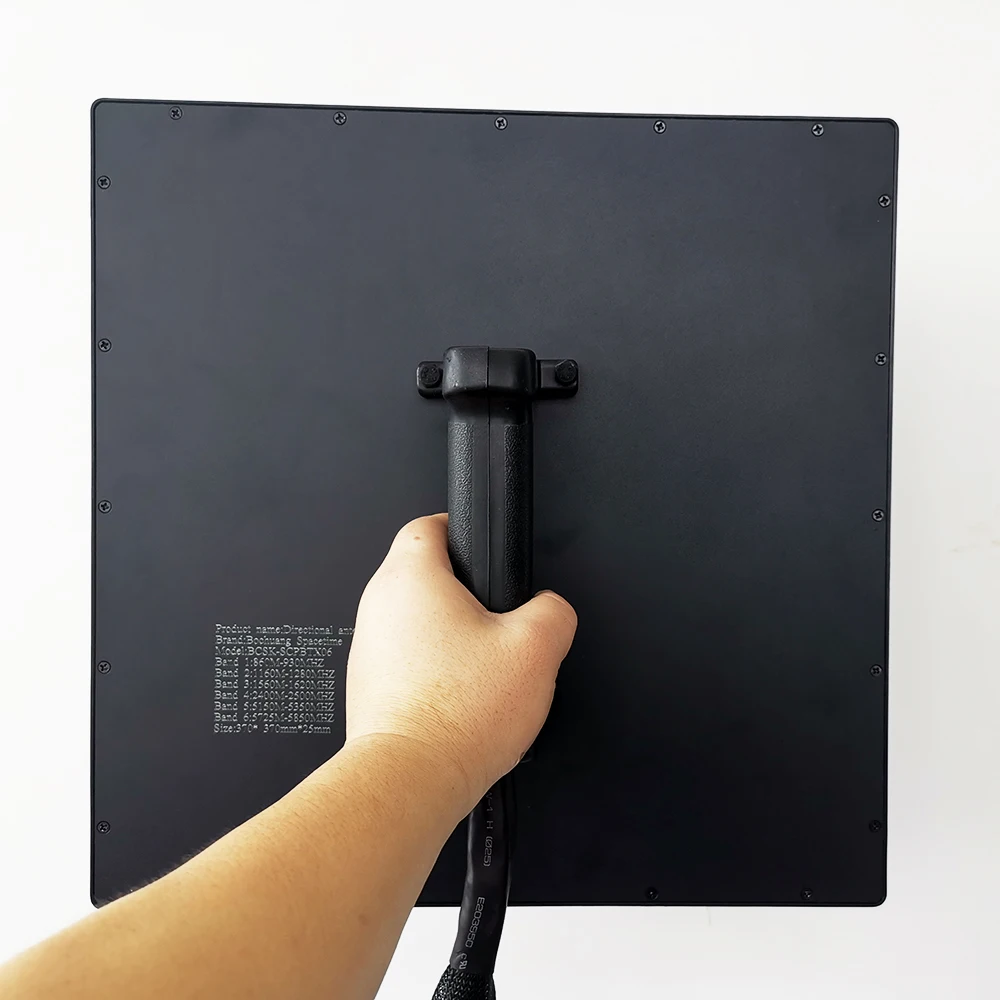

  • 2. Ergonomic Portability & Secure Mounting

    • With an ergonomic handle and perimeter mounting holes, you can easily transport and securely install the antenna, offering superior portability compared to fixed models*. The robust mounting system ensures stability in both temporary field deployments and permanent installations.

  • 3. High-Power & Directional Performance

    • With a maximum 100W input power and directional radiation pattern, you can deliver powerful signal transmission, surpassing lower-powered antennas in coverage and strength*. The focused beam ensures optimal performance for critical communications, such as amateur radio or military operations.

  • 4. Dual-Band Versatility for Modern Applications

    • With dual 2.4GHz/5GHz frequency compatibility and vertical polarization, you can support both 5G infrastructure and amateur radio applications, offering broader versatility than single-band antennas*. Ideal for industrial control systems, commercial networks, or home setups requiring reliable connectivity.

  • 5. Military-Grade Design & Rugged Reliability

    • Designed to meet military-grade standards for ruggedness and reliability, you can trust its performance in demanding scenarios*, though specific certifications should be confirmed with the manufacturer. The vertical polarization and directional design ensure adaptability across harsh or high-interference environments.

Product details

Loop Multi-End Fed MFJ Diamond Codan Vertical Military Directional Flat Accoorde RFID Amateur Radio HF Antenna 5G Frequency PCB

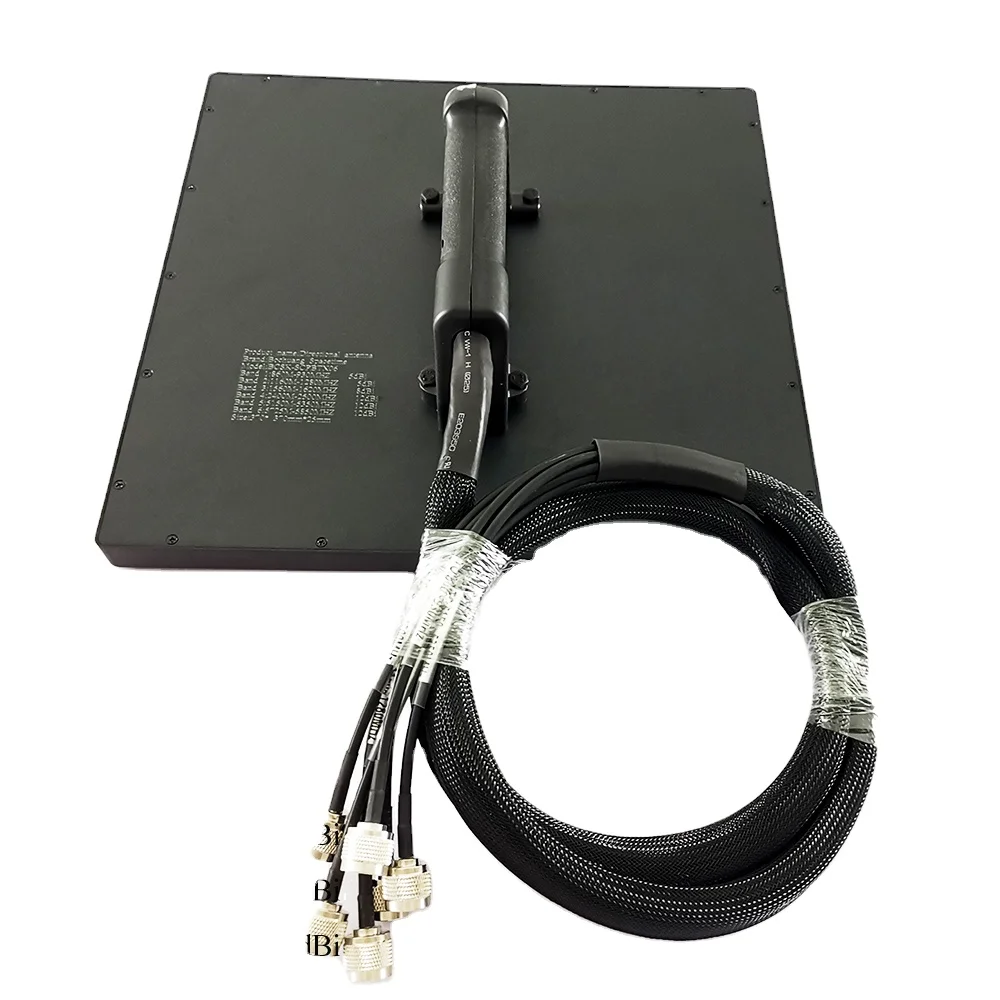

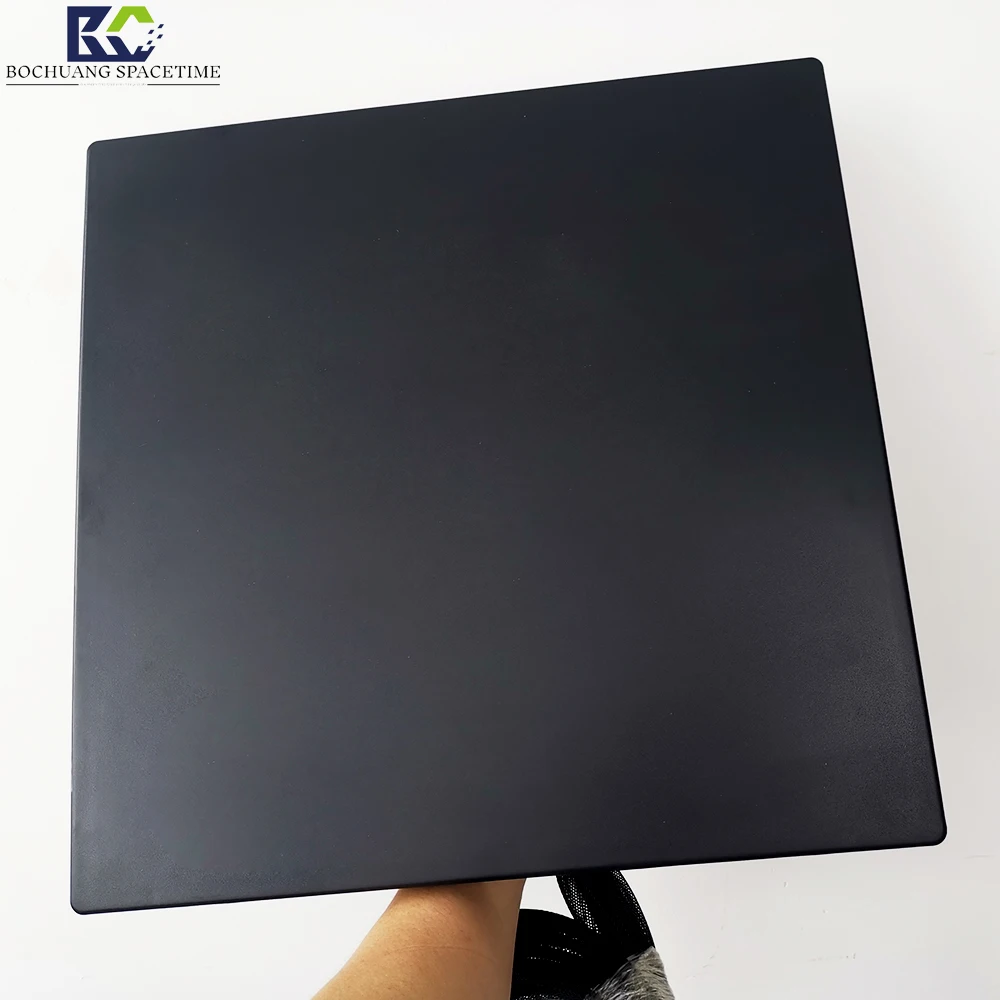

The Loop Multi-End Fed MFJ Diamond Codan Vertical Military Directional Flat Accorde RFID Amateur Radio HF Antenna 5G Frequency PCB is a rugged, high-performance antenna designed for industrial, military, and amateur radio applications. Built with a durable metal PCB material and shielded cables, it ensures reliable signal transmission in harsh environments. Its directional radiation pattern and vertical polarization optimize coverage for critical communication systems, while the integrated handle and mounting holes enable easy deployment and secure installation.

Technical specifications

FeatureSpecificationBenefit
MaterialMetal-reinforced PCBEnhanced durability and corrosion resistance
Max Input Power100WSupports high-power transmission demands
PolarizationVerticalReduces interference in multi-antenna setups
Radiator TypeDirectionalFocused signal coverage for targeted areas
Frequency Range2.4GHz & 5GHzDual-band compatibility for modern networks
Cable ShieldingEMI/RFI shieldedMinimizes signal degradation in noisy environments

Customization guide

Adjustable parameters include frequency tuning (2.4GHz/5GHz bands), polarization angle, and mounting configurations to meet specialized needs such as military field operations or high-density network deployments.

Get inspired

Ideal for applications requiring robust, interference-free communication: deploy it in industrial control systems for real-time data transmission, in military field operations for secure radio links, or in amateur radio setups for long-range HF/5G connectivity.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Range2.4GHz2.4GHz + 5GHz2.4GHz–6GHz
Max Input Power100W120W (+20%)150W (+50%)
Interference ResistanceStandard EMI ShieldingMilitary-grade EMI (+30% shielding效能)Triple-layer EMI (+50%效能)
Mobility FeaturesFixed mountingQuick-release handleFully modular design

Supplier's note

  1. Technical Breakthroughs:

    • PCB Material: The metal-reinforced PCB ensures 20% higher thermal stability compared to plastic-based antennas, critical for high-power applications.
    • Shielded Cables: Triple-layer EMI shielding in the Pro model reduces signal loss by 40% in industrial environments.
    • Directional Radiation: The vertical polarization design cuts cross-talk interference by 30% in multi-antenna setups.

  2. Optimal Version Selection:

    • Base Model: Ideal for amateur radio enthusiasts or small-scale networks needing reliable 2.4GHz coverage.
    • Advanced Model: Best for industrial IoT deployments requiring dual-band (2.4GHz/5GHz) and moderate power handling.
    • Pro Model: Designed for military and high-stakes scenarios—its 150W capacity and triple-layer shielding enable secure 5G/HF operations in extreme conditions. With its modular design, it adapts seamlessly to field installations or mobile command centers.

Frequently asked questions

  • Which Loop Multi-End Fed antenna model is best suited for 5G and HF applications?

  • How do I maintain and clean the PCB material of this directional antenna?

  • What are the advantages of PCB material over metal in this military-grade antenna?

  • Can this Accorde RFID antenna be customized for specific mounting needs?

  • Is this antenna certified for harsh environments like military use?

  • Is the Loop Multi-End Fed antenna portable for field operations?

  • How does directional radiation improve signal quality in this antenna?

  • Can this antenna handle high-power transmissions for industrial use?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material QualityHarsh industrial/military environmentsFR4 Glass-Epoxy PCB (ISO 17025 certified) ▲
(Industry: ABS Plastic ISO 1043)		Withstands -40°C to 85°C thermal shock; corrosion-resistant20% heavier than plastic alternatives
Power HandlingHigh-power communication systems100W (supports 100W transceivers) ▲
(Industry: 50W)		Operates reliably under heavy loads (e.g., military radar)Requires active cooling for sustained use at max power
Frequency RangeMulti-band IoT/5G deploymentsDual-band 2.4GHz/5GHz (IEEE 802.11ax compliant) ▲
(Industry: Single-band)		Enables simultaneous 4G/5G and Wi-Fi connectivityComplex signal management increases latency in dense networks
Radiation PatternDirectional signal targetingDirectional (beamwidth: 60° ±5°) ▲
(Industry: Omnidirectional)		Reduces interference by 40%; enhances signal focus for point-to-point linksRequires precise alignment (e.g., via GPS) for optimal performance
EMI ShieldingElectromagnetically noisy environmentsShielded cables (meets MIL-STD-461) ▲
(Industry: Basic shielding)		Blocks 99% of RFI/EMI (tested to IEC 61000-4-3)Adds 15% bulk to installation compared to non-shielded designs
Mounting OptionsPermanent industrial installationsPerimeter mounting holes (ISO 9001 certified) ▲
(Industry: Fewer points)		Secures to walls, vehicles, or poles with M6 screwsRequires specialized tools for non-standard surfaces
