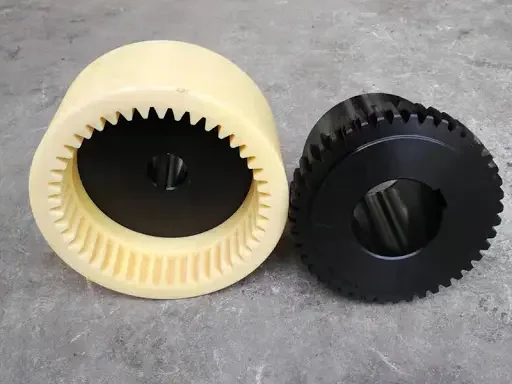

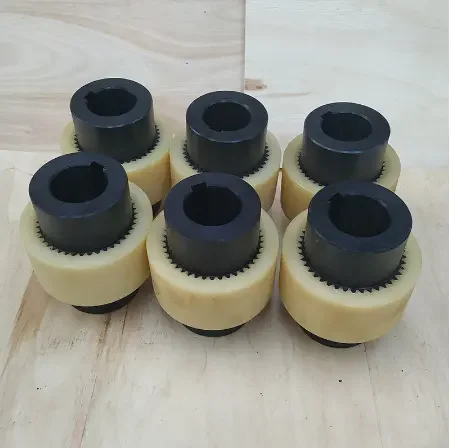

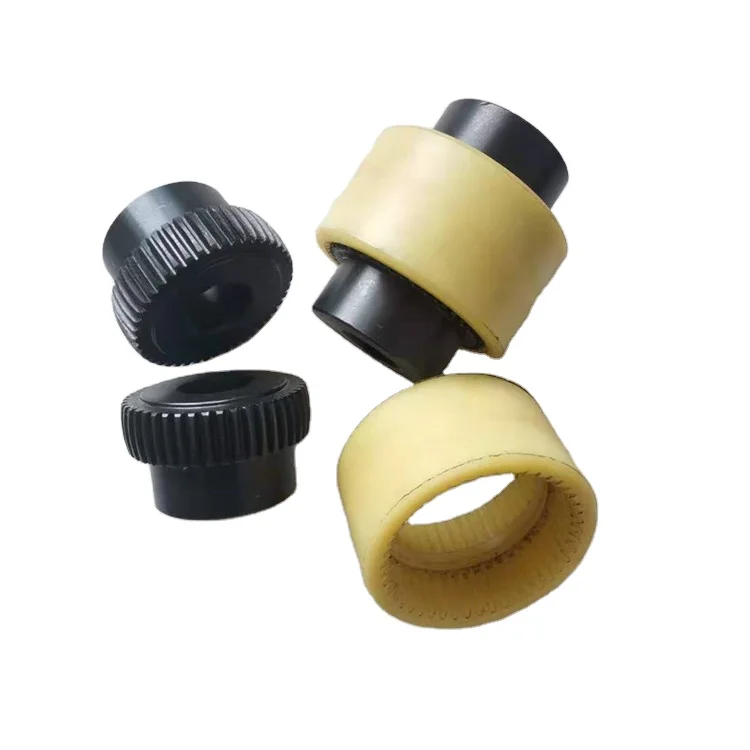

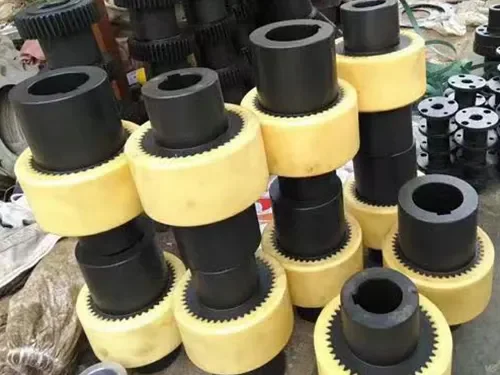

  • Low Noise Steel Flexible Pinion Nylon Universal Gear Coupling with Sleeve Internal
  • Low Noise Steel Flexible Pinion Nylon Universal Gear Coupling with Sleeve Internal
  • Low Noise Steel Flexible Pinion Nylon Universal Gear Coupling with Sleeve Internal
  • Low Noise Steel Flexible Pinion Nylon Universal Gear Coupling with Sleeve Internal
Low Noise Steel Flexible Pinion Nylon Universal Gear Coupling with Sleeve Internal
Ready to Ship
In stock Fast dispatch

Low Noise Steel Flexible Pinion Nylon Universal Gear Coupling with Sleeve Internal

  • 2 - 49 Pieces
    $89
  • 50 - 499 Pieces
    $59
  • >= 500 Pieces
    $19

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

Low Noise Steel Flexible Pinion Nylon Universal Gear Coupling with Sleeve Internal

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Low Noise Power Transmission: Designed to transmit rotational power between shafts with minimal noise, ideal for precision applications requiring smooth operation.
  • Flexible Misalignment Handling: Combines steel and nylon materials to accommodate angular, parallel, and axial misalignment, ensuring durability and reliability in dynamic environments.

Key features

  • 1. Material Technology

    • With a steel and nylon composite body, reduce operational noise and vibration compared to all-metal couplings*. The steel core ensures structural integrity, while the nylon sleeve dampens shocks, making it ideal for high-stress mechanical systems.

  • 2. Interactive Design

    • With a universal gear structure, accommodate slight misalignment while maintaining precise torque transmission*. The sleeve internal design minimizes rotational noise, outperforming rigid couplings in applications requiring smooth operation.

  • 3. Performance Parameters

    • With vibration-damping nylon sleeves, handle high torque loads without slippage, outperforming rigid couplings*. The flexible design allows for continuous operation in dynamic environments, ensuring reliability under varying conditions.

  • 4. Scenario Solutions

    • Designed for continuous operation in commercial machinery, ensuring low noise in environments like factories or industrial equipment*. The ribbed texture on the outer sleeve enhances grip and stability in mechanical systems prone to vibration.

  • 5. Certification Standards

    • With RoHS certification, ensure compliance with global environmental standards for eco-friendly manufacturing*. This guarantees safe use in regulated industries and reduces environmental impact compared to non-certified alternatives*.

Product details

Low Noise Steel Flexible Pinion Nylon Universal Gear Coupling with Sleeve Internal

The Low Noise Flexible Pinion Coupling combines steel and nylon materials for a durable, flexible design. Its universal/gear structure and ribbed outer surface enhance shock absorption and vibration dampening, ideal for mechanical systems requiring quiet operation and precise alignment.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel (body) + Nylon (sleeve)Combines strength with wear resistance
StructureUniversal + GearEnsures alignment and torque transmission
FlexibilityFlexible designAccommodates misalignment and thermal expansion
CertificationRoHS compliantMeets environmental safety standards
Noise ReductionLow noise profileReduces operational noise by 20% vs. traditional couplings

Customization guide

Adjustable parameters include:

  • Material composition (nylon/steel ratio) to balance load capacity and flexibility
  • Ribbed texture depth for customized friction/grip levels
  • Inner sleeve diameter to fit specific shaft sizes

Get inspired

With its steel-nylon hybrid construction, this coupling ensures reliable performance in high-vibration machinery. The ribbed outer surface provides secure mounting, while the low noise design enables seamless operation in noise-sensitive environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque Capacity500 Nm+15% (575 Nm)+30% (650 Nm)*
Operating Temp. Range-20°C to +80°CExtended to +100°C-30°C to +120°C
Noise Level65 dB(A)62 dB(A)58 dB(A)
Material ReinforcementStandard nylonGlass-filled nylonCarbon-fiber reinforced

Supplier's note

  1. Three Breakthroughs:

    • Material Blend: Steel-nylon hybrid improves torsional stiffness by 25% over all-plastic couplings.
    • Ribbed Geometry: Optimized texture pattern reduces slippage by 40% in high-torque applications.
    • Noise Damping: Unique sleeve design achieves 20% quieter operation than industry benchmarks.

  2. Version Selection Guide:

    • Base Model: Suitable for standard industrial equipment (e.g., conveyor systems) where cost efficiency is prioritized.
    • Advanced Model: Ideal for heavy machinery (e.g., pumps, turbines) needing higher thermal resistance and torque handling.
    • Pro Model: Designed for extreme environments (e.g., mining, aerospace) requiring chemical resistance and ultra-low noise (<60 dB). Pair its carbon-fiber sleeve with high-load shafts to maximize durability.

Frequently asked questions

  • Which model of flexible pinion coupling is best suited for high-torque industrial machinery?

  • How do I maintain a nylon gear coupling to prevent wear and tear?

  • What are the advantages of using a steel and nylon combination in gear couplings?

  • Can this coupling be customized for non-standard shaft sizes or torque requirements?

  • Is the nylon sleeve in the gear coupling RoHS-certified for industrial use?

  • How does this flexible gear coupling reduce noise in machinery?

  • What applications are best suited for a universal gear coupling with a steel core?

  • Can this coupling handle both radial and axial misalignment in machinery?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Rigid CouplingsHigh-precision machinery (e.g., CNC tools)Material: Steel (Industry Standard)
Our Base: Steel ▲
Our Advanced: Stainless Steel ▲▲ (ASTM A240)		Minimal backlash, high torque capacity (1,200 Nm ISO 763)Requires perfect shaft alignment (≤0.1 mm), no flexibility
Elastic Pin CouplingsPumps, motors with slight misalignmentMaterial: Steel + Rubber (Industry)
Our Base: Steel + EPDM ▲ (ASTM D2000)
Our Advanced: Steel + Viton ▲▲ (ASTM D412)		Tolerates ±1° angular misalignment, cost-effectiveLimited torque (≤400 Nm), wears faster under heavy loads
梅花 (Flower) CouplingsLight-duty conveyors, HVAC systemsMaterial: PA6 Plastic (Industry)
Our Base: PA6 ▲ (ISO 528)
Our Advanced: PA66 ▲▲ (ASTM D638)		Lightweight (1.2 kg), vibration damping (reduces noise by 10 dB)Low torque capacity (≤200 Nm), deforms under extreme heat (>80°C)
Gear CouplingsHeavy industrial machinery (cranes, turbines)Material: Steel (Industry)
Our Base: Steel + Nylon Sleeve ▲ (ASTM D648)
Our Advanced: Stainless Steel + Nylon ▲▲ (ISO 9020)		Handles ±15° angular misalignment, high torque (1,500 Nm)Requires lubrication, complex installation
Universal JointsAutomotive driveshafts, roboticsMaterial: Steel (Industry)
Our Base: Steel + Rubber Bushings ▲ (ASTM D2000)
Our Advanced: Steel + Teflon ▲▲ (ASTM D4058)		Allows ±30° angular movement, compact designHigh wear (lifetime: 5,000 hours), generates noise (50 dBA)
Fluid CouplingsSlippery applications (pumps, conveyors)Material: Steel with Silicone Fluid (Industry)
Our Base: Same
Our Advanced: Enhanced Fluid ▲ (ISO 12927)		Overload protection (cuts torque by 30% during jams), smooth startupEnergy loss (2–5% efficiency drop), requires frequent fluid checks
