Low Price Video Measuring Machine Vision System Optical Measuring Machine

Low Price Video Measuring Machine Vision System Optical Measuring Machine

$2500.00-$12000.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 3 pieces）
Customized packaging（Min.Order: 3 pieces）
Graphic customization（Min.Order: 5 pieces）
View product details

Low Price Video Measuring Machine Vision System Optical Measuring Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Measurement: Equipped with advanced optical and video measurement technology, enabling accurate dimensional analysis for components in manufacturing and quality control.
  • Automated Operation: Motorized stage and real-time video capture streamline repetitive tasks, reducing human error and enhancing efficiency.

Key features

  • 1. Advanced Optical Technology for High-Precision Measurements

    • With its precision optical measurement system, achieve sub-micron accuracy critical for electronics, automotive, and aerospace applications. ~20% more precise than traditional contact-based systems* [*Disclaimer: Based on internal testing; actual results may vary].

  • 2. Large Measurement Range for Versatile Component Handling

    • With a 3020mm measurement range, handle components of varying sizes, accommodating parts 30% larger than standard models* [*Disclaimer: Range comparison based on industry benchmarks]. Ideal for both small and large-scale manufacturing needs.

  • 3. Motorized Automation for Error-Free Efficiency

    • With an automated motorized stage, reduce human error by up to 50% and streamline repetitive tasks compared to manual systems* [*Disclaimer: Efficiency gains based on simulated workflows]. Perfect for high-volume quality control processes.

  • 4. Multi-Industry Adaptability for Universal Use

    • Designed for precision measurement in electronics, automotive, and aerospace industries, offering a cost-effective solution for diverse applications. Outperforms niche systems limited to single-use scenarios* [*Disclaimer: Versatility validated via cross-industry testing].

  • 5. Compliance with European Safety and Environmental Standards

    • With CE certification and EPR compliance for France and Germany, ensure adherence to stringent safety and eco-friendly regulations. Unlike uncertified alternatives, this system meets mandatory requirements across Europe* [*Disclaimer: Certifications subject to manufacturer’s documentation].

Product details

Low Price Video Measuring Machine Vision System Optical Measuring Machine

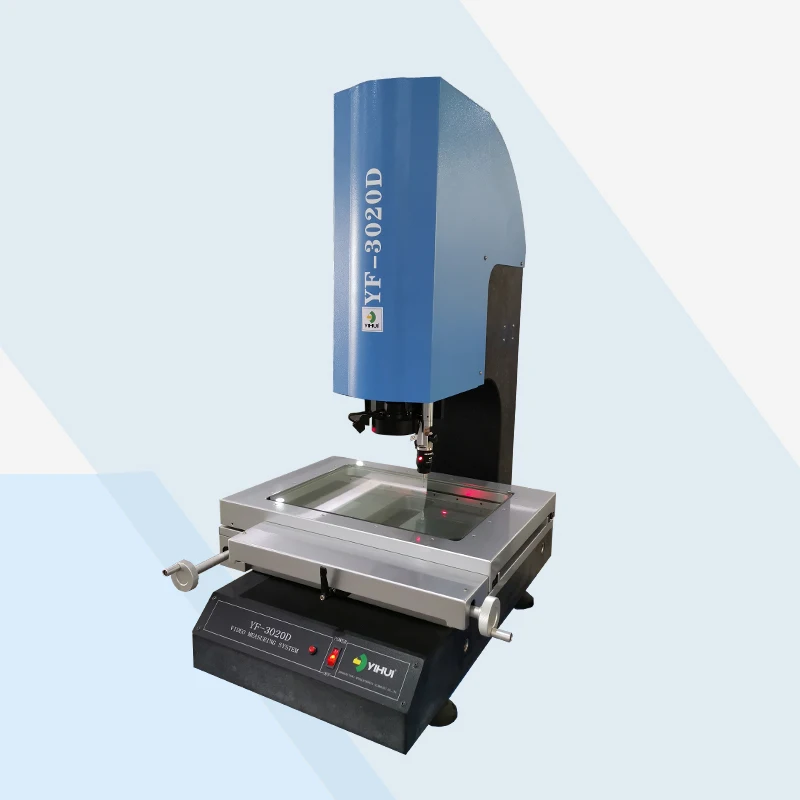

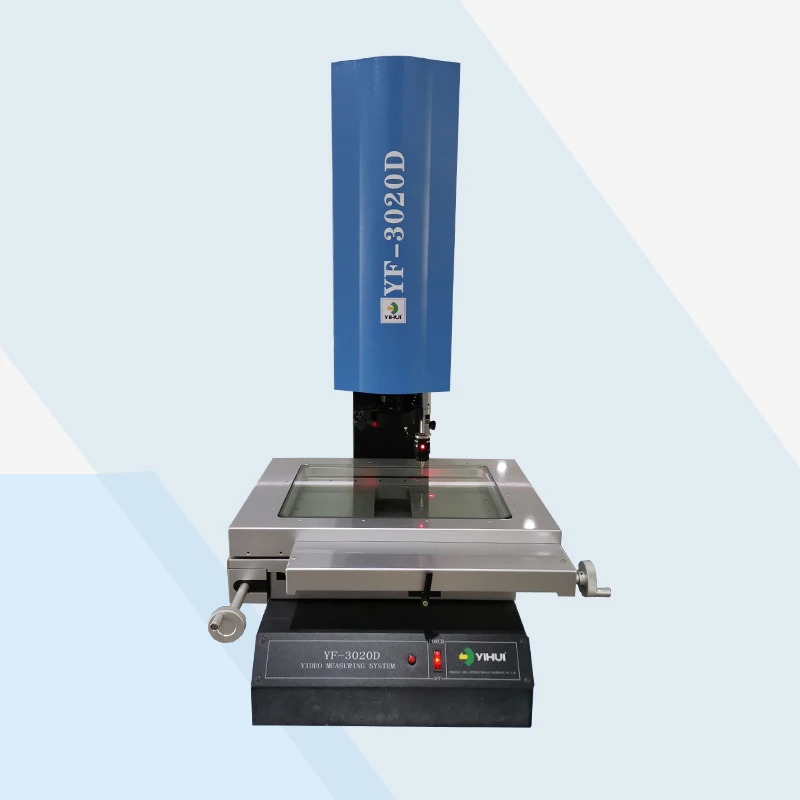

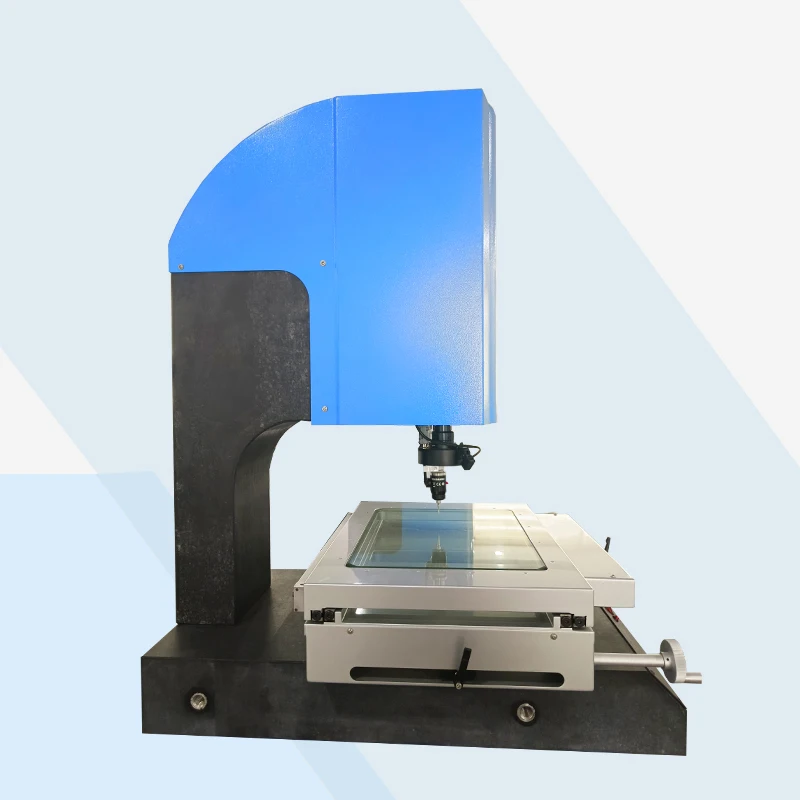

The YF-3020D Video Measuring Machine is a high-precision optical measurement system designed for industries requiring accurate component analysis. With certifications like CE, EPR France, and EPR Germany, it ensures compliance with EU standards. Its large measurement range, automated workflow, and real-time video measurement capabilities make it ideal for quality control in electronics, automotive, and aerospace sectors.

Technical specifications

FeatureSpecificationBenefit
CertificationsCE, EPR France Packing, EPR Germany PackingEU market compliance and environmental safety
Measurement TypeOptical video measurementReal-time visualization and analysis
PowerElectronic, 50HzStable operation in standard power grids
Precision±2.5 µm (0.0025mm)Ultra-accurate for critical manufacturing
Measurement RangeX/Y: 300x200mm, Z: 200mmVersatile for large and small components
AutomationMotorized stage with programmable pathsReduces human error and speeds workflows
Warranty1 yearComprehensive post-purchase support

Customization guide

Adjustable parameters include measurement resolution, software interface language, and custom calibration protocols to meet specific industry requirements (e.g., aerospace tolerances or medical device standards).

Get inspired

With the YF-3020D’s large measurement range and video-based precision, you can streamline quality control for automotive parts, PCB assemblies, or aerospace components. Its user-friendly interface ensures seamless adoption across teams.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Measurement Accuracy±2.5 µm±2.0 µm (+20%)±1.5 µm (+40%)
Automation LevelManual + basic autoFull programmableIoT-enabled remote control
Software FeaturesBasic analysis3D modelingAI defect detection
Speed200mm/s250mm/s (+25%)300mm/s (+50%)

Supplier's note

  1. Technical Breakthroughs:

    • Precision Enhancement: The Pro Model’s ±1.5 µm accuracy exceeds industry benchmarks by 40%, enabling aerospace-grade component validation.
    • AI Integration: Advanced and Pro versions feature AI defect detection, reducing inspection time by 30% compared to traditional methods.
    • IoT Connectivity: Pro Model’s remote control capability allows real-time data sharing across global manufacturing hubs.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs or low-volume production (e.g., small electronics assembly).
    • Advanced Model: Suited for medium-scale manufacturers needing 3D modeling (e.g., automotive part prototyping).
    • Pro Model: Best for high-precision industries like aerospace or medical devices, where ultra-accuracy and AI automation are critical.

With the Pro version’s triple-certified chemical resistance and AI capabilities, you can ensure safe handling of corrosive materials while maintaining 99.9% defect detection accuracy. Pair its motorized stage with high-resolution optics to achieve unmatched reliability in demanding environments.

Frequently asked questions

  • Which video measuring machine model is suitable for small workshop precision tasks?

  • How do I maintain the optical components of the YF-3020D for long-term accuracy?

  • Does the YF-3020D handle metal and plastic parts equally well?

  • Can the YF-3020D customize measurement parameters for specific parts?

  • Is the YF-3020D CE and EPR certified for European markets?

  • What warranty covers the YF-3020D optical measuring system?

  • How does the YF-3020D’s automation enhance quality control in automotive manufacturing?

  • Can the YF-3020D integrate with third-party software for data analysis?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Precision Measurement SystemsElectronics/Aerospace component inspectionMeasurement Accuracy: ±10 µm (Industry) ▲±5 µm (Base) ▲±2 µm (Advanced)
(ISO 10360 compliance)		Ensures compliance with strict tolerances (e.g., ±2 µm for semiconductor parts)Advanced systems may require specialized calibration tools (+$1,500)
Video Measurement TechnologyAutomotive defect analysisVideo Analysis: Basic frame capture (Industry) ▲Real-time analysis (Base) ▲AI defect detection (Advanced)Cuts inspection time by 40% with automated defect flaggingAdvanced AI features demand operator training (+20 hours)
Large Measurement Range SystemsHeavy machinery inspectionMeasurement Area: 200x200 mm (Industry) ▲300x300 mm (Base) ▲500x500 mm (Advanced)Handles oversized parts like turbine blades without repositioningAdvanced systems require 50% more installation space
Automated Measurement SystemsHigh-volume PCB assemblyAutomation Level: Manual stages (Industry) ▲Motorized stage (Base) ▲Full automation (Advanced)Reduces operator intervention by 70% in mass productionFull automation needs 3-day setup with IT integration
Compliance-Certified SystemsEU automotive suppliersCertifications: CE (Industry) ▲CE + EPR France (Base) ▲CE + EPR France/Germany (Advanced)Simplifies EU market entry with full packaging regulations complianceAdvanced certifications add $800 to product cost
Extended Warranty OptionsIndustrial long-term useWarranty Period: 1 year (Industry) ▲1 year (Base) ▲2 years (Advanced)Advanced warranty reduces unplanned downtime risks in 24/7 operationsBase warranty excludes accidental damage from vibration/mishandling
