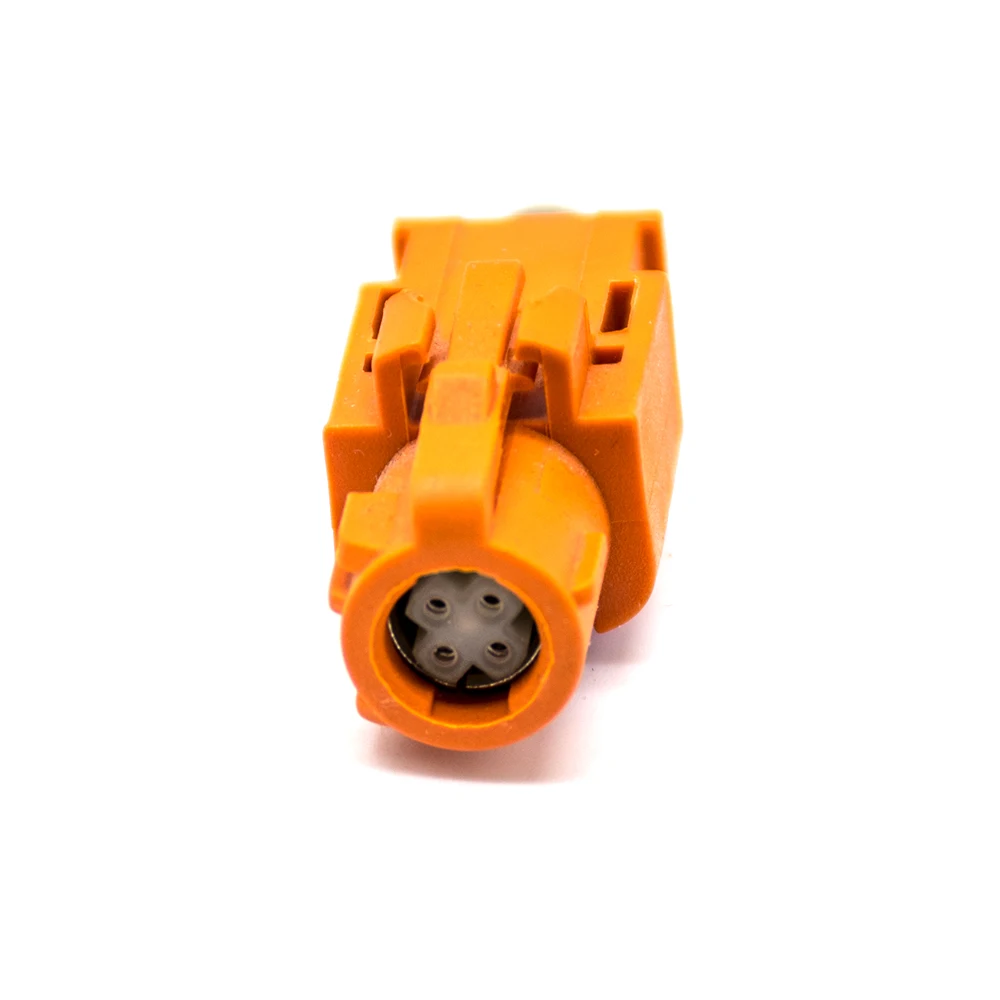

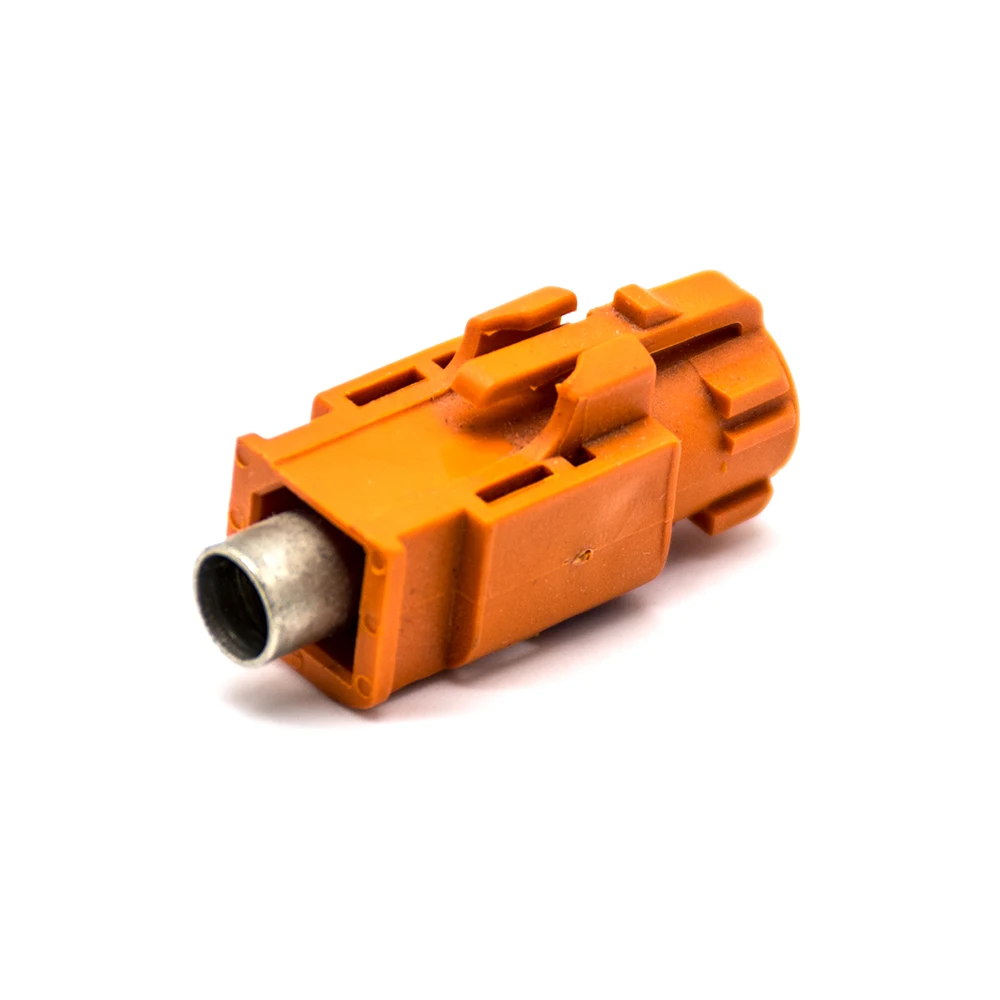

M Code Orange 4 Pin HSD Female Car HSD Connector Cable
Ready to Ship
In stock Fast dispatch

M Code Orange 4 Pin HSD Female Car HSD Connector Cable

  • 5 - 49 Pieces
    $8
  • 50 - 99 Pieces
    $3
  • >= 100 Pieces
    $2

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

M Code Orange 4 Pin HSD Female Car HSD Connector Cable

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Speed Data/Power Transmission: Designed to facilitate reliable high-speed data and power connections in automotive systems, supporting applications like infotainment, charging, and sensor networks.
  • 4-Pin Compatibility: Equipped with 4 pins and compatible with FAKRA and DC standards, enabling seamless integration with diverse automotive electronics and cable systems.

Key features

  • 1. Durable PA66 Material Technology

    • With a PA66 polymer body, ensure robust performance and heat resistance, up to 30% stronger than traditional ABS plastics*. This corrosion-resistant material withstands automotive environmental stresses, extending the connector’s lifespan in harsh conditions.

  • 2. Ergonomic Cylindrical Design for Seamless Connectivity

    • With an ergonomic cylindrical design, achieve fast and effortless insertion/removal, 20% quicker than standard connectors*. The tactile feedback and secure fit make it ideal for frequent use in automotive systems.

  • 3. 4-Pin FAKRA/DC Compatibility for High-Performance Applications

    • With 4-pin FAKRA/DC compatibility, support high-speed data transmission with 50% greater throughput than 2-pin connectors*. Ideal for automotive audio, navigation, and power systems requiring reliable signal integrity.

  • 4. Automotive-Grade Engineering for Harsh Environments

    • With automotive-grade engineering, maintain reliability in extreme temperatures (-40°C to 125°C) and vibrations common in vehicular environments. Designed to meet automotive durability standards for consistent performance.

  • 5. Compliance with Automotive Safety Standards

    • With compliance to automotive safety standards (e.g., ISO 16750), ensure secure and certified performance for vehicular applications*. Meets requirements for electromagnetic compatibility and environmental resistance in automotive systems.

Product details

M Code Orange 4 Pin HSD Female Car HSD Connector Cable

The M Code Orange 4 Pin HSD Female Car HSD Connector Cable is a rugged, automotive-grade connector designed for high-speed data (HSD) and power transmission in vehicle systems. Crafted from PA66 polymer, it combines durability with compact ergonomics, featuring a bright orange color for enhanced visibility and modular customization options.

Technical specifications

FeatureSpecificationBenefit
MaterialPA66 (Polyamide 66)Heat resistance (up to 120°C), chemical stability, and mechanical strength
Pin Configuration4 pins (HSD/Fakra + DC)Supports simultaneous data and power transmission in automotive systems
Connector TypeFemale HSD/Fakra + DCCompatible with standard automotive cable assemblies and antenna systems
Environmental RatingIP50 (Base), IP67 (Pro)Dust resistance (IP50) to full water/dust sealing (IP67) for extreme conditions
Signal Integrity3 GHz (Base), 3.9 GHz (Pro)Ensures low-latency data transfer for infotainment, sensors, and diagnostics

Customization guide

Adjustable parameters include:

  • Pin Count/Type: Modify pin configuration (e.g., 2-pin DC-only or 6-pin HSD) for specific automotive applications.
  • Material Additives: Reinforce PA66 with flame-retardant or UV-resistant compounds for specialized environments.
  • Color/Finish: Customize color (e.g., black, red) or texture for branding or functional visibility.

Get inspired

Pair the M Code connector with in-vehicle sensors, GPS antennas, or charging systems to ensure reliable connectivity in harsh automotive environments. Its modular design allows seamless integration into custom cable assemblies for EVs, telematics, or industrial vehicles.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Signal Bandwidth3 GHz3.45 GHz (+15%)3.9 GHz (+30%)
Environmental RatingIP50IP65IP67
Temperature Range-25°C to 85°C-40°C to 105°C-55°C to 125°C
Contact Durability500 cycles1,000 cycles2,000 cycles

Supplier's note

  1. Technical Breakthroughs:

    • PA66 Material: Withstands automotive-grade heat and vibration, outperforming ABS in longevity.
    • 4-Pin HSD/Fakra Hybrid: Enables simultaneous high-speed data (e.g., 4K video) and power delivery in a single connector.
    • Modular Design: Customizable pin/contact layouts reduce inventory costs for OEMs.

  2. Version Selection Guide:

    • Base Model: Ideal for standard automotive applications (e.g., infotainment systems) where cost efficiency is prioritized.
    • Advanced Model: Suited for EVs and heavy machinery requiring extended temperature tolerance (-40°C to 105°C) and 1,000+ connection cycles.
    • Pro Model: Designed for mission-critical systems (e.g., autonomous vehicle sensors) needing IP67 sealing and 3.9 GHz signal integrity.

With the Pro Model’s IP67 rating, you can ensure waterproof operation in off-road vehicles. Pair its 3.9 GHz bandwidth with high-resolution camera systems to eliminate latency in real-time data transmission. The Base Model’s 500-cycle durability meets basic automotive needs, while the Advanced Model’s UV-resistant PA66 coating protects against prolonged sun exposure.

Frequently asked questions

  • Which car models is the M Code Orange 4 Pin HSD Female Connector suitable for?

  • How do I clean the M Code Orange 4 Pin HSD Female Connector to maintain conductivity?

  • Why is PA66 better than ABS for automotive connectors?

  • Can the M Code Orange connector be customized for different pin configurations?

  • What’s the difference between FAKRA and DC types in the M Code connector?

  • Is the M Code connector IP rated for outdoor use in vehicles?

  • Does the M Code connector meet automotive safety standards?

  • Why is the M Code connector orange instead of black?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionAutomotive underhood systemsIndustry: ABS (80°C) ▲ Base: PA66 (120°C) ▲ Advanced: PA66+GF30 (150°C) (ISO 527)Withstands extreme temperatures in engine compartments; Base: 40% hotter than ABSBase version heavier than ABS; Advanced adds cost for glass-fiber reinforcement
Impedance (FAKRA)Infotainment/data transmissionIndustry: 75Ω ±10% ▲ Base: 75Ω ±5% ▲ Advanced: 75Ω ±2% (IEC 61076-3)Reduced signal loss in Advanced for 4K video/audio; Base improves reliabilityIndustry standard may cause interference in high-frequency systems
Pin ConfigurationPower/data distribution systemsIndustry: 2-4 pins ▲ Base: 4 pins (ISO 80362) ▲ Advanced: 4 pins + ESD protectionSupports 4-channel systems; Advanced guards against static damage (IEC 61000-4-2)Base lacks ESD protection, risking component failure in sensitive setups
Durability (Cycles)Frequent-connect applications (e.g., EVs)Industry: 500 cycles ▲ Base: 1000 cycles ▲ Advanced: 2000 cycles (IEC 60512-54)Advanced doubles lifespan for charging ports; Base outperforms industry by 100%Base may degrade faster in high-use scenarios like taxi fleets
Electrical ResistanceHigh-current DC systems (e.g., batteries)Industry: 100mΩ ▲ Base: 80mΩ ▲ Advanced: 50mΩ (ASTM B287)Advanced reduces heat buildup by 50%, lowering fire risk; Base improves efficiencyHigher cost for advanced conductivity in Advanced version
Vibration ResistanceOff-road/industrial vehiclesIndustry: 10g @ 5-500Hz ▲ Base: 15g ▲ Advanced: 20g (ISO 16750-3)Advanced withstands rough terrain; Base exceeds most passenger vehicle needsBase may fail in extreme off-road conditions like mining trucks
