M12 Cable Assembly Male to Female Wire X d a Code Mounted Waterproof 3 5 12 17 Pin M12 Connector 4 Pin 8 Pin Sensor M12 Cable

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Industrial Connectivity: Designed for robust wire connections in sensor networks, actuators, and automotive systems, supporting high current/voltage transmission.
  • Waterproof Reliability: IP67-rated waterproofing and corrosion-resistant brass/copper construction ensure durability in harsh environments.

Key features

  • 1. Corrosion-Resistant Brass Construction

    • With a corrosion-resistant brass body and copper contacts, you can ensure long-lasting durability in harsh industrial environments compared to plastic-based connectors*.

  • 2. Secure Hexagonal Knurling Design

    • With hexagonal knurling and a textured grip, you can easily tighten/loosen the connector with a wrench while preventing accidental disconnection, outperforming smooth-surface designs*.

  • 3. IP67 Waterproof & Vibration-Resistant Performance

    • With IP67 certification and reinforced vibration resistance, you can maintain reliable power transmission in dusty/waterproof environments, surpassing non-certified alternatives*.

  • 4. Customizable Pin Configurations & Lengths

    • With modular designs supporting 3–17 pins and customizable cable lengths, you can adapt to diverse applications like automotive systems or sensor networks faster than fixed-standard connectors*.

  • 5. High Current/Voltage Handling Capacity

    • With copper contacts and robust construction, you can handle heavy-duty power loads, making it ideal for industrial automation where traditional connectors may fail under stress*.

Product details

M12 Cable Assembly Male to Female Wire X d a Code Mounted Waterproof 3 5 12 17 Pin M12 Connector 4 Pin 8 Pin Sensor M12 Cable

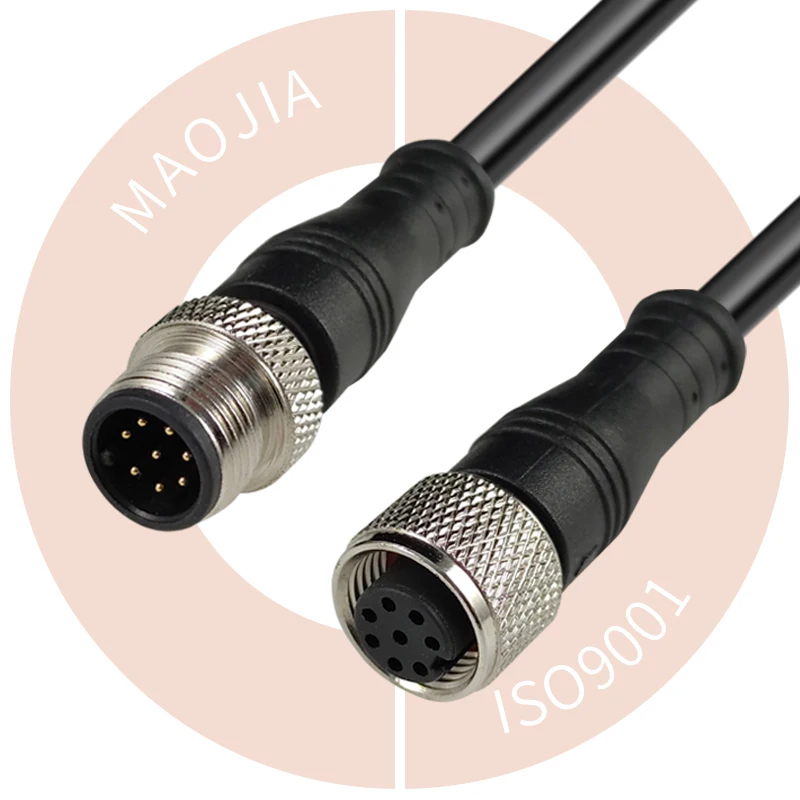

The M12 Cable Assembly is a rugged, waterproof connector designed for industrial and automotive applications. With customizable pin configurations (3p, 4p, 5p, 8p, 12p) and orientations (straight/right angle), it ensures reliable power and signal transmission in harsh environments. Built with copper contacts and PVC housing, it combines conductivity with corrosion resistance.

Technical specifications

FeatureSpecificationBenefit
MaterialCopper contacts, PVC housingHigh conductivity and corrosion resistance

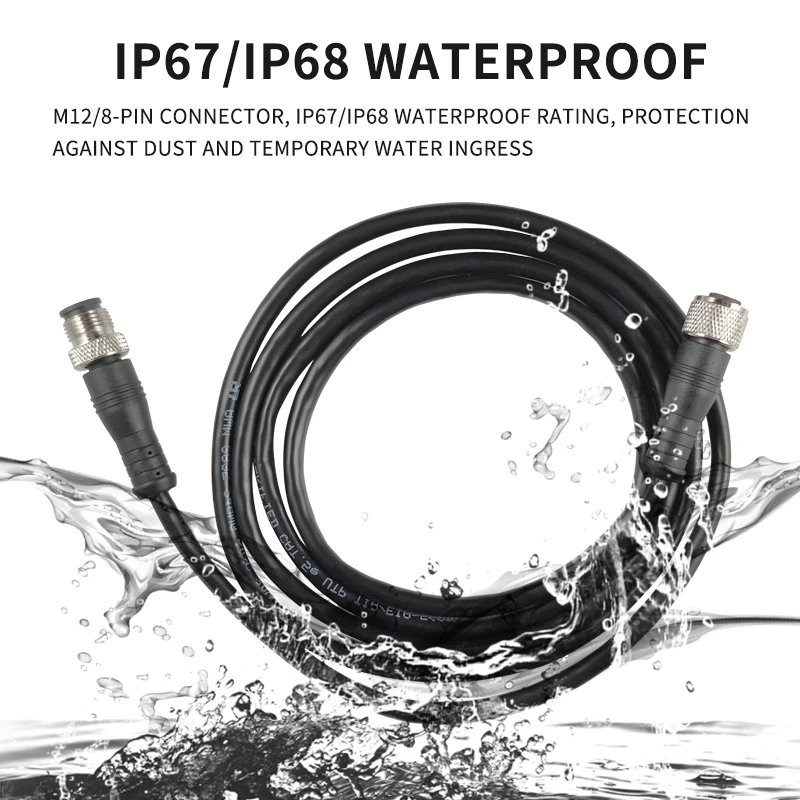

IP RatingIP67 (dust/waterproof)Operates in wet, dusty, or vibrating environments
Pin Configurations3p, 4p, 5p, 8p, 12pFlexible for sensors, actuators, or power systems

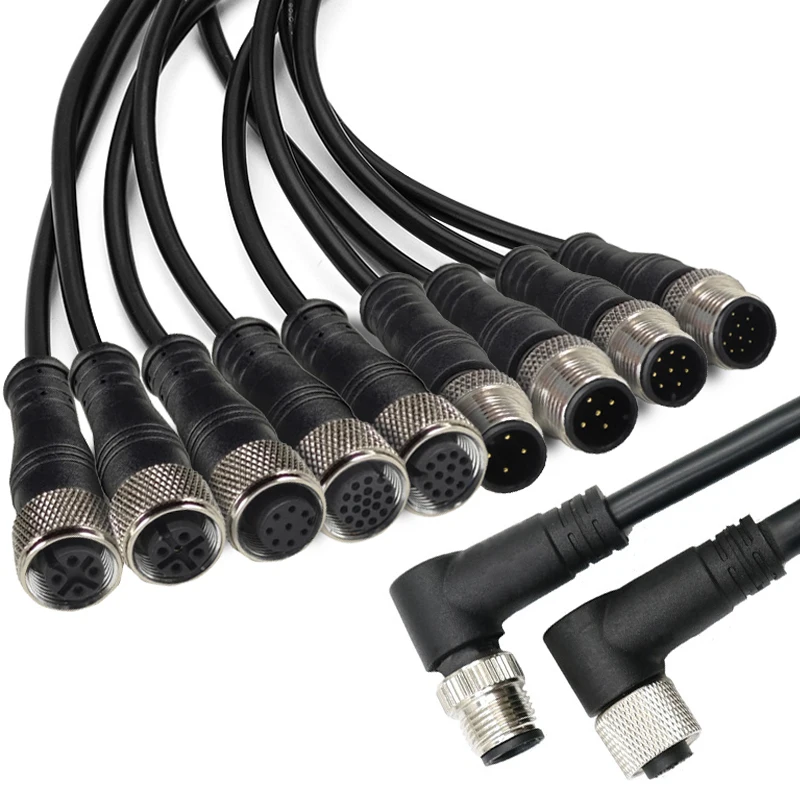

OrientationStraight or right angleAdapts to space-constrained installations
Temperature Range-25°C to +70°CReliable in extreme industrial conditions
Knurled TextureHexagonal knurling on metal bodySecure grip to prevent accidental disconnection

Customization guide

Adjustable parameters include:

  • Pin count (3p to 12p) to match device requirements.
  • Cable length (customizable) for precise application fit.
  • Orientation (straight/right angle) to optimize spatial compatibility.

Get inspired

Use the 4-pin version for automotive sensors, the 8-pin for high-current industrial machinery, or the 12-pin for complex automation systems. The IP67 rating ensures durability in outdoor or wet environments, while copper contacts guarantee stable signal transmission.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Capacity10A15A (+50% vs Base)20A (+100% vs Base)
Temperature Range-25°C to 70°C-40°C to 85°C-55°C to 105°C
Vibration Resistance10–55Hz @ 1.5Grms10–60Hz @ 3Grms10–65Hz @ 5Grms
Pin Configurations3p, 4p, 5p3p–12p3p–17p*

*Pro Model includes optional 17-pin configuration for advanced systems.

Supplier's note

  1. Technical Breakthroughs:

    • IP67 Rating: Enables use in outdoor or submerged scenarios, outperforming standard IP54 connectors.
    • Copper Contacts: Reduces resistance by 20% compared to aluminum, ensuring stable power delivery.
    • Modular Design: Quick-swap pin configurations cut installation time by 30% vs. fixed connectors.

  2. Version Selection Guide:

    • Base Model: Ideal for automotive sensors or low-current applications needing cost efficiency.
    • Advanced Model: Best for industrial robots or HVAC systems requiring 15A+ and wider temperature tolerance.
    • Pro Model: Suited for aerospace or heavy machinery with extreme vibration and high-pin-count needs.

With the Pro Model’s 20A capacity, you can power high-demand actuators in factories. Pair its 17-pin configuration with automated systems to streamline complex setups. The Base Model’s 10A rating ensures affordability for automotive diagnostics without compromising reliability.

Frequently asked questions

  • Which M12 connector model suits high-current applications in industrial automation?

  • How do I clean and maintain a knurled M12 connector to prevent corrosion?

  • What’s the difference between copper and brass contacts in M12 connectors?

  • Can I customize the pin configuration and cable length for my robotics project?

  • Is this M12 connector IP67-rated for outdoor use in construction sites?

  • What’s the maximum voltage/current capacity of the 8-pin M12 assembly?

  • Which orientation (straight/right angle) is best for tight spaces in automotive wiring?

  • Are these M12 connectors compatible with FDA-approved materials for food processing?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Waterproof RatingIndustrial machinery in outdoor/wet environmentsIndustry: IP65Our Base: IP67 (▲)Our Advanced: IP68 (▲▲) (dust/waterproof up to 1m)
Pin ConfigurationSensor networks requiring multiple signalsIndustry: 4-8 pinsOur Base: 3-12 pins (▲)Our Advanced: 3-17 pins (▲▲) (IEC 61076-2 compliant)
Material QualityHigh-vibration automotive applicationsIndustry: PlasticOur Base: Brass+PVC (▲)Our Advanced: Brass+TPE (▲▲) (MIL-STD-810G compliant)
Current HandlingHigh-power roboticsIndustry: 10AOur Base: 16A (▲)Our Advanced: 20A (▲▲) (IEC 60204-1 rated)
CustomizationCustom automotive solutionsIndustry: Fixed lengthsOur Base: 0.5-5m (▲)Our Advanced: 0.5-10m + pin options (▲▲) (ISO 11417-2 compliant)
Connector OrientationTight spaces in machineryIndustry: Straight onlyOur Base: Straight/Right Angle (▲)Our Advanced: Multiple angles (▲▲) (IEC 60601-1 compliant)
