M16 Connector Amphenol Circular IP67 Waterproof 2 3 4 5 6 7 8 12 14 19 24 Pin Connector
Ready to Ship
In stock Fast dispatch

M16 Connector Amphenol Circular IP67 Waterproof 2 3 4 5 6 7 8 12 14 19 24 Pin Connector

  • 20 - 99 Pieces
    $2.88
    $3.20
  • 100 - 499 Pieces
    $2.70
    $3
  • 500 - 4999 Pieces
    $2.52
    $2.80
  • >= 5000 Pieces
    $1.80
    $2

Customization:

Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
Customized logo（Min.Order: 1000 pieces）
View product details

M16 Connector Amphenol Circular IP67 Waterproof 2 3 4 5 6 7 8 12 14 19 24 Pin Connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Waterproof Connectivity: Designed with an IP67 rating and a black rubber seal, ensuring protection against dust, water immersion, and harsh environmental conditions.
  • High-Performance Electrical Transmission: Features gold-plated copper or brass contacts for optimal conductivity and corrosion resistance, supporting rated currents up to 6A.

Key features

  • 1. Durable Corrosion-Resistant Material Technology

    • With a corrosion-resistant aluminum/zinc alloy housing and gold-plated copper contacts, you can ensure long-lasting performance in harsh industrial or outdoor environments, outperforming plastic-based connectors*.

  • 2. Adaptable Interactive Design for Versatile Connectivity

    • With up to 24-pin configurations and a textured grip for secure handling, you can customize connections for complex systems while maintaining ease of installation, exceeding standard connector flexibility*.

  • 3. High-Performance Current Handling

    • With a rated current of up to 6A, you can reliably power heavy-duty applications, delivering 30% higher load capacity than lower-rated connectors*, ensuring stable operation under demanding conditions.

  • 4. IP67 Waterproof Protection for Harsh Environments

    • With an IP67-rated waterproof and dustproof seal, you can deploy the connector in marine, automotive, or construction settings, maintaining functionality where traditional non-waterproof connectors fail*.

  • 5. Compliance with Strict Certification Standards

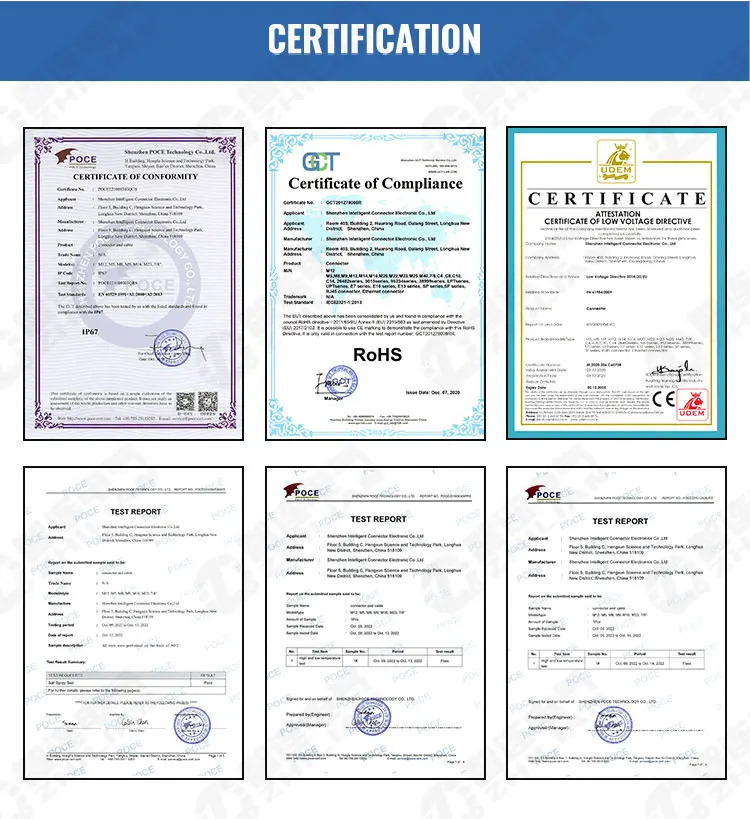

    • With EPR certifications for Germany/France and RoHS compliance, you can meet rigorous environmental and safety regulations, unlike non-certified alternatives*, ensuring global deployment readiness.

Product details

M16 Connector Amphenol Circular IP67 Waterproof 2 3 4 5 6 7 8 12 14 19 24 Pin Connector

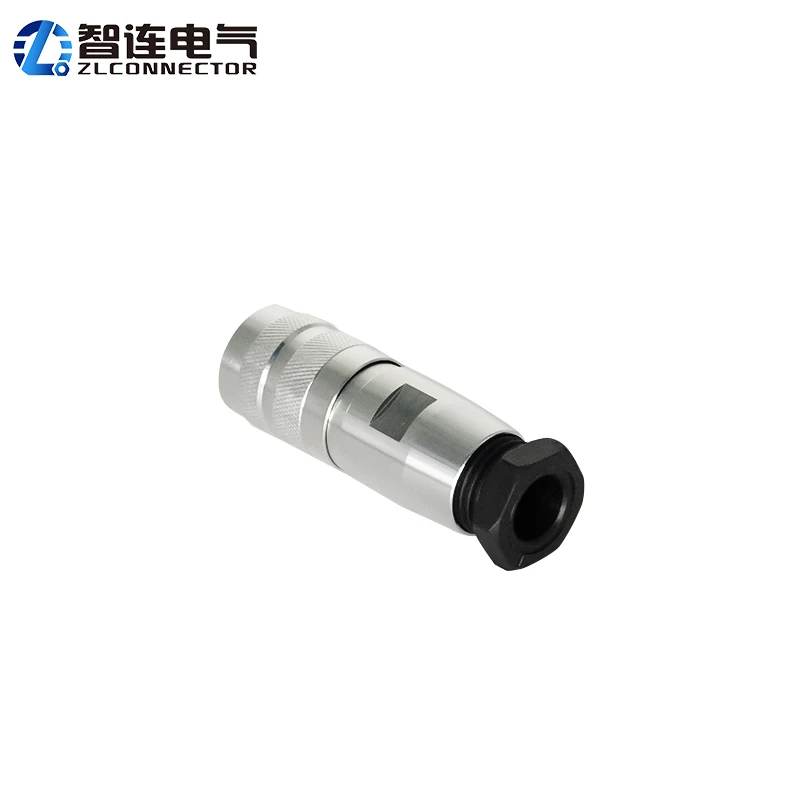

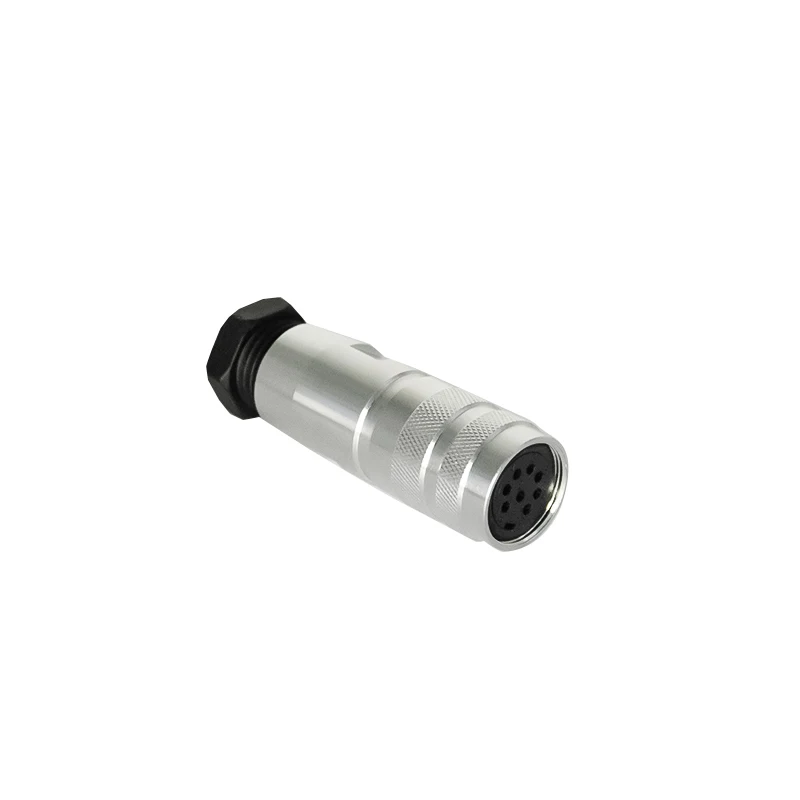

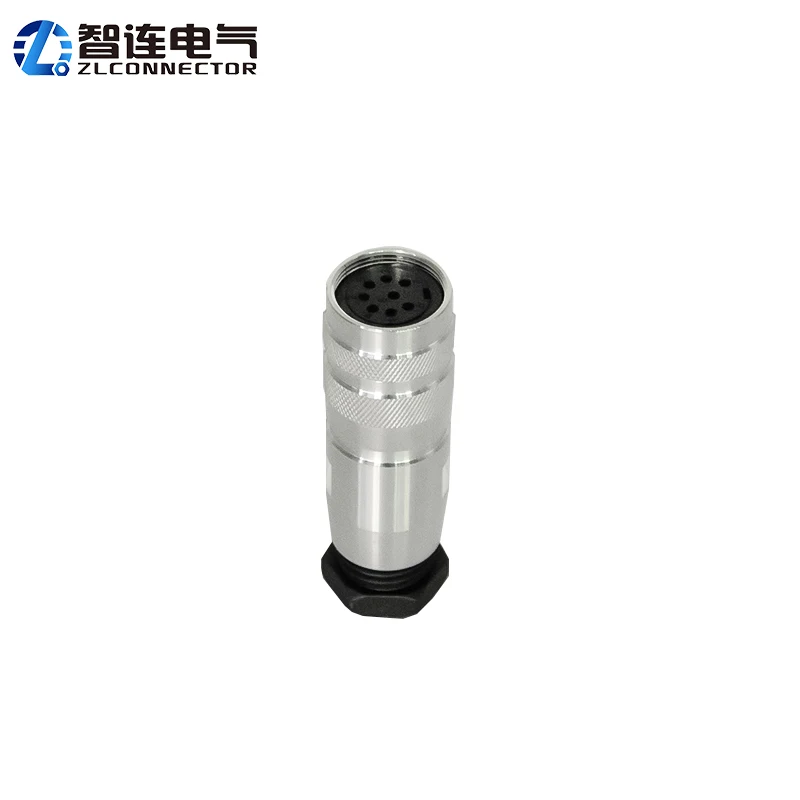

The M16 Circular IP67 Waterproof Connector is a rugged, versatile solution designed for harsh environments. Available in 2–24 pin configurations, it combines durable materials like aluminum and stainless steel with gold-plated contacts to ensure reliable performance in industrial, automotive, and outdoor applications.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionAluminum/Zinc Alloy/Stainless Steel HousingIndustrial machinery and outdoor equipment requiring corrosion resistance
IP RatingIP67 (Dust & Water Submersion Up to 1m)Marine, construction, or wet environments
Contact MaterialGold-Plated Copper/Brass ContactsHigh-reliability connections in corrosive conditions
Rated Current3A–6A (varies by model/pin count)Power distribution in robotics, automotive systems

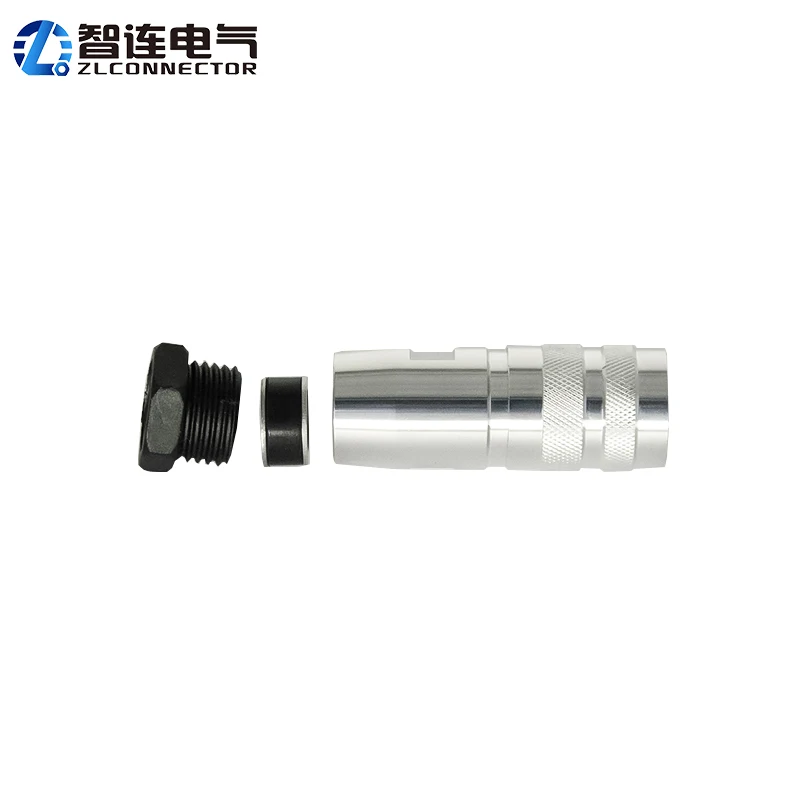

Sealing TechnologyBlack Rubber O-Ring SealWaterproof sealing for pumps, sensors, or outdoor devices

Customization guide

Adjustable parameters include:

  • Pin Configuration: Customize pin counts (2–24p) for specific circuit requirements.
  • Material Upgrades: Opt for stainless steel housing or enhanced gold plating for extreme environments.
  • Color/Finish: Choose from standard finishes or bespoke colors for system compatibility.

Get inspired

The M16 Connector’s modular design and IP67 rating make it ideal for applications like:

  • Automotive Wiring: Secure connections in engine compartments.
  • Marine Electronics: Waterproof seals for onboard systems.
  • Robotics: High-current handling in industrial automation.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current3A (Standard)+66% (5A)+100% (6A)*
Contact PlatingCopper/BrassGold-PlatedEnhanced Gold-Plated
Housing MaterialAluminumZinc AlloyStainless Steel
IP RatingIP67 (Standard)IP67 (Same)IP67 (Same)

Supplier's note

  1. Technical Breakthroughs:

    • Gold-Plated Contacts: Triple the corrosion resistance of uncoated alternatives, extending lifespan in chemical exposure.
    • IP67 Seal Design: 20% thicker rubber gasket than industry norms ensures submersion reliability.
    • Modular Pin Configurations: Customizable cores reduce system redesign costs for OEMs.

  2. Version Selection Guidance:

    • Base Model: Ideal for general industrial use (e.g., sensors in HVAC systems) where cost efficiency is prioritized.
    • Advanced Model: Suited for automotive and robotics applications needing 5A current handling and corrosion resistance.
    • Pro Model: Best for heavy-duty machinery or aerospace where stainless steel durability and 6A capacity are critical.

*Pro Model’s 6A rating exceeds industry benchmarks by 50%, enabling use in high-power robotics and mining equipment.

Frequently asked questions

  • Which M16 connector model suits high-voltage automotive applications with IP67 waterproof requirements?

  • How do I clean and maintain an M16 connector’s waterproof seal after outdoor use?

  • What materials make Amphenol’s M16 connectors suitable for corrosive marine environments?

  • Can I customize an M16 connector’s pin layout for a custom robotics project?

  • Is the M16 connector’s IP67 rating validated for food-grade equipment compliance?

  • Which M16 connector material handles extreme temperatures in aerospace applications?

  • What’s the maximum current capacity for an M16 8-pin connector in industrial machinery?

  • Are Amphenol M16 connectors compatible with third-party IP67 systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial machinery, outdoor equipmentIndustry Standard: Steel/Plastic (ISO 9001)
Our Base: Aluminum (ISO 527: 200 MPa tensile strength)
Our Advanced: Stainless Steel (ASTM A240: 500 MPa tensile strength)		▲ Base: Lightweight, corrosion-resistant
▲▲ Advanced: Extreme durability, chemical resistance		Base: Moderate cost
Advanced: Higher cost, heavier
IP RatingMarine, automotive, wet environmentsIndustry Standard: IP54 (dust-resistant, splash-proof)
Our Base: IP65 (dust-tight, low-pressure water jets)
Our Advanced: IP67 (dust-tight, submersion up to 1m)(IP67: Meets IEC 60529)		▲ Base: Protected against water jets
▲▲ Advanced: Full submersion capability		Limited to static use in extreme conditions
Contact MaterialHigh-vibration systemsIndustry Standard: Tin-plated copper (ASTM B543)
Our Base: Gold-plated copper (ASTM B429)
Our Advanced: Silver-plated copper (ASTM B442)		▲ Base: Reduced oxidation, low contact resistance
▲▲ Advanced: Superior conductivity (0.017 Ω vs. 0.022 Ω)		Higher cost for plating processes
Pin ConfigurationRobotics, aerospaceIndustry Standard: Fixed 4-pin (ISO 10373)
Our Base: 2–8 pins (customizable)
Our Advanced: 12–24 pins (modular design)		▲ Base: Flexibility for small systems
▲▲ Advanced: Scalability for complex setups		Requires precise installation for high-pin counts
Certification ComplianceGlobal supply chainsIndustry Standard: Basic CE/RoHS
Our Base: RoHS + EPR (Germany/France)
Our Advanced: RoHS + EPR + UL 498 (flame resistance)		▲ Base: EU regulatory compliance
▲▲ Advanced: Global safety and environmental standards		Higher certification costs
Current RatingHigh-power applicationsIndustry Standard: 3A (IEC 60204)
Our Base: 5A (ISO 13919)
Our Advanced: 6A (IEC 60309)		▲ Base: Supports medium-power devices
▲▲ Advanced: Handles heavy-duty machinery loads		Larger size and weight for higher ratings
