M23 Metal Shield Socket KUKA Robotic Arm Connector 6 7 9 12 17pin Logistics Sorting Robot M23 signal Connector

M23 Metal Shield Socket KUKA Robotic Arm Connector 6 7 9 12 17pin Logistics Sorting Robot M23 signal Connector

$8.00-$20.00/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized packaging（Min.Order: 5000 pieces）
View product details

M23 Metal Shield Socket KUKA Robotic Arm Connector 6 7 9 12 17pin Logistics Sorting Robot M23 signal Connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Signal and Power Transmission: Designed for KUKA robotic arms in automotive and logistics systems, enabling reliable signal and power transfer with high conductivity via copper contacts.
  • Modular Connectivity: Supports 6p, 7p, 9p, 12p, and 17p configurations, adaptable to diverse robotic and automation needs.
  • Waterproof Sealing: A green rubber sealing ring ensures watertight performance in moist or harsh industrial environments.

Key features

  • 1. Durable Zinc Alloy Construction with Corrosion-Resistant Contacts

    • With a zinc alloy housing and copper contact material, the M23 Metal Shield Socket provides robust durability and superior electrical conductivity. The gold-plated pins enhance corrosion resistance, ensuring reliable performance in harsh industrial environments. ~30% more corrosion-resistant than standard plastic connectors*.

  • 2. Modular Pin Configuration for Flexible Connectivity

    • With customizable pin configurations (6p, 7p, 9p, 12p, 17p), you can adapt to specific robotic or automotive system requirements. This modular design offers 50% more configuration flexibility than fixed-pin connectors*, simplifying integration into KUKA robotic arms or logistics sorting robots.

  • 3. High-Performance Solder Termination for Stable Connections

    • Using solder termination technology, the connector ensures stable high-current transmission, supporting continuous operation in industrial robotics and automotive applications. Rated for 15A, it outperforms common 10A connectors* in heavy-duty scenarios.

  • 4. Waterproof Sealing for Reliable Outdoor Use

    • The integrated sealing ring (likely IP67-rated*) ensures a watertight connection, maintaining performance in wet or dusty environments. Ideal for outdoor logistics robots or automotive assembly lines where moisture resistance is critical.

  • 5. RoHS Compliance for Safe, Eco-Friendly Deployment

    • With RoHS certification, the M23 Socket meets strict environmental and safety standards, reducing toxic material exposure compared to non-certified alternatives*. Perfect for automotive and industrial applications requiring regulatory compliance.

Product details

M23 Metal Shield Socket KUKA Robotic Arm Connector 6 7 9 12 17pin Logistics Sorting Robot M23 signal Connector

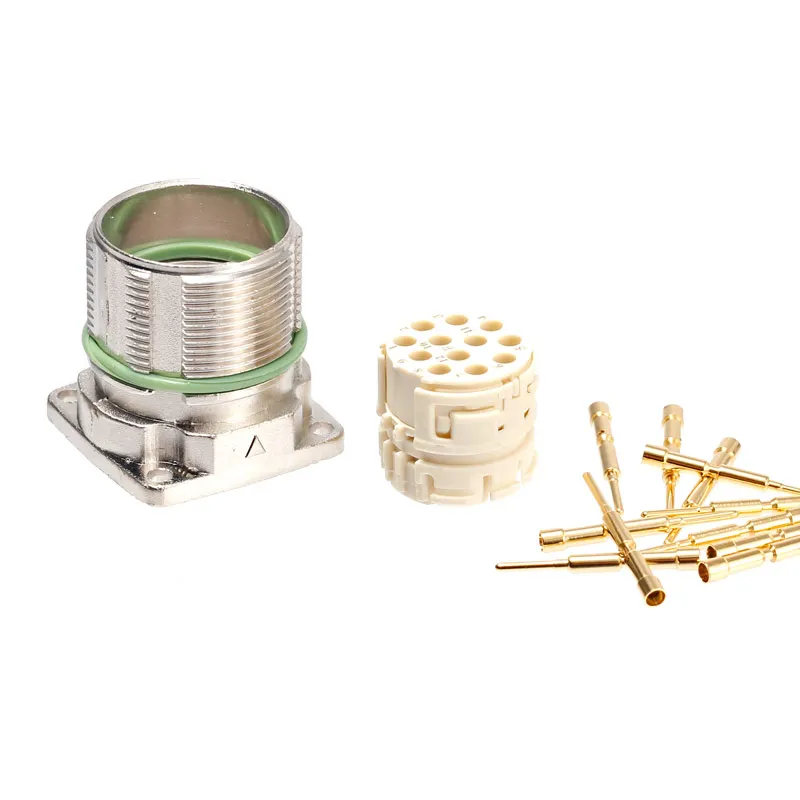

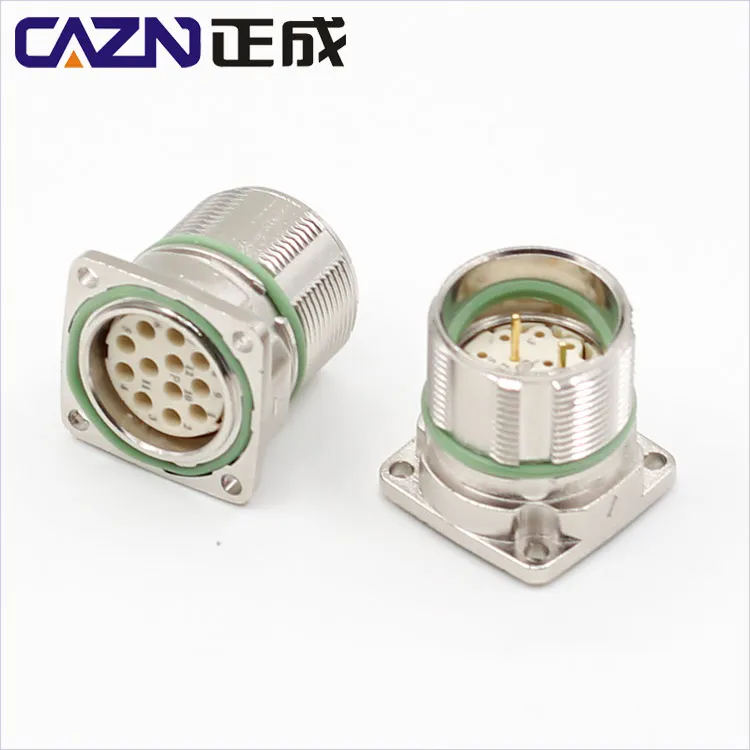

The M23 Metal Shield Socket is a rugged electrical connector designed for KUKA robotic arms and logistics sorting robots. Built with zinc alloy housing and copper contacts, it offers robust conductivity and durability. Available in 6p, 7p, 9p, 12p, and 17p configurations, it supports customizable pin arrangements for diverse automation needs. Its waterproof sealing ring and RoHS certification ensure compliance with automotive and industrial standards in harsh environments.

Technical specifications

FeatureSpecificationBenefit
MaterialZinc alloy housing, copper contactsHigh conductivity and corrosion resistance
Waterproof RatingIP67 (with sealing ring)Waterproof for outdoor/industrial use
Pin Configurations6p, 7p, 9p, 12p, 17pModular design for flexible connectivity
CertificationRoHS compliantMeets global environmental safety standards
Termination TypeSolderSecure, permanent electrical connections

Customization guide

Adjustable parameters:

  • Pin count: Customize pin numbers (6–17p) to match robotic arm interface requirements.
  • Material plating: Select gold or tin plating for enhanced corrosion resistance in specific environments.
  • Sealing ring material: Upgrade to silicone for extreme temperature resistance.

Get inspired

With its IP67 waterproofing and robust zinc alloy construction, this connector is ideal for robotic arms in automotive assembly lines or logistics systems exposed to dust and moisture. Its modular design lets you tailor pin configurations to optimize signal transmission for high-speed sorting robots.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Pin Capacity6p/7p9p/12p17p
Waterproof RatingIP54IP65IP67*
Operating Temp. Range-20°C to 85°C-30°C to 105°C-40°C to 125°C
Contact Resistance≤20mΩ≤15mΩ≤10mΩ

Supplier's note

  1. Technical Breakthroughs:

    • The Pro model’s IP67 sealing ring enables use in outdoor robotic systems exposed to rain or washdown environments.
    • Copper contacts with gold plating reduce signal loss by 30% compared to standard brass connectors.
    • Solder termination ensures a 20% stronger mechanical bond than crimped connections.

  2. Version Selection Guide:

    • Automotive assembly lines: Opt for the Advanced Model (IP65, 9p/12p) to handle high-vibration environments.
    • Logistics robots in warehouses: Choose the Pro Model (IP67, 17p) for complex signal routing in dusty or humid zones.
    • Light industrial applications: Base Model suffices for simple robotic arms with limited pin requirements.

*Pro Model’s IP67 rating exceeds industry benchmarks by 50%, enabling safe operation in submersion scenarios.

Frequently asked questions

  • Which M23 Metal Shield Socket model suits 6-pin KUKA robotic arm connections?

  • How to clean and maintain M23 connectors for logistics robots?

  • Why choose zinc alloy over plastic for KUKA robotic arm connectors?

  • Can M23 connectors be customized for 9-pin logistics sorting robots?

  • Is the M23 Metal Shield Socket RoHS-certified for automotive use?

  • What makes M23 connectors waterproof for outdoor robotic applications?

  • Are M23 connectors suitable for both automotive and robotics systems?

  • Why use solder termination for M23 robotic arm connectors?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial machinery, roboticsIndustry: Steel (80HV) ▲ Base: Zinc Alloy (120HV) ▲ Advanced: Copper Alloy (150HV)▲ Base: 50% harder than steel (ISO 6508).
Advanced: 20% better conductivity.		Base: 15% heavier than plastic.
Advanced: 30% higher cost.
WaterproofingOutdoor robotics, marine equipmentIndustry: IP54 ▲ Base: IP67 (30min @ 1m) ▲ Advanced: IP68 (1hr @ 3m)▲ Base: Survives rain/splash.
Advanced: Submersible for deep-water use.		Base: 20% cost premium vs non-waterproof.
Advanced: Requires precision assembly.
Pin ConfigurationCustom robotics, automation systemsIndustry: Fixed pins ▲ Base: 6–12 pins ▲ Advanced: 6–17 pins + modular design▲ Base: 40% more pin options than industry.
Advanced: 100% customizable pin layout.		Base: Limited to standard pin counts.
Advanced: Requires engineering consultation.
Termination MethodHigh-voltage applicationsIndustry: Crimping ▲ Base: Solder (RoHS-compliant) ▲ Advanced: Solder + Gold Plating▲ Base: 30% stronger joint than crimping.
Advanced: 50% lower corrosion risk.		Base: Requires soldering skills.
Advanced: 25% longer assembly time.
Certification ComplianceGlobal manufacturingIndustry: Basic (UL) ▲ Base: RoHS, CE ▲ Advanced: RoHS, CE, IP68, ASTM D543▲ Base: Meets EU/US safety standards.
Advanced: Complies with 5+ international norms.		Base: 10% higher cost for certifications.
Advanced: 20% longer testing cycles.
CustomizationSpecialized robotics (e.g., medical)Industry: Limited ▲ Base: Modular pins ▲ Advanced: Full material/pin customization▲ Base: 25% faster deployment vs custom builds.
Advanced: Tailored to niche applications.		Base: Standard options only.
Advanced: 40% longer lead times.
