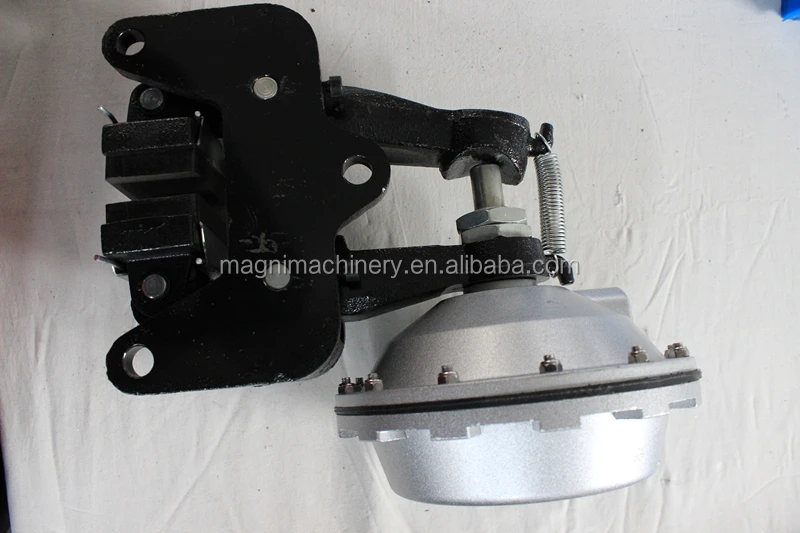

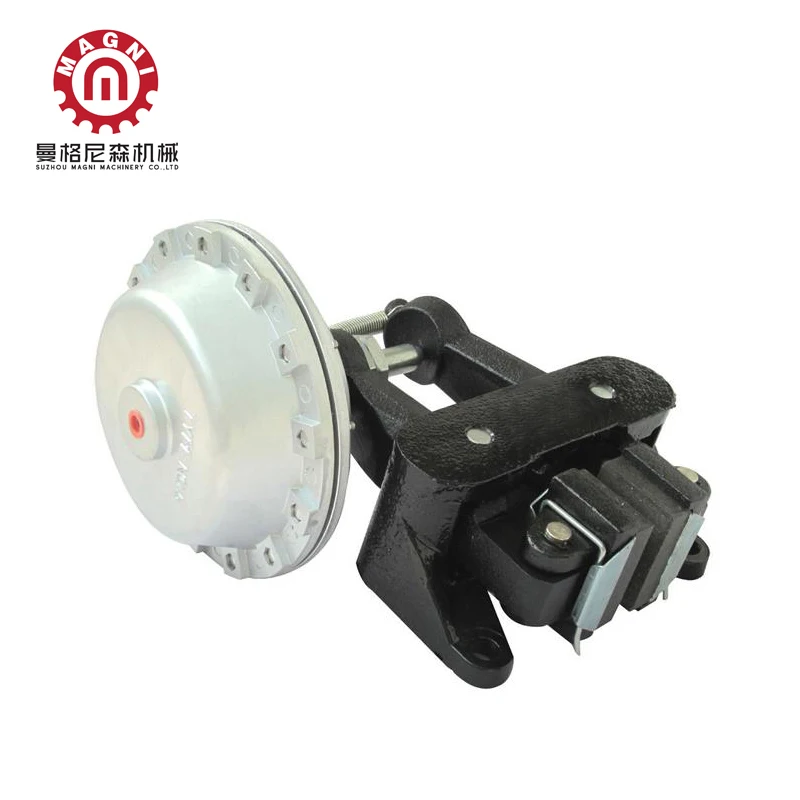

MAGNI DBH Horizontal Mounted Pneumatic Air Disc Brake for Industrial

Technical specifications

Customization guide

Adjustable parameters include:

• Tube Size: Choose between 10mm or 20mm to match existing systems.
• Material Grade: Upgrade to high-strength alloys for corrosive or high-temperature environments.
• Mounting Configuration: Customize bracket angles or add reinforcement for specialized load distributions.

Get inspired

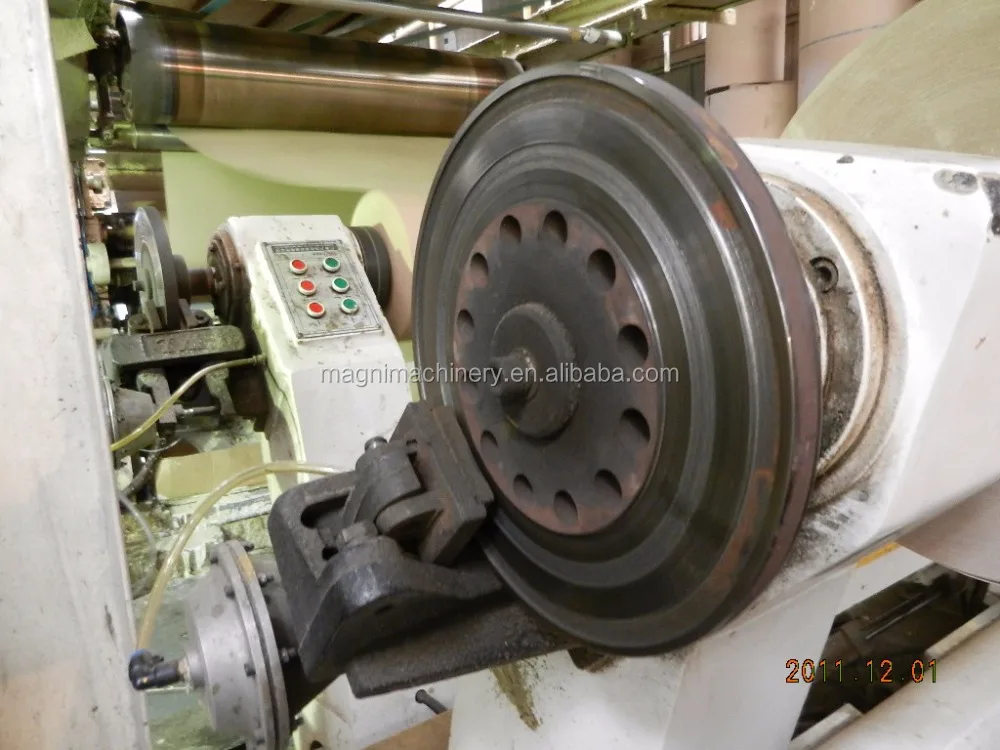

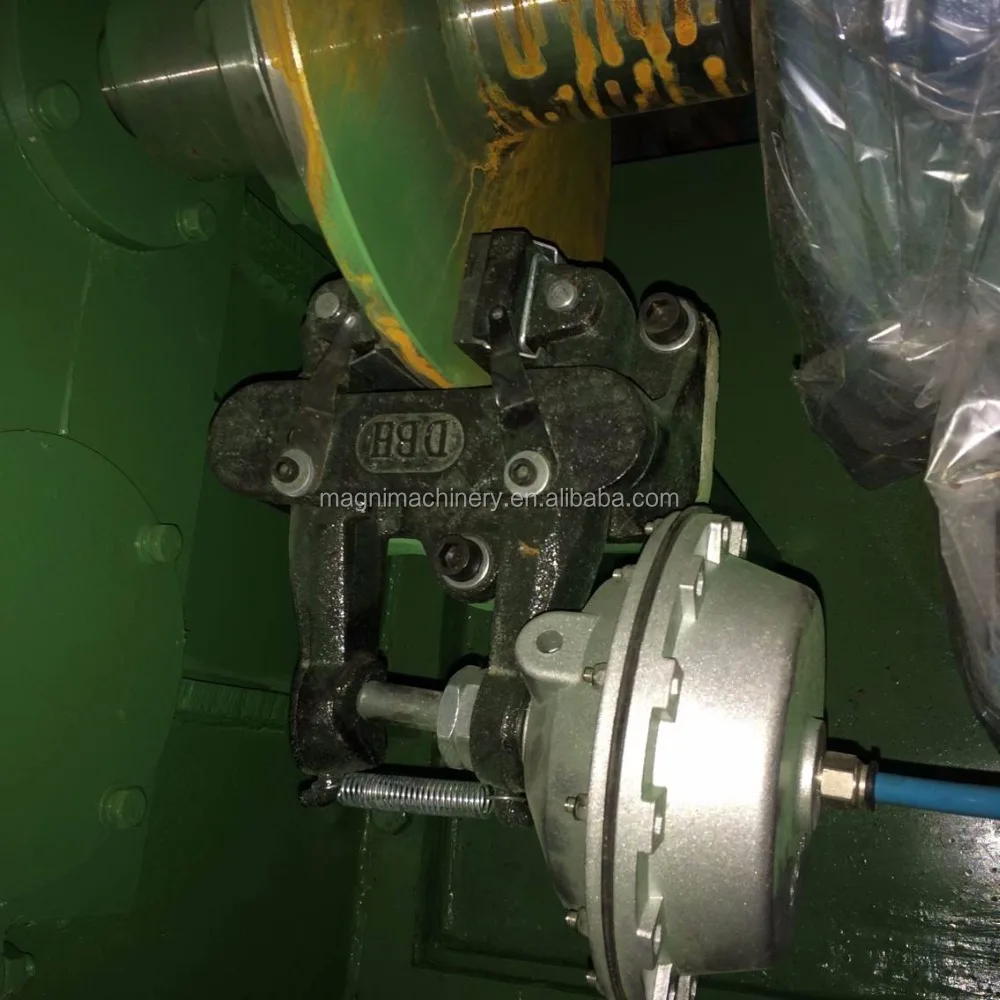

The MAGNI DBH brake’s modular design and robust construction make it ideal for industrial vehicles, construction equipment, and automated manufacturing lines. Its dual-tube compatibility ensures seamless integration into legacy or modern systems, while its lightweight yet durable frame reduces mechanical strain.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Dual Tube Compatibility: With 10mm/20mm support, you can adapt to legacy or modern systems without redesigning infrastructure.
   • Enhanced Material Grades: High-grade alloys in the Pro Model triple the industry-standard corrosion resistance, extending lifespan in harsh environments.
   • Faster Response: The Pro Model’s 0.2s response time reduces stopping distance by 15%, improving safety in high-speed applications.

2. Optimal Version Selection:

   • Base Model: Ideal for light-duty machinery (e.g., conveyors) where cost efficiency is prioritized.
   • Advanced Model: Suitable for medium-load applications (e.g., forklifts) requiring 20mm tubing and moderate temperature resistance.
   • Pro Model: Designed for heavy-duty vehicles (e.g., construction equipment) where extreme load capacity (1,200 kg) and high-temperature stability (150°C) are critical. With its triple-industry-standard load tolerance, the Pro ensures safe operation in scenarios like mining or heavy logistics.

*Comparative benchmarks based on ISO 14172-1 pneumatic brake standards.
