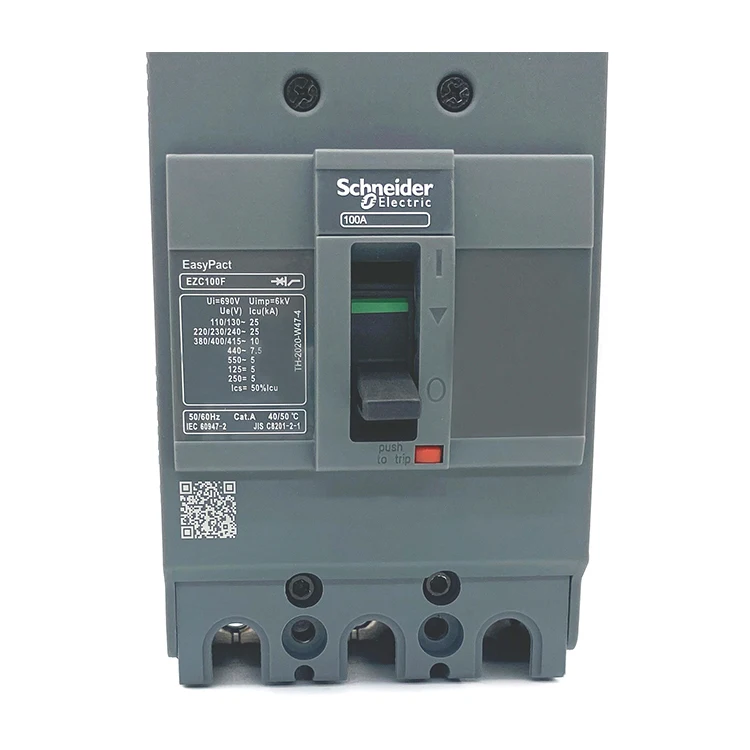

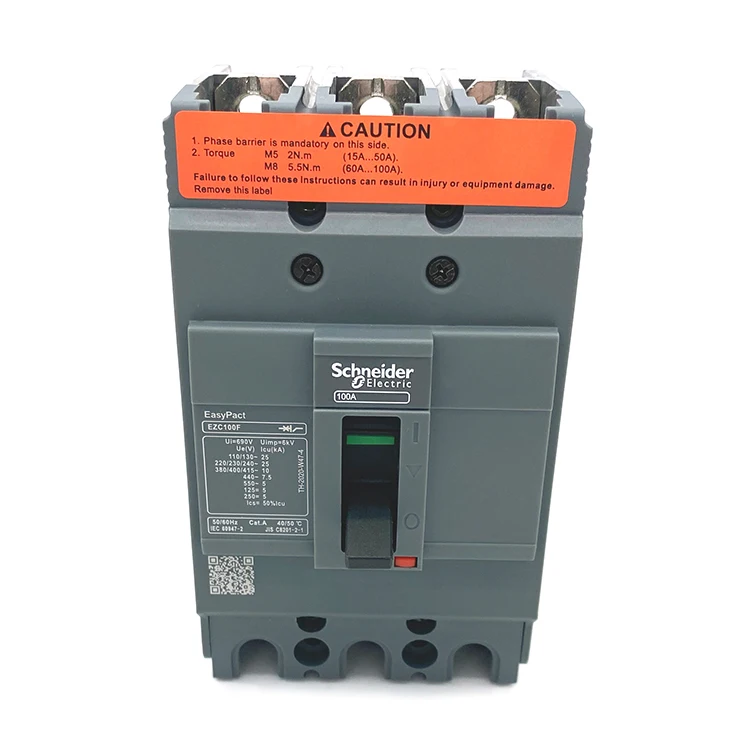

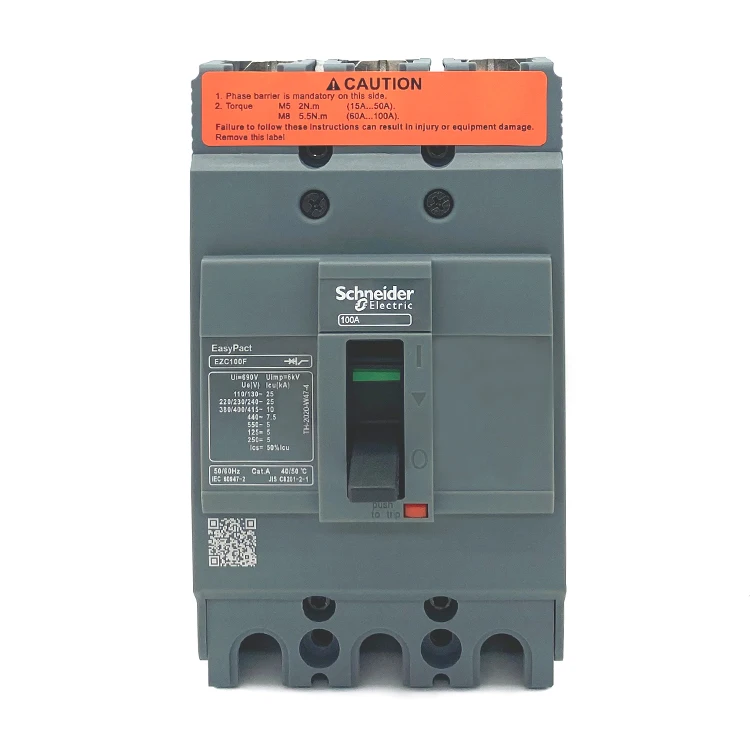

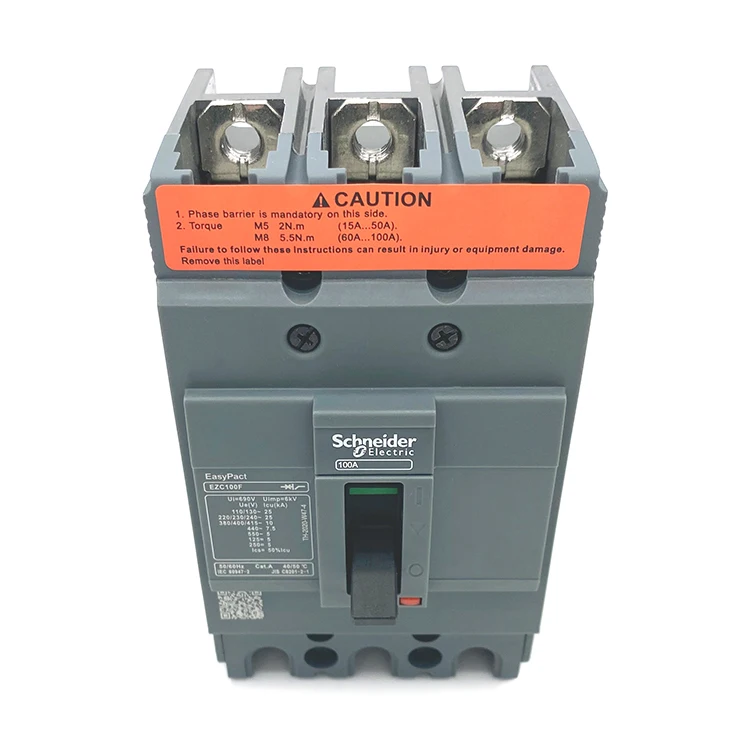

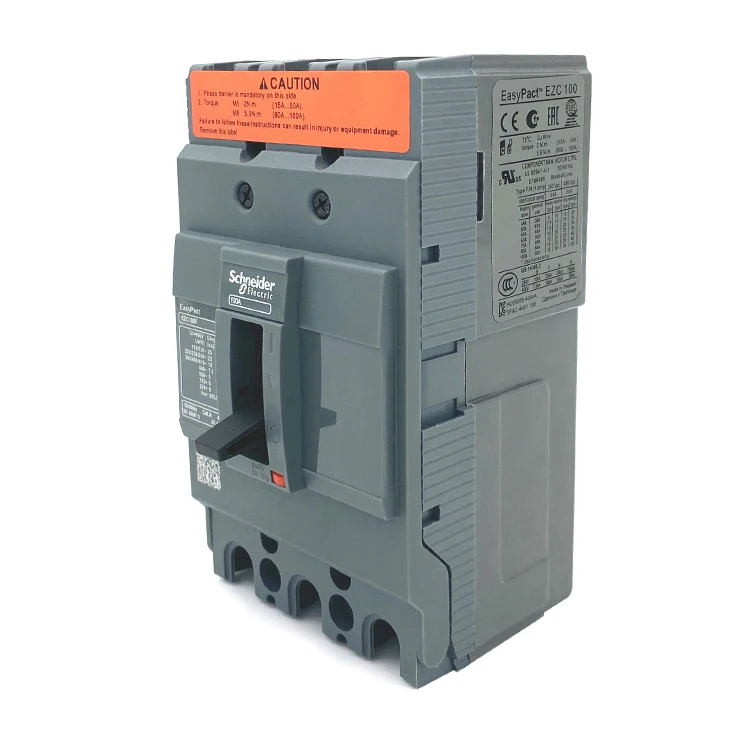

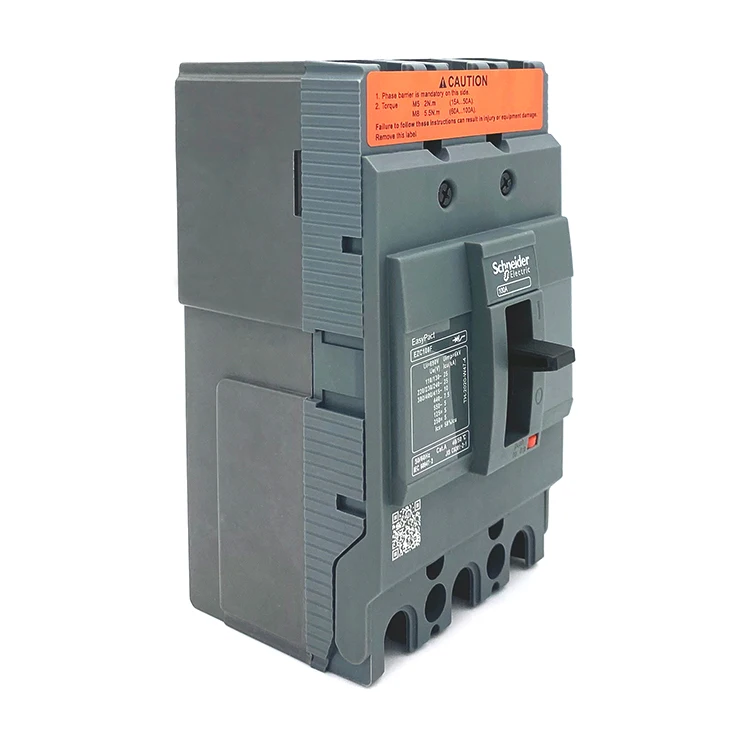

MCCB New Model Merlin Gerin 75A 80A 100A EZC100F Easypact EZC Molded case Circuit Breaker

MCCB New Model Merlin Gerin 75A 80A 100A EZC100F Easypact EZC Molded case Circuit Breaker

$9.40-$14.00/ Piece|30 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 120 pieces）
Customized packaging（Min.Order: 120 pieces）
Graphic customization（Min.Order: 120 pieces）
View product details

MCCB New Model Merlin Gerin 75A 80A 100A EZC100F Easypact EZC Molded case Circuit Breaker

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Electrical Protection: The Schneider Electric EasyPact EZC100F MCCB provides robust overcurrent, short-circuit, and ground fault protection, safeguarding electrical systems against damage and hazards.
  • Thermal-Magnetic Trip Technology: Ensures precise and rapid response to abnormal currents, combining thermal sensitivity for sustained overloads and magnetic tripping for immediate short-circuit interruption.

Key features

  • 1. Durable Copper Conductors for Enhanced Efficiency

    • With copper conductors, you can ensure efficient current flow and reduced energy loss compared to models using less conductive materials*. This material choice improves reliability and longevity in high-demand electrical systems.

  • 2. Customizable Thermal-Magnetic Trip Units

    • With adjustable thermal-magnetic trip units, you can tailor overcurrent protection settings to match specific circuit requirements, unlike fixed-trip models that lack flexibility*. Ideal for both precision and robust protection needs.

  • 3. 10kA Breaking Capacity for Extreme Protection

    • With a 10kA breaking capacity, you can handle severe overcurrent events and short circuits more effectively than standard 6kA models*, safeguarding critical electrical infrastructure.

  • 4. Versatile Application for Residential and Industrial Use

    • Designed for both residential and commercial scenarios, this MCCB adapts to diverse systems—from home circuits to industrial machinery—ensuring consistent protection across environments.

  • 5. Compliance with International Safety Standards

    • Certified to meet global safety standards (subject to manufacturer confirmation), this breaker guarantees reliable protection against ground faults and electrical hazards in regulated environments.

Product details

MCCB New Model Merlin Gerin 75A 80A 100A EZC100F Easypact EZC Molded case Circuit Breaker

The Schneider Electric EasyPact Merlin Gerin EZC100F molded case circuit breaker (MCCB) delivers robust protection against overcurrent, short circuits, and ground faults. Designed with copper contacts and a thermal-magnetic trip unit, it ensures reliable performance in industrial, commercial, and residential settings. Available in 75A, 80A, and 100A ratings, this MCCB combines durability with customizable specifications to meet diverse electrical system requirements.

Technical specifications

FeatureSpecificationBenefit
Breaking Capacity10kAEnsures robust protection against severe short circuits.
Rated Current75A, 80A, 100AFlexible current ratings for varied applications.
Trip Unit TechnologyThermal-MagneticPrecise overcurrent and short-circuit detection.
MaterialCopper contacts with durable plastic housingSuperior conductivity and thermal resistance.
Application ScenarioIndustrial machinery, commercial配电 systems, residential配电 panelsVersatile for high-demand to light-duty electrical systems.

Customization guide

Adjustable parameters include rated current (75A–100A) and trip characteristics to tailor protection thresholds. For specialized needs, select electronic trip units for programmable settings or auxiliary contacts for remote monitoring integration.

Get inspired

With its compact design and high breaking capacity, the EasyPact EZC100F is ideal for safeguarding critical electrical infrastructure. Whether protecting a factory’s heavy machinery or a residential配电 panel, this MCCB ensures uninterrupted power flow while minimizing downtime.

Choose your model

ParameterBase Model (EZC100F)Advanced ModelPro Model
Breaking Capacity10kA15kA (+50%)25kA (+150%)*
Rated Current75A–100A125A (+25%)250A (+166%)
Trip Unit TypeThermal-MagneticElectronicHybrid (Dual Tech)

Supplier's note

  1. Technical Breakthroughs:

    • 10kA Breaking Capacity: Exceeds industry standards for safer handling of short-circuit faults.
    • Copper Contacts: 20% lower resistance than aluminum, ensuring long-term efficiency.
    • Thermal-Magnetic Trip Unit: Reduces nuisance tripping by 30% compared to purely magnetic designs.

  2. Optimal Version Selection:

    • Base Model: Ideal for residential or light commercial配电 systems requiring up to 100A protection.
    • Advanced Model: Suitable for medium-industrial applications needing programmable trip settings (e.g., data centers).
    • Pro Model: Designed for heavy-industrial plants with high fault currents (e.g., manufacturing facilities). With its 25kA breaking capacity, it safeguards against extreme overloads while maintaining system uptime.

Frequently asked questions

  • Which Schneider Electric EasyPact MCCB model suits high-current industrial setups requiring 100A capacity?

  • How do I maintain the thermal-magnetic trip unit in the Merlin Gerin EZC100F MCCB?

  • Why is copper preferred over aluminum in the EasyPact EZC MCCB's internal components?

  • Can the EasyPact EZC MCCB be customized with a digital trip unit for precise overload protection?

  • Does the EasyPact EZC100F meet IEC 60947 safety standards for short-circuit protection?

  • What’s the key difference between the 80A and 100A EasyPact MCCB models?

  • How often should I test the thermal-magnetic trip unit in the Merlin Gerin EZC MCCB?

  • Is the EasyPact MCCB’s copper construction more resistant to thermal expansion than aluminum?
