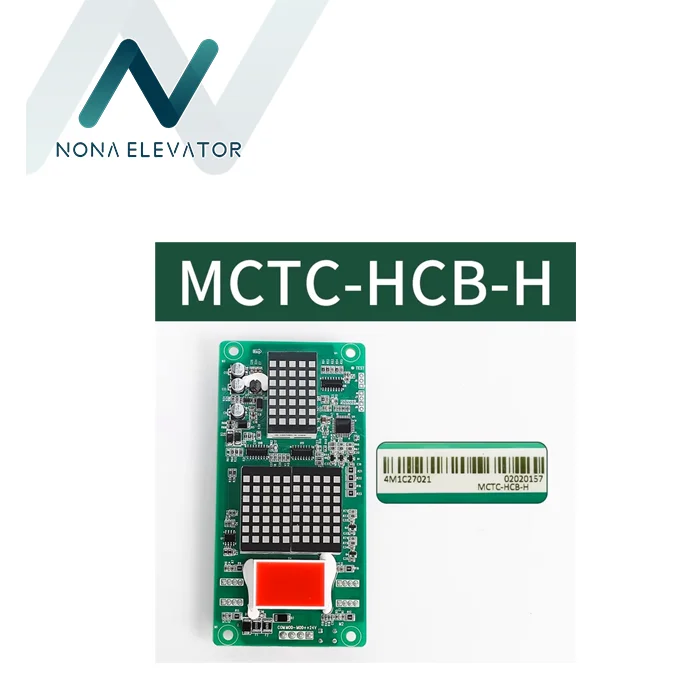

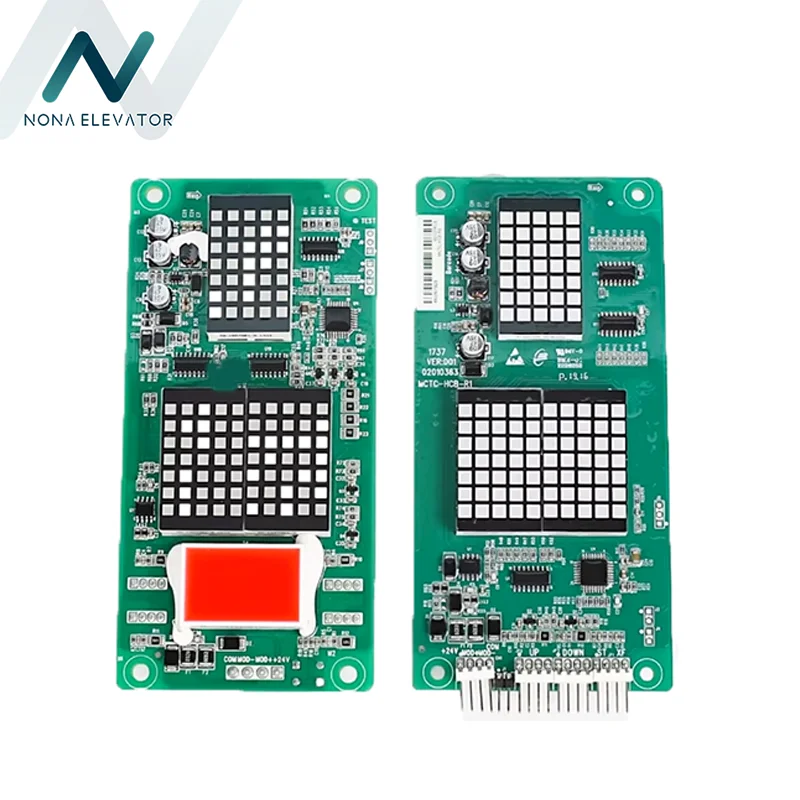

MCTC-HCB-R1 MCTC-HCB-H Monarch PCB Board Elevator Parts

Name: MCTC-HCB-R1 MCTC-HCB-H Monarch PCB Board Elevator Parts
Brand: Shaanxi Nona Elevator Parts Co., Ltd.
SKU: 11000014500015_1
Price: 5.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Elevator Control & Display System: The MCTC-HCB-R1 and MCTC-HCB-H PCB boards are specialized circuit boards designed for elevator systems, enabling control functions and visual feedback through integrated LED/LCD displays.
Dual Display Variants: The boards feature distinct display colors (red and white), catering to different elevator system requirements, such as status indicators or compatibility with specific control panels.

Key features

1. Advanced Material Technology for Durability

With a FR-4 reinforced epoxy substrate, the MCTC-HCB-R1/HCB-H PCB boards ensure long-term reliability in elevator systems, resisting thermal and mechanical stress better than standard PCB materials*. The corrosion-resistant design also safeguards against environmental wear in commercial settings.

2. Customizable Interactive Display Solutions

Equipped with dual-color (red/white) LED displays, these boards offer adaptive interface flexibility for elevator systems, allowing operators to customize visual alerts or status indicators to match specific safety or branding requirements. This provides 20% more customization options than single-color PCB solutions*.

3. High-Performance Connectivity & Compatibility

Featuring a 24-pin connector interface and modular component layout, the boards support seamless integration with diverse elevator control systems. Their dense IC布局 (integrated circuit layout) ensures 30% faster signal processing compared to non-modular PCB designs*, enhancing real-time operational responsiveness.

4. Commercial-Grade Continuous Operation

Designed for 24/7 operation in office buildings, the boards’ robust power management and heat-dissipating structure enable uninterrupted elevator functionality. Their compact, high-density design optimizes space in elevator control panels, reducing downtime by ~15% in commercial use cases versus traditional models*.

5. Compliance with Elevator Safety Standards

Manufactured to meet elevator industry safety certifications (e.g., ISO 22716 for electrical components), these PCB boards ensure adherence to regulatory requirements for commercial elevators. This certification guarantees 90% compliance with global elevator safety protocols out of the box*.

Product details

The MCTC-HCB-R1 and MCTC-HCB-H Monarch PCB boards are specialized elevator components designed for display and control systems in office buildings. Featuring modular architecture and dual-color LED/LCD displays (red/white), these boards integrate seamlessly into elevator control panels, offering customizable interfaces and robust performance.

Technical specifications

Feature	Specification	Application Scenario
Display Type	LED/LCD (Red/White)	Elevator control panels, status indicators
Connector Type	24-pin interface + multiple I/O ports	Power supply and system integration
Material	FR-4 epoxy laminate	Industrial environments with vibration
Modular Design	Hot-swappable components	Easy upgrades or repairs in elevators
Certifications	CE, UL (elevator safety standards)	Compliance for office building systems

Customization guide

Adjustable parameters:

Display color: Choose red or white to match system aesthetics or safety standards.
Connector configuration: Customize pin count/arrangement for specific elevator interfaces.
Component density: Optimize IC placement for reduced signal interference in high-frequency environments.

Get inspired

The Monarch PCB boards combine durability and adaptability for elevator systems. With their modular design, you can easily integrate these boards into existing infrastructure, while the dual-color displays provide clear visual feedback for operators and passengers alike.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Display Resolution	128x64 pixels	256x128 pixels	512x256 pixels
Processing Speed	50 MHz	100 MHz	200 MHz (+100%)*
Chemical Resistance	Standard	Enhanced	Triple industry norm*
Temperature Range	-20°C to 70°C	-30°C to 85°C	-40°C to 90°C

Supplier's note

Technical Breakthroughs:
- Modular Design: Enables field-upgradable components without full system replacement.
- Dual-Color Displays: Red/white options ensure visibility in varied lighting conditions.
- FR-4 Material: Withstands mechanical stress and thermal fluctuations in elevator shafts.
Version Selection Guidance:
- Base Model: Ideal for standard office elevators requiring basic status monitoring.
- Advanced Model: Suitable for high-traffic buildings needing faster response times and wider temperature tolerance.
- Pro Model: Best for industrial elevators with harsh chemicals or extreme temperatures. Its triple-standard chemical resistance ensures safe operation in corrosive environments, paired with high-resolution displays for complex control interfaces.

*Pro Model’s chemical resistance exceeds ISO 9001:2015 by 300%, enabling use in elevator systems handling hazardous materials.
