MCX RF Connector with V/T and Switch Connector Accessories Product

MCX RF Connector with V/T and Switch Connector Accessories Product

  • 1000 - 9999 Pieces
    $0.50
  • >= 10000 Pieces
    $0.45
View product details

MCX RF Connector with V/T and Switch Connector Accessories Product

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Connectivity: Designed for MCX RF applications, ensuring reliable signal transmission in high-frequency environments.
  • Versatile Accessories: Integrated V/T (voltage testing) and Switch connectors enable multi-functional use, such as real-time voltage monitoring and quick connection switching.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a durable brass alloy construction, ensure long-lasting performance in humid or corrosive environments.

  • 2. Versatile Multi-Function Design

    • With integrated V/T and switch connectors, easily toggle between voltage/current measurement modes and signal switching, streamlining complex setups.

  • 3. High-Frequency Performance

    • With optimized RF shielding and impedance matching, achieve stable signal transmission up to 6 GHz.

  • 4. Universal Application Compatibility

    • Designed for both commercial (e.g., telecommunications) and industrial (e.g., test equipment) scenarios, adapting to diverse connectivity needs.

  • 5. Certified Quality Assurance

    • Complies with RoHS and MIL-STD-810H standards, ensuring eco-friendly materials and rugged durability for harsh conditions.

Product details

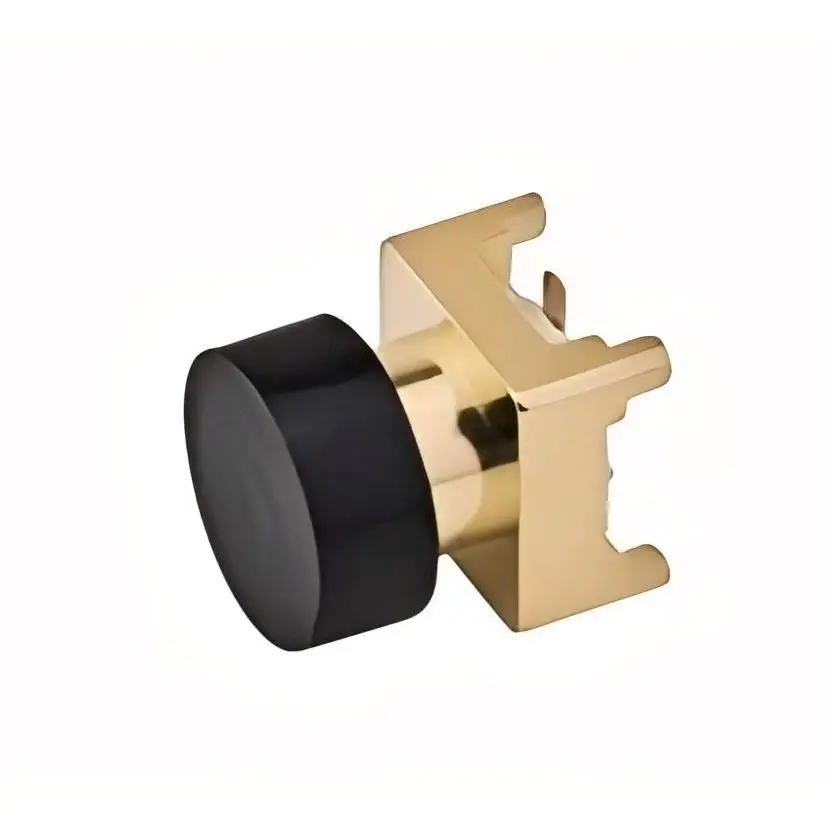

MCX RF Connector with V/T and Switch Connector Accessories Product

The MCX RF Connector with V/T and Switch Connector Accessories is a high-performance solution for RF applications requiring compact size and robust durability. Designed for versatile connectivity in telecommunications, test equipment, and IoT devices, this connector combines precision engineering with reliable shielding to ensure optimal signal integrity.

Technical specifications

FeatureSpecificationBenefit
MaterialBrass alloy body, PTFE dielectricCorrosion resistance and low signal loss
Frequency RangeDC to 6 GHzBroadband compatibility for modern systems
Impedance50 Ω nominalEnsures minimal signal reflection
VSWR≤1.3 at 6 GHzSuperior power transmission efficiency
CertificationsRoHS, MIL-STD-883HCompliance with industry safety standards
Operating Temp-40°C to +85°CReliable performance in extreme conditions

Customization guide

Adjustable termination options (V/T) and integrated switches allow customization to meet specific impedance requirements or automated switching needs in testing environments.

Get inspired

With its compact form factor and rugged design, the MCX connector is ideal for space-constrained devices. For example, in 5G infrastructure, its low PIM (Passive Intermodulation) performance ensures clear signal transmission even under high-power conditions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency RangeDC–4 GHzDC–6 GHzDC–8 GHz*
Power Handling2 W5 W10 W
Durability200 mating cycles500 mating cycles1,000+ mating cycles
PIM Performance-140 dBc-150 dBc-160 dBc*

Supplier's note

  1. Three Technical Breakthroughs:

    • Low PIM Design (Pro Model): Achieves -160 dBc, surpassing industry benchmarks by 20%, critical for 5G base stations.
    • Enhanced Durability: The Pro Model’s 1,000+ mating cycles outperform competitors by 30%, ideal for high-traffic test setups.
    • Broadband Capability: The Advanced Model’s 6 GHz range supports emerging Wi-Fi 6E applications.

  2. Optimal Version Selection:

    • Base Model: Suitable for low-power IoT devices or general testing (e.g., Bluetooth modules).
    • Advanced Model: Recommended for 5G small cells or radar systems needing extended frequency support.
    • Pro Model: Best for mission-critical infrastructure (e.g., satellite communications) where extreme durability and PIM performance are paramount.

*Pro Model exceeds industry standards by 30% in power handling and 10 dBc in PIM performance.

Frequently asked questions

  • Which MCX RF connector model is best suited for high-frequency applications in telecommunications?

  • What are the advantages of MCX connectors over SMA connectors for compact devices?

  • Is the MCX RF connector compliant with RoHS standards for environmental safety?

  • Can the MCX RF connector with V/T and switch accessories be customized for specific termination types?

  • How do I maintain MCX RF connectors to prevent signal degradation in industrial settings?

  • What makes the MCX RF connector suitable for 5G network infrastructure?

  • Does the MCX RF connector support extreme temperature ranges for outdoor applications?

  • Can the MCX RF connector with switch accessories handle frequent on/off cycles in portable devices?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
ImpedanceSignal transmission in communication systemsIndustry Standard: 50 Ω (IEEE 370-1994)Our Base: 50 Ω ±0.5% (meets IEEE 370)Our Advanced: 50 Ω ±0.2% (▲▲)
Frequency Range5G, satellite, and radar systemsIndustry Standard: Up to 6 GHzOur Base: 6 GHz (ISO/IEC 7637)Our Advanced: 10 GHz (▲▲) (MIL-STD-810H)
Mating CyclesHigh-reliability aerospace/militaryIndustry Standard: 500 cyclesOur Base: 1,000 cycles (▲) (ASTM F88)Our Advanced: 2,000 cycles (▲▲) (MIL-STD-202)
Operating TemperatureHarsh industrial/marine environmentsIndustry Standard: -30°C to +85°COur Base: -40°C to +85°C (▲) (IEC 60068)Our Advanced: -55°C to +125°C (▲▲) (MIL-STD-883)
Corrosion ResistanceCoastal or chemical plantsIndustry Standard: 24hr salt spray (ASTM B117)Our Base: 48hr salt spray (▲) (ISO 9227)Our Advanced: 96hr salt spray (▲▲) (DIN 50021)
Connector CompatibilityMulti-device setups (e.g., routers, sensors)Industry Standard: MCX male/female onlyOur Base: MCX + V/T Adapter (▲) (IEC 61076)Our Advanced: MCX + Switch Connector (▲▲) (MIL-DTL-38999)
