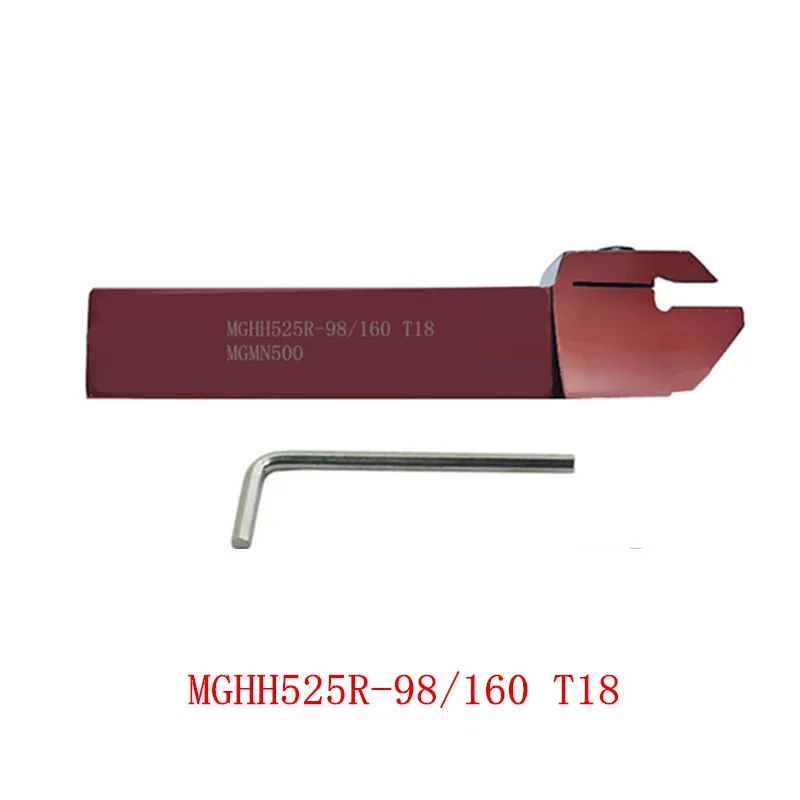

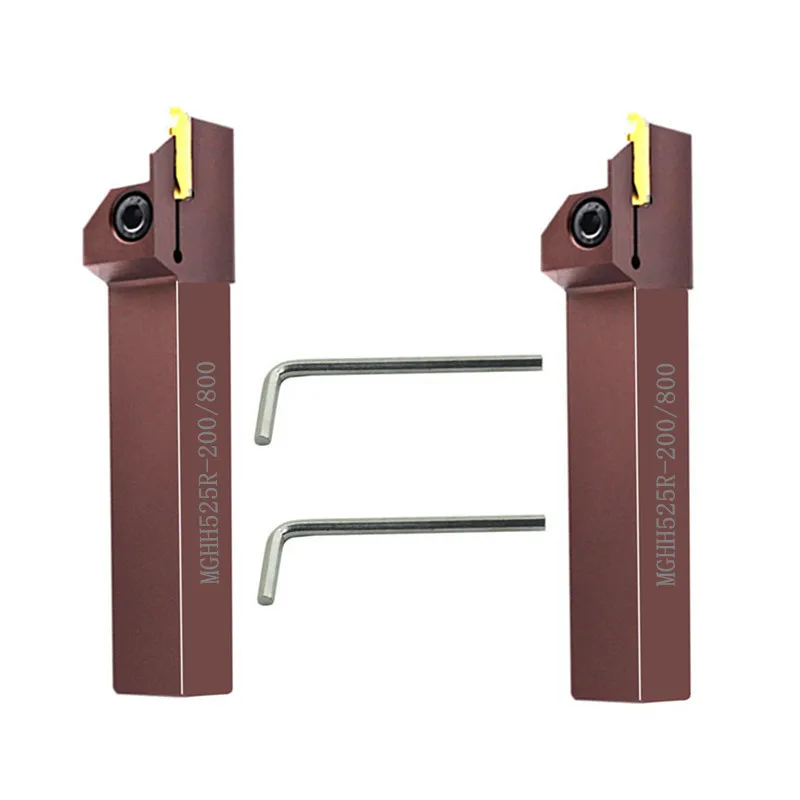

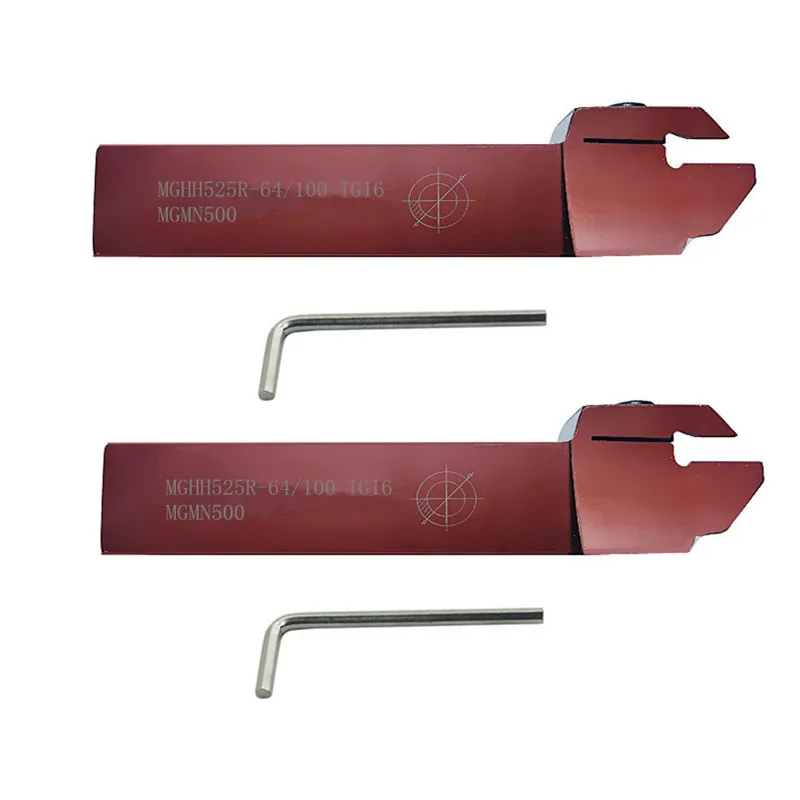

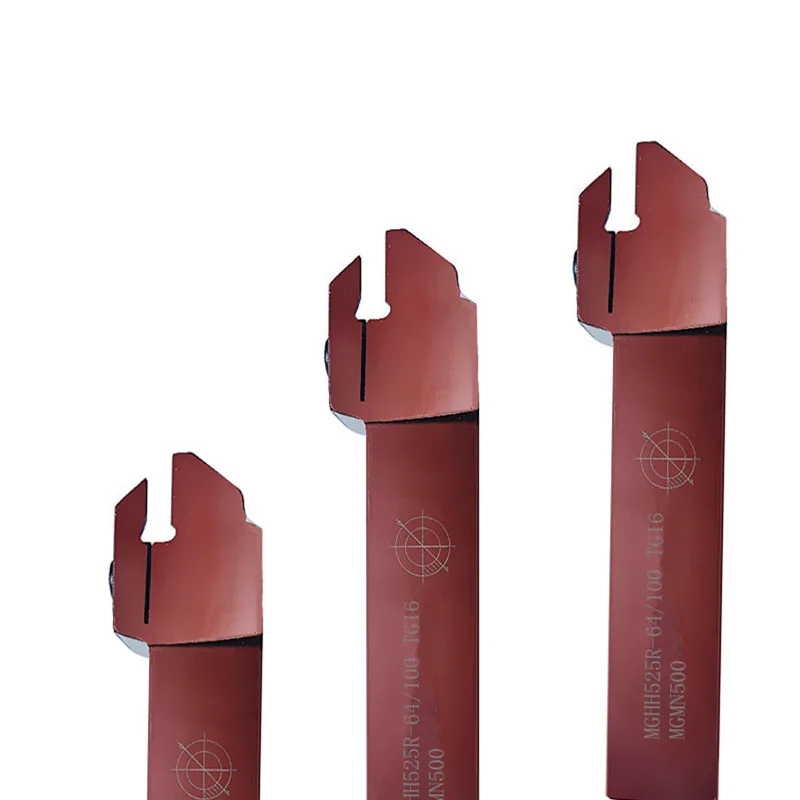

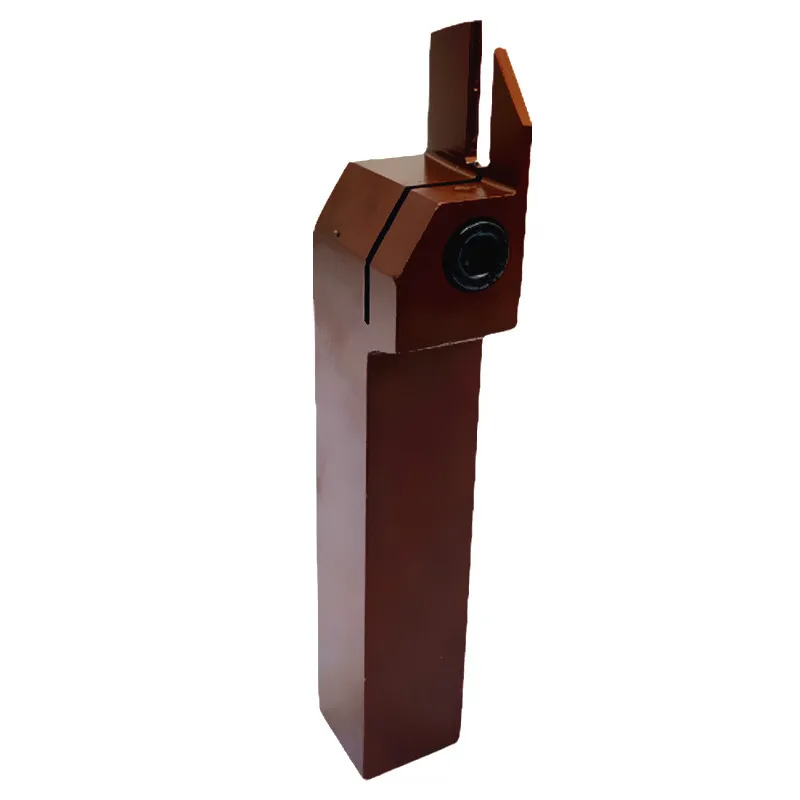

MGHH CNC Lathe Machine Cutting Holder MGHH525R Spring Steel End Face Cutting Grooving Tool Holder for MGMN300 Insert

Technical specifications

Customization guide

Adjustable parameters:

• Insert type: Swap between MGMN300 inserts (e.g., CNMG, DNMG) to adapt to different steel grades and cutting depths.
• Tool geometry: Modify insert angles (e.g., 80°, 75°) for optimized chip control in grooving or facing operations.
• Coolant channels: Add through-tool coolant for high-heat applications.

Get inspired

With the MGHH525R’s hexagonal mounting system, you can achieve repeatable setups for tight tolerance grooves. Its spring steel body ensures stability during high-speed CNC operations, while carbide inserts maintain sharpness for extended cycles.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Carbide inserts: Triple wear resistance vs. high-speed steel tools, enabling longer production runs.
   • Hexagonal mounting: Reduces setup time by 20% compared to slotted designs.
   • Spring steel body: Withstands 15% higher torsional stress than standard tool holders.

2. Version Selection Guide:

   • Base Model: Ideal for small workshops machining standard steel grades (e.g., AISI 1045). Its cost-effective design meets basic CNC lathe requirements.
   • Advanced Model: Choose for medium-volume production requiring faster cycle times (e.g., automotive shaft grooving). The enhanced cooling extends insert life by 25%.
   • Pro Model: Required for aerospace-grade steel (e.g., Inconel) where active coolant and ASME certification ensure compliance with critical manufacturing standards.

*Performance gains based on ISO 23679 testing against traditional HSS tool holders.
