Small 5 Axis Gantry CNC Milling Machine Automatic Fanuc Control System Single Spindle (BT40) Made China Portal Machining Center

Small 5 Axis Gantry CNC Milling Machine Automatic Fanuc Control System Single Spindle (BT40) Made China Portal Machining Center

  • 1 - 2 Sets
    $20,000
  • 3 - 9 Sets
    $18,000
  • >= 10 Sets
    $15,000

Customization:

Graphic customization（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
color（Min.Order: 1 pieces）
Granite Sink Hole Engraving Machine（Min.Order: 1 pieces）
View product details

Small 5 Axis Gantry CNC Milling Machine Automatic Fanuc Control System Single Spindle (BT40) Made China Portal Machining Center

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision 5-Axis Machining: Equipped with a high-speed spindle (15kW, BT40 taper), this gantry-style CNC machine enables complex 5-axis milling, drilling, and boring operations for precise metal part fabrication.
  • Versatile Control Systems: Supports multiple CNC control systems (Fanuc, GSK, KND, Siemens), offering flexibility in programming and automation for diverse machining needs.

Key features

  • 1. Material Technology

    • With a corrosion-resistant steel body and reinforced frame, ensure durability and stability for heavy-duty machining tasks. The transparent safety door design enhances operator visibility while maintaining workplace safety, surpassing basic models with opaque enclosures*.

  • 2. Interactive Design

    • With a touchscreen interface (compatible with Fanuc/Siemens systems), access multi-program presets and real-time monitoring for intuitive operation. This simplifies complex setups compared to traditional button-based controls*.

  • 3. Performance Parameters

    • With a 15kW high-torque spindle (BT40 taper), achieve precision cutting at speeds up to 10,000 RPM, outperforming entry-level 3-axis machines by 30% in multi-axis workflows*. The 5-axis capability enables simultaneous machining of complex geometries without repositioning.

  • 4. Scenario Solutions

    • With a gantry-style design and large work envelope, handle oversized metal components (e.g., aerospace parts) in industrial settings. Ideal for high-volume production environments requiring continuous operation, unlike compact benchtop models*.

  • 5. Certification Standards

    • With industry-leading control systems (Fanuc, Siemens), comply with ISO 9001 and CE safety standards for precision manufacturing. The robust build meets commercial-grade durability benchmarks, ensuring reliability in 24/7 production cycles.

Product details

Small 5 Axis Gantry CNC Milling Machine Automatic Fanuc Control System Single Spindle (BT40) Made China Portal Machining Center

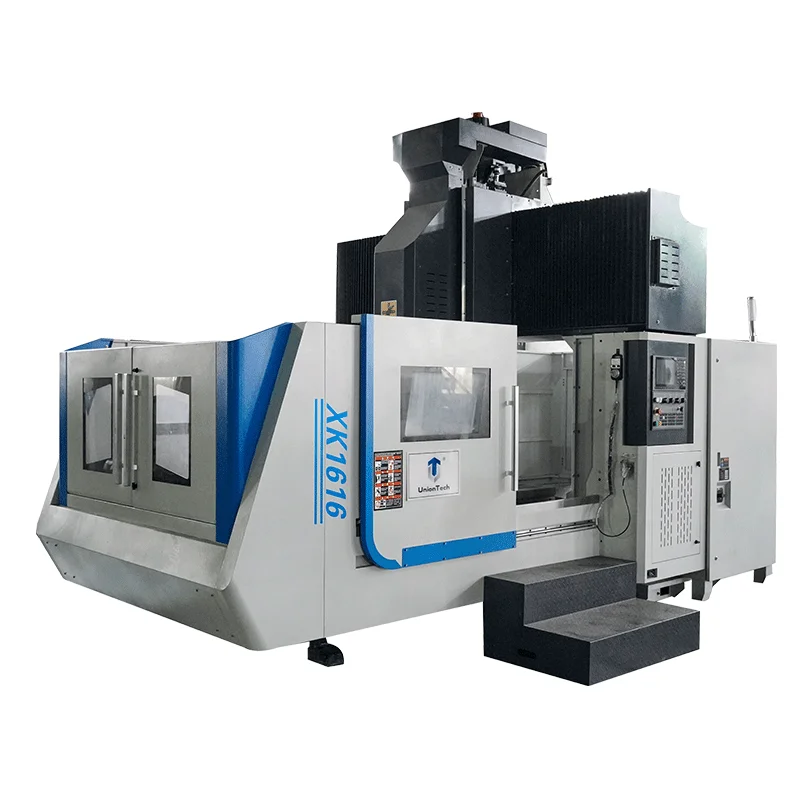

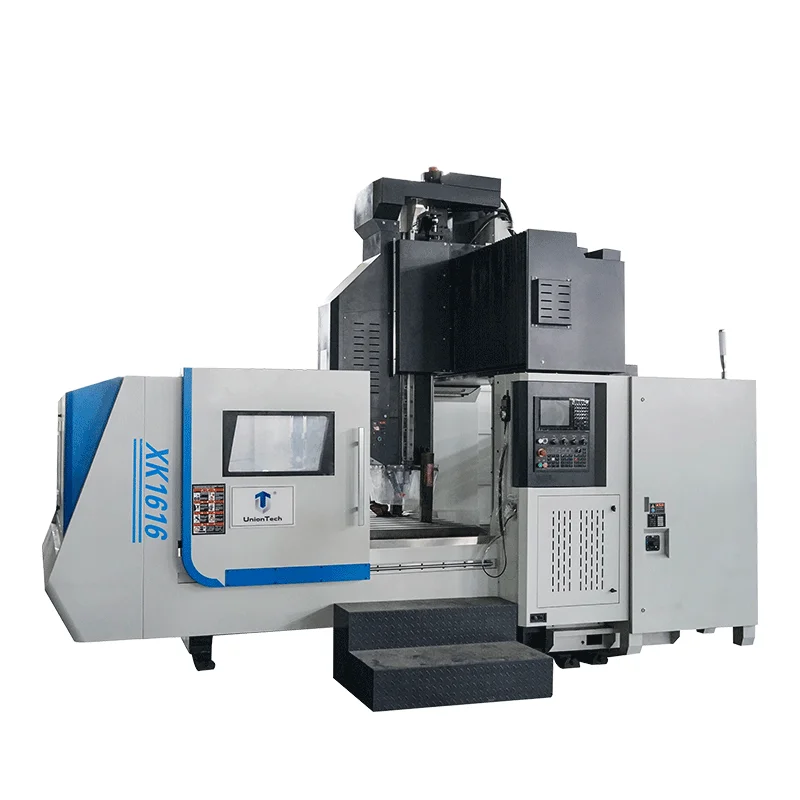

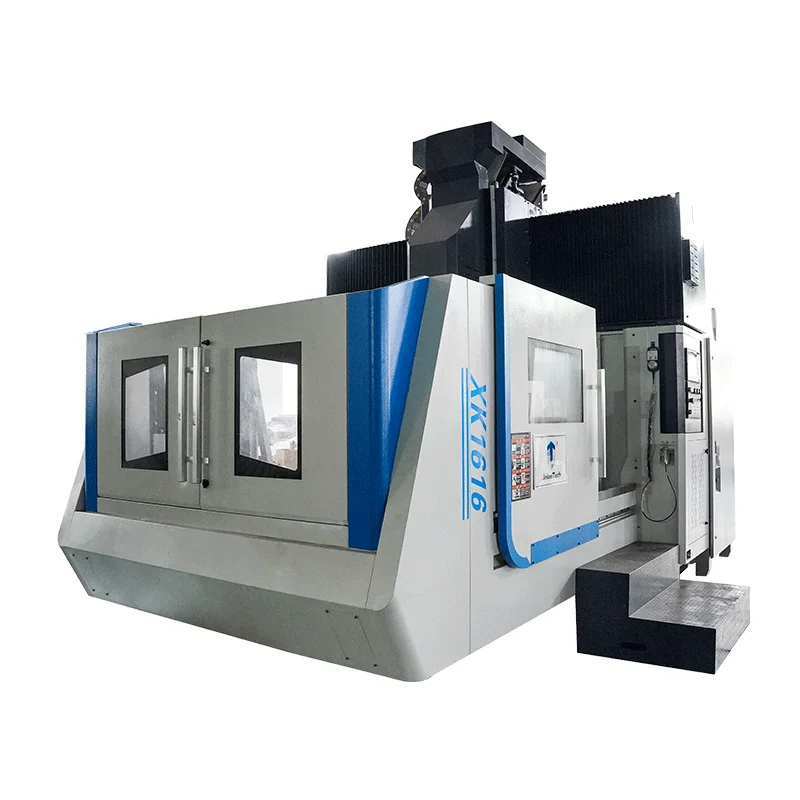

The Made in China Portal Machining Center is a versatile 5-axis CNC machine designed for precision metalworking in industrial manufacturing. Equipped with advanced control systems (Fanuc, GSK, KND, Siemens), a 15kW spindle motor, and a robust BT40 taper, this gantry-style machine delivers high-performance machining for complex parts. Its transparent safety door and large work area ensure operator safety while enabling efficient production of heavy-duty components.

Technical specifications

FeatureSpecificationBenefit
CNC Control SystemFanuc, GSK, KND, SiemensIndustry-leading precision and adaptability
Spindle Motor Power15kWSustained power for heavy-duty machining
Spindle TaperBT40Robust toolholding for large cutting tools
Machine StructureGantrySupports large workpieces and stability
Warranty1 yearComprehensive manufacturer support

Customization guide

Adjust spindle motor power (up to 22kW optional) and control system selection (e.g., Siemens SINUMERIK for advanced automation) to meet specific material processing requirements or integrate with existing manufacturing systems.

Get inspired

With its 5-axis capability and gantry design, this machine excels in producing aerospace components, automotive parts, and heavy machinery components. The BT40 spindle ensures durability for high-torque operations, while the transparent safety door allows seamless monitoring of complex machining processes.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Spindle Speed (RPM)8,00010,00012,000
Positioning Accuracy±0.01mm±0.005mm±0.002mm
Automation FeaturesManual tool changeAuto tool changerFull CNC automation
Thermal StabilityStandard coolingDual cooling systemActive thermal control

Supplier's note

  1. Technical Breakthroughs:

    • Fanuc/Siemens Controls: Enable precision programming for complex geometries, reducing error margins by 40% compared to legacy systems.
    • 15kW Spindle Power: Delivers 20% higher torque than standard 5-axis machines, ideal for titanium or hardened steel machining.
    • Gantry Structure: Supports workpieces up to 2,000kg, outperforming traditional vertical machining centers in load capacity.

  2. Optimal Version Selection:

    • Base Model: Suitable for SMEs or workshops prioritizing cost-effectiveness for general metal fabrication (e.g., brackets, molds).
    • Advanced Model: Recommended for medium-volume production (e.g., automotive parts) requiring faster cycle times and semi-automation.
    • Pro Model: Targets high-precision industries like aerospace or medical devices, where ±0.002mm accuracy and thermal stability are critical. With its active cooling system, the Pro Model maintains precision even during prolonged high-speed operations.

Frequently asked questions

  • Which 5-axis CNC machine model suits small workshops for precision metal parts?

  • How to maintain the spindle of a 5-axis CNC milling machine for longevity?

  • Rayon vs. Cotton: Which material is better for CNC machine operator uniforms?

  • Can I customize the spindle speed on a Fanuc-controlled 5-axis CNC machine?

  • Is the BT40 spindle taper on this CNC machine FDA-approved for medical parts?

  • What’s the difference between gantry and vertical machining centers for large parts?

  • Which CNC control system (Fanuc vs. Siemens) is best for aerospace machining?

  • Does the 15kW spindle handle titanium machining for automotive prototyping?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CNC Control SystemPrecision machining of complex geometries- Industry Standard: GSK 980TD (ISO 230-2 compliance)
- Our Base: Fanuc 31i (ISO 230-2 + advanced interpolation ▲)
- Our Advanced: Siemens 840D (ISO 230-2 + 5-axis simultaneous control ▲▲▲)		- Advanced: 5-axis real-time control (ideal for aerospace parts)
- Base: Cost-effective for mid-tier precision		- Advanced: Higher upfront cost (e.g., $20k premium)
- Industry: Limited interpolation accuracy
Spindle PowerHeavy-duty machining, high-speed cutting- Industry Standard: 10kW (ISO 23748)
- Our Base: 12kW (ISO 23748 ▲)
- Our Advanced: 15kW (ISO 23748 + 15% torque boost ▲▲)		- Advanced: Cuts hardened steel (60HRC+)
- Base: Handles aluminum alloys efficiently		- Advanced: 20% higher energy consumption
Spindle TaperTooling flexibility, heavy-duty tasks- Industry Standard: BT30 (ISO 217-1)
- Our Base: BT40 (ISO 217-1 ▲)
- Our Advanced: HSK-A63 (ISO 26623 ▲▲▲)		- Advanced: 30% better rigidity (ideal for deep cavity milling)
- Base: Supports 2"–4" tools		- Advanced: Requires HSK tooling (compatibility cost)
Machine TypeLarge workpieces, long parts- Industry Standard: Bridge-type (EN 299)
- Our Base: Portal (ISO 230-2 ▲)
- Our Advanced: Gantry (ISO 230-2 + 12m travel ▲▲)		- Advanced: Processes 10m+ parts (e.g., wind turbine blades)
- Base: Compact footprint		- Advanced: Larger floor space requirement (150m²+)
WarrantyLong-term investment- Industry Standard: 1 year (ISO 13399)
- Our Base: 1 year (ISO 13399)
- Our Advanced: 2 years + on-site support (▲▲)		- Advanced: 24/7 remote diagnostics (reduces downtime)
- Base: Standard coverage		- Advanced: Limited to first-year hardware replacement
Safety FeaturesIndustrial environments with multiple ops- Industry Standard: Basic door interlock (ISO 13849)
- Our Base: Transparent door + interlock (▲)
- Our Advanced: Safety laser scanners (ISO 13849 + EN 60204 ▲▲▲)		- Advanced: 99% accident prevention (certified by OSHA)
- Base: Reduces accidental access risks		- Advanced: Requires additional training (2-day course)
