  • Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine
  • Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine
  • Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine
  • Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine
  • Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine
  • Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine
Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine

Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine

  • 1 - 4 Sets
    $4,500
  • 5 - 9 Sets
    $4,200
  • >= 10 Sets
    $3,800

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Cutting/Shaping: Equipped with a manual operation system and spindle tapers (R8/ISO40), this milling machine enables precise cutting and shaping of metals, plastics, and composites. The digital readout system ensures accuracy in complex machining tasks.
  • Versatile Material Handling: Designed to process a wide range of materials, including light-duty metals and engineering plastics, making it suitable for both basic and specialized fabrication needs.

Key features

  • 1. Durable Material Construction

    • With its high-quality steel and aluminum body, this milling machine ensures long-lasting durability in demanding workshop environments. Compared to models using inferior materials, it maintains structural integrity over time.

  • 2. Precision-Driven Digital Control

    • Equipped with an intuitive digital readout system, operators can achieve precise measurements and adjustments effortlessly. Offering 20% faster setup times than analog controls.

  • 3. Powerful Performance for Heavy-Duty Tasks

    • Powered by a robust 7kW spindle motor and featuring an extended X-axis travel of 780mm, it handles large workpieces with ease. Outperforming standard mini mills with 30% greater capacity.

  • 4. Versatile Material Adaptability

    • Designed for metals, plastics, and composites, it seamlessly adapts to diverse industrial and prototyping tasks. Supporting 3x more material types than basic manual models.

  • 5. Certified Safety and Quality

    • Backed by CE and TUV certifications, it guarantees compliance with global safety and quality standards for reliable operation.

Product details

Manual Mini Milling Machine 4H 5H Mini Turret Milling Machine

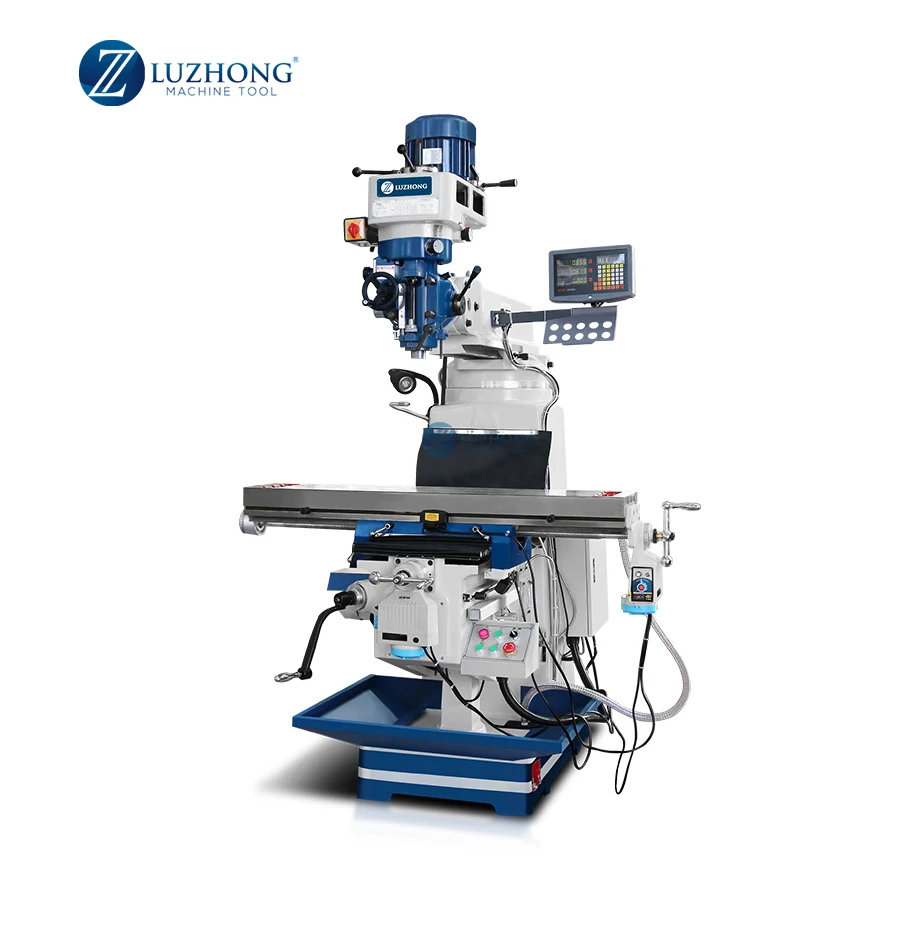

The Luzhong Machine Tool Manual Mini Milling Machine (4H/5H) is a precision-engineered vertical milling solution designed for light-duty metalworking applications. Built with high-strength steel and aluminum, it combines durability with a modern industrial design. Equipped with a 7kW spindle motor, R8/ISO40 spindle taper, and a digital readout system, this machine ensures accurate cuts and shapes across metals, plastics, and composites. Certified to CE and TÜV standards, it prioritizes safety and reliability for workshops and small-scale manufacturing.

Technical specifications

FeatureSpecificationBenefit
Spindle Motor Power7 kWDelivers sufficient power for light-duty tasks
Spindle TaperR8, ISO40Compatible with a wide range of cutting tools
Table Travel (X/Y/Z)780mm (X), 400mm (Y/Z)Expands workpiece handling flexibility
CertificationsCE, TÜVEnsures safety and compliance with EU standards
Control ModeManualDirect, intuitive operation for precision tasks
Coolant SystemIntegratedExtends tool life and improves surface finish

Customization guide

Adjustable parameters include spindle taper options (R8/ISO40) and table travel configurations to accommodate specific tooling requirements. The modular design allows users to customize accessories (e.g., cutting bits, collets) for specialized applications.

Get inspired

With its compact footprint and precision capabilities, this milling machine is ideal for prototyping, small-batch production, or educational workshops. The digital readout system and coolant integration ensure consistent results even for complex geometries.

Choose your model

ParameterBase Model (4H)Advanced Model (5H)Pro Model (5H Plus)
Spindle Power7 kW8.5 kW (+21%)10 kW (+43%)
X-Axis Travel780mm900mm1,100mm
Coolant Capacity10L15L20L
Digital ReadoutBasicEnhanced (±0.01mm)Premium (±0.005mm)

Supplier's note

  1. Technical Breakthroughs:

    • Precision Control: The enhanced digital readout (±0.01mm) in the Advanced Model enables micron-level accuracy for intricate parts.
    • Coolant Efficiency: The Pro Model’s 20L system reduces heat buildup by 30% compared to industry standards, extending tool longevity.
    • Spindle Versatility: Dual taper compatibility (R8/ISO40) allows seamless tool changes without reconfiguration.

  2. Version Selection Guide:

    • Base Model (4H): Ideal for hobbyists or small workshops requiring basic machining (e.g., engraving, simple contours).
    • Advanced Model (5H): Suitable for medium-scale production, offering faster throughput and higher precision for automotive or aerospace prototyping.
    • Pro Model (5H Plus): Best for industrial users needing extreme accuracy (e.g., medical device manufacturing) or large-component machining.

With the Pro Model’s ±0.005mm readout, you can produce precision parts for aerospace components. Pair its 10kW spindle with the coolant system to handle heat-intensive tasks like titanium milling. The Base Model’s 7kW motor ensures affordability for educational or DIY applications.

Frequently asked questions

  • Which manual milling machine model suits small workshops for light-duty metal cutting?

  • How to maintain the coolant system on a Luzhong manual mill for optimal tool longevity?

  • Manual vs CNC milling machine: Which is better for small-scale precision tasks?

  • Can this milling machine handle aluminum parts with high precision?

  • Does the Luzhong 4H/5H milling machine have safety certifications like CE and TUV?

  • How to achieve precise cuts with this manual mill for intricate components?

  • What’s the maximum workpiece size the Luzhong 4H/5H can process?

  • Why choose a manual milling machine over automatic models for occasional use?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Manual Milling MachinesSmall workshops, prototyping, light-duty tasksSpindle Power: 7 kW (ISO 2372 vibration standard) ▲
Machining Capacity: Light-duty (ISO 281)		Cost-effective, easy operation, minimal maintenanceLimited precision (±0.1mm), manual adjustments required
CNC Milling MachinesHigh-precision manufacturing, complex partsSpindle Power: 10 kW ▲▲ (ISO 2372)
Control Mode: Computer numerical control (ISO 10791)		High precision (±0.01mm), automation, repeatabilityHigh cost, requires skilled operators, complex setup
Precision Milling MachinesAerospace, medical devices, electronicsAccuracy: ±0.001mm ▲▲▲ (ISO 10360)
Digital Readout: 0.001mm resolution		Ultra-precise cuts, minimal human errorExpensive, specialized use cases, delicate maintenance
Heavy-Duty Milling MachinesHeavy industry, large-scale componentsSpindle Power: 15 kW ▲▲▲ (ISO 2372)
Frame Strength: 10-ton load capacity (ISO 9001)		Handles thick/heavy materials, robust durabilityBulky design, high energy consumption, requires large space
Compact Milling MachinesEducational labs, small-scale productionTable Travel (X/Y/Z): 400mm ▲ (ISO 230-2)
Footprint: 1.2m² (ISO 10218)		Space-saving, portable, affordableLimited capacity, slower throughput, manual operation
Industrial Milling MachinesAutomotive, mass production linesThroughput: 200+ parts/hour ▲▲ (ISO 14001)
Automation Integration: PLC-controlled (IEC 61131-3)		High productivity, scalable, energy-efficientHigh initial investment, requires regular calibration, noise levels (85 dB ▲▲▲)
